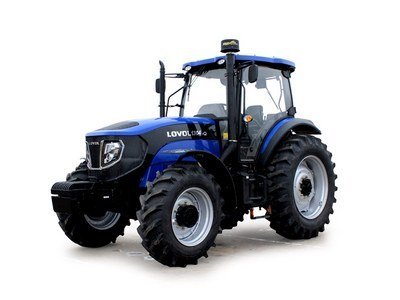

| Lovol Q1304 tractor adopts 16 + 8 synchronizer to shift gears. It is an agricultural model developed for families, small, medium, and large farms. Q Series tractors have the characteristics of comfortable driving, high efficiency, economical and energy-saving, reliable performance, etc., bringing you a new experience of high efficiency, multi-function, lasting power, and comfortable operation. |
|
1. Using the engine satisfies the EuroⅡemission standards, torque reserve coefficient ≥ 30%, traction force up to 29.5 KN; Synchronizer 16F+8R gear, easy to shift; Body appearance upgrade, high handling comfort. 2. Using LUK clutch, the United States Actuant instrument, strengthen front axle and chassis; Key parts and components are purchased from all over the world. The average Meaning time between faults is 220 hours, High product reliability. 3. Standard with three groups hydraulic output,; Using Category II suspension; Double cylinders high-pressure lifter, maximum lifting force up to 23KN; Optional 6 /8 /21 splines switch PTO output spline shaft, PTO rotation speed 540/720/850/1000 optional, suspension and swing traction optional, can be equipped with a variety of agricultural implements, to meet the needs of different operations. 5. OECD authentication ROPS |
| Item | Unit | Parameter |
| Engine | ||
| Model | Shangchai 7H | |
| Horsepower | HP | 130 |
| Displacement | L | 6.5 |
| Torque | N M | ≥580 |
| Transmission | ||
| Gearshift | 16+8 | |
| Technical route | Synchronizer shift | |
| Speed range | km/h | 1.65-35.44 |
| PTO speed | r/min | 540/1000 |
| Hydraulic | ||
| Lifting power | kN | 23 |
| Three-point suspension type | Category 2 | |
| Hydraulic output flow | L/min | 63 |
| Number of multi-way valves | 3 | |
| Parameter | ||
| length*width* height | mm | 5060×2285×3100 |
| Wheelbase | mm | 2700 |
| Ground clearance | mm | 470 |
| Turning radius | m | 4.7±0.3 |
| Minimum use quality | kg | 7500 |
| Tire size | 14.9-26/18.4-38 |
