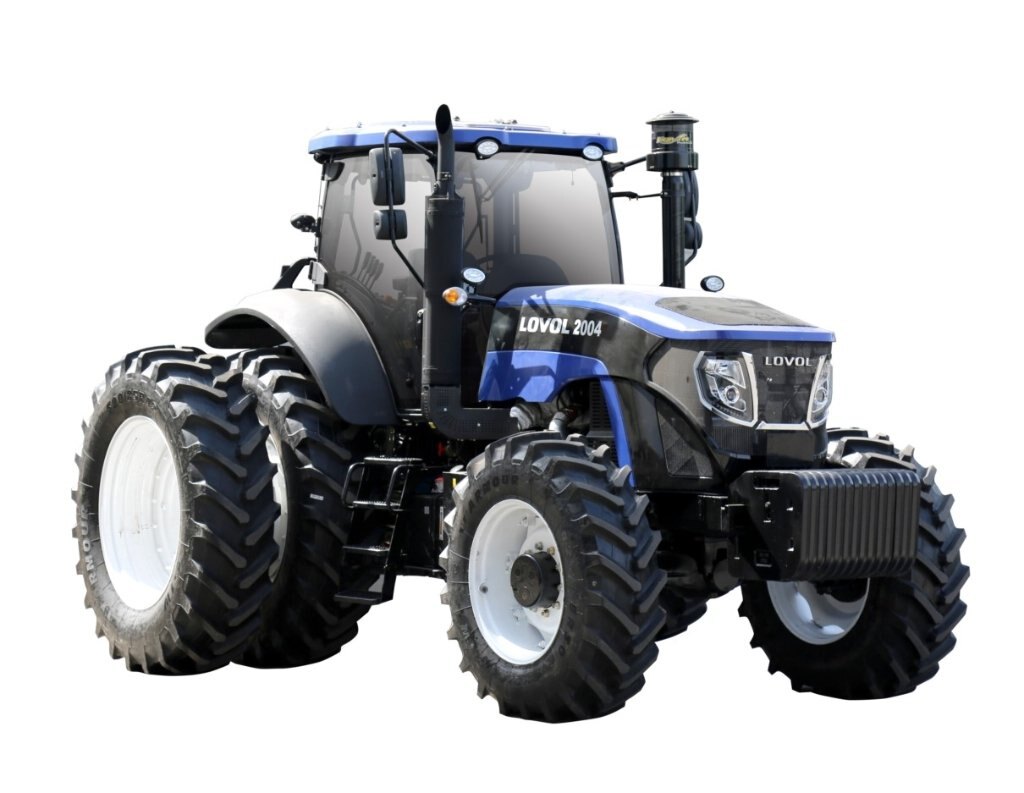

| Lovol R2004 tractor is equipped with 16+16 synchronizer for shifting. It is a farm tractor developed by Weichai Lovol Heavy Industry's technical team in Europe and is suitable for households and medium and large-sized farms. |
|
It works well with large machines and tools such as subsoilers, hydraulic reversible plows, and combined tillage machines, and is generally suitable for farmland tillage, sowing, deep scarification, transportation operation, and other working conditions. 1. Engine meeting Euro II emission standard, with torque reserve coefficient of ≥30% and traction force up to 40 KN; Synchronizer 16F+16R gears, easy shifting; Upgraded vehicle body outlook and comfort operation; |
| Item | Unit | Parameter |
| Engine | Shangchai SC7H210.3G2 | |
| Model | R2004 | |
| Horsepower | HP | 200 |
| Displacement | L | 6.44 |
| Torque | N M | 840±5%/1500±100 |
| Transmission | ||
| Gearshift | 16+16 | |
| Technical route | Synchronizer shuttle shift | |
| Speed range | km/h | 2.8-33.42 |
| PTO speed | r/min | 540/1000 |
| Hydraulic | ||
| Lifting power | kN | 65 |
| Three-point suspension type | Category 2/3 | |
| Hydraulic output flow | L/min | 75 |
| Number of multi-way valves | 2 | |
| Parameter | ||
| length*width* height | mm | 5300×2620×3010 |
| Wheelbase | mm | 2727 |
| Ground clearance | mm | 450 |
| Turning radius | m | 5.3±0.3 |
| Minimum use quality | kg | 6750/7500(Dual Wheel) |
| Tire size | 16.9-28/20.8-38(Dual Wheel) |
