ID # 25285443

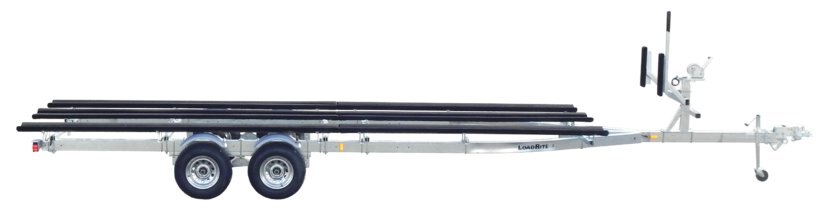

Load Rite P-20/22-2750TRI

  • Load Rite P 20/22 2750TRI
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

P-SERIES TRITOON TRAILERS

The P-Series Load Rite tritoon trailer is the latest evolution in Load Rite’s production of highly corrosion-resistant, supremely adjustable, and feature-filled trailers to fulfill the trailering needs of most any tritoon boat design currently available.

Each Load Rite tritoon trailer features a galvanized steel frame for superior anti-corrosion protection and ultimate service life.  Steel is an excellent material for boat trailer construction but when unprotected, or even traditionally painted, and exposed to water steel tends to corrode and diminish in strength over time.  Galvanization slows that process to a glacial crawl allowing a galvanized steel trailer to outlive a painted counterpart by many lifetimes.

Every Load Rite tritoon trailer is engineered with great features like galvanized torsion axle suspension(1) for a long-lasting, smooth and quite ride.  Where brakes are required, Load Rite tritoon trailers come standard with smooth stopping disc brakes which also offer the benefits of being self-cleaning and adjusting.  With standard LED lighting, this all means much less maintenance and more time on the water for every Load Rite tritoon trailer owner.

Some other standard features on all Load Rite tritoon models are: full-length, adjustable, carpeted main bunks; full-length, adjustable, carpeted center bunks; winchstand with carpeted bunks, two slip-resistant steps, and a safety handrail; bead-balanced tires on galvanized wheels; manual winch and tongue jack.

Load Rite offers a wide range of options to elevate any P-Series Load Rite tritoon to unrivaled levels of service and convenience.

All of these features are backed by the industry leading Load Rite 2 + 3 Warranty.
Specifications
Model
P-20/22-2750TRI
Category Name
Trailers
Year
2023
Sale Type
New
Manufacturer
Load Rite
AXLES
1
CAPACITY
2,750
TIRE SIZE
ST205/14C
SUSPENSION
Torsion
OVERALL WIDTH
98"
OVERALL LENGTH
27' 11"
'TOON CENTER MIN / MAX
66.5" - 78"
FRONT DECK TRANSOM MAXIMUM
22'
FRONT DECK TRANSOM MINIMUM
19' 6"
standard features

Load Rite P 20/22 2750TRI

Bias-Ply Tires

High quality USDOT-rated tires.  Standard on all 5 STARR, pontoon, skiff and jon models, and models 90″ wide and narrower.  Easily upgraded to radial tires at time of order.  Includes KENDACARE – LOADSTAR TIRE ROADSIDE ASSISTANCE PROGRAM.

Load Rite P 20/22 2750TRI Balanced Wheels 13″ and Larger

CounterAct Wheel Bead Balancing is now included on all 13″ and larger wheel assemblies as a standard feature.  The wheels dynamically balance during each use.
Visit counteractbalancing.com for more information.

Load Rite P 20/22 2750TRI Torsion Axles

Torsion axles provide independent suspension, exceptional rigidity, corrosion resistance, and a far superior ride to any leaf spring suspension.  Available on most models.

Load Rite P 20/22 2750TRI Greaseable Hubs

Trailer with peace of mind knowing that you’ve inspected the condition and topped off the lubricant level in each hub of your trailer.

Load Rite P 20/22 2750TRI

Disc Brakes (Where Installed)

This trailer is equipped with disc brakes (where installed).  Load Rite recommends disc brakes on all wheels where available.  Disc brakes are self-adjusting and self-cleaning and require minimal maintenance in order to continue to deliver top performance.  Follow maintenance tips in your Owners Manual for more detailed instructions.

Load Rite P 20/22 2750TRI

DOT Rated Tires and Lighting

All Load Rite original equipment tires and lighting components are fully DOT approved.
Load Rite P 20/22 2750TRI

LED Lighting

LED lights offer far greater reliability than incandescent fixtures.  Long-lasting and waterproof design make these lights ideal for any trailer application.
Load Rite P 20/22 2750TRI

Heat Shrunk, Shielded Wiring

Durable heat-shrunk connections help prevent corrosion for increased reliability of the lighting system.

Load Rite P 20/22 2750TRI

Carpeted Wood Bunks

Marine-grade carpeted wood bunks provide excellent support without marring the hull during loading and unloading.

Load Rite P 20/22 2750TRI

Plastic Fenders

Impact-resistant plastic fenders on models with 12″ and smaller wheels.  Wheels 13″ and larger require aluminum fenders.

Load Rite P 20/22 2750TRI Pontoon Standard Winch Stand

Standard pontoon winchstand for all models.  Assembly includes two integrated steps with non-slip surface and a handrail.  Includes two carpeted bunks to protect the pontoon deck.
Load Rite P 20/22 2750TRI

NMMA / NATM Certified

Each year Load Rite trailers undergo a detailed inspection process in order to earn the right to proudly display this certification on products we manufacture.
Load Rite P 20/22 2750TRI

2 Plus 3 Years Coupler to Taillight Warranty

Load Rite’s premiere warranty exclusive to our Elite line of trailers.
Load Rite P 20/22 2750TRI

KendaCare – LoadStar® Tire Roadside Assistance Program

Click here for more information from Americana Tire.
options
Load Rite P 20/22 2750TRI

Spare Tire and Carrier

The most important option to consider, every trailer should have a spare tire readily available.  Consult dealer for recommended bracket for individual application.

Load Rite P 20/22 2750TRI Radial Tires

Smoother riding and longer wear life than many bias-ply tires.  A highly recommended upgrade.  Available for 13″ and larger wheels.
Load Rite P 20/22 2750TRI

Aluminum Wheels

A stylish option available with bias-ply or radial tires for most models in 12″, 13″, 14″, 15″ and 16″ sizes.

Load Rite P 20/22 2750TRI Brakes on All Axles

Important Safety Issue – Brake Requirements

Brake laws vary by state and require dealers to sell trailers that comply with the brake laws of the state where the trailer will be registered.  This is a very important safety issue.  For full information contact the appropriate state Motor Vehicle Department.  As always, Load Rite recommends brakes on all axles where available.



Load Rite P 20/22 2750TRI Stainless Brakelines

A valuable upgrade to any trailer, but especially those to see service in coastal regions with salt water exposure.

Load Rite P 20/22 2750TRI Electric Over Hydraulic Brakes

EOH brakes offer electric in-cab control of standard hydraulic disc brakes.  Requires in-cab controller and 7-pin round electrical connection to the tow vehicle.

Load Rite P 20/22 2750TRI Ladder Winch Stand, Steps and Hand Rail Loop

With the popularity of pontoon boats exploding on the marketplace, Load Rite has developed a 4-step ladder winchstand packed with features to make accessing the pontoon deck from the ground easier and safer for everyone.
The bottom step is conveniently located below the top of the tongue, an easy reach for all. Each step is covered with non-skid traction tape to help prevent against slips and falls from wet soles. The curved grab rail provides stability for all ages while climbing steps and transitioning to and from the deck.

Load Rite P 20/22 2750TRI Plastic Bunk Covers

These multi-purpose covers provide a smooth surface to help the boat or pontoon to slide easier when launching and loading.  They also offer an insulating barrier to help prevent corrosion for metallic hulled craft.  Protect your aluminum hull.

Load Rite P 20/22 2750TRI

2″ by 6″ Bunks

Marine grade carpet over 2″ x 6″ dimensional lumber.

Load Rite P 20/22 2750TRI Inner Guides (2)

Available for all pontoon and tritoon models.

Load Rite P 20/22 2750TRI Inner Guides (4)

Available for all pontoon and tritoon models.

Load Rite P 20/22 2750TRI Drop-Style Tongue Jack

An upgraded jack that provides greater capacities and fast setup with no need to swivel.

Load Rite P 20/22 2750TRI Swing Tongue

Applications are limited by trailer capacity and tongue length.  Not available on models exceeding 6,000 lbs. capacity.  Consult with a dealer.
literature
Name Link
SPEC SHEET Download
Load Rite Owners Manual Download
