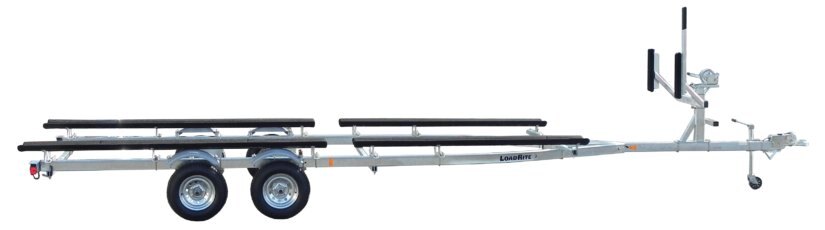

Load Rite P-162200NT
Call for Price
Overview
Specifications
standard features
options
literature
P-SERIES PONTOON TRAILERSThe P-Series Load Rite pontoon trailer is the latest evolution in Load Rite’s production of highly corrosion-resistant, supremely adjustable, and feature-filled trailers to fulfill the trailering needs of most any pontoon boat design currently available. Each Load Rite pontoon trailer features a galvanized steel frame for superior anti-corrosion protection and ultimate service life. Steel is an excellent material for boat trailer construction but when unprotected, or even traditionally painted, and exposed to water steel tends to corrode and diminish in strength over time. Galvanization slows that process to a glacial crawl allowing a galvanized steel trailer to outlive a painted counterpart by many lifetimes. Every Load Rite pontoon trailer is engineered with great features like galvanized torsion axle suspension(1) for a long-lasting, smooth and quite ride. Where brakes are required, Load Rite pontoon trailers come standard with smooth stopping disc brakes which also offer the benefits of being self-cleaning and adjusting. And standard LED lighting. This all means much less maintenance and more time on the water for every Load Rite pontoon trailer owner. Some other standard features on all Load Rite pontoon models are: full-length, adjustable, carpeted bunks; winchstand with carpeted bunks, two slip-resistant steps, and a safety handrail(2); bead-balanced tires on galvanized wheels; manual winch and tongue jack. Load Rite offers a wide range of options to elevate any P-Series Load Rite pontoon to unrivaled levels of service and convenience. All of these features are backed by the industry leading Load Rite 2 + 3 Warranty. |
Model
P-162200NT
Category Name
Trailers
Year
2023
Sale Type
New
Manufacturer
Load Rite
AXLES
1
CAPACITY
2,200
TIRE SIZE
ST175/13D
SUSPENSION
TORSION
OVERALL WIDTH
98"
OVERALL LENGTH
19'
'TOON CENTER MIN / MAX
59" - 70"
FRONT DECK TRANSOM MAXIMUM
16'
FRONT DECK TRANSOM MINIMUM
13' 6"
STANDARD FEATURES
|
Galvanized Steel Frame Tubular structural steel, fully hot dip galvanized, provides the ultimate finish for any boat trailer. Tubular design shrouds wiring and brake lines from damage. All machining and welding is performed before galvanizing, so there are no surfaces left unprotected from a boat trailer’s ultimate enemy: corrosion. |
|
CounterAct Wheel Bead Balancing is now included on all 13″ and larger wheel assemblies as a standard feature. The wheels dynamically balance during each use. |
|
Torsion axles provide independent suspension, exceptional rigidity, corrosion resistance, and a far superior ride to any leaf spring suspension. Available on most models. |
|
|
|
Trailer with peace of mind knowing that you’ve inspected the condition and topped off the lubricant level in each hub of your trailer. |
|
Bias-Ply Tires High quality USDOT-rated tires. Standard on all 5 STARR, pontoon, skiff and jon models, and models 90″ wide and narrower. Easily upgraded to radial tires at time of order. Includes KENDACARE – LOADSTAR TIRE ROADSIDE ASSISTANCE PROGRAM. |
|
DOT Rated Tires and Lighting All Load Rite original equipment tires and lighting components are fully DOT approved. |
Disc Brakes (Where Installed)
This trailer is equipped with disc brakes (where installed). Load Rite recommends disc brakes on all wheels where available. Disc brakes are self-adjusting and self-cleaning and require minimal maintenance in order to continue to deliver top performance. Follow maintenance tips in your Owners Manual for more detailed instructions. |
LED Lighting LED lights offer far greater reliability than incandescent fixtures. Long-lasting and waterproof design make these lights ideal for any trailer application. |
Heat Shrunk, Shielded Wiring Durable heat-shrunk connections help prevent corrosion for increased reliability of the lighting system. |
|
Adjustable Carpeted Bunks Traditionally known as V-bunks, this system offers both high strength and a wide range of adjustability. Out of adjustment? There are shorter and taller bolster brackets available in many heights. |
|
Plastic Fenders Impact-resistant plastic fenders on models with 12″ and smaller wheels. Wheels 13″ and larger require aluminum fenders. |
|
Standard pontoon winchstand for all models. Assembly includes two integrated steps with non-slip surface and a handrail. Includes two carpeted bunks to protect the pontoon deck. |
|
Standard on all models. |
|
A winch is standard equipment on all boat and PWC models. Capacity and features vary by application. |
NMMA / NATM Certified Each year Load Rite trailers undergo a detailed inspection process in order to earn the right to proudly display this certification on products we manufacture. |
2 Plus 3 Years Coupler to Taillight Warranty Load Rite’s premiere warranty exclusive to our Elite line of trailers. |
KendaCare – LoadStar® Tire Roadside Assistance Program Click here for more information from Americana Tire. |
Balanced Wheels 13″ and Larger
Torsion Axles
Leaf Spring Axles
Greaseable Hubs
Pontoon Standard Winch Stand
Pontoon tongue jack
Winch OPTIONS
Spare Tire and Carrier The most important option to consider, every trailer should have a spare tire readily available. Consult dealer for recommended bracket for individual application. |
|
Smoother riding and longer wear life than many bias-ply tires. A highly recommended upgrade. Available for 13″ and larger wheels. |
Aluminum Wheels A stylish option available with bias-ply or radial tires for most models in 12″, 13″, 14″, 15″ and 16″ sizes. |
|
Important Safety Issue – Brake Requirements Brake laws vary by state and require dealers to sell trailers that comply with the brake laws of the state where the trailer will be registered. This is a very important safety issue. For full information contact the appropriate state Motor Vehicle Department. As always, Load Rite recommends brakes on all axles where available.
|
|
A valuable upgrade to any trailer, but especially those to see service in coastal regions with salt water exposure. |
|
EOH brakes offer electric in-cab control of standard hydraulic disc brakes. Requires in-cab controller and 7-pin round electrical connection to the tow vehicle. |
|
With the popularity of pontoon boats exploding on the marketplace, Load Rite has developed a 4-step ladder winchstand packed with features to make accessing the pontoon deck from the ground easier and safer for everyone. |
|
These multi-purpose covers provide a smooth surface to help the boat or pontoon to slide easier when launching and loading. They also offer an insulating barrier to help prevent corrosion for metallic hulled craft. Protect your aluminum hull. |
|
2″ by 6″ Bunks Marine grade carpet over 2″ x 6″ dimensional lumber. |
|
Available for all pontoon and tritoon models. |
|
Available for all pontoon and tritoon models. |
|
An upgraded jack that provides greater capacities and fast setup with no need to swivel. |
|
Applications are limited by trailer capacity and tongue length. Not available on models exceeding 6,000 lbs. capacity. Consult with a dealer. |
Radial Tires
Brakes on All Axles
Stainless Brakelines
Electric Over Hydraulic Brakes
Ladder Winch Stand, Steps and Hand Rail Loop
Plastic Bunk Covers
Inner Guides (2)
Inner Guides (4)
Drop-Style Tongue Jack
Swing Tongue Model
P-162200NT
Category Name
Trailers
Year
2023
Sale Type
New
Manufacturer
Load Rite
Quantity
1
AXLES
1
CAPACITY
2,200
TIRE SIZE
ST175/13D
