Ventrac
ID # 25281550
Load Rite 5S-19245090VT
Call for Price
Overview
Specifications
standard features
options
literature

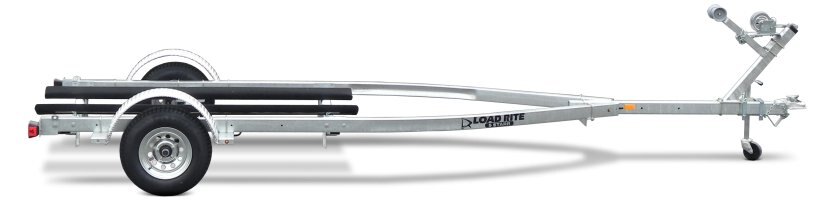

5 STARR GALVANIZED SINGLE AXLE BUNKOur 5 STARR V-bunk models feature a heavy-duty galvanized steel frame built to withstand salt, mud and wet conditions without corroding. Its patented tubular construction provides exceptional strength and shrouds wiring and brake lines from damage during use. The carpeted wood bunks are a simple “set and forget” design. Torsion axles, disc brakes, and LED lights are standard on all models. With a wide array of available options, our 5 STARR trailers provide the Load Rite durability and performance you’re looking for at an exceptional value. All of these features are backed by the industry leading Load Rite / 5 STARR 2 + 3 Warranty. |
Model
5S-19245090VT
Category Name
Trailers
Year
2023
Sale Type
New
Manufacturer
Load Rite
CAPACITY
2,450
BUNK TYPE
V
TIRE SIZE
ST205/14C
# OF ROLLERS
48
OVERALL WIDTH
89"
TORSION AXLES
2
OVERALL LENGTH
19' 11"
BETWEEN FENDERS
73"
BOW EYE TO TRANSOM MAXIMUM
17' 1"
BOW EYE TO TRANSOM MINIMUM
15' 3"
STANDARD FEATURES
|
Galvanized Steel Frame Tubular structural steel, fully hot dip galvanized, provides the ultimate finish for any boat trailer. Tubular design shrouds wiring and brake lines from damage. All machining and welding is performed before galvanizing, so there are no surfaces left unprotected from a boat trailer’s ultimate enemy: corrosion. |
Torsion Axles Torsion axles provide independent suspension, exceptional rigidity, corrosion resistance, and a far superior ride to any leaf spring suspension. Available on most models. |
|
Trailer with peace of mind knowing that you’ve inspected the condition and topped off the lubricant level in each hub of your trailer. |
|
This trailer is equipped with disc brakes (where installed). Load Rite recommends disc brakes on all wheels where available. Disc brakes are self-adjusting and self-cleaning and require minimal maintenance in order to continue to deliver top performance. Follow maintenance tips in your Owners Manual for more detailed instructions. |
Bias-Ply Tires High quality USDOT-rated tires. Standard on all 5 STARR, pontoon, skiff and jon models, and models 90″ wide and narrower. Easily upgraded to radial tires at time of order. Includes KENDACARE – LOADSTAR TIRE ROADSIDE ASSISTANCE PROGRAM. |
Balanced Wheels 13″ and Larger CounterAct Wheel Bead Balancing is now included on all 13″ and larger wheel assemblies as a standard feature. The wheels dynamically balance during each use. |
|
LED Lighting LED lights offer far greater reliability than incandescent fixtures. Long-lasting and waterproof design make these lights ideal for any trailer application. |
Heat Shrunk, Shielded Wiring Durable heat-shrunk connections help prevent corrosion for increased reliability of the lighting system. |
One-piece aluminum fender Stylish one-piece aluminum diamond-plate fender design is featured on all tandem and triaxle boat trailers. |
Adjustable Carpeted Bunks Traditionally known as V-bunks, this system offers both high strength and a wide range of adjustability. Out of adjustment? There are shorter and taller bolster brackets available in many heights. |
Tongue Jack Tongue jacks are standard equipment on all Load Rite Elite models 90″ wide and wider except two-place PWC models, all 5 STARR models, and all UT, EQ, and CH models. Appearance and specifications vary by application. Tongue jacks are optional on all other models. |
NMMA / NATM Certified Each year Load Rite trailers undergo a detailed inspection process in order to earn the right to proudly display this certification on products we manufacture. |
2 Plus 3 Years Coupler to Taillight Warranty Load Rite’s premiere warranty exclusive to our Elite line of trailers. |
KendaCare – LoadStar® Tire Roadside Assistance Program Click here for more information from Americana Tire. |
Greaseable Hubs
Disc Brakes (Where Installed)
OPTIONS
|
Radial Tires Smoother riding and longer wear life than many bias-ply tires. A highly recommended upgrade. Available for 13″ and larger wheels. |
Aluminum Wheels A stylish option available with bias-ply or radial tires for most models in 12″, 13″, 14″, 15″ and 16″ sizes. |
Brakes on All Axles Important Safety Issue – Brake Requirements Brake laws vary by state and require dealers to sell trailers that comply with the brake laws of the state where the trailer will be registered. This is a very important safety issue. For full information contact the appropriate state Motor Vehicle Department. As always, Load Rite recommends brakes on all axles where available. |
Stainless Steel Disc Brakes Optional stainless steel brakes available for most 14″, 15″ and 16″ wheel applications. Can be used with surge and electric over hydraulic actuators.* May require optional axle installation. Check with your local dealer before ordering. |
Stainless Brakelines A valuable upgrade to any trailer, but especially those to see service in coastal regions with salt water exposure. |
Electric Over Hydraulic Brakes EOH brakes offer electric in-cab control of standard hydraulic disc brakes. Requires in-cab controller and 7-pin round electrical connection to the tow vehicle. |
|
Carpeted Skirted Fender Skirted fenders protect the hull finish in two ways. First, the carpet facing the hull help protect from fender contact while loading and unloading. Second, it protects the hull from road debris picked up by the tires. Two valuable precautions for a treasured friend. Optional on most models with aluminum fenders as standard equipment. Some models require galvanized fender step to accommodate this option. |
Drop-Style Tongue Jack An upgraded jack that provides greater capacities and fast setup with no need to swivel. |
Plastic Bunk Covers These multi-purpose covers provide a smooth surface to help the boat or pontoon to slide easier when launching and loading. They also offer an insulating barrier to help prevent corrosion for metallic hulled craft. Protect your aluminum hull. |
Swing Tongue Applications are limited by trailer capacity and tongue length. Not available on models exceeding 6,000 lbs. capacity. Consult with a dealer. |
|
Carpeted Side Guides Standard on most skiff and jon models. Available in many styles and sizes per application requirements. Skiff-style shown. |
Rubber Fenders Rubber fenders are intended for use on dealer yard trailers. Yard trailers need the flexibility to adapt to many different hull shapes without imparting any damage in the process. Rubber fenders minimize the possibility of damage should the fender contact the boat hull. |
Model
5S-19245090VT
Category Name
Trailers
Year
2023
Sale Type
New
Manufacturer
Load Rite
Quantity
1
CAPACITY
2,450
BUNK TYPE
V
TIRE SIZE
ST205/14C
