Load Rite 22T5000102TSA1
Call for Price
Overview
Specifications
standard features
options
literature
Documents

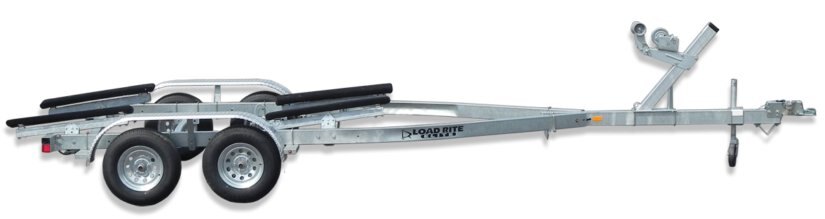

LOAD RITE GALVANIZED TANDEM AXLE SA® BUNKLoad Rite’s SA® Bunk models offer a hybrid technology combining the articulation of a roller model with the expanded hull contact of a bunk. This combination greatly simplifies setup, launching, and loading. Our heavy-duty galvanized steel frame is built to perform in salt, mud and fresh water without corroding, season after season. Its patented tubular construction provides exceptional strength and shrouds wiring and brake lines from damage during hauling. Torsion axles, disc brakes, bead-balanced radial tires, and LED lights are all standard equipment on these models. Easy to load and launch, SA® Bunk models are a great alternative to both roller and traditional bunk models. All of these features are backed by the industry leading Load Rite 2 + 3 Warranty. |
Model
22T5000102TSA1
Category Name
Trailers
Year
2023
Sale Type
New
Manufacturer
Load Rite
AXLES
2
BRAKES
1, 2
CAPACITY
5,000
BUNK TYPE
SA
TIRE SIZE
ST205/R14C
OVERALL WIDTH
102"
OVERALL LENGTH
24' 6"
BETWEEN FENDERS
82"
BOW EYE TO TRANSOM MAXIMUM
20' 3"
BOW EYE TO TRANSOM MINIMUM
17' 1"
STANDARD FEATURES
|
Galvanized Steel Frame Tubular structural steel, fully hot dip galvanized, provides the ultimate finish for any boat trailer. Tubular design shrouds wiring and brake lines from damage. All machining and welding is performed before galvanizing, so there are no surfaces left unprotected from a boat trailer’s ultimate enemy: corrosion. |
Torsion Axles Torsion axles provide independent suspension, exceptional rigidity, corrosion resistance, and a far superior ride to any leaf spring suspension. Available on most models. |
|
Trailer with peace of mind knowing that you’ve inspected the condition and topped off the lubricant level in each hub of your trailer. |
Radial Tires Tow smoother, quieter, and farther with radial tires installed on your trailer. Original equipment on Load Rite Elite 5 STARR models with 13″ and larger wheels except skiff and pontoon models. Optional on all pontoon and skiff / jon models. Includes KENDACARE – LOADSTAR TIRE ROADSIDE ASSISTANCE PROGRAM. |
Balanced Wheels 13″ and Larger CounterAct Wheel Bead Balancing is now included on all 13″ and larger wheel assemblies as a standard feature. The wheels dynamically balance during each use. |
|
LED Lighting LED lights offer far greater reliability than incandescent fixtures. Long-lasting and waterproof design make these lights ideal for any trailer application. |
Heat Shrunk, Shielded Wiring Durable heat-shrunk connections help prevent corrosion for increased reliability of the lighting system. |
SA® Bunk SA® Bunk trailers come with individual pivot bar mounted carpeted bunks that each pivot side to side and fore and aft. Very easy to set up, launch, and load. Great load dispersion over the combined bunk surface. Shown with optional Quick Slide® bunk cover installed. |
One-piece aluminum fender Stylish one-piece aluminum diamond-plate fender design is featured on all tandem and triaxle boat trailers. |
Large Wheel Galvanized Tongue Jack This jack is loaded with features. Fully galvanized, 8″ diameter wheel for rolling ease, double pin locking mechanism, and a spring-loaded handle that swivels out of the way when not in use. |
Disc Brakes (Where Installed) This trailer is equipped with disc brakes (where installed). Load Rite recommends disc brakes on all wheels where available. Disc brakes are self-adjusting and self-cleaning and require minimal maintenance in order to continue to deliver top performance. Follow maintenance tips in your Owners Manual for more detailed instructions. |
Winch A winch is standard equipment on all boat and PWC models. Capacity and features vary by application. |
Winch Stand Standard equipment on all boat and PWC models. Specifications vary by applicaton. |
NMMA / NATM Certified Each year Load Rite trailers undergo a detailed inspection process in order to earn the right to proudly display this certification on products we manufacture. |
2 Plus 3 Years Coupler to Taillight Warranty Load Rite’s premiere warranty exclusive to our Elite line of trailers. |
KendaCare – LoadStar® Tire Roadside Assistance Program Click here for more information from Americana Tire. |
Greaseable Hubs
OPTIONS
|
The most important option to consider, every trailer should have a spare tire readily available. Consult dealer for recommended bracket for individual application. |
Aluminum Wheels A stylish option available with bias-ply or radial tires for most models in 12″, 13″, 14″, 15″ and 16″ sizes. |
Brakes on All Axles Important Safety Issue – Brake Requirements Brake laws vary by state and require dealers to sell trailers that comply with the brake laws of the state where the trailer will be registered. This is a very important safety issue. For full information contact the appropriate state Motor Vehicle Department. As always, Load Rite recommends brakes on all axles where available. |
Stainless Steel Disc Brakes Optional stainless steel brakes available for most 14″, 15″ and 16″ wheel applications. Can be used with surge and electric over hydraulic actuators.* May require optional axle installation. Check with your local dealer before ordering. |
Stainless Brakelines A valuable upgrade to any trailer, but especially those to see service in coastal regions with salt water exposure. |
Electric Over Hydraulic Brakes EOH brakes offer electric in-cab control of standard hydraulic disc brakes. Requires in-cab controller and 7-pin round electrical connection to the tow vehicle. |
|
Plastic Bunk Covers These multi-purpose covers provide a smooth surface to help the boat or pontoon to slide easier when launching and loading. They also offer an insulating barrier to help prevent corrosion for metallic hulled craft. Protect your aluminum hull. |
|
Carpeted Skirted Fender Skirted fenders protect the hull finish in two ways. First, the carpet facing the hull help protect from fender contact while loading and unloading. Second, it protects the hull from road debris picked up by the tires. Two valuable precautions for a treasured friend. Optional on most models with aluminum fenders as standard equipment. Some models require galvanized fender step to accommodate this option. |
PVC Side Guides PVC side guides provide additional guidance when lining up to load on steep ramps. Optional on most other boat trailers including all 5 STARR models. |
Drop-Style Tongue Jack An upgraded jack that provides greater capacities and fast setup with no need to swivel. |
Carpeted Side Guides Standard on most skiff and jon models. Available in many styles and sizes per application requirements. Skiff-style shown. |
102″ Overall Width (96″ and Wider Models) Add extra width to standard 96″ wide trailers. |
Independent Bow Stop Adjustable, galvanized steel, Independent Bow Stop Assembly. Telescopic post, 2×6″ wooden carpeted wedge pivots to adapt to bow angle. Mounts to the tongue. Useful as a forward stop for boats with a high bow, bow pulpit or windlass that could interfere with normal winchstand operation. |
Rubber Fenders Rubber fenders are intended for use on dealer yard trailers. Yard trailers need the flexibility to adapt to many different hull shapes without imparting any damage in the process. Rubber fenders minimize the possibility of damage should the fender contact the boat hull. |
Spare Tire and Carrier
