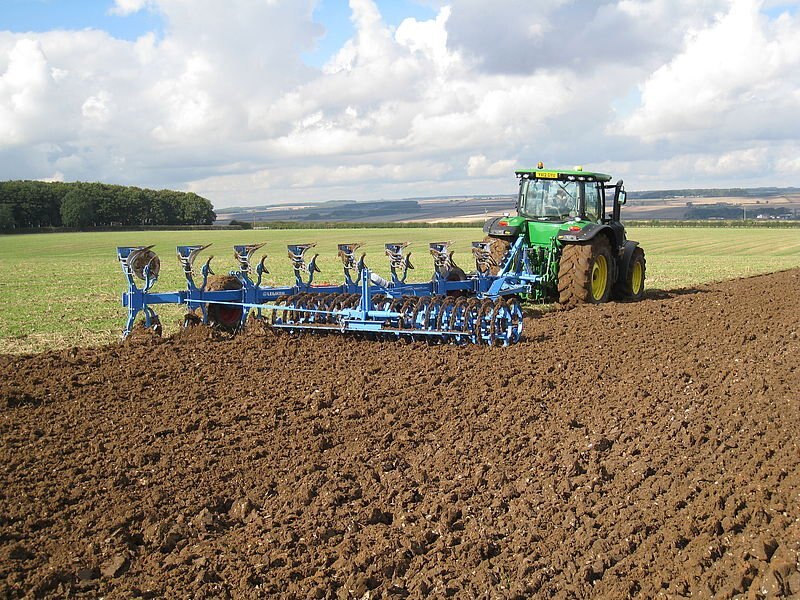

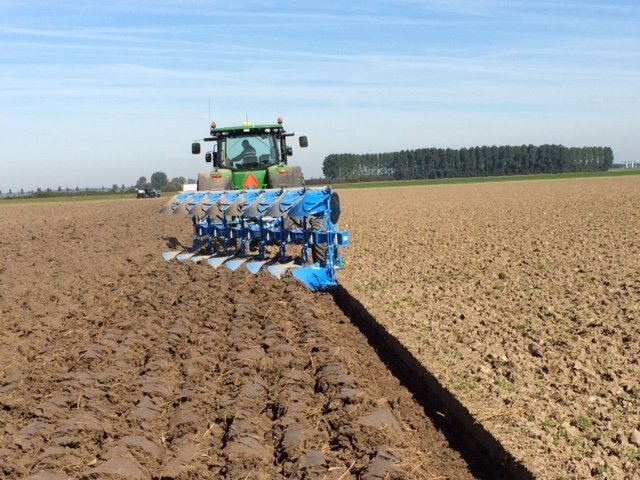

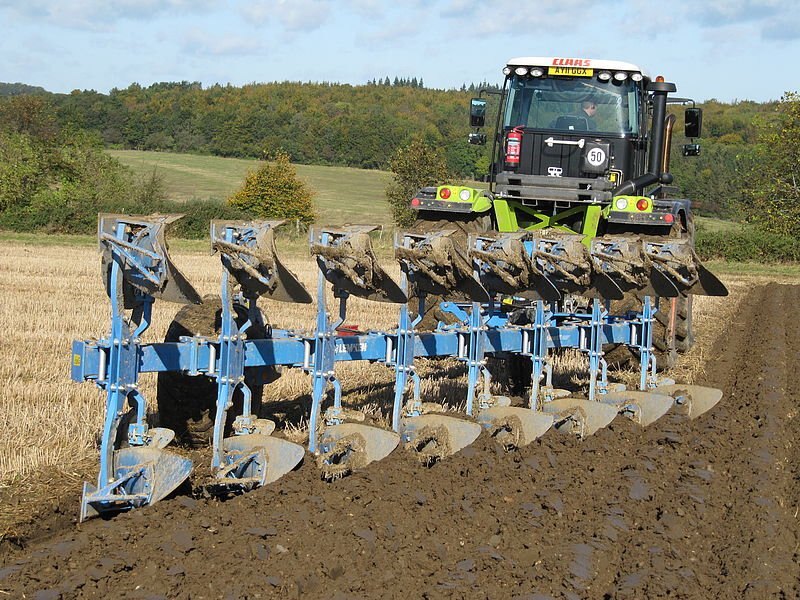

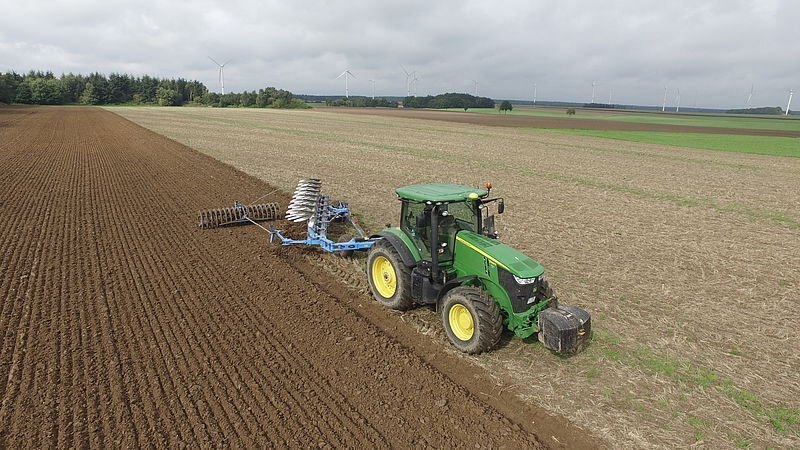

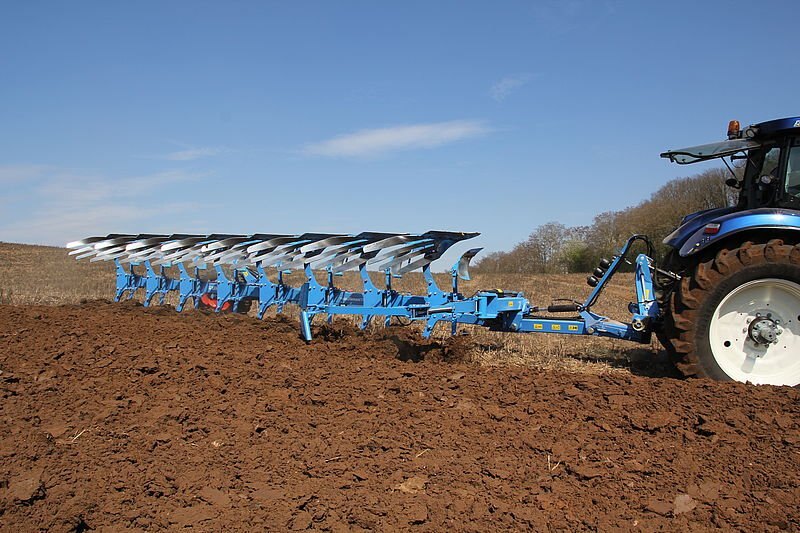

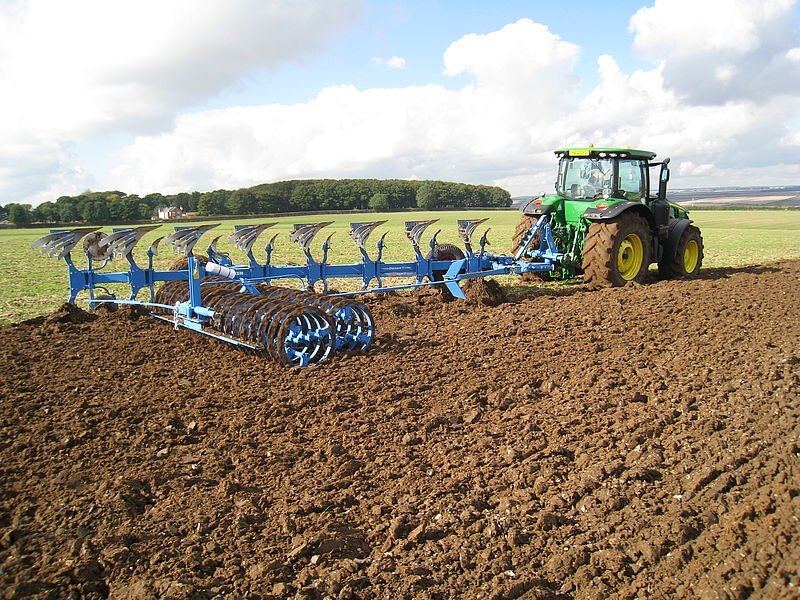

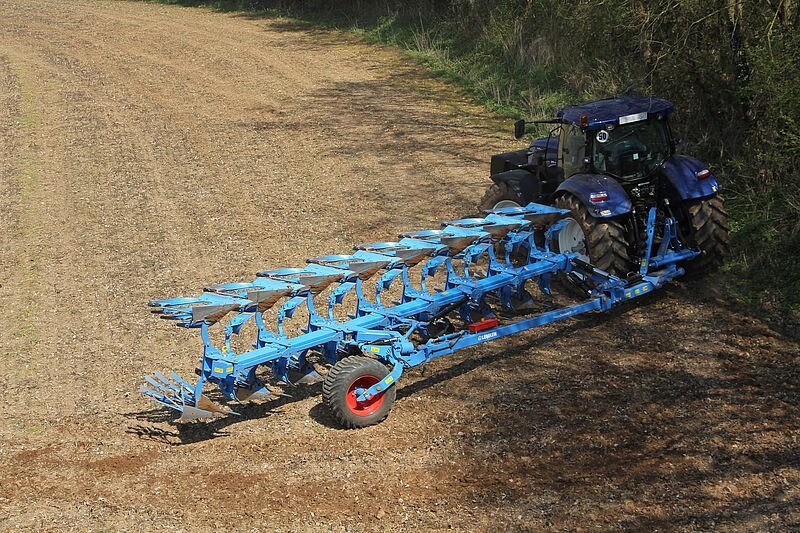

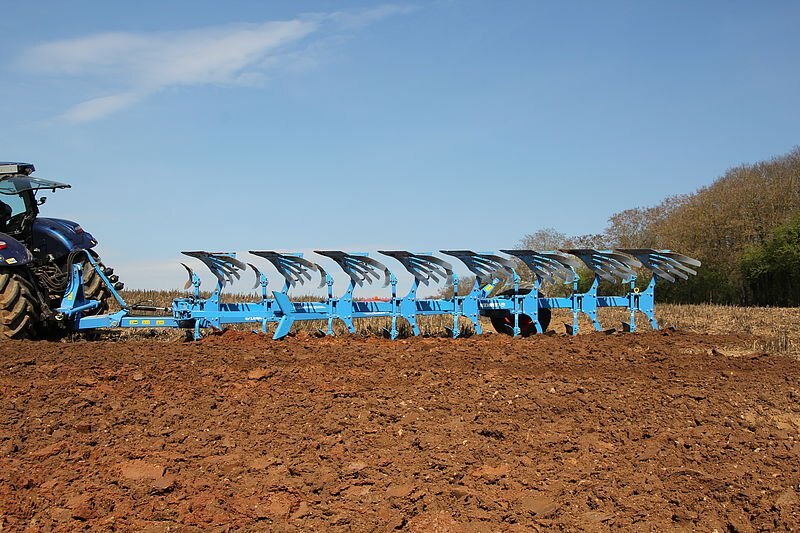

Lemken Diamant 11

  • Lemken Diamant 11
  • Lemken Diamant 11
  • Lemken Diamant 11
  • Lemken Diamant 11
  • Lemken Diamant 11
  • Lemken Diamant 11
  • Lemken Diamant 11
  • Lemken Diamant 11
  • Video Button Maxresdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

A high-carat implement in blue

The Diamant 11 is LEMKEN’s answer to today’s large farms demanding implements that are easy to operate and offer high economy.

  • Featuring DuraMaxx bodies for a particularly long service life.
  • Due to the large clearance between the headstock and turnover device, the plough is exceptionally manoeuvrable for rapid turning even on narrow headlands.
  • Available in four different working widths between 33 and 50 cm per body, or with continuously hydraulically adjustable working width for versatile use in a broad range of soil and weather conditions.
  • Two telescope rams turn the plough force lockingly and smoothly by 180 degrees. The precise angle adjustment is performed separately for each side with adjustment bolts.
  • Also available with automatic Hydromatic overload protection elements to ensure that deflecting plough bodies are always returned precisely to their working position even under difficult conditions.

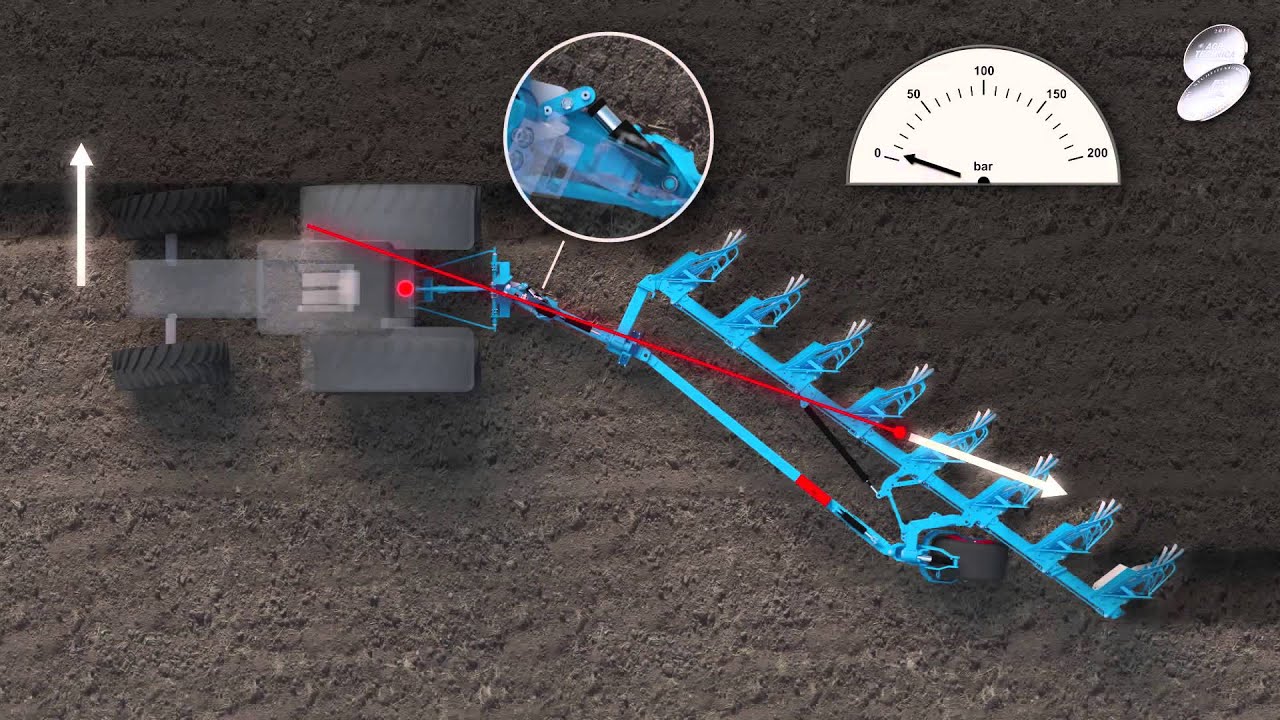

  • The optional unregulated traction enhancement reduces slip and helps save fuel.
  Technical Data

  Diamant 11 5 L 100 Diamant 11 5+1 L 100 Diamant 11 6 L 100 Diamant 11 6+1 L 100 Diamant 11 7 L 100 Diamant 11 7+1 L 100 Diamant 11 8 L 100 Diamant 11 8+1 L 100 Diamant 11 5 L 120 Diamant 11 5+1 L 120 Diamant 11 6 L 120 Diamant 11 6+1 L 120 Diamant 11 7 L 120 Diamant 11 7+1 L 120
Tractor output (HP) 150 150 150 150 150 180 180 180 150 150 150 150 150 180
Tractor output (kW) 110 110 110 110 110 132 132 132 110 110 110 110 110 132
Weight (kg) 2580 2830 2826 3076 3072 3322 3318 3568 2630 2892 2888 3150 3146 3408
Working width (cm) 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 40, 45, 53, 60 40, 45, 53, 60 40, 45, 53, 60 40, 45, 53, 60 40, 45, 53, 60 40, 45, 53, 60
Number of furrows 5 5+1 6 6+1 7 7+1 8 8+1 5 5+1 6 6+1 7 7+1
Interbody clearance (cm) 100 100 100 100 100 100 100 100 120 120 120 120 120 120

  Diamant 11 V 5 L 100 Diamant 11 V 5+1 L 100 Diamant 11 V 6 L 100 Diamant 11 V 6+1 L 100 Diamant 11 V 7 L 100 Diamant 11 V 7+1 L 100 Diamant 11 V 8 L 100 Diamant 11 V 8+1 L 100 Diamant 11 V 5 L 120 Diamant 11 V 5+1 L 120 Diamant 11 V 6 L 120 Diamant 11 V 6+1 L 120
Tractor output (HP) 150 150 150 150 150 180 180 180 150 150 150 150
Tractor output (kW) 110 110 110 110 110 132 132 132 110 110 110 110
Weight (kg) 2755 3065 3036 3346 3317 3627 3598 3908 2825 3149 3120 3444
Working width (cm) 30 - 55 30 - 55 30 - 55 30 - 55 30 - 55 30 - 55 30 - 55 30 - 55 30 - 55 30 - 55 30 - 55 30 - 55
Number of furrows 5 5+1 6 6+1 7 7+1 8 8+1 5 5+1 6 6+1
Interbody clearance (cm) 100 100 100 100 100 100 100 100 120 120 120 120


 Standard Equipment



Specifications
Model
Diamant 11
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
LEMKEN
