Overview

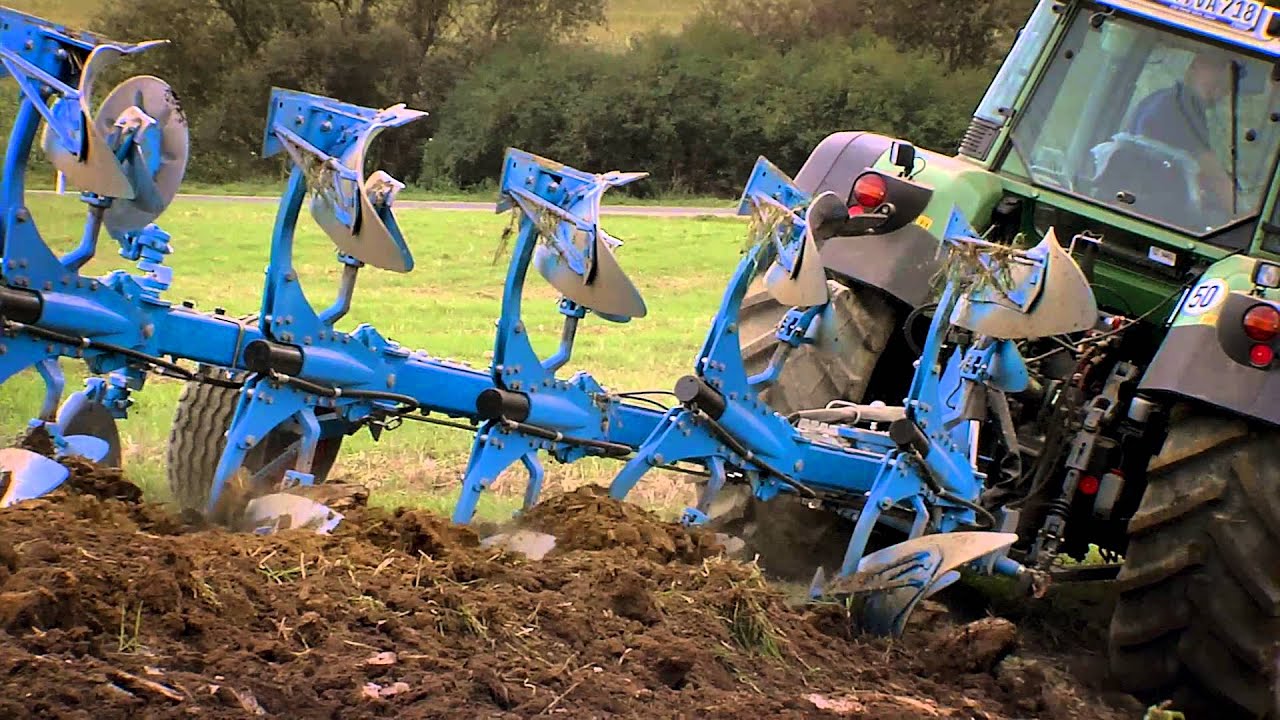

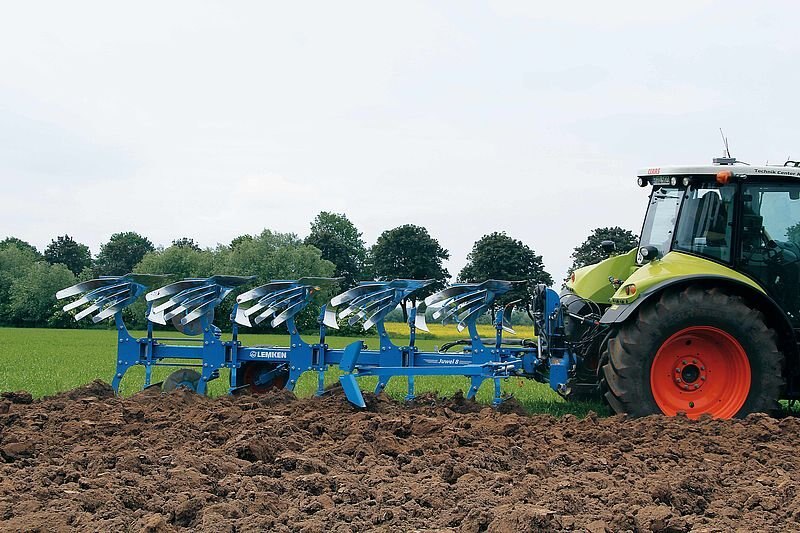

Trend-setting plough technology

The Juwel generation of mounted reversible ploughs combines reliability of use, operating comfort and high work quality in an unrivalled manner.
The TurnControl rotation control makes plough rotation particularly safe, and the large clearance between the support wheel and ground additionally contributes to safety.

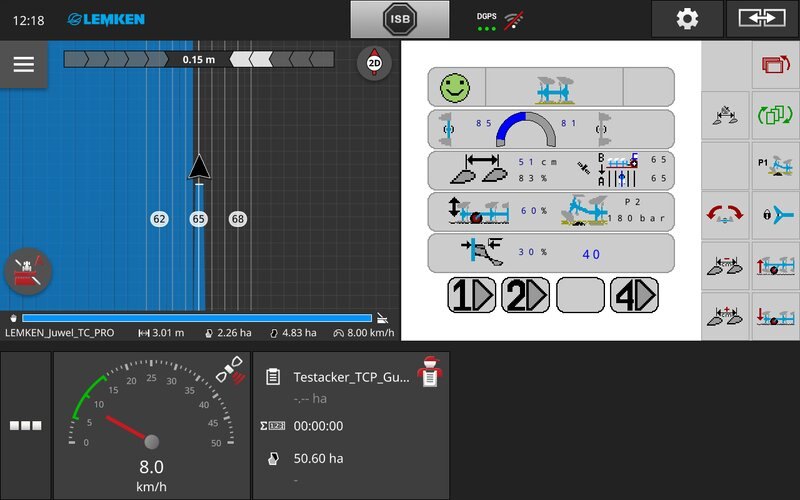

  • The electrohydraulic control of the turnover device allows the plough tilt to be set and saved directly from the tractor cabin. The set tilt can also be overridden for ploughing the first or last, shallower furrow.

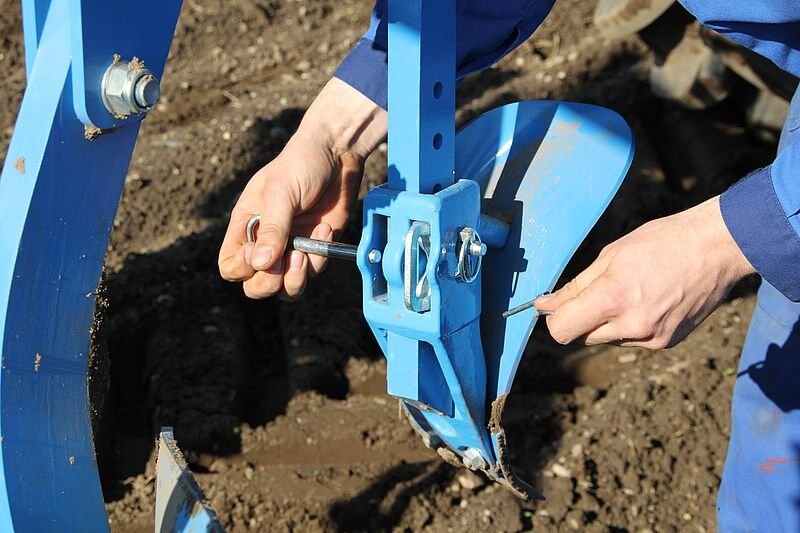

  • Novel skimmers with an improved shape and optimised leg position ensure blockage-free ploughing even under difficult conditions. The working depth and angle can be adjusted easily and without tools.
  • The Juwel features DuraMaxx bodies, whose mouldboards and slats are manufactured without any drill or punch holes. This allows specially wear-resistant tool steel to be used to provide maximum hardness and a correspondingly long service life.

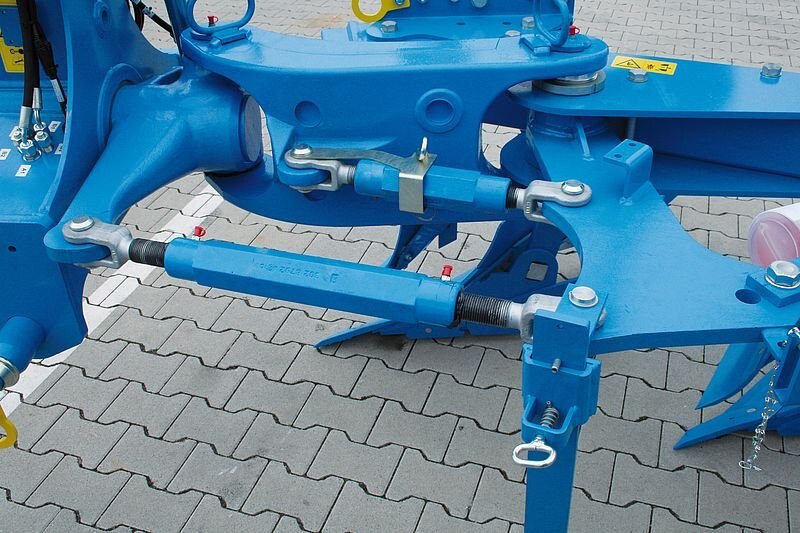

  • In the M and MV versions, the Juwel is also available with a hydraulic turnover device.
  Technical Data
  Juwel 7M 3 N 90 Juwel 7M 3+1 N 90 Juwel 7M 4 N 90 Juwel 7M 4+1 N 90 Juwel 7 M3 N 100 Juwel 7M 3+1 N 100 Juwel 7M 4 N 100 Juwel 7M 4+1 N 100
Tractor output (HP) 70 - 100 80 - 130 80 - 130 90 - 160 70 - 100 80 - 130 80 - 130 90 - 160
Tractor output (kW) 51 - 74 59 - 96 59 - 96 66 - 118 51 - 74 59 - 96 59 - 96 66 - 118
Weight (kg) 796 1018 1008 1230 808 1034 1024 1250
Working width (cm) 30, 35, 40, 45 30, 35, 40, 45 30, 35, 40, 45 30, 35, 40, 45 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50
Number of furrows 3 3+1 4 4+1 3 3+1 4 4+1
Interbody clearance (cm) 90 90 90 90 100 100 100 100

  Juwel 7 M X 5 L 100 Juwel 7 M X 4+1 L 100 Juwel 7 M X 4 L 100 Juwel 7 M X 3+1 L 100 Juwel 7 M X 3 L 100 Juwel 7 M X 5 L 90    Juwel 7 M X 4+1 L 90 Juwel 7 M X 4 L 90 Juwel 7 M X 3+1 L 90 Juwel 7 M X 3 L 90
Tractor output (HP) 90 - 160 90 - 160 90 - 160 90 - 160 90 - 160 90 - 160 90 - 160 80 - 130 80 - 130 70 - 100
Tractor output (kW) 66 - 118 66 - 118 66 - 118 66 - 118 66 - 118 66 - 118 66 - 118 59 - 96 59 - 96 51 - 74
Weight (kg) 1.595 1.605 1.308 1.318 1.021 1.575 1.585 1.292 1.302 1.009
Working width (cm) 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 30, 35, 40, 45 30, 35, 40, 45 30, 35, 40, 45 30, 35, 40, 45 30, 35, 40, 45 30, 35, 40, 45
Number of furrows 5 4+1 4 3+1 3 5 4+1 4 3+1 3
Interbody clearance (cm) 100 100 100 100 100 90 90 90 90 90

  Juwel 7 M V 4 N 90 Juwel 7 M V 4+1 N 90 Juwel 7 M V 3 N 100 Juwel 7 M V 3+1 N 100 Juwel 7 M V 4 N 100 Juwel 7 M V 4+1 N 100
Tractor output (HP) 80 - 130 90 - 160 70 - 100 80 - 130 80 - 130 90 - 160
Tractor output (kW) 59 - 96 66 - 118 51 - 74 59 - 96 59 - 96 66 - 118
Weight (kg) 1166 1448 907 1193 1182 1468
Working width (cm) 30 - 50 30 - 50 30 - 55 30 - 55 30 - 55 30 - 55
Number of furrows 4 4+1 3 3+1 4 4+1
Interbody clearance (cm) 90 90 100 100 100 100

  Juwel 7 M T 3 L 90 Juwel 7 M T 3+1 L 90 Juwel 7 M T 4 L 90 Juwel 7 M T 4+1 L 90 Juwel 7 M T 5 L 90 Juwel 7 M T 3 L 100 Juwel 7 M T 3+1 L 100 Juwel 7 M T 4 L 100 Juwel 7 M T 4+1 L 100 Juwel 7 M T 5 L 100
Tractor output (HP) 70 - 100 80 - 130 80 - 130 90 - 160 90 - 160 70 - 100 80 - 130 80 - 130 90 - 160 90 - 160

Tractor output (kW) 51 - 74 59 - 96 59 - 96 66 - 118 66 - 118 51 - 74 59 - 96 59 - 96 66 - 118 66 - 118
Weight (kg) 942 1205 1195 1458 1447 954 1221 1211 1478 1467
Working width (cm) 30, 35, 40, 45 30, 35, 40, 45 30, 35, 40, 45 30, 35, 40, 45 30, 35, 40, 45 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50
Number of furrows 3 3+1 4 4+1 5 3 3+1 4 4+1 5
Interbody clearance (cm) 90 90 90 90 90 100 100 100 100 100


Juwel 7 M V X

  Juwel 7 M V X 5 L 100 Juwel 7 M V X 4+1 L 100 Juwel 7 M V X 4 L 100 Juwel 7 M V X 3+1 L 100 Juwel 7 M V X 3 L 100 Juwel 7 M V X 5 L 90  Juwel 7 M V X 4+1 L 90 Juwel 7 M V X 4 L 90
Tractor output (HP) 90 - 160 90 - 160 80 - 130 80 - 130 70 - 100 90 - 160 90 - 160 80 - 130
Tractor output (kW) 66 - 118 66 - 118 59 - 96 59 - 96 51 - 74 66 - 118 66 - 118 59 - 96
Weight (kg) 1.812 1.823 1.466 1.477 1.120 1.792 1.803 1.450
Working width (cm) 30, 35, 40, 45, 50, 55 30, 35, 40, 45, 50, 55 30, 35, 40, 45, 50, 55 30, 35, 40, 45, 50, 55 30, 35, 40, 45, 50, 55 30, 35, 40, 45 30, 35, 40, 45 30, 35, 40, 45
Number of furrows 5 4+1 4 3+1 3 5 4+1 4
Interbody clearance (cm) 100 100 100 100 100 90 90 90



Juwel 7 M V T

  Juwel 7 M V T 4 L 90 Juwel 7 M V T 4+1 L 90 Juwel 7 M V T 5 L 90 Juwel 7 M V T 3 L 100 Juwel 7 M V T 3+1 L 100     Juwel 7 M V T 4 L 100 Juwel 7 M V T 4+1 L 100 Juwel 7 M V T 5 L 100
Tractor output (HP) 80 - 130 90 - 160 90 - 160 70 - 100 80 - 130 80 - 130 90 - 160 90 - 160
Tractor output (kW) 59 - 96 66 - 118 66 - 118 51 - 74 59 - 96 59 - 96 66 - 118 66 - 118
Weight (kg) 1354 1683 1672 1048 1381 1370 1703 1692
Working width (cm) 30 - 50 30 - 50 30 - 50 30 - 55 30 - 55 30 - 55 30 - 55 30 - 55
Number of furrows 4 4+1 5 3 3+1 4 4+1 5
Interbody clearance (cm) 90 90 90 100 100 100 100 100


  Juwel 8 M 4+1 N 120 Juwel 8 M 4 N 120 Juwel 8 M 3 N 90 Juwel 8 M 3+1 N 90 Juwel 8 M 4 N 90 Juwel 8 M 4+1 N 90 Juwel 8 M 5 N 90 Juwel 8 M 5+1 N 90 Juwel 8 M 6+1 N 90 Juwel 8 M 3 N 100 Juwel 8 M 3+1 N 100 Juwel 8 M 4 N 100 Juwel 8 M 4+1 N 100 Juwel 8 M 5 N 100 Juwel 8 M 5+1 N 100 Juwel 8 M 6 N 100 Juwel 8 M 6+1 N
Tractor output (HP) 130 - 200 110 - 160 90 - 120 110 - 160 110 - 160 130 - 200 130 - 200 140 - 240 140 - 240 90 - 120 110 - 160 110 - 160 130 - 200 130 - 200  140 - 240 140 - 240 160 - 300
Tractor output (kW) 96 - 147 81 - 118 66 - 88 81 - 118 81 - 118 96 - 147 96 - 147 103 - 176 103 - 176 66 - 88 81 - 118 81 - 118 96 - 147 96 - 147 103 - 176 103 - 176 118 - 221
Weight (kg) 1.618 1.373 1098 1329 1314 1545 1530 1761 1746 1113 1348 1333 1568 1553 1788 1774 2009
Working width (cm) 40, 45, 53, 60 40, 45, 53, 60 30, 35, 40, 45 30, 35, 40, 45 30, 35, 40, 45 30, 35, 40, 45 30, 35, 40, 45  30, 35, 40, 45 30, 35, 40, 45 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50
Number of furrows 4+1 4 3 3+1 4 4+1 5 5+1 6 3 3+1 4 4+1 5 5+1 6 6+1
Interbody clearance (cm) 120 120 90 90 90 90 90 90 90 100 100 100 100 100 100 100 100

  Juwel 8 M X 4+1 L 120 Juwel 8 M X 4 L 120 Juwel 8 M X 5+1 L 100 Juwel 8 M X 5 L 100 Juwel 8 M X 4+1 L 100 Juwel 8 M X 4 L 100 Juwel 8 M X 3+1 L 100 Juwel 8 M X 3 L 100     Juwel 8 M X 5+1 L 90 Juwel 8 M X 5 L 90 Juwel 8 M X 4+1 L 90 Juwel 8 M X 4 L 90 Juwel 8 M X 3+1 L 90     Juwel 8 M X 3 L 90
Tractor output (HP) 130 - 200 110 - 160 140 - 240 130 - 200 130 - 200 110 - 160 110 - 160 90 - 160 140 - 240 130 - 200 130 - 200 110 - 160 110 - 160 90 - 160
Tractor output (kW) 96 - 147 81 - 118 103 - 176 96 - 147 96 - 147 81 - 118 81 - 118 66 - 118 103 - 176 96 - 147 96 - 147 81 - 118 81 - 118 66 - 118
Weight (kg) 1.973 1.657 2.214 1.908 1530 1.617 1.617 1.326 2.187 1.885 1.900      1.598 1.613 1.311
Working width (cm) 40, 45, 53, 60 40, 45, 53, 60 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 30, 35, 40, 45 30, 35, 40, 45 30, 35, 40, 45 30, 35, 40, 45 30, 35, 40, 45 30, 35, 40, 45
Number of furrows 4+1 4 5+1 5 4+1 4 3+1 3 5+1 5 4+1 4 3+1 3
Interbody clearance (cm) 120 120 100 100 100 100 100 100 90 90 90 90 90 90

  Juwel 8 M V 4+1 N 120 Juwel 8 M V 4 N 120 Juwel 8 M V 3 N 90 Juwel 8 M V 3+1 N 90 Juwel 8 M V 4 N 90 Juwel 8 M V 4+1 N 90 Juwel 8 M V 5 N 90 Juwel 8 M V 5+1 N 90 Juwel 8 M V 6 N 90 Juwel 8 M V 6+1 N 90 Juwel 8 M V 3 N 100 Juwel 8 M V 3+1 N 100 Juwel 8 M V 4 N 100 Juwel 8 M V 4+1 N 100 Juwel 8 M V 5 N 100 Juwel 8 M V 5+1 N 100 Juwel 8 M V 6 N 100
Tractor output (HP) 130 - 200 110 - 160 90 - 120 110 - 160 110 - 160 130 - 200 130 - 200 140 - 240 140 - 240 160 - 300 90 - 120 110 - 160 110 - 160 130 - 200 130 - 200 140 - 240 140 - 240
Tractor output (kW) 96 - 147 81 - 118 66 - 88 81 - 118 81 - 118 96 - 147 96 - 147 103 - 176 103 - 176 118 - 221 66 - 88 81 - 118 81 - 118 96 - 147 96 - 147 103 - 176 103 - 176
Weight (kg) 1.846 1.541 1212 1503 1482 1773 1748 2039 2014 2309 1227 1522 1501 1796 1771 2066 2041
Working width (cm) 36 - 60 36 - 60 30 - 50 30 - 50 30 - 50 30 - 50 30 - 50 30 - 50 30 - 50 30 - 50 30 - 55 30 - 55 30 - 55 30 - 55 30 - 55 30 - 55 30 - 55
Number of furrows 4+1 4 3 3+1 4 4+1 5 5+1 6 6+1 3 3+1 4 4+1 5 5+1 6
Interbody clearance (cm) 120 120 90 90 90 90 90 90 90 90 100 100 100 100 100 100 100

  Juwel 8 M T 4+1 L 120 Juwel 8 M T 4 L 120 Juwel 8 M T 3 L 90 Juwel 8 M T 3+1 L 90 Juwel 8 M T 4 L 90 Juwel 8 M T 4+1 L 90 Juwel 8 M T 5 L 90 Juwel 8 M T 5+1 L 90 Juwel 8 M T 3 L 100 Juwel 8 M T 3+1 L 100 Juwel 8 M T 4 L 100 Juwel 8 M T 4+1 L 100 Juwel 8 M T 5 L 100 Juwel 8 M T 5+1 L 100
Tractor output (HP) 130 - 200 110 - 160 90 - 120 110 - 160 110 - 160 130 - 200 130 - 200 140 - 240 90 - 120 110 - 160 110 - 160 130 - 200 130 - 200 140 - 240
Tractor output (kW) 96 -147 81 -118 66 - 88 81 - 118 81 - 118 96 - 147 96 - 147 103 - 176 66 - 88 81 - 118 81 - 118 96 - 147 96 - 147 103 - 176
Weight (kg) 1.938 1.629 1290 1585 1570 1865 1850 2145 1305 1604 1589 1888 1873 2172
Working width (cm) 40, 45, 53, 60 40, 45, 53, 60 30, 35, 40, 45 30, 35, 40, 45 30, 35, 40, 45 30, 35, 40, 45 30, 35, 40, 45 30, 35, 40, 45 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50 33, 38, 44, 50
Number of furrows 4+1 4 3 3+1 4 4+1 5 5+1 3 3+1 4 4+1 5 5+1 Specifications
Model
Juwel
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
LEMKEN
