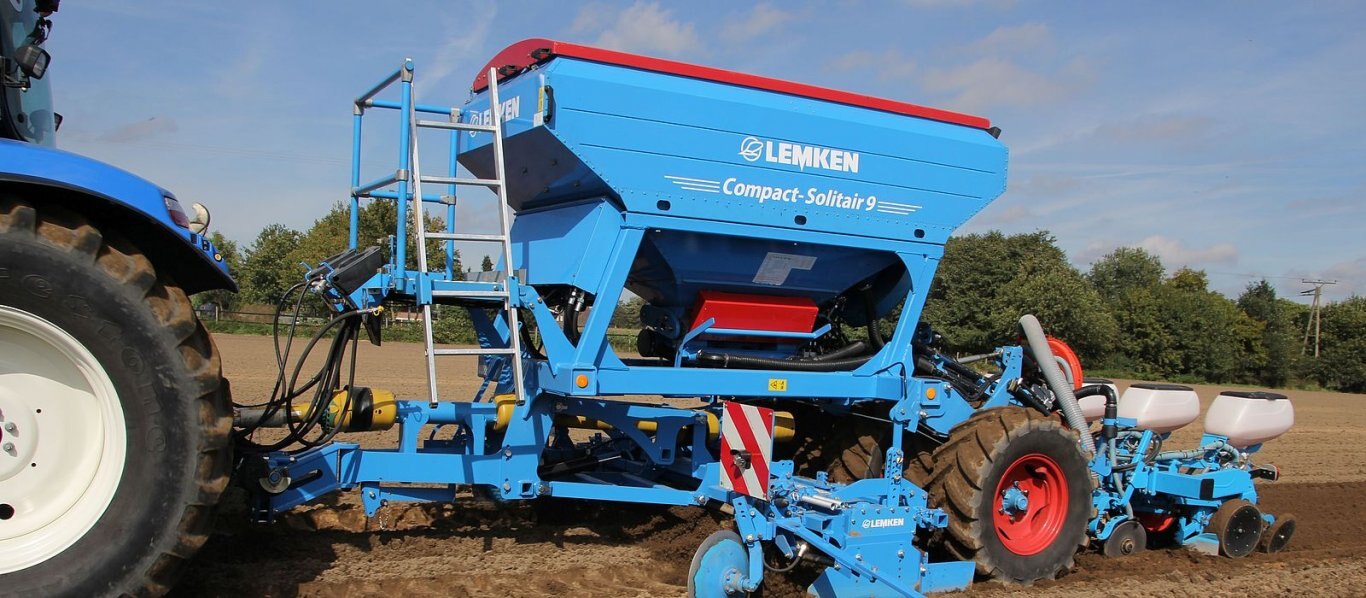

Lemken Compact-Solitair 9 Z and KK

  • Lemken Compact Solitair 9 Z and KK
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Finely tuned tillage intensity

The Compact-Solitair 9 KK and 9 Z seeding combination with the Zirkon 12 rotary harrow is the first choice for high-performance sowing even under the most challenging conditions.

  • The decisive parameters including working depth, rotor speed, tine position and forward travel speed can all be set individually to achieve optimal soil cultivation.
  • The Zirkon 12 rotary harrow guarantees optimal seedbed preparation in virtually any soil conditions and with both conventional and conservation tillage.
  • The tyre packer roller ensures that the working depth of the rotary harrow is precisely maintained and accurately follows the soil contour.
  • The standardised three-point linkage interface allows the coulter bar to be detached and a maize planter to be attached. The versatile applications of this drill combination in both cereal and maize cultivation ensure that it can be universally utilised.
  • Available with 3 and 4 metres working width (9 Z) and 6 metres working width (9 KK).
  Technical Data

  Compact-Solitair 9/300 Z 125 Compact-Solitair 9/400 Z 125 Compact-Solitair 9/300 Z 167 Compact-Solitair 9/400 Z 167
Weight (kg) 3644 4231 3572 4135
Seeding coulter 24 32 18 24
Hopper capacity  (l) 3500 3500 3500 3500
Row distance (mm)  125 125 167 167

  Compact-Solitair 9/600 K K 167 Compact-Solitair 9/600 K K 125 Compact-Solitair 9/600 K K 167
Weight (kg) 9504 9588 9408
Seeding coulter 36 48 36
Hopper capacity (l) 4500 4500 4500
Row distance (mm)  167 125 167

 Standard Equipment
  • Power harrow Zirkon 12
  • Lower link attachment Cat. 3N=L2 Z3 (or Cat. 3)
  • Wide-angle PTO drive shaft with torque limiting clutch for 540 and 1000 PTO
  • Two-speed change gear box with changing turning direction
  • Rotor speed 330 rpm and 440 rpm (or 230 rpm and 330 rpm)
  • Holders for track markers and wheelmark eradicators
  • Specially hardened tines SG 30 set to drag position (option to grade position)
  • Spring-loaded side shields adjustable in height
  • Tyre packer roller 420/65 R 20, 1.064 mm (radial tyres)
  • Headland management
  • Hydraulically driven fan
  • Electronic seed drill operation with operation terminal LVT-50
  • Maintenance-free double disc coulters OptiDisc M, up to 45 kg share pressure per share
  • Hopper with distributors located outside
  • Lateral folding hopper cover
  • Mechanical switch of width sections
  • Hopper sieve
  • Electronic hopper level indicator
  • Electrically driven seeding shaft
  • Pulse wheel Ø 350 mm
  • Dust filter
  • Digital scale with case
  • Battery mounting set 4 m
  • Without lighting equipment
  • Without brake system
  • Lower link attachment Cat. 3 (or Cat. 4N=L3 Z4)
  • Power harrow Zirkon 12 with mechanical working depth adjustment
  • Power harrow drive at both sides protected by PTO shafts with torque limiting clutches (1000 rpm)
  • Two-speed change gear box with changing turning direction
  • Rotor speed 330 rpm and 440 rpm (or 230 rpm and 330 rpm)
  • Specially hardened tines SG 30 set to drag position (option to grade position)
  • Tyre packer roller 420/65 R 20, 1.064 mm (radial tyres), with integrated soil adaptation
  • Hydraulically driven fan
  • Electronic seed drill operation with operation terminal LVT-50
  • Maintenance-free double disc coulters OptiDisc M, up to 45 kg share pressure per share
  • Headland management
  • Hopper with distributors located outside
  • Lateral folding hopper cover
  • Mechanical switch of width sections
  • Hopper sieve
  • Electronic hopper level indicator
  • Electrically driven seeding shaft
  • Pulse wheel Ø 350 mm
  • Dust filter
  • Digital scale with case
  • 90° turning angle
  • Battery mounting set 4 m
  • Without lighting equipment
  • Without brake system



Specifications
Model
Compact-Solitair 9 Z and KK
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
LEMKEN
