ID # 13874583

Lemken Solitair 12

  • Lemken Solitair 12
  • Lemken Solitair 12
  • Lemken Solitair 12
  • Lemken Solitair 12
  • Lemken Solitair 12
  • Lemken Solitair 12
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Superior acreage performance in sowing

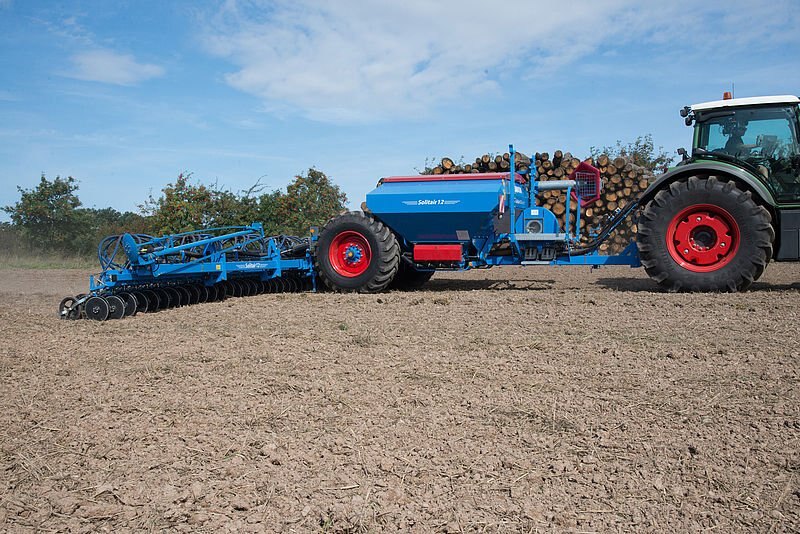

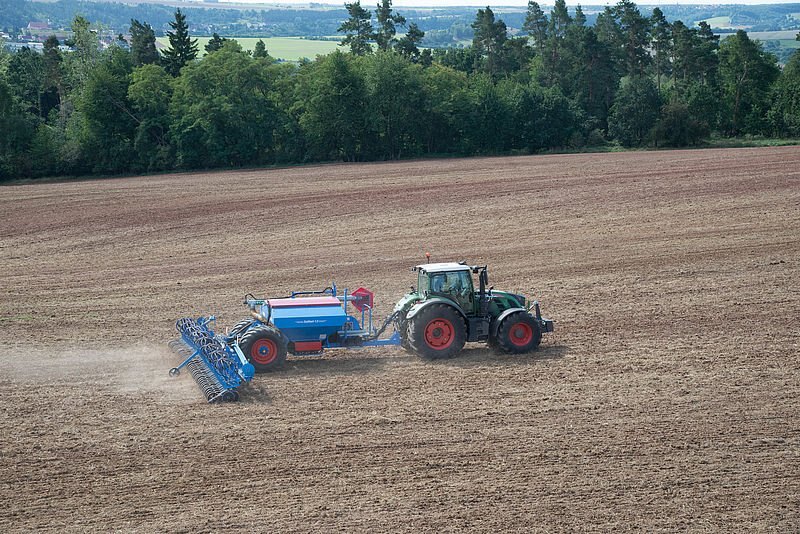

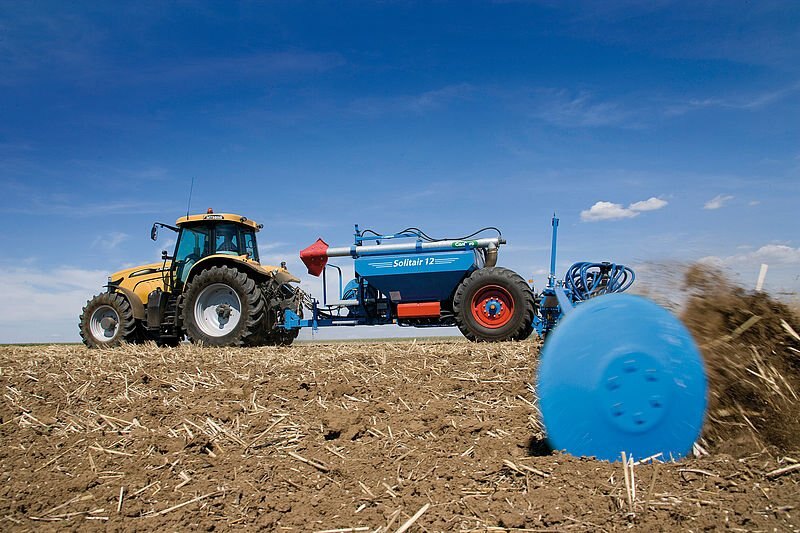

With its Solitair 12, LEMKEN offers a trailed pneumatic seed drill with working widths of 8 to 12 metres for superior acreage performance and economy.

  • With a volume of about 5,800 litres, the large seed hopper supports extended periods of work with reduced non-productive times.
  • The large tyres ensure that the implement is gentle to soils during operation and safe in road transport.

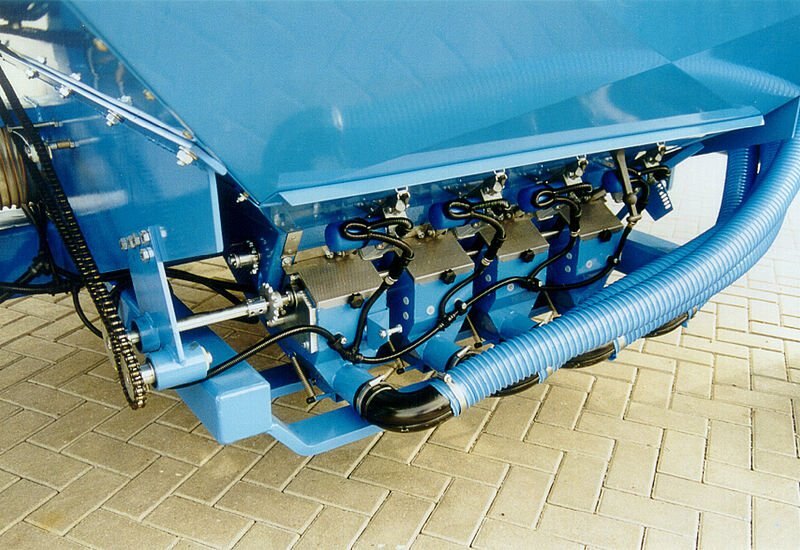

  • The seeding shafts in the metering unit are driven by a powerful electric motor and are electronically regulated. The metering units produce an even flow of seeds and good transverse distribution.

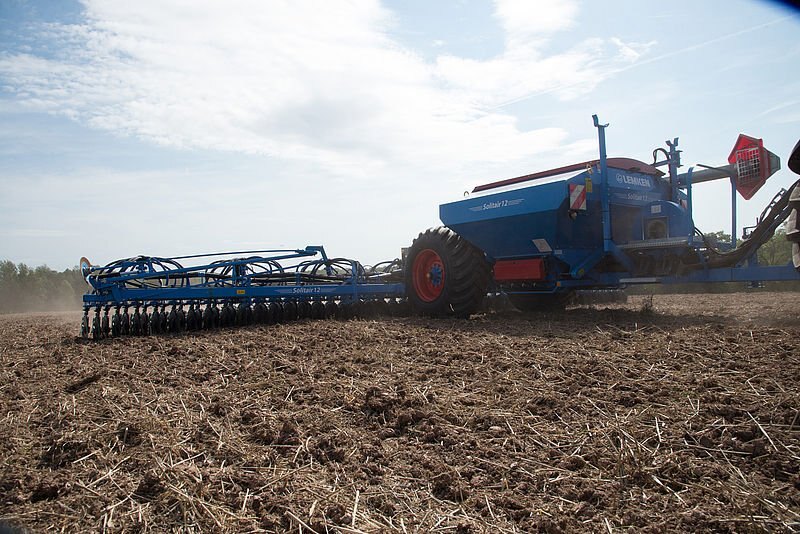

  • The coulter bar of the Solitair 12 is divided into two parts. An innovative hydraulic system provides the ground adaptation that is particularly important for large working widths. The coulter bar is equipped with four linked pressure equalisation rams, which ensure a consistently effective adaptation to the surface even in undulating terrain.
  Technical Data

  Solitair 12/800 K-DS 125 Solitair 12/900 K-DS 125 Solitair 12/1000 K-DS 125 Solitair 12/1200 K-DS 125 Solitair 12/800 K-DS 150 Solitair 12/900 K-DS 150 Solitair 12/1000 K-DS 150 Solitair 12/1200 K-DS 150
Weight (kg) 4339 4489 4637 5011 4189 4309 4457 4771
Seeding coulter 64 72 80 96 54 60 64 80
Hopper capacity (l) 5800 5800 5800 5800 5800 5800 5800 5800
Row distance (mm) 125/150 mm 125/150 mm 125/150 mm 125/150 mm 125/150 mm 125/150 mm 125/150 mm 125/150 mm

 Standard Equipment
  • Drawbar eye Ø 48 mm, for connection to a double lashing drawbar (or Ø 58 mm or Ø 40 mm)
  • Electronic seed drill operation with operation terminal LVT-50
  • Hydraulically driven fan
  • Lateral folding hopper cover
  • Hopper with distributors located outside
  • Mechanical switch of width sections
  • Hopper sieve
  • Electrically driven seeding shaft
  • Electronic hopper level indicator
  • Pulse wheel Ø 350 mm
  • Digital scale with case
  • Coulter pressure adjustment, hydraulic
  • Axle with wheels 550/60-22.5, 1,230 x 550 mm
  • Battery mounting set 4 m
  • Without lighting equipment
  • Without brake system



Specifications
Model
Solitair 12
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
LEMKEN
