Lemken Solitair 8

  • Lemken Solitair 8
  • Lemken Solitair 8
  • Lemken Solitair 8
  • Lemken Solitair 8
  • Lemken Solitair 8
  • Lemken Solitair 8
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The pneumatic seed drill for small and medium-sized farms

The Solitair 8 is ideal for small and medium-sized farms that are looking for a cost-efficient way of using high-precision pneumatic seed drill technology for conventional and conservation tillage. It is available in working widths of 3, 3.5 and 4 metres and can be universally used, as it can be combined with various implements for active and passive soil cultivation.

  • The metering system is mechanically driven via a maintenance-free cardan shaft and a continuously variable gearbox. This ensures the smooth operation of the cell wheels in the metering unit and thus the precise longitudinal distribution of seeds.
  • The seed hopper, which holds up to 1,850 litres, has a stable centre of gravity and can be easily filled via the wide inlet.
  • The hydraulically driven blower fan can be continuously adjusted and reliably provides a sufficient flow of air to move seeds along. This ensures consistently even metering and precise seeding.

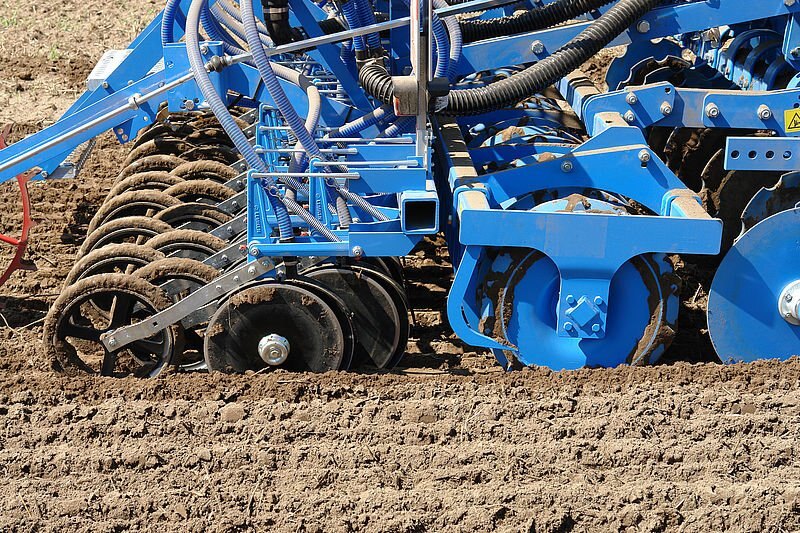

  • LEMKEN offers the parallelogram-guided double disc coulter with depth control wheel for precise seed placement.
  • The Easytronic electronic control system, which forms part of the standard equipment, facilitates the preparation of tramlines and the adjustment of seeding rates.
  Technical Data


Solitair 8

  Solitair 8/300-DS 125 Solitair 8/350-DS 125 Solitair 8/400-DS 125 Solitair 8/300-DS 150 Solitair 8/400-DS 150 Solitair 8/350-DS 150
Weight (kg) 910 964 1.018 850 943 896
Seeding coulter 24 28 32 20 27 23
Hopper capacity (l) 1.100 1.100 1.850 1.100 1.850 1.100
Row distance  (mm) 125/150 mm 125/150 mm 125/150 mm 125/150 mm 125/150 mm 125/150 mm
 Standard Equipment

Solitair 8

  • Electronic seed drill control Easytronic with operation terminal LBT
  • Hydraulically driven fan
  • Flow control valve for hydraulic fan
  • Plastic cover
  • Hopper with distributors located outside
  • Electronic hopper level indicator
  • Drive wheel
  • Mechanically driven seeding shaft



Specifications
Model
Solitair 8
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
LEMKEN
