Lemken Saphir 7

  • Lemken Saphir 7
  • Lemken Saphir 7
  • Lemken Saphir 7
  • Lemken Saphir 7
  • Lemken Saphir 7
  • Lemken Saphir 7
  • Lemken Saphir 7
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

High-efficiency mechanical seed drill technology for any conditions of operation

The mechanical seed drills from the Saphir range make reliable, high-efficiency seed drill technology accessible to small and medium-sized farms. The Saphir can be combined with various implements, including the Zirkon rotary harrow, for universal applications.

  • The spike wheel, maintenance-free cardan drive and continuously variable oil bath transmission ensure accurate and easy metering of seeds. Seeding rates between 0.5 and 500 kg/ha can be precisely set. The smooth operation of the seeding shaft guarantees a precise longitudinal distribution of seeds.

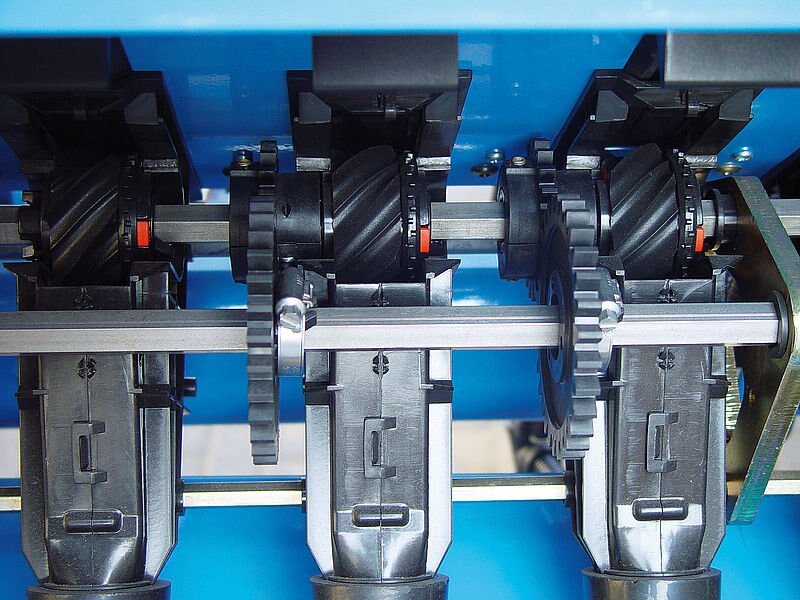

  • The hexagonal seeding shaft with quick-change system ensures that seed wheels can be easily exchanged to allow a great variety of seeds to be optimally metered.

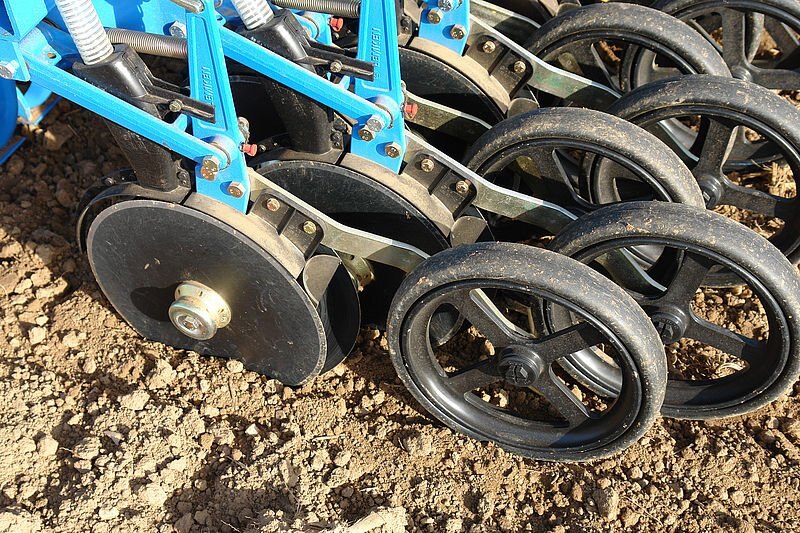

  • LEMKEN offers the parallelogram-guided double disc coulter with depth control wheel for precise seed placement.
  • The Easytronic electronic implement control, which is part of the standard equipment, ensures that tramline preparation can be reliably and comfortably controlled and monitored.
  • The Saphir 7 is available in a hydraulic, semi-mounted version or as AutoLoad version in three-point attachment, with seed hopper volumes of 650 to 1,100 litres.

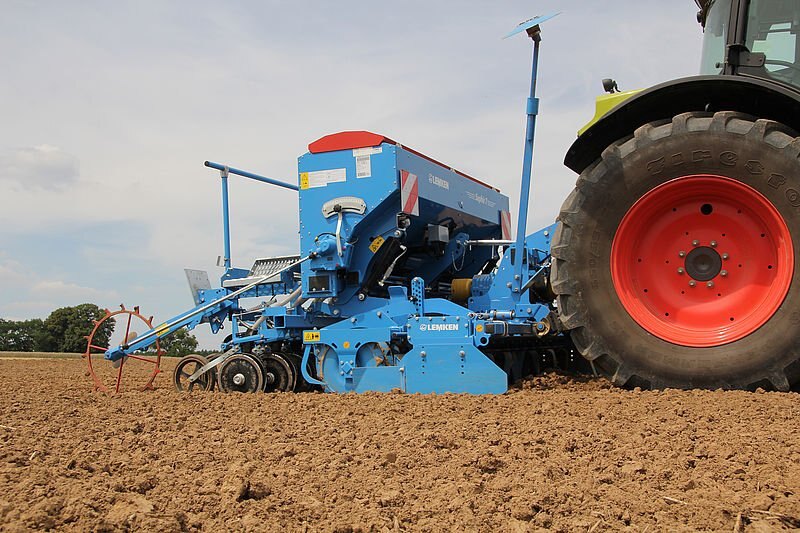

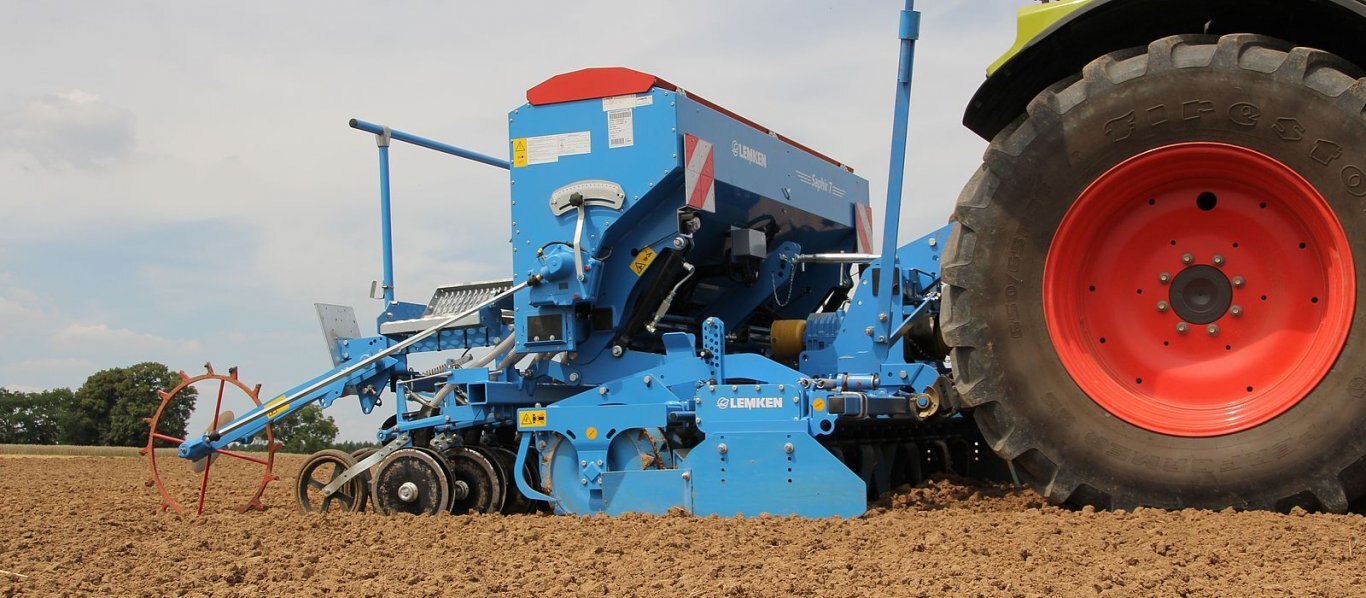

  • In the mounted version, the Saphir 7 is placed directly on top of the roller of the soil cultivation implement. The Saphir 7 AutoLoad version can be either coupled to the tractor via the three-point linkage or combined with seedbed preparation implements.
  Technical Data


Saphir 7
  Saphir 7/250-DS 125 Saphir 7/300-DS 125 Saphir 7/400-DS 125 Saphir 7/250-DS 150 Saphir 7/300-DS 150 Saphir 7/400-DS 150
Weight (kg) 838 927 1136 793 867 1061
Seeding coulter 20 24 32 17 20 27
Hopper capacity 650 800 1050 650 800 1050
Row distance 125 125 125 125 125 125


Saphir 7 AutoLoad

  Saphir 7/250 AutoLoad-DS 125 Saphir 7/300 AutoLoad-DS 125 Saphir 7/400 AutoLoad-DS 125 Saphir 7/250 AutoLoad-DS 150 Saphir 7/300 AutoLoad-DS 150 Saphir 7/400 AutoLoad-DS 150
Weight (kg) 810 900 1070 765 840 995
Seeding coulter 20 24 32 17 20 27
Hopper capacity 650 800 1050 650 800 1050
Row distance 125 125 125 125 125 125

 Standard Equipment

Saphir 7

  • Electronic seed drill control Easytronic with operation terminal LBT
  • Intermediate plates (from Saphir 7/300 on)
  • Two-piece seed wheels ?Conti Plus? (or one-piece seed wheels ?Mono Plus? for peas up to 150 kg/ha or one-piece seed wheels ?Mega Plus? for peas and beans more than 150 kg/ha)
  • Tramline mechanism 2 x 2 rows
  • Quick-change system for seed wheels
  • Stepless oil bath gearbox
  • Discharge wedges
  • Forward folding hopper cover
  • Mechanic hopper level indicator
  • Drive wheel
  • Loading platform with steps



Specifications
Model
Saphir 7
Category Name
Agriculture
Year
2020
Sale Type
New
Manufacturer
LEMKEN
