• Compact design and low centre of gravity, achieved by incorporating the fresh water tank in the main tank, provide good stability and safe road transportation.
• The innovative GFK tank, with smooth inner walls and integrated fresh water tank, is available from 2,000 to 6,000 litres volume. The shape provides an optimum weight distribution regardless of filling level.

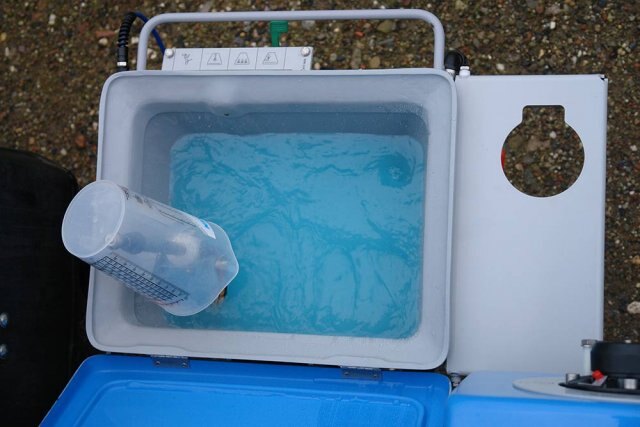

• A large chemical induction hopper provides for fast, safe, and efficient input of chemicals. The standard mixing nozzle helps chemicals to dissolve before entering the main sprayer tank. A foldable cleaning nozzle ensures containers can be cleaned quickly and efficiently.

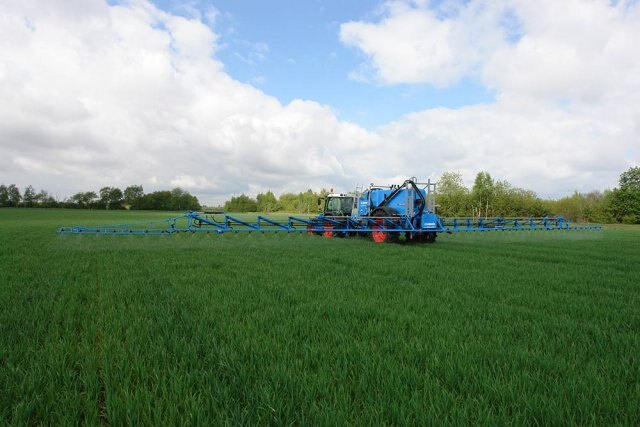

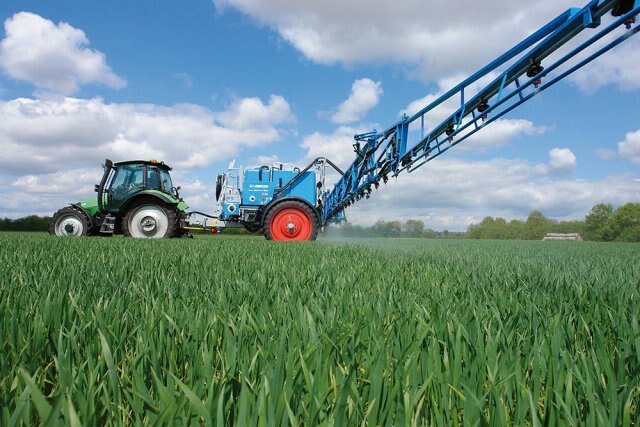

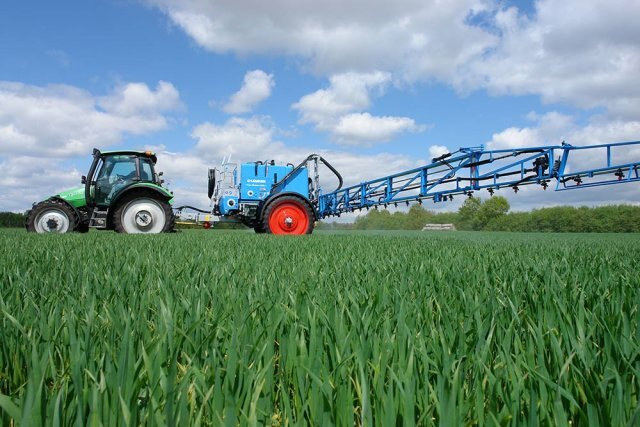

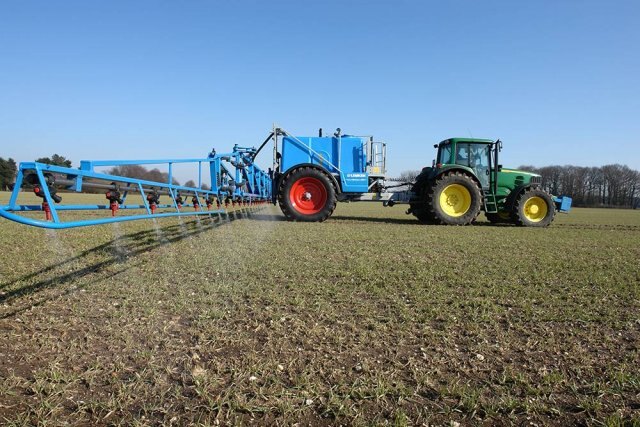

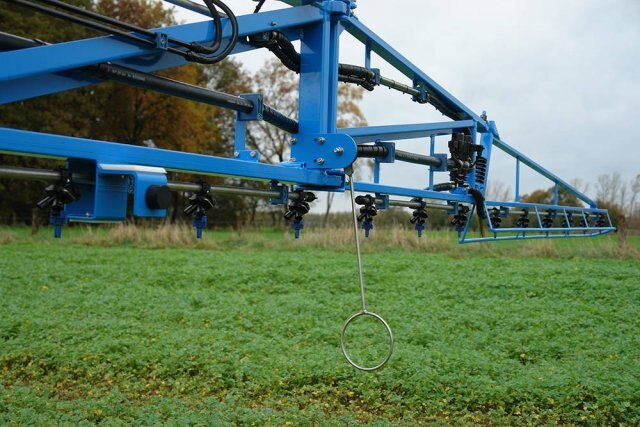

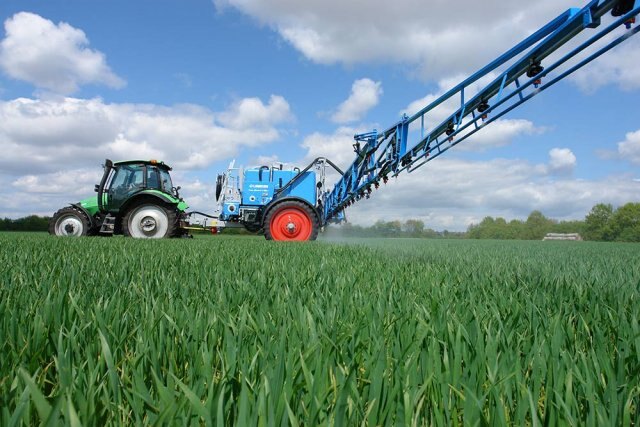

• The strong Z-profile boom is available in working widths of 15 to 39 metres. Hoses are neatly routed through the frame profile.

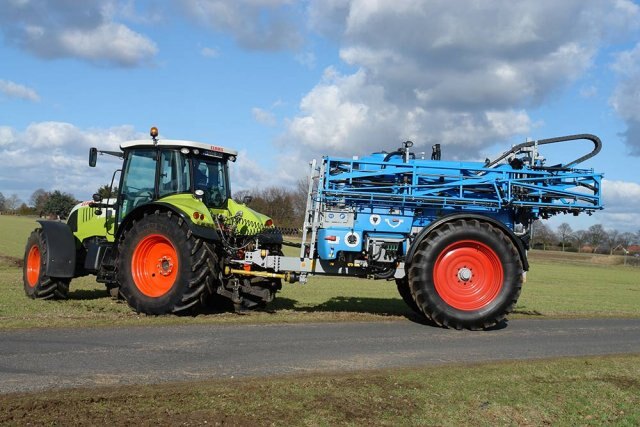

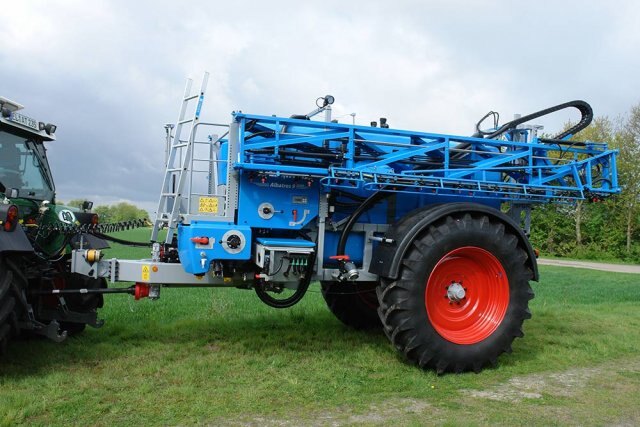

• The universal drawbar, with optional steering, is easily adapted to suit the tractor hitch type.

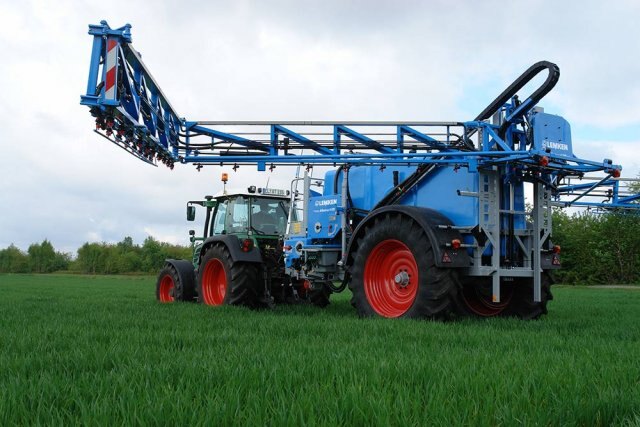

Albatros

• Electronic operation and fully automatic control with SPRAYDOS on-board computer for 5 - 9 width sections
• Piston diaphragm pump 1x250 litres with Albatros 9/2000 and 9/3000, 2x250 litres from Albatros 9/4000 on
• Pump drive with spur wheel gearbox
• Circulation pipe
• Tyres 300/95 R 46 with Albatros 9/2000 and 9/3000,
  340/85 R 48 with Albatros 9/4000,
  520/85 R 38 with Albatros 9/5000,
  520/85 R 42 with Albatros 9/6000
• Dual line air pressure brake system

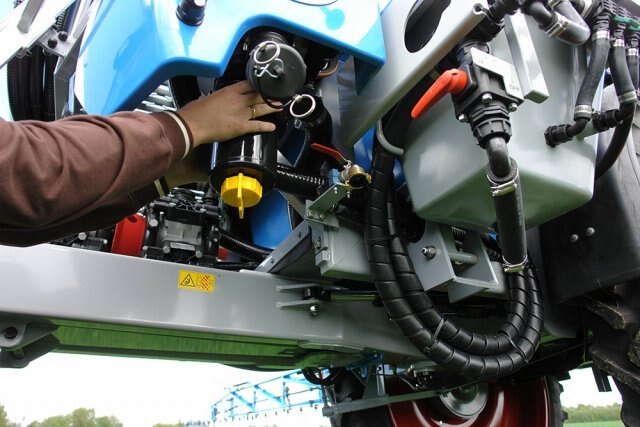

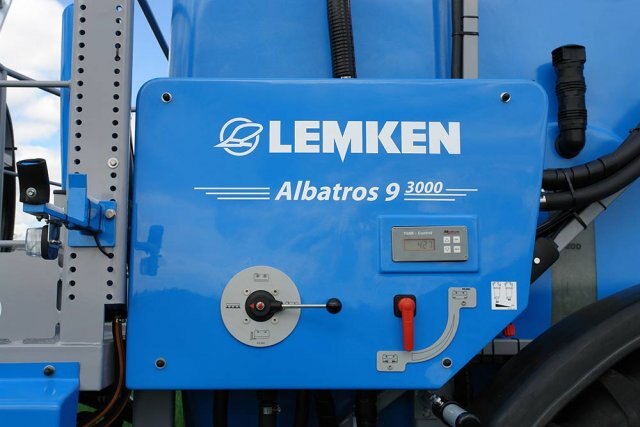

• Single lever operation within the suction and pressure side
• Agitator regulation
• Covers for control device
• Stainless steel spraying pipe
• Indirect level indicator
• Electric slope compensation control hydraulic from boom B33 on
• Stabilizer for boom
• 2 rotating internal cleaning nozzles made from stainless steel

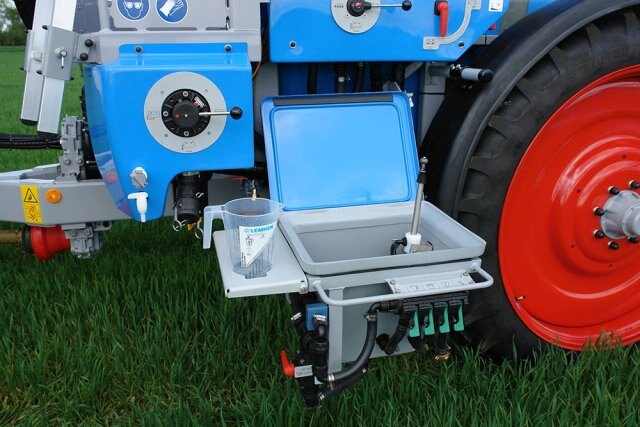

• Chemical inductor, spring assisted and tray with holder for measuring jug
• 2“ Kamlok suction connection

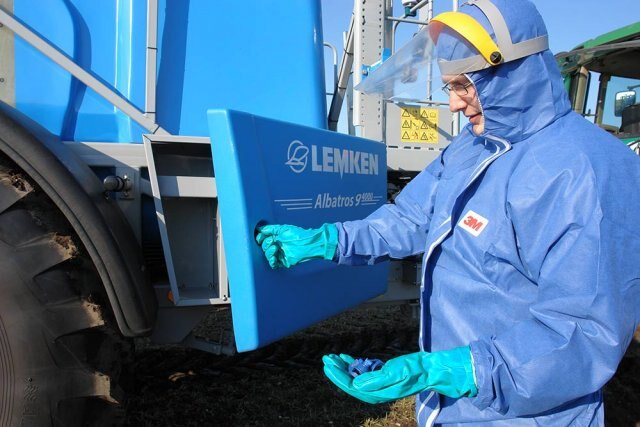

• Internal clean water tank, Capacity approx. 10 % of the tank capacity
• Ladder with platform
• Storage box, right in driving direction
• Rigid universal drawbar, upper connection for trailer coupling
• Drawbar eye exchangeable and height adjustable, Ø 40 mm
• Hydraulic stand (hand-operated)
• Lighting equipment
• PTO shaft
• Single nozzle holder
• Without spraying boom
• Without nozzles
