Compact-Solitair 9 Z10 and 9 K K Seeding with adapted intensity
For efficient seeding in varying conditions LEMKEN offers the Compact-Solitair drill combination combined with the Zirkon 10 power harrow.
Soil cultivation can be optimised due to indiviual adaptation of working parameters such as working depth, rotor speed, tine position and driving speed.
The power harrow creates an optimum seedbed, both in conventional as well as in minimum tillage methods, whatever the soil conditions.

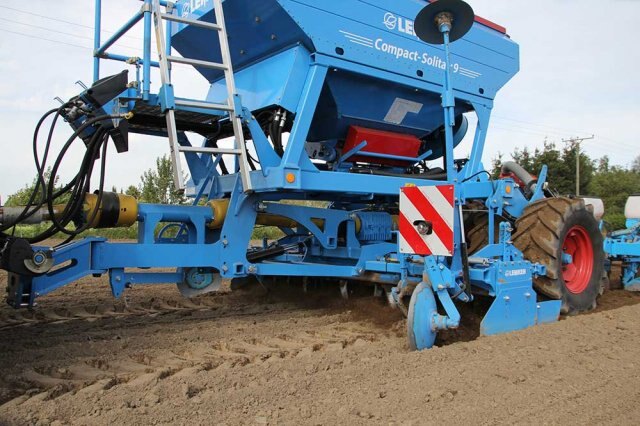

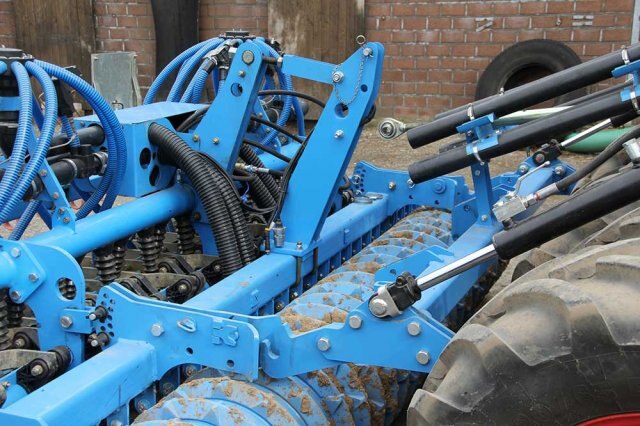

The tyre packer roller ensures precise power harrow depth guidance

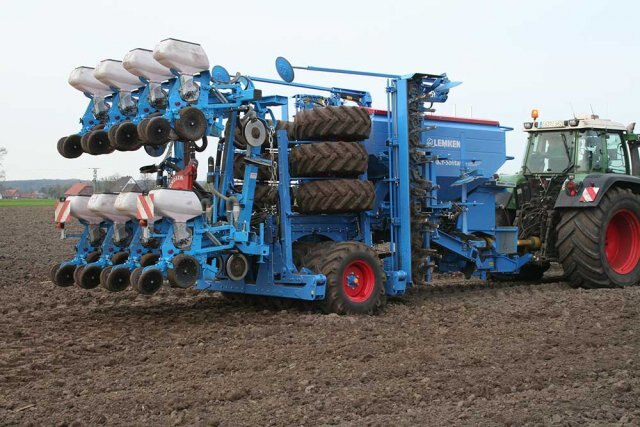

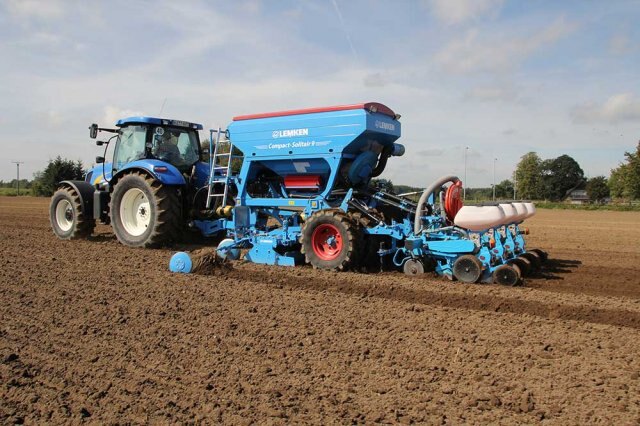

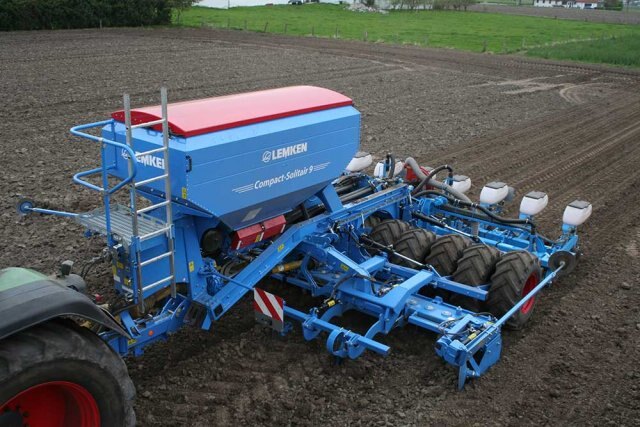

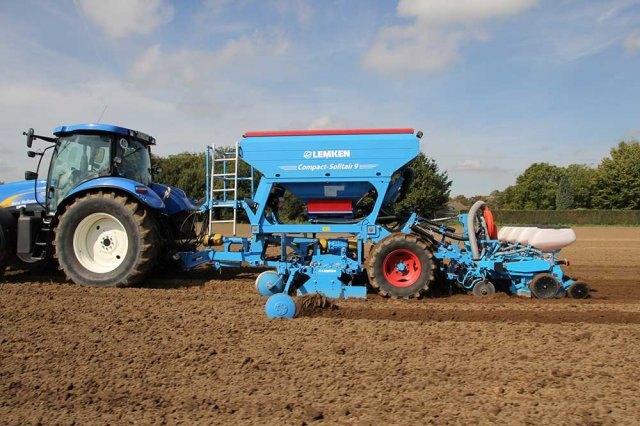

Due to a standardised rear three-point linkage the coulter bar can be removed and replaced by a precision drill for maize. When sowing maize, the Compact-Solitair hopper is used as a fertiliser hopper. The drill combination can be fully utilised, which in turn makes it particularly interesting for contractors ans biogas operation.

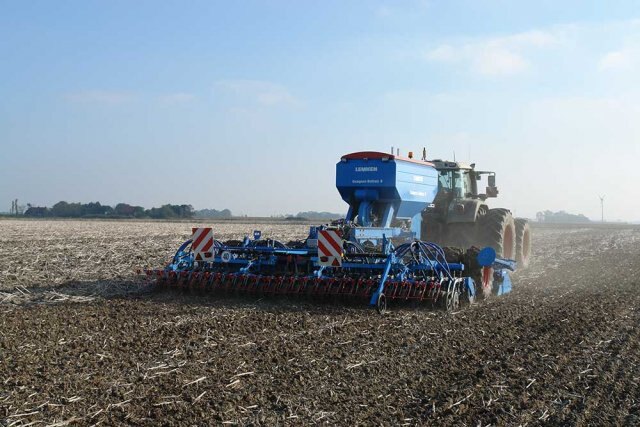

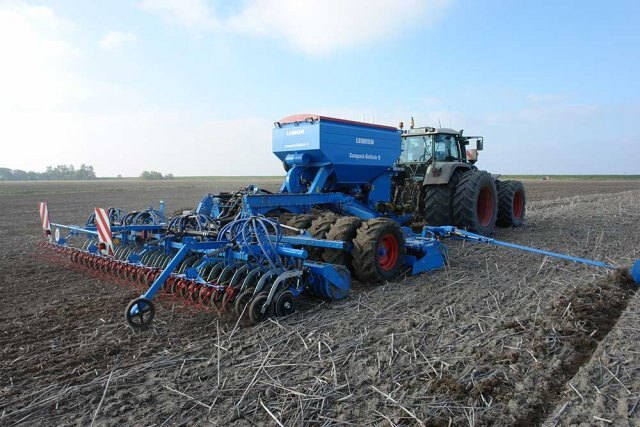

The Compact-Solitair is available in three and four metres (Z) and also in six metres (KK) working width.

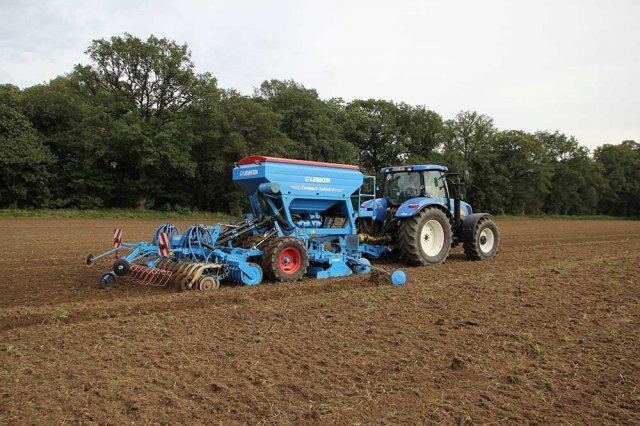

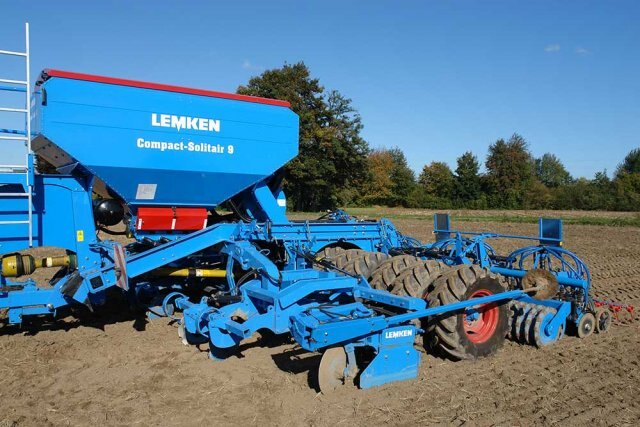

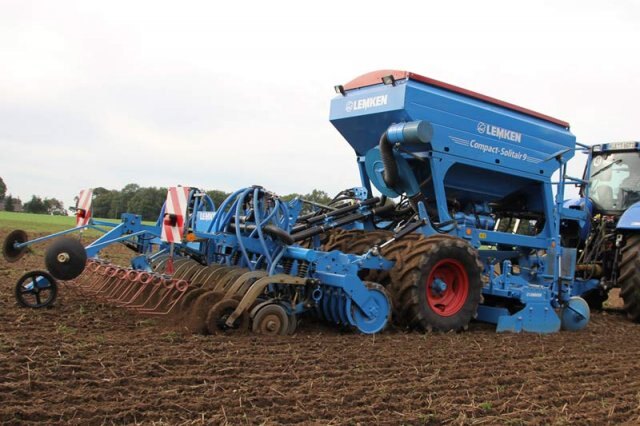

The Compact-Solitair with power harrow and three metres working width

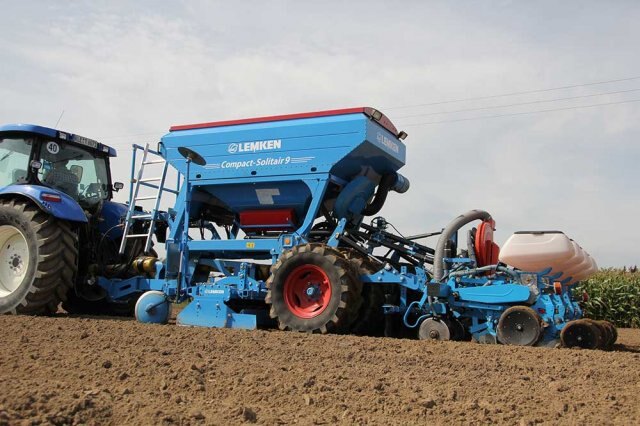

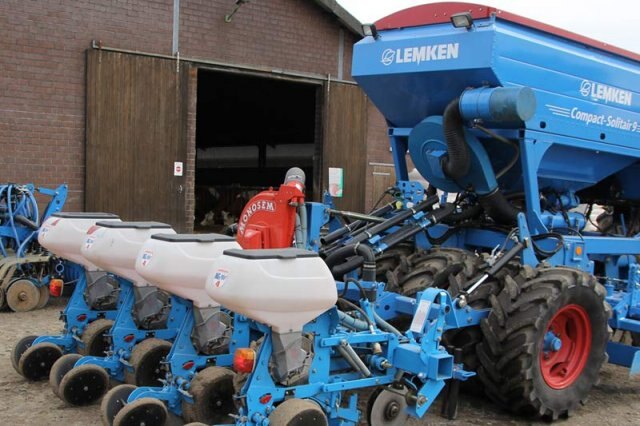

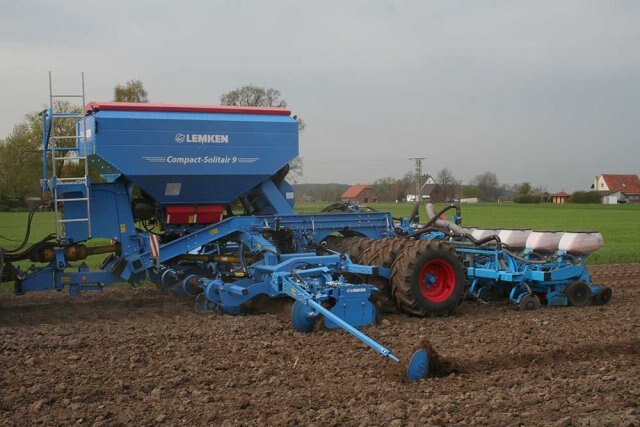

Quick coupling to a precision drill
Technical Data
Type
Working width (cm)
Number of rows seed coulters
Hopper volume (L)
Rotor speed (minˉ¹) at 1,000 minˉ¹
Weigth (kg)
HP/kW
Row distance 125 mm
Compact-Solitair 9/300 Z10
300
24
3.500
330/440
3.764
120/88 - 210/154
Compact-Solitair 9/400 Z10
400
32
3.500
330/440
4.391
140/103 - 240/176
Compact-Solitair 9/600 K K
600
48
4.500
330/440
9.684
200/147 - 315/232
Row distance 167 mm
Compact-Solitair 9/300 Z10
300
18
3.500
330/440
3.674
120/88 - 210/154
Compact-Solitair 9/400 Z10
400
24
3.500
330/440
4.271
140/103 - 240/176
Compact-Solitair 9/600 K K
600
36
4.500
330/440
9.504
200/147 -315/232
Standard equipment
Compact-Solitair 9 Z10
Power harrow Zirkon 10
Lower link attachment Cat. 3N=L2 Z3 (or Cat. 3)
PTO shaft with torque limiting clutch for 540 and 1000 PTO
Two-speed change gear box with changing turning direction
Carriers for track markers and wheelmark eradicators
Specially hardened quick-change tines SZ 34 set to drag position (option to grade position)
Spring-loaded side shields adjustable in height
Tyre packer roller 405/70-20 AS 504 Ø 1.097 mm
Headland management
Hydraulically driven fan
Electronic seed drill control Solitronic
Rubber suspended double disc coulters OptiDisc
Hopper with distributors located outside
Lateral foldable cover
Coulter pressure adjustment electro-hydraulic via operation terminal
Hopper sieve
Electronic hopper level indicator
Electrically driven seeding shaft
Pulse wheel Ø 350 mm
Dust filter
Digital scale with case
Without lighting equipment
Without brake system
Standard equipment
Compact-Solitair 9 K K
Lower link attachment Cat. 3
Power harrow Zirkon 10 with hydr. working depth adjustment
Power harrow drive at both sides protected by PTO shafts with torque limiting clutches (1000 rpm)
Two-speed change gear box with changing turning direction
Specially hardened quick-change tines SZ 34 set to drag position (option to grade position)
Tyre packer roller 405/70-20 AS 504 Ø 1.097 mm, with integrated soil adaptation
Headland management
Hydraulically driven fan
Electronic seed drill control Solitronic
Rubber suspended double disc coulters OptiDisc
Hopper with distributors located outside
Lateral foldable cover
Coulter pressure adjustment electro-hydraulic via operation terminal
