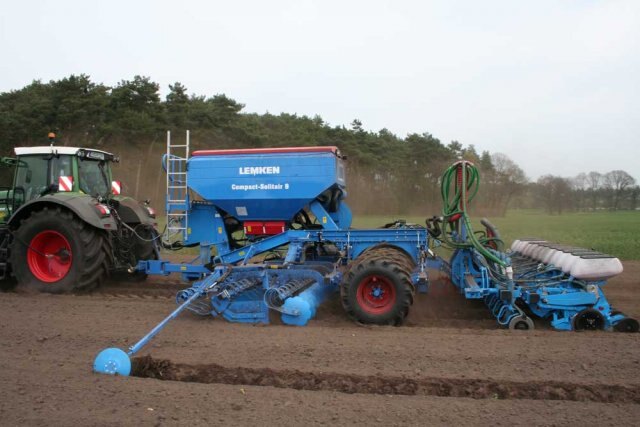

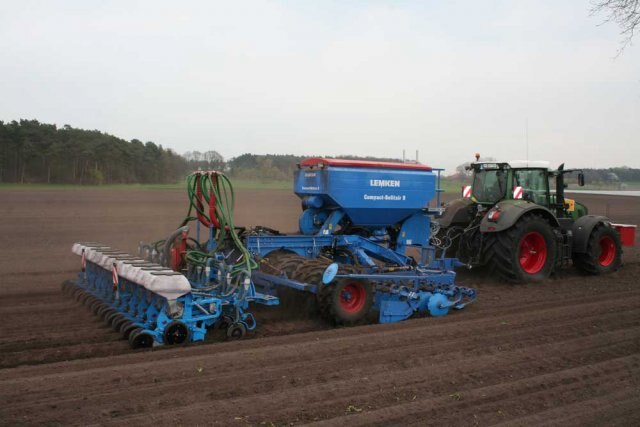

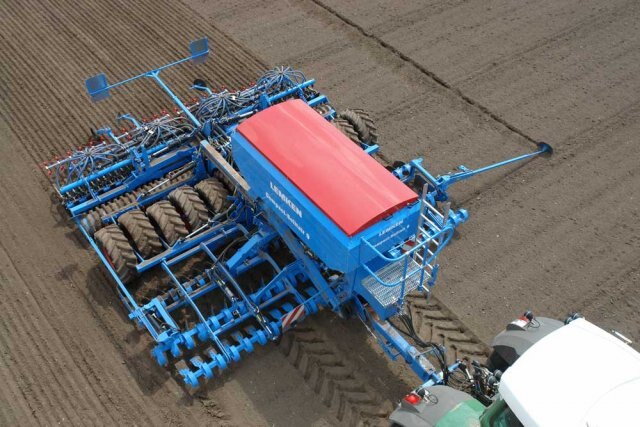

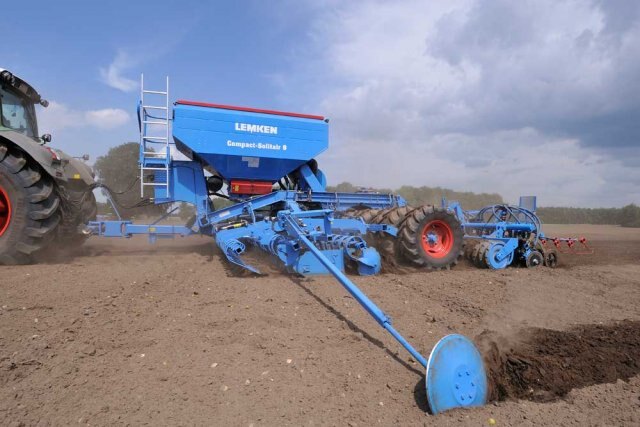

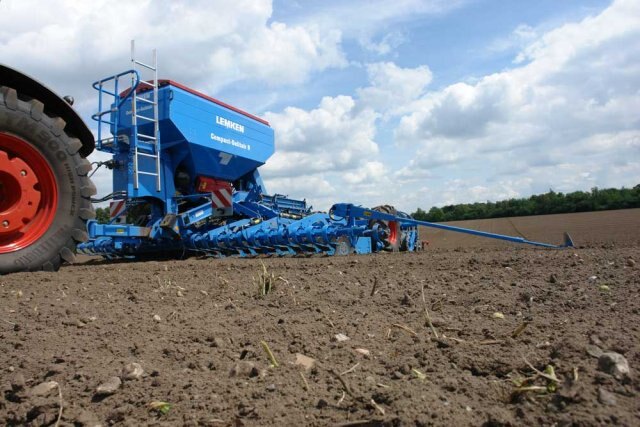

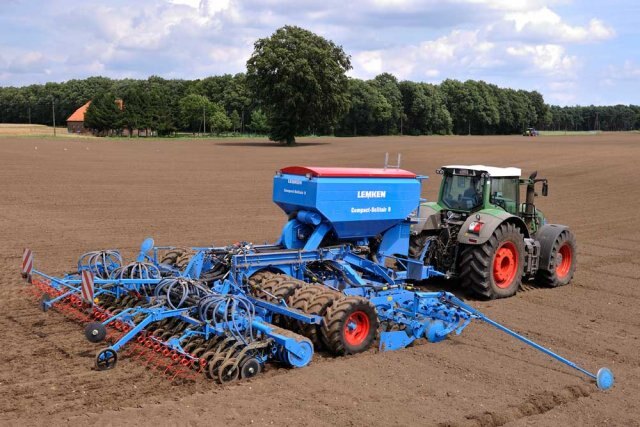

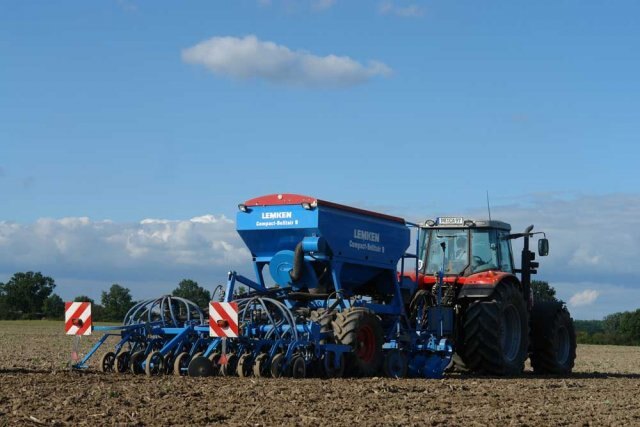

Compact-Solitair 9 H The fast, trailed pneumatic tillage combination
High performance is becoming ever more important when sowing with modern drills - with no compromises, good reconsolidation, and perfect seed placement. The drill combination must also be versatile for use in mulch drilling and conventional ploughing and drilling.

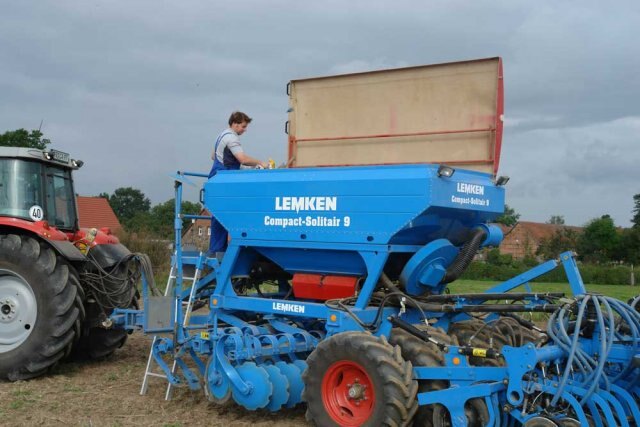

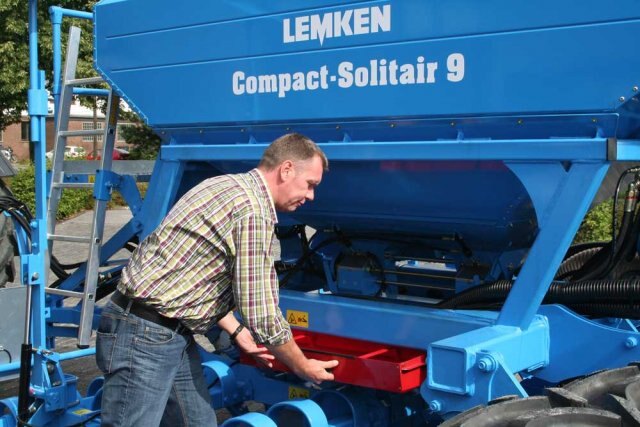

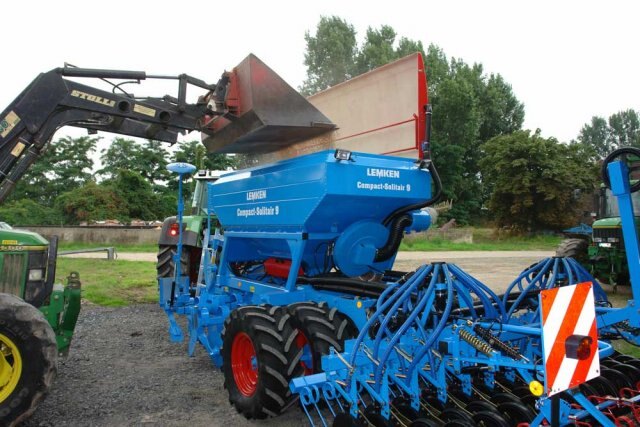

The big seed hopper is easy to fill and meets all the requirements for high performance.
The depth of the cultivation section, with two rows of notched hollow discs, can be adjusted hydraulically.

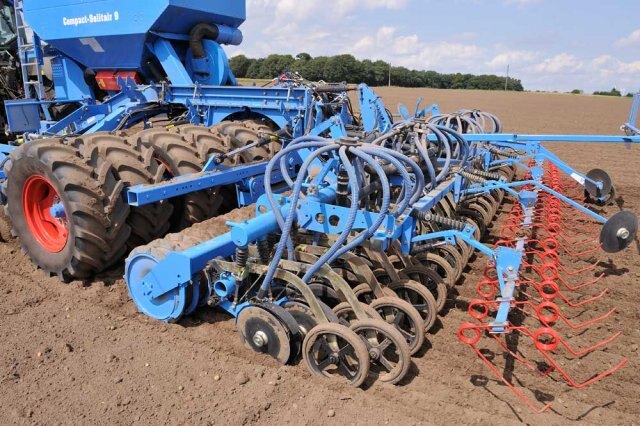

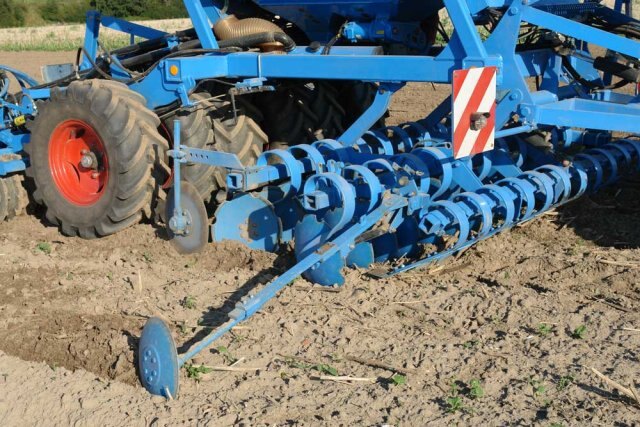

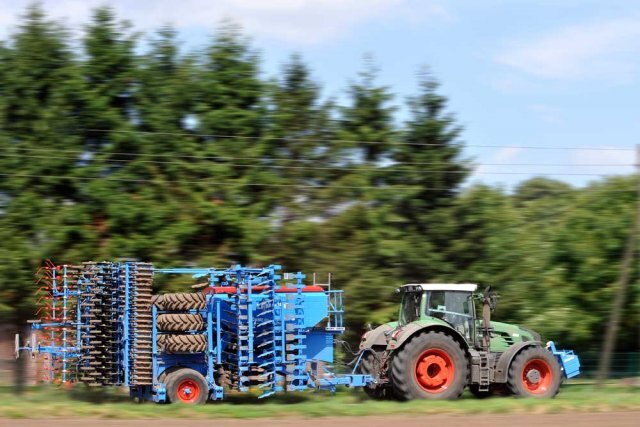

The spring-loaded levelling tines are essential for levelling ploughed land. The large volume, AS profile, tyre packer reduces the draft requirement and provides good reconsolidation and safe road transport.

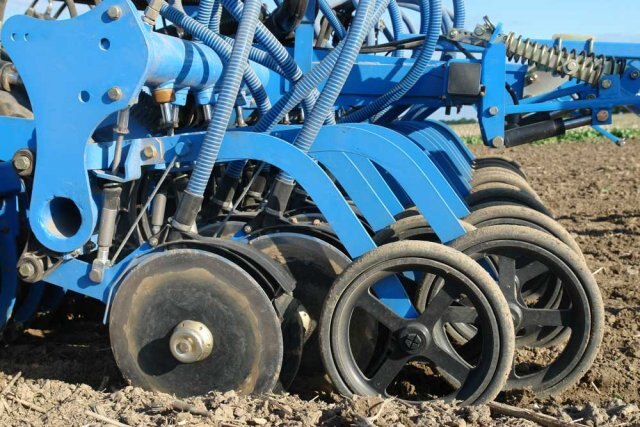

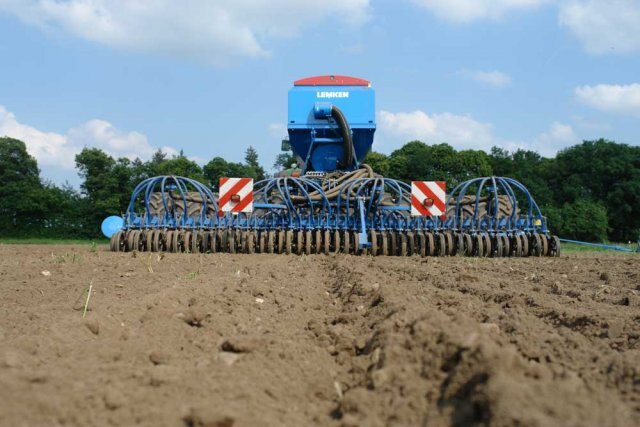

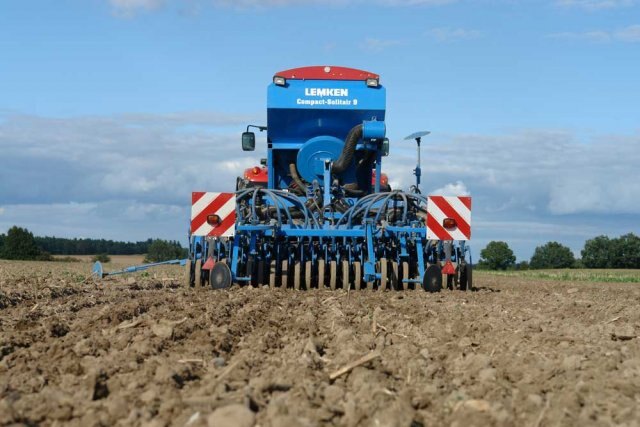

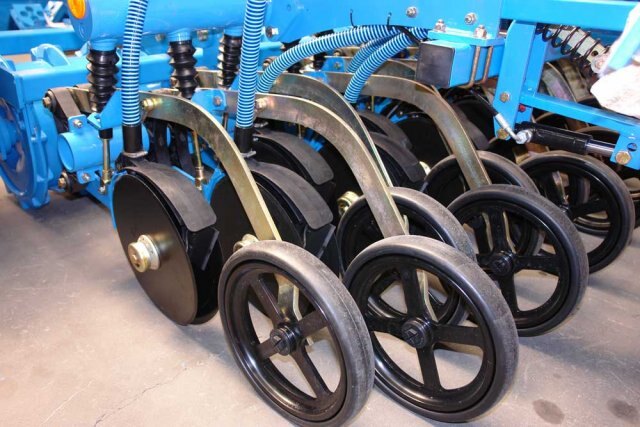

The new maintenance-free OptiDisc Double Disc coulters with rubber-tyred depth control wheels prevent blockages and provide uniform seed placement and ideal depth control even at high forward speeds.
With the Compact-Solitair HD, fertiliser can be applied at the same time as drilling, The two-part, variable hopper can be used for both seed and fertiliser.
Technical Data
Description
Working width (approx. cm)
Number of rows seed coulters
Tank volume approx. litres
approx. kg
HP/kW
Row distance of seed coulters 125 mm
Compact-Solitair 9/300 H
300
24
3.500
3.575
120/88 - 200/147
Compact-Solitair 9/400 H
400
32
3.500
4.135
140/103 - 240/176
Compact-Solitair 9/600 K H
600
48
4.500
8.965
180/132 - 300/221
Row distance of seed coulters 167 mm
Compact-Solitair 9/300 H 167
300
18
3.500
3.485
120/88 - 200/147
Compact-Solitair 9/400 H 167
400
24
3.500
4.015
140/103 - 240/176
Compact-Solitair 9/600 K H 167
600
36
4.500
8.785
180/132 - 300/221
Standard equipment
Compact-Solitair 9 H
Lower link attachment Cat. 3N=L2 Z3 (or Cat. 3)
Working section with notched concave discs, Ø 465 mm, two rows
Stepless hydr. working depth adjustment for compact disc harrow
Tyre packer roller 405/70-20 AS 504 Ø 1.097 mm
Headland management
Hydraulically driven fan
Electronic seed drill control Solitronic
Rubber suspended double disc coulters OptiDisc
Hopper with distributors located outside
Lateral foldable cover
Coulter pressure adjustment electro-hydraulic via operation terminal
