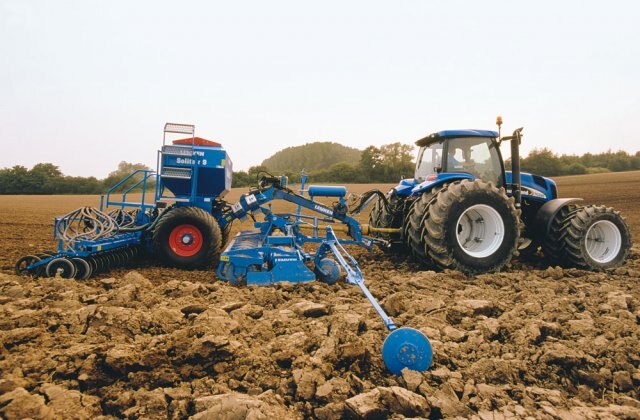

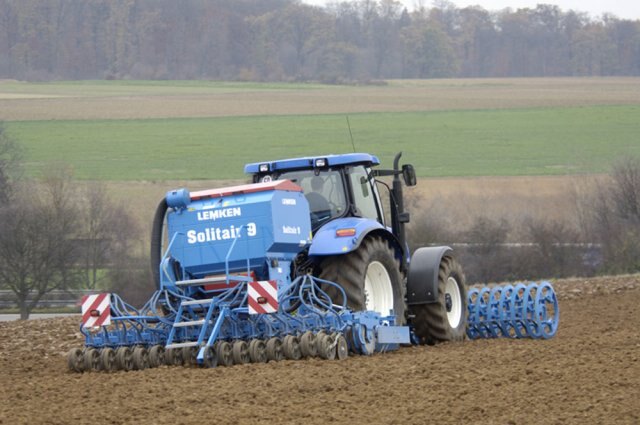

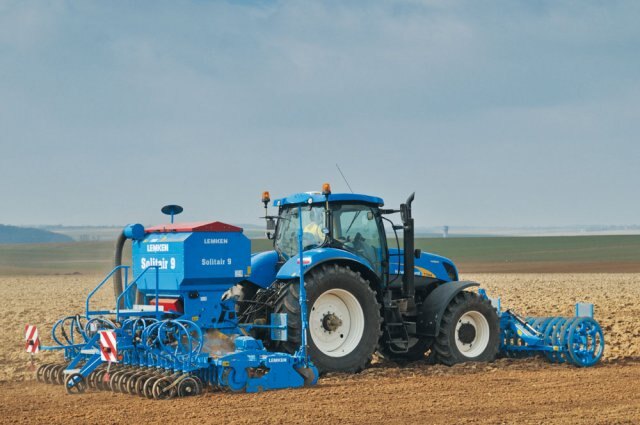

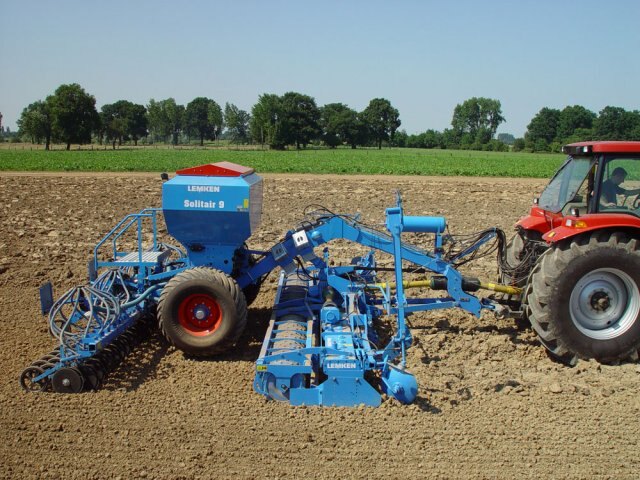

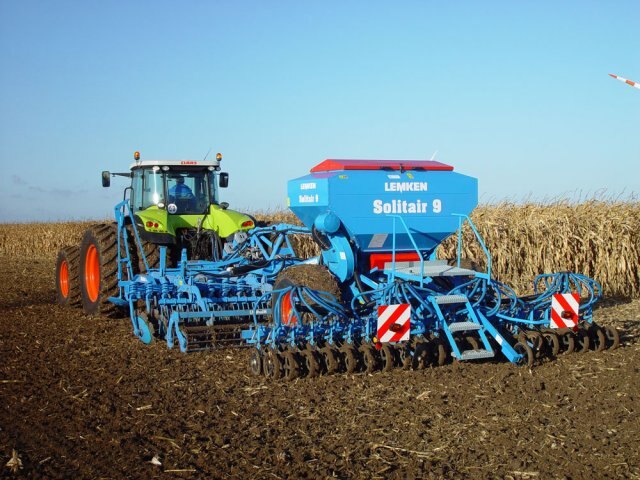

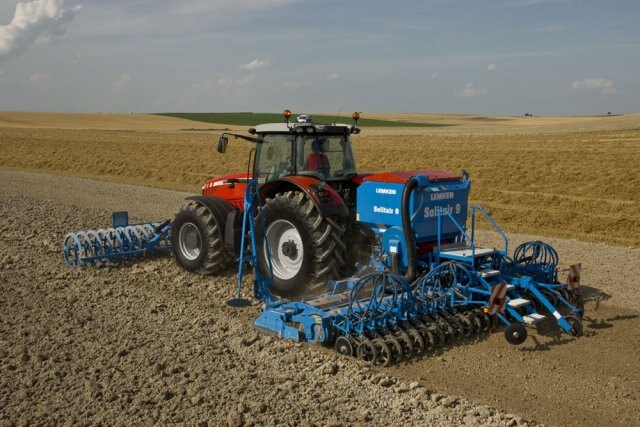

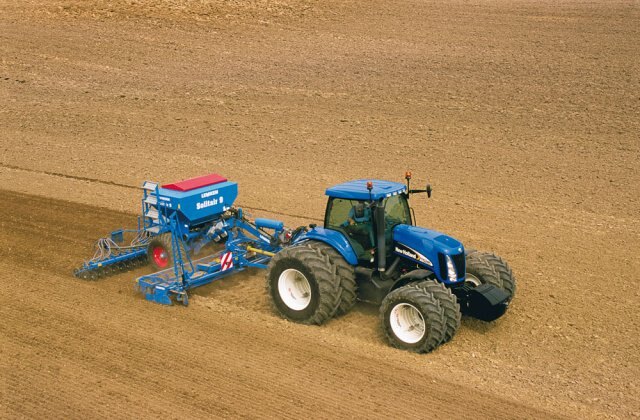

The Solitair 9 pneumatic seed drill is available in a mounted rigid, or folding, version, or a semi-mounted folding version, in working widths of 3 to 6 metres. The potential for use solo, or in combination with a wide range of tillage implements creates, a versatile machine that can be used in a number of establishment situations.
The 6 cell wheels in the central metering unit can be easily adjusted using the tool provided, Seeding rates of 1,5 to 300 kg/ha, over a range of seed types, are possible.

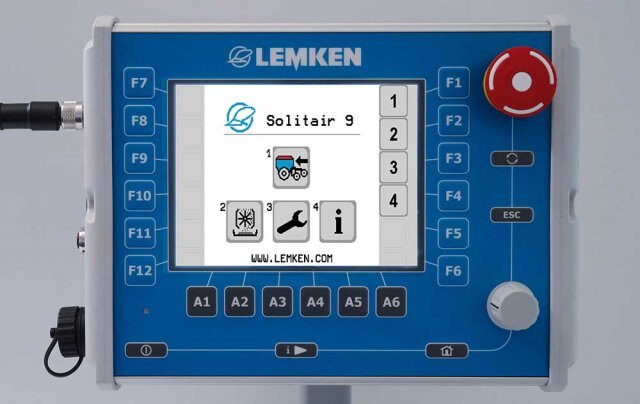

The Solitronic system takes care of all the control and monitoring functions for the electric seeding shaft drive. The easy-to-read colour display provides simple operator guidance.

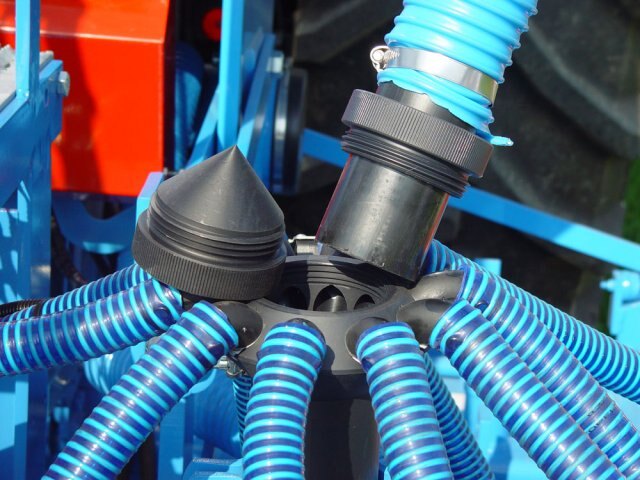

The seed distributors are located outside of the seed hopper, immediately above the coulter bar. The seed tubes between the distributor and the coulter are as short as possible and all of them have the same length to give accurate seed distribution.

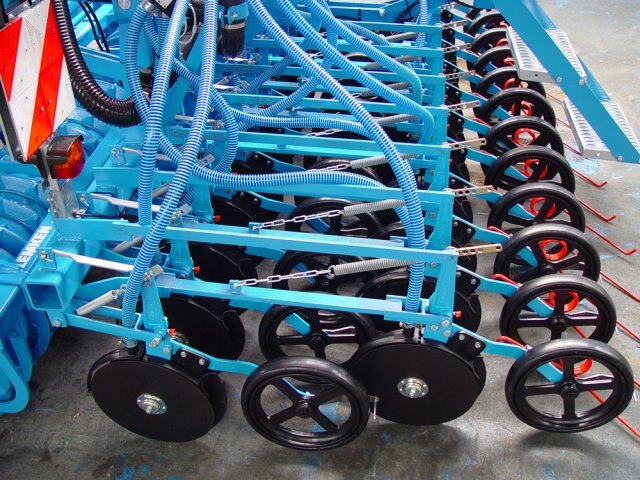

Double Disc coulters with rubber-tyred depth wheels place the seed accurately at a uniform depth even in variable soils. Depth control is maintained even at high forward speeds.
Technical Data
Solitair 9 KA semi-mounted, hydraulic folding
Description
Working width (approx. cm)
Number of rows seed coulters
Tank volume approx. litres
approx. kg
With double disc coulters and depth control wheels / row distance of seed coulters 125 mm
Solitair 9/400 KA-DS
400
32
2.300
1.274
Solitair 9/450 KA-DS
450
36
2.300
1.364
Solitair 9/500 KA-DS
500
40
2.300
1.504
Solitair 9/600 KA-DS
600
48
2.300
1.684
With double disc coulters and depth control wheels / row distance of seed coulters 150 mm
Solitair 9/400 KA-DS 150
400
27
2.300
1.199
Solitair 9/450 KA-DS 150
450
30
2.300
1.274
Solitair 9/500 KA-DS 150
500
34
2.300
1.414
Solitair 9/600 KA-DS 150
600
40
2.300
1.564
Standard equipment
Solitair 9 KA
Electronic seed drill control Solitronic

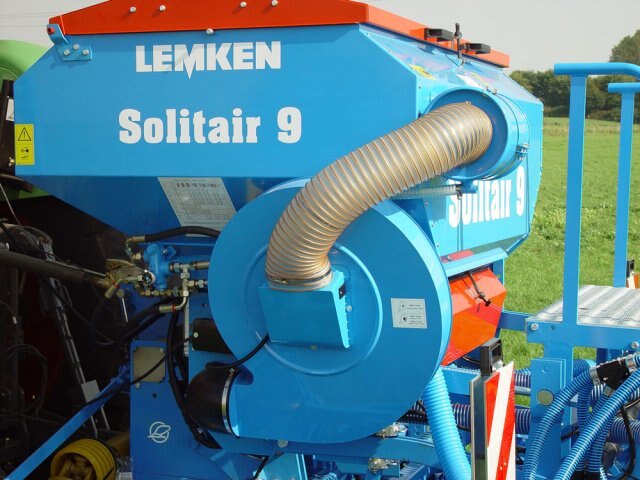

Hydraulically driven fan
Forward folding cover
Adjustable hydraulic coulter pressure and coulter lifting device (ca 45 cm - long version)
