Lemken

ID # 13287424

2014 Lemken drilling Solitair 9

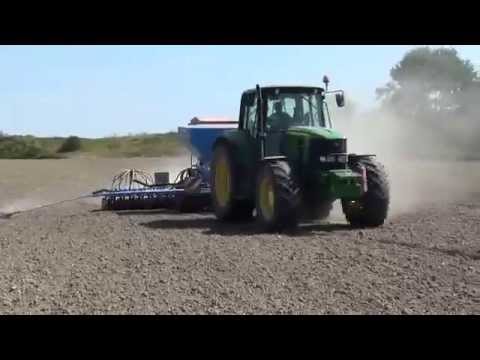

Videos
Call for Price
Overview

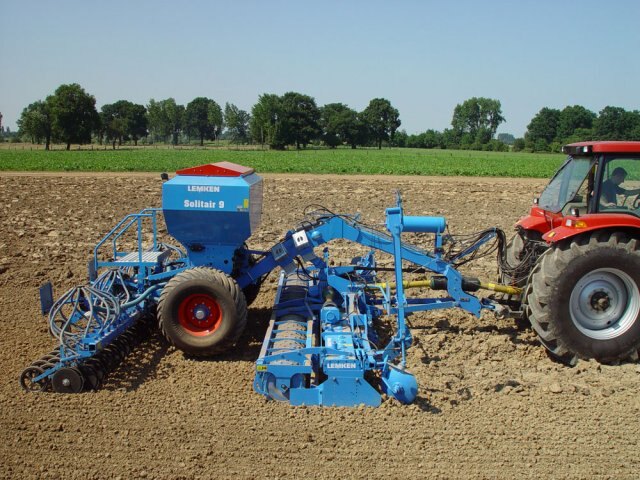

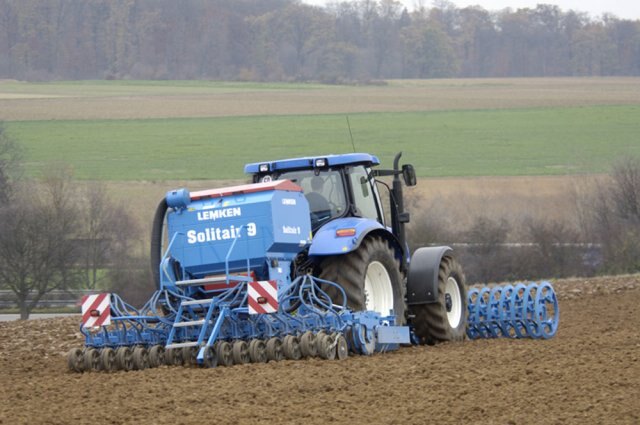

Solitair 9
The versatile pneumatic seed drill

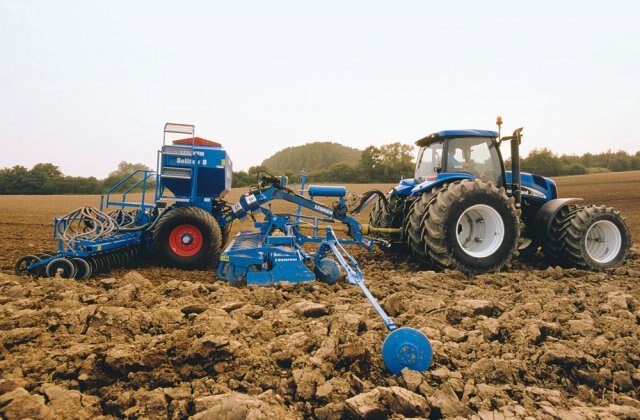

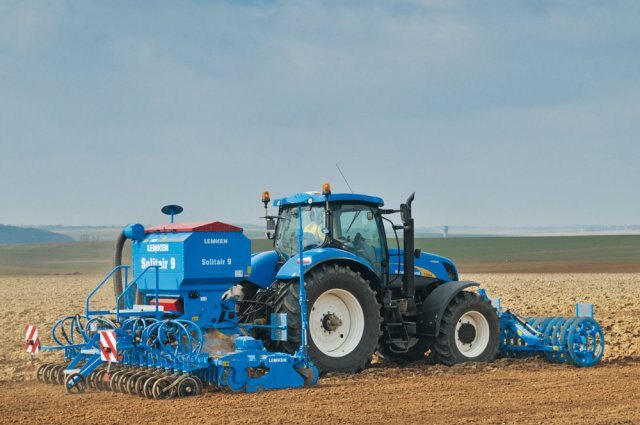

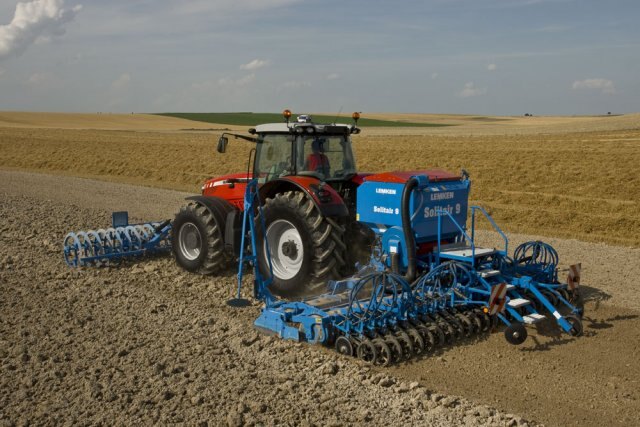

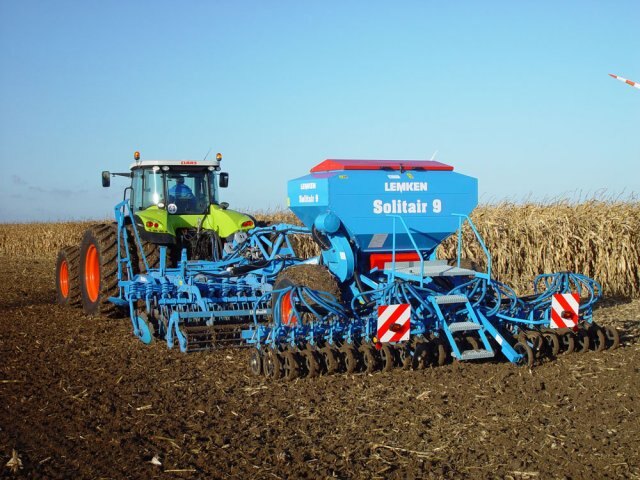

The Solitair 9 pneumatic seed drill is available in a mounted rigid, or folding, version, or a semi-mounted folding version, in working widths of 3 to 6 metres. The potential for use solo, or in combination with a wide range of tillage implements creates, a versatile machine that can be used in a number of establishment situations.

  • The 6 cell wheels in the central metering unit can be easily adjusted using the tool provided, Seeding rates of 1,5 to 300 kg/ha, over a range of seed types, are possible.

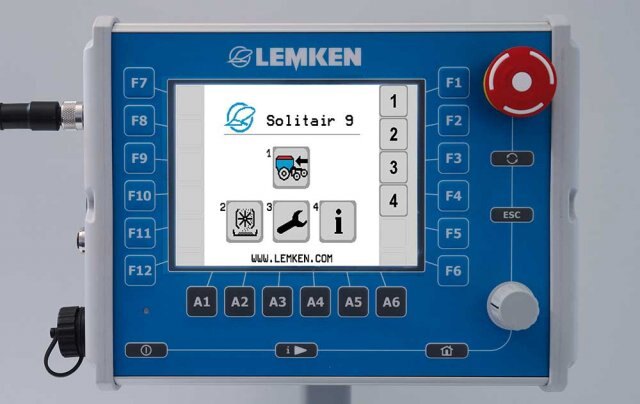

  • The Solitronic system takes care of all the control and monitoring functions for the electric seeding shaft drive. The easy-to-read colour display provides simple operator guidance.

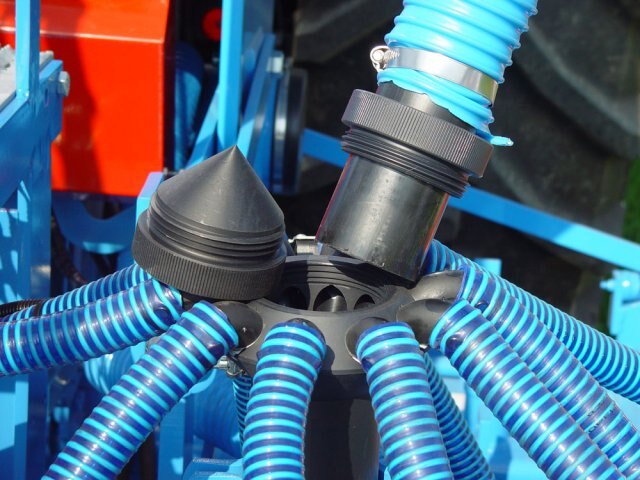

  • The seed distributors are located outside of the seed hopper, immediately above the coulter bar. The seed tubes between the distributor and the coulter are as short as possible and all of them have the same length to give accurate seed distribution.

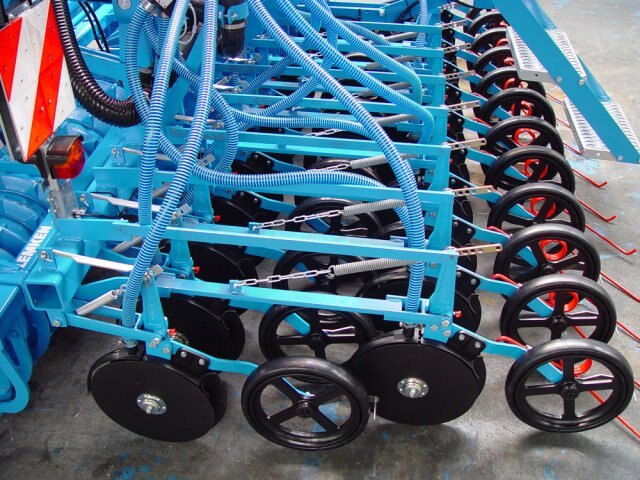

  • Double Disc coulters with rubber-tyred depth wheels place the seed accurately at a uniform depth even in variable soils. Depth control is maintained even at high forward speeds.
  Technical Data


Solitair 9 mounted, rigid

Description Working width
(approx. cm)
Number of rows seed coulters Tank volume approx. litres approx. kg
With double disc coulters and depth control wheels / row distance of seed coulters 125 mm
Solitair 9/300-DS 300 24 1.100 1.041
Solitair 9/350-DS 350 28 1.100 1.104
Solitair 9/400-DS 400 32 1.850 1.158
With double disc coulters and depth control wheels / row distance of seed coulters 150 mm
Solitair 9/300-DS 150 300 20 1.100 981
Solitair 9/350-DS 150 350 23 1.100 1.035
Solitair 9/400-DS 150 400 27 1.850 1.083
  Standard equipment

Solitair 9

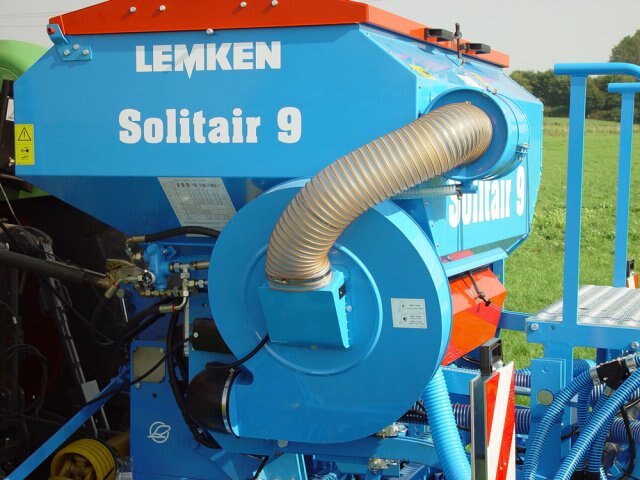

  • Hydraulically driven fan
  • Forward folding cover
  • Hopper with distributors located outside
  • Hopper sieve
  • Electronic hopper level indicator
  • Electrically driven seeding shaft
  • Pulse wheel Ø 350 mm
  • Dust filter
  • Digital scale with case



Specifications
Model
Solitair 9
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
LEMKEN
