• The electric seeding shaft drive provides accurate metering of a wide range of seed from 0,5 to 500 kg/ha. The seed rate is easily set by a single calibration procedure.
• The electric motor and job computer are located safely at the front of the drill. After initial calibration, seed rate can be easily adjusted, at the touch of a button on the Solitronic control box in the tractor cab.
• The Solitronic controls the rotation of the electrically driven seeding shaft. Additionally, it provides a warning when seed level is low, displays the forward speed, and records the area sown. An integral diagnostics system for troubleshooting, and ISOBUS and DGPS compatibility, complete the standard equipment.
• With Saphir 8 the spiked wheel is replaced by a rubber pulse wheel. As there is no need to transfer drive torque, this gives slip-free, accurate measurement of speed and distance travelled.

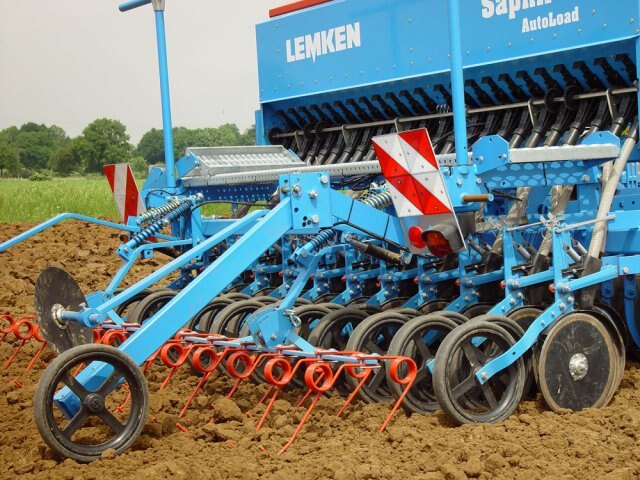

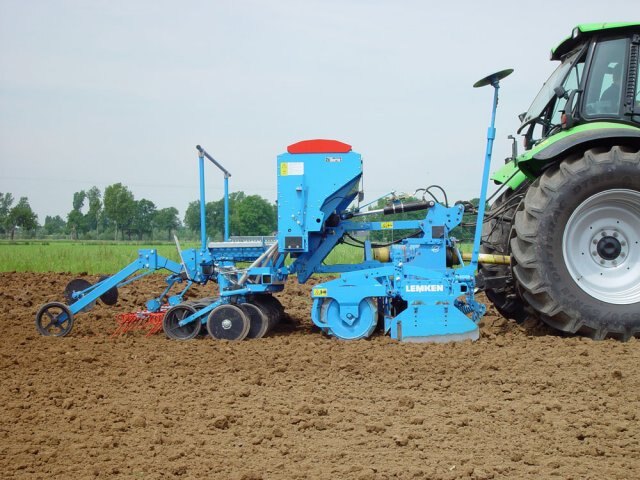

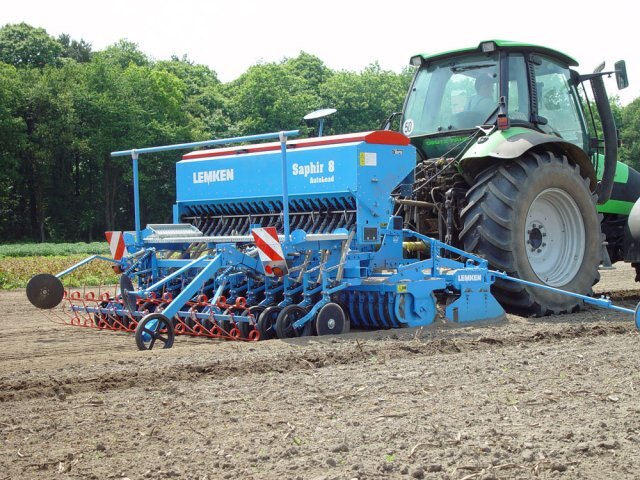

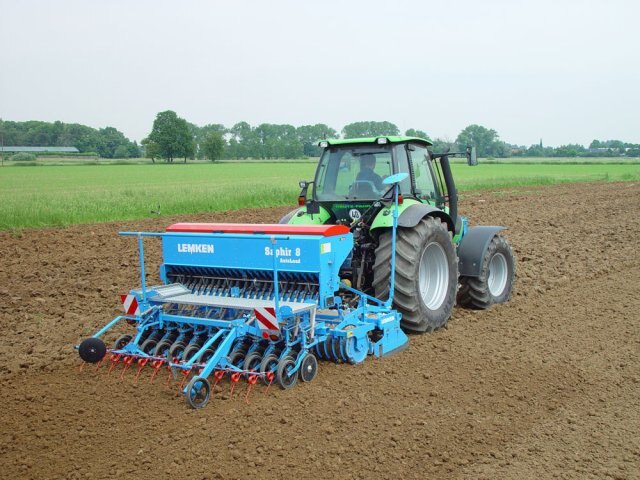

Saphir 8

• Electronic seed drill control Solitronic
• Quick-change device for seed wheels
• Two-piece seed wheels »Conti Plus« (or one-piece seed wheels »Mono Plus« for peas up to 150 kg/ha or one-piece seed wheels »Mega Plus« for peas and beans more than 150 kg/ha)
• Tramline mechanism 2 x 2 rows
• Switch off of width sections mechanically
• Electronic hopper level indicator
• Electrically driven seeding shaft
• Pulse wheel Ø 350 mm
• Discharge wedges
• Forward folding cover
• Intermediate plates
• Mechanic hopper level indicator
• Loading platform with steps
• Digital scale with case
• Carrier for harrow and pre-emergence marker
