• The two three-point linkages and the individual working units provide unbeatable ground following which guarantees a uniform cultivation depth and lower fuel consumption.
• The cultivated area remains free of wheel tracks because the wheels on the Gigant system carrier run in front of the implements.

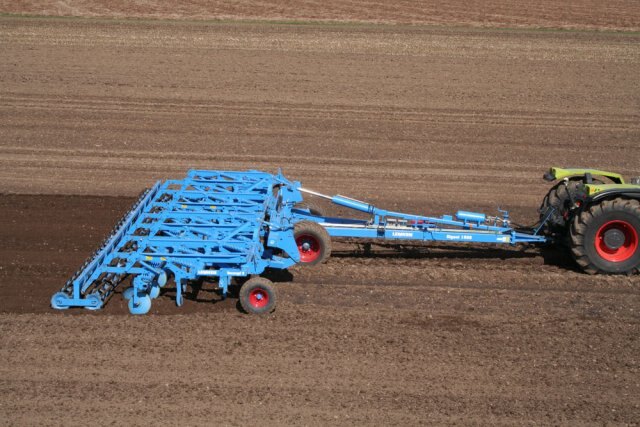

• Road transport of the Gigant 10 is simple and safe with 3 m transport width possible in every implement combination. The Gigant 12 can be fitted with a support wheel for fast, convenient use at the headland and safe implement transport.

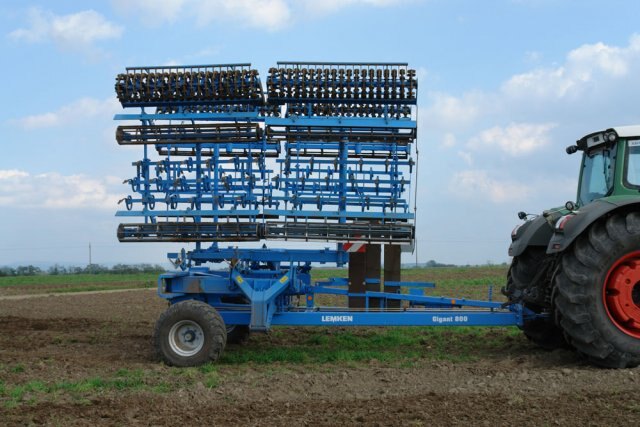

Gigant 10/800

• Drawbar eye Ø 58 mm, for connection to a double lashing drawbar (or Ø 48 mm)
• Axle with wheels 500/50-17, 940 x 500 mm
• Rigid tines with shearbolt device, as U-version additionally with automatic overload safety device
• Hard-faced points and wing shares
• Short point for exceptional shallow cultivation, if desired
• Outer guideboards
• Underframe clearance 80 cm
• Without depth guiding device
• Concave discs with shearbolt device
• Without roller
• Without lighting equipment

Gigant 10/1000

• Drawbar eye Ø 58 mm, for connection to a double lashing drawbar (or Ø 48 mm)
• Axle with wheels 550/45-22.5, 1,070 x 550 mm
• Tines with automatic overload safety device and shearbolt device
• Hard-faced points and wing shares
• Short point for exceptional shallow cultivation, if desired
• Outer guideboards
• Underframe clearance 80 cm
• Depth control wheels 10.0/80-12, 710 x 264 mm with depth guiding device
• Concave discs with shearbolt device
• Without roller
• Without lighting equipment

Gigant 12/1200

• Drawbar eye Ø 58 mm, for connection to a double lashing drawbar (or Ø 78 mm)
• Axle with wheels 580/65-22.5, 1,300 x 580 mm
• Hard-faced points and wing shares
• Short point for exceptional shallow cultivation, if desired
• Tines with automatic overload safety device and shearbolt device
• Outer guideboards
• Underframe clearance 80 cm
• Depth control wheels 10.0/80-12, 710 x 264 mm with depth guiding device
• Concave discs with shearbolt device
• Without roller
• Without lighting equipment
