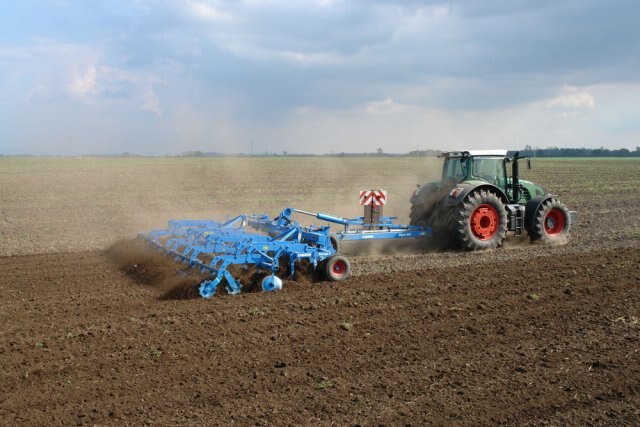

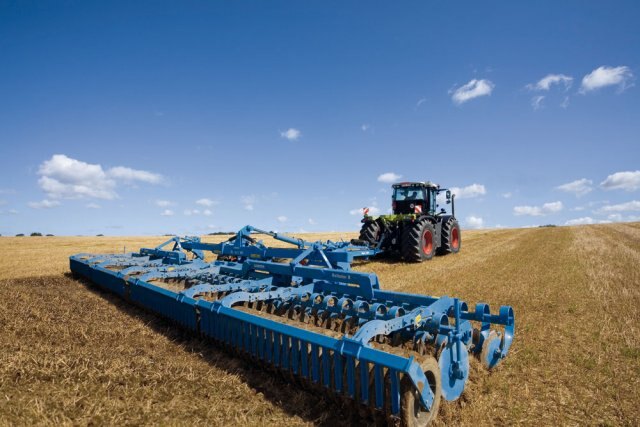

• The two three-point linkages and the individual working units provide unbeatable ground following which guarantees a uniform cultivation depth and lower fuel consumption.
• The cultivated area remains free of wheel tracks because the wheels on the Gigant system carrier run in front of the implements.

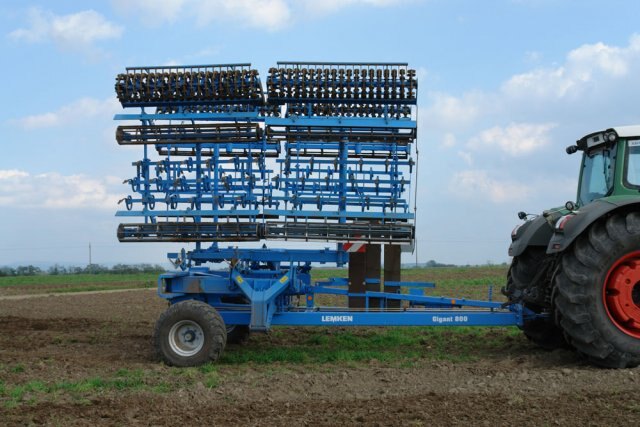

• Road transport of the Gigant 10 is simple and safe with 3 m transport width possible in every implement combination. The Gigant 12 can be fitted with a support wheel for fast, convenient use at the headland and safe implement transport.

Gigant 10 S/800

• Drawbar eye Ø 58 mm, for connection to a double lashing drawbar (or Ø 48 mm)
• Axle with wheels 550/45-22.5, 1,070 x 550 mm.
• Depth control
• Underframe clearance 80 cm
• Two integrated harrows
• Concave discs with overload safety device 620 x 6 mm notched
• Three point linkage hydraulic double acting
• Without roller
• Without lighting equipment
• Without brake system

Gigant 12 S/1000

• Drawbar eye Ø 58 mm, for connection to a double lashing drawbar (or Ø 78 mm)
• Axle with wheels 580/65-22.5, 1,300 x 580 mm
• Depth control
• Underframe clearance 80 cm
• Two integrated harrows
• Concave discs with overload safety device 620 x 6 mm notched
• Three point linkage hydraulic double acting
• Without roller
• Without lighting equipment
• Without brake system

Gigant 12 S/1200

• Drawbar eye Ø 58 mm, for connection to a double lashing drawbar (or Ø 78 mm)
• Axle with wheels 800/40-26.5, 1,340 x 800 mm
• Depth control
• Underframe clearance 80 cm
• Two integrated harrows
• Concave discs with overload safety device 620 x 6 mm notched
• Three point linkage hydraulic double acting
• Without roller
• Without lighting equipment
• Without brake system
