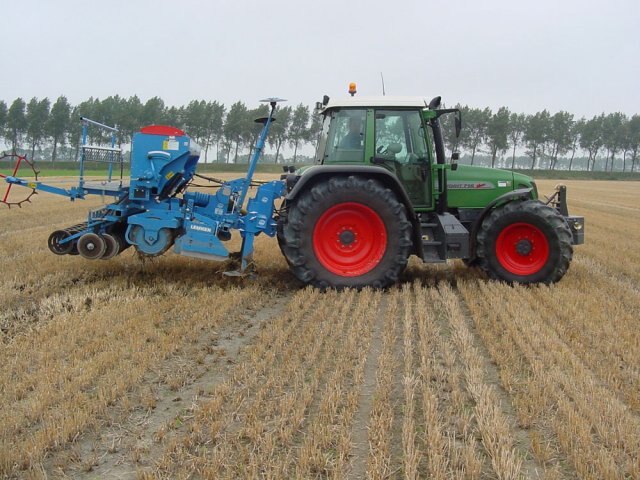

2014 Lemken stubble-cultivation Dolomit

  • 2014 Lemken stubble cultivation Dolomit
  • 2014 Lemken stubble cultivation Dolomit
  • 2014 Lemken stubble cultivation Dolomit
  • 2014 Lemken stubble cultivation Dolomit
  • Video Button Hqdefault
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

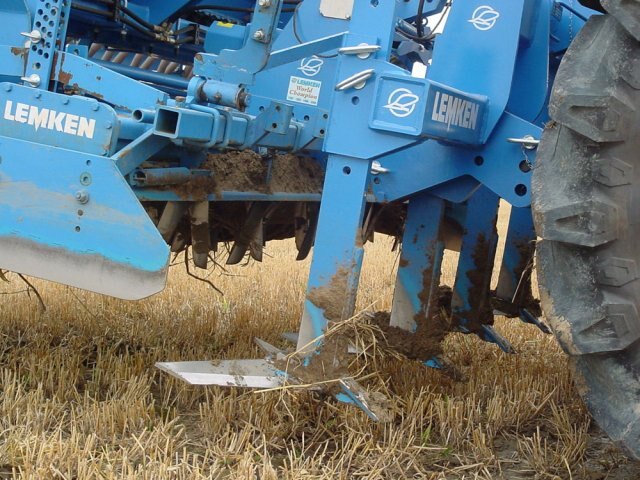

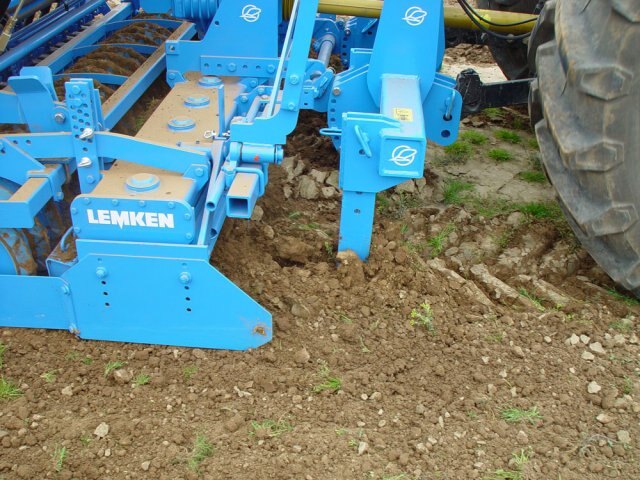

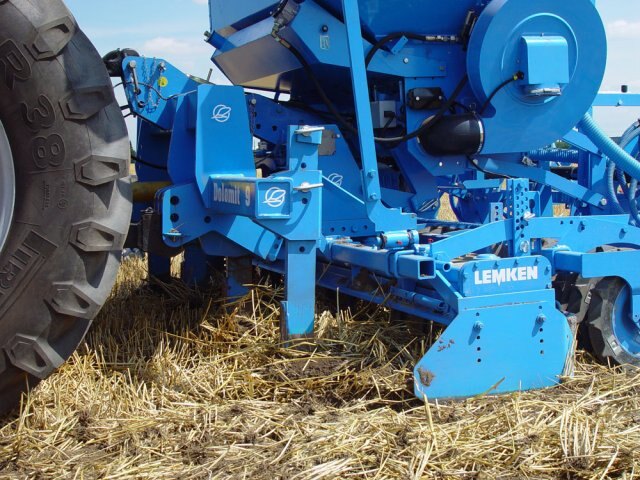

Pre-looseners Dolomit

The extremely versatile Dolomit pre-loosener is suitable for all-over soil loosening, particularly before power-harrow/drill combinations. This allows mulch drilling for sowing in a single pass.
  • Extremely short, only 50 cm, design with optimum coupling point spacing.
  • Working depth can be adjusted during work independently of any mounted tillage combination
  • The 60 cm wide, one-piece wing shares with hardened tips loosen the soil across the full working width.
  Technical Data


Dolomit mounted, rigid

Type 9/300 9/400
Max. working depth (cm) 35 35
Working width (cm) 300 400
Weight (kg) 430 550
Line distance 75 75
Number of chisels 4 6
kW 59 - 125 74 - 147
HP 80 - 170 100 - 200
  Standard equipment
  • Lower link attachment Cat. 2 and Cat. 3
  • Box section frame 160x160 mm nd 140x140 mm
  • Hard-faced points and one-piece wing shares
  • Height adjustable legs



Specifications
Model
Dolomit
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
LEMKEN
