• With the innovative quick-change system (option), the shares can be changed quickly and easily without tools so that the cultivator can be tailored to the different requirements of shallow or deep mixing cultivation.

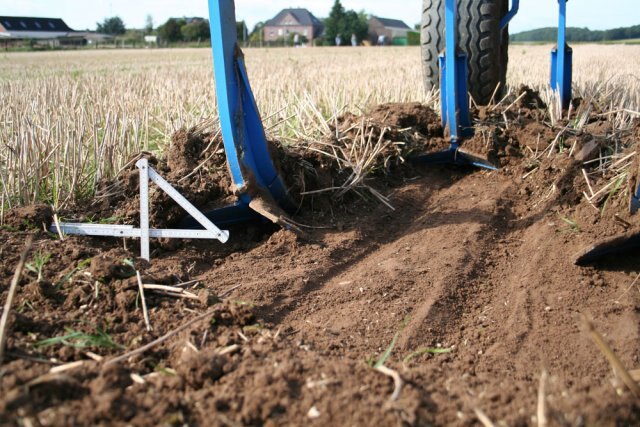

• The tractor-mounted Karat has an easily accessible depth adjustment system to set working depth in small increments between 5 and 30 cm without using tools. The semi-mounted Karat is fitted with hydraulic working depth adjustment as standard.
• When the working depth is changed, the automatic disc adjustment system ensures that the maintenance-free concave discs compensate for the new working depth with no further adjustment.
• Hydraulic traction assistance ensures that the weight is transferred from the cultivator to the tractor rear axle, thus increasing the tractor’s traction power and reducing the fuel consumption.
• In the semi-mounted version the axle is integrated within the cultivator frame to provide greater manoeuvrability.

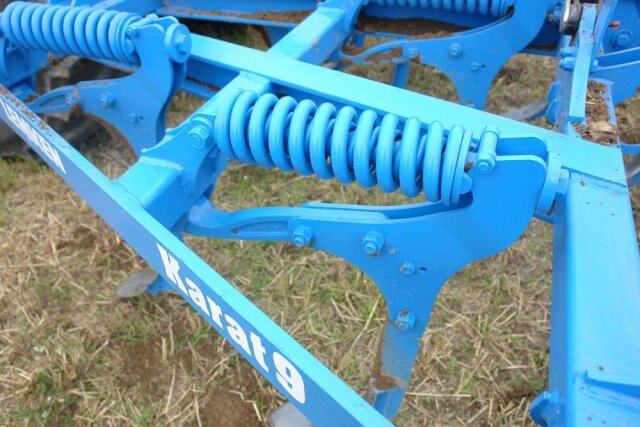

• The maintenance-free automatic overload safety device (option) allows the tines to move upwards and backwards when they hit an obstruction.

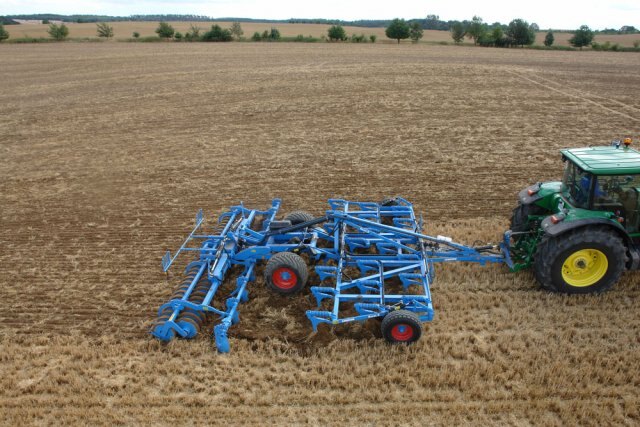

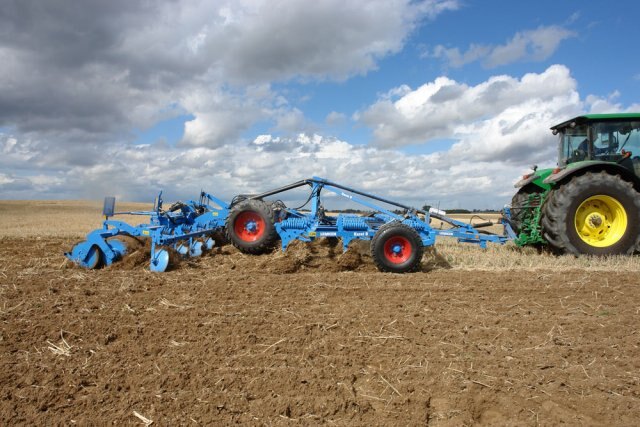

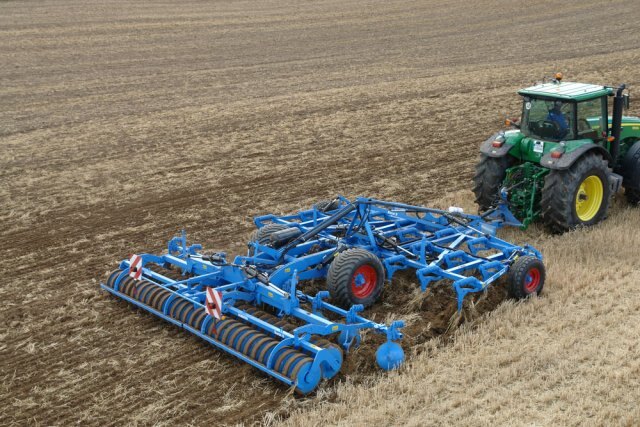

Karat 9 semi-mounted, hydraulic folding

• Integrated trailer
• Axle with wheels 550/45-22.5, 1,070 x 550 mm
• Lower link attachment Cat. 3 (or Cat. 4N=L3 Z4)
• Rigid tines with shearbolt device, as U-version additionally with automatic overload safety device
• Hard-faced points K 12 P (120 mm wide) with guideboard KL 10 (100 mm wide)
• Outer guideboards
• Underframe clearance 80 cm
• Depth control wheels hydraulically adjustable 11.5/80-15.3, 845 x 290 mm
• Concave discs with shearbolt device
• Hydraulic transport locking device
• Hydraulic working depth adjustment
• Hydraulic traction increase
• Stands
• Without roller
• Without lighting equipment
• Without brake system
