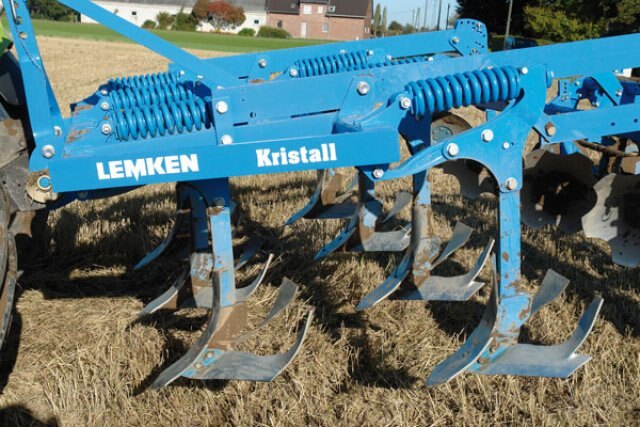

• The innovative shape of the new, 47 cm wide TriMix shares with curved guide plates on the wings provides an unprecedented level of mixing compared to previous share designs,.
• The short, compact frame design gives better depth control than in multi-beam cultivators.
• The low lifting power enables three-point linkage mounting, on the tractor, up to working width of 6 metres.
• The semi-mounted versions can be equipped with the LEMKEN combination axle that enables the combination with the Solitair seed drill.

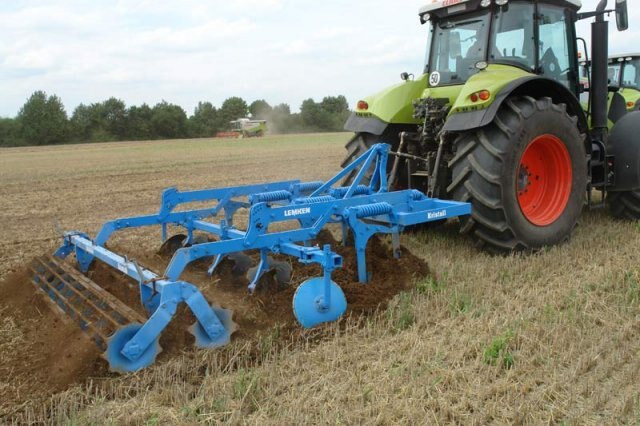

• The tines and concave levelling discs are arranged to guarantee blockage-free work without producing an unwanted “ridge effect”.
• If the working depth of the Kristall compact cultivator is changed, the concave discs adapt to the new working depth without further adjustment.
• For light soils, the Kristall compact cultivator can also be equipped with the DuoMix shares, which - in contrast to the TriMix shares - are fitted with straight wings.
• The Kristall can be fitted as option with LEMKEN‘s innovative quick-change system which enables the shares to be adjusted to individual requirements without tools.

Kristall 9

• Lower link attachment Cat. 3N=L2 Z3 (or Cat. 3)
• Rigid tines with shearbolt device, as U-version additionally with automatic overload safety device
• TriMix-shares, hard-faced wings with additional guideboards
• Hard-faced points K 12 P (120 mm wide) with guideboard KL 10 (100 mm wide)
• Outer guideboards
• Underframe clearance 80 cm
• Concave discs with shearbolt device
• Without roller
