ID # 13286714

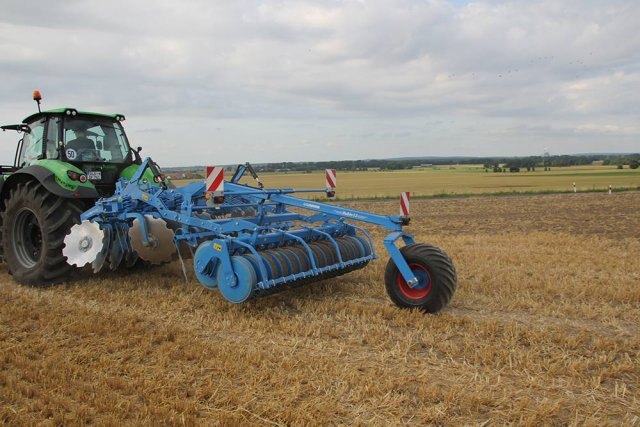

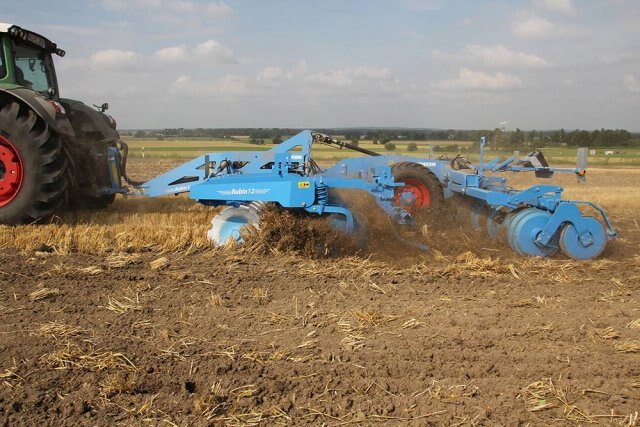

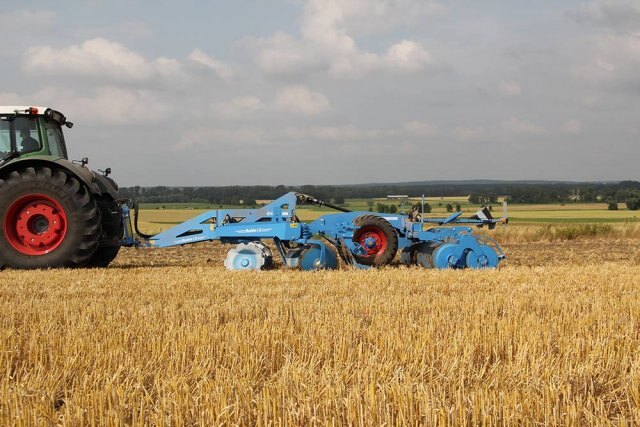

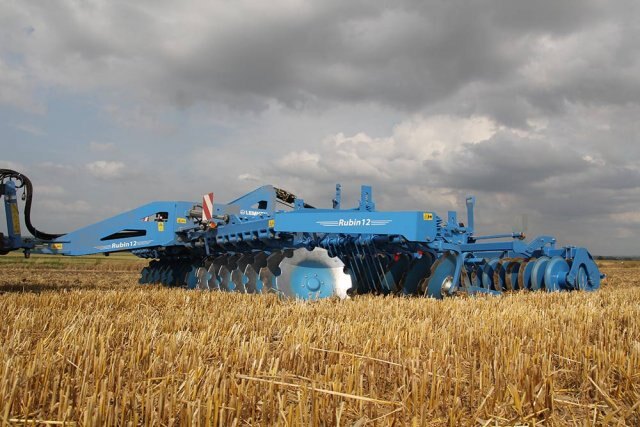

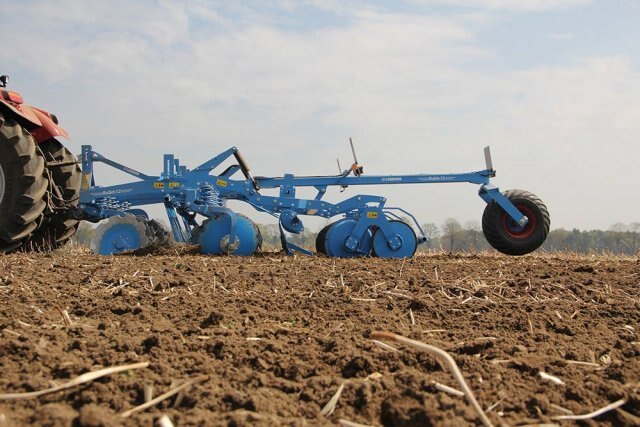

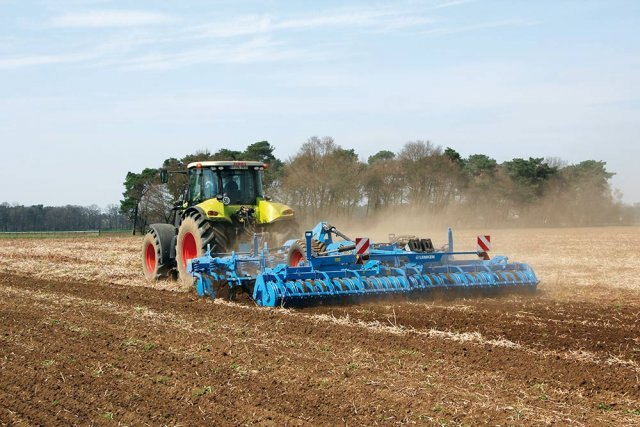

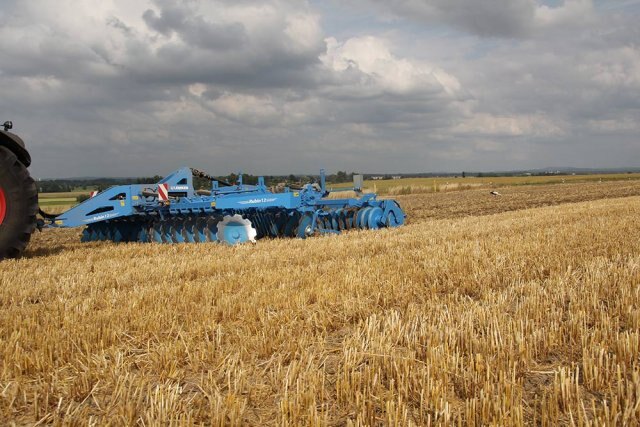

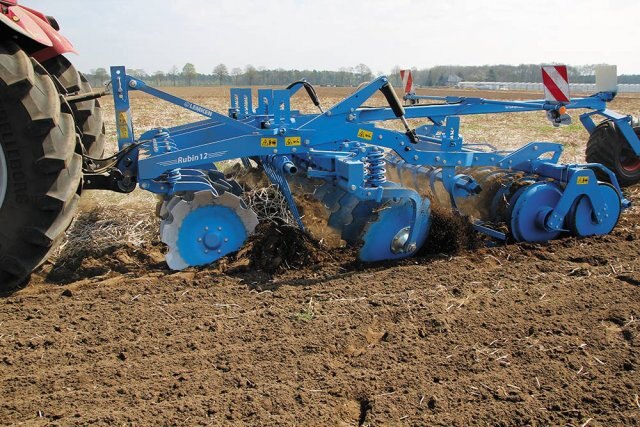

2014 Lemken stubble-cultivation Rubin 12 KUA

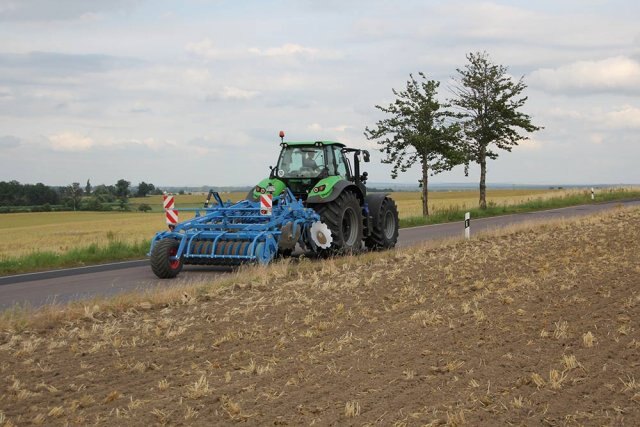

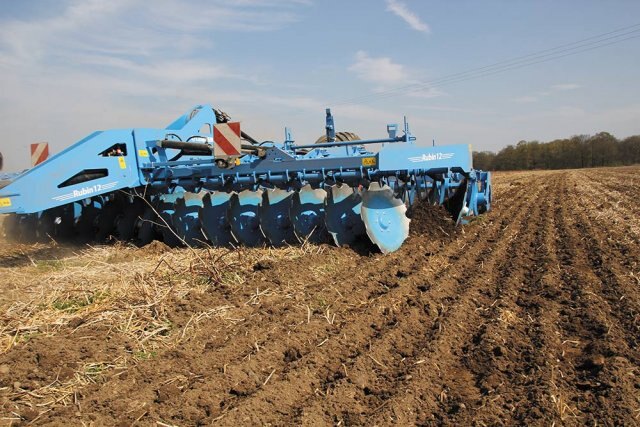

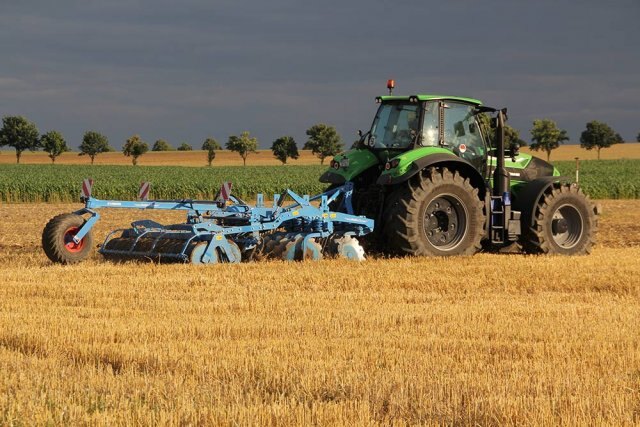

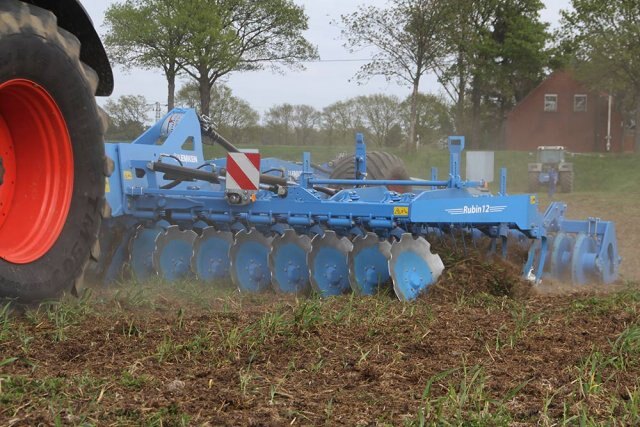

  • 2014 Lemken stubble cultivation Rubin 12 KUA
  • 2014 Lemken stubble cultivation Rubin 12 KUA
  • 2014 Lemken stubble cultivation Rubin 12 KUA
  • 2014 Lemken stubble cultivation Rubin 12 KUA
  • 2014 Lemken stubble cultivation Rubin 12 KUA
  • 2014 Lemken stubble cultivation Rubin 12 KUA
  • 2014 Lemken stubble cultivation Rubin 12 KUA
  • 2014 Lemken stubble cultivation Rubin 12 KUA
  • 2014 Lemken stubble cultivation Rubin 12 KUA
  • 2014 Lemken stubble cultivation Rubin 12 KUA
  • 2014 Lemken stubble cultivation Rubin 12 KUA
  • 2014 Lemken stubble cultivation Rubin 12 KUA
  • 2014 Lemken stubble cultivation Rubin 12 KUA
  • 2014 Lemken stubble cultivation Rubin 12 KUA
  • 2014 Lemken stubble cultivation Rubin 12 KUA
  • 2014 Lemken stubble cultivation Rubin 12 KUA
  • 2014 Lemken stubble cultivation Rubin 12 KUA
  • 2014 Lemken stubble cultivation Rubin 12 KUA
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Rubin 12
Deeper, faster and more intensive

Compact disc harrows provided previously intense and homogeneous mixing of soil and organic matter to a depth of approximately 12 cm.

With Rubin 12, LEMKEN supplements its range of compact disc harrows, consisting of Heliodor 8 and Rubin 9, with a new series, which can work in up to 20 cm depth. The new compact disc harrow can operate on all soils in areas, which were previously reserved for cultivators. With its specially arranged large concave discs, Rubin 12 is designed in particular for the incorporation of large amounts of crop resi- dues.

Various rollers from the wide range of LEMKEN rollers offer optimal crumbling, reconsolidation and leveling, as well as precise depth control for differ- ent soil and working conditions.
  Technical Data


Rubin 12 - Semi-mounted, hydraulic folding

Type 12/400 KUA 12/500 KUA 12/600 KUA
Working width (approx. cm) 400 500 600
Transport width (approx. m) 3 3 3
Number of discs 30 34
Weight without roller (approx. kg)¹ 4.402 5.257 5.732
kW 132 - 235 165 - 294 199 - 353
HP 180 - 320 225 - 400 270 - 480
¹ Axle load exceeds 3t, braked version
  Standard equipment

Rubin 12 KUA

  • Solo axle
  • Axle with wheels 550/45-22.5,
  • Lower link attachment Cat. 3 (or Cat. 3N=L2 Z3, 4N=L3 Z4 or 4=L4 Z4)
  • Underframe clearance 80 cm
  • Integrated rebound harrow behind the first disc row, levelling harrow behind the second disc row
  • Concave discs with overload safety device 736 x 6 mm notched
  • Hydraulic transport locking device
  • Hydraulic working depth adjustment
  • Without roller
  • Without lighting equipment
  • Without brake system



Specifications
Model
Rubin 12 KUA
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
LEMKEN
