ID # 13286713

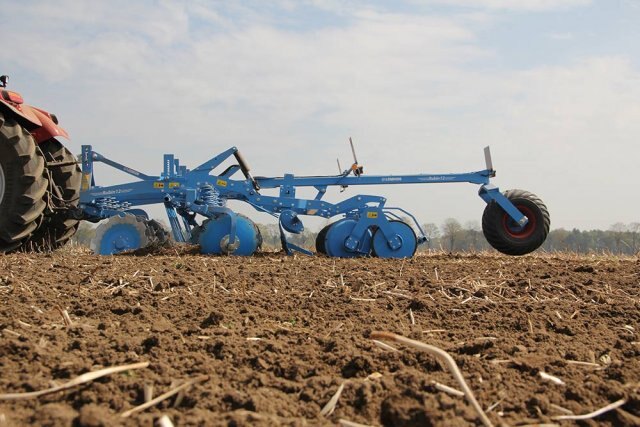

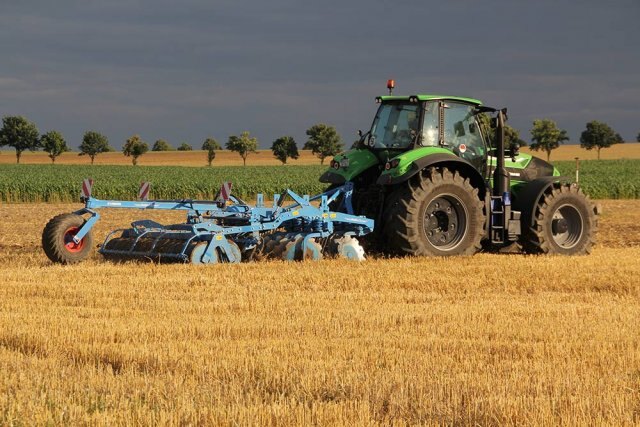

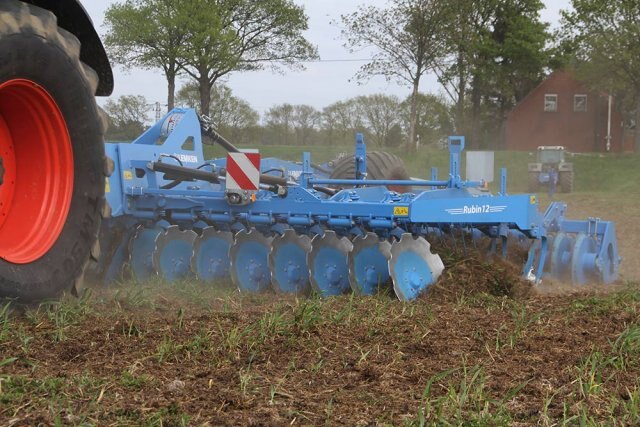

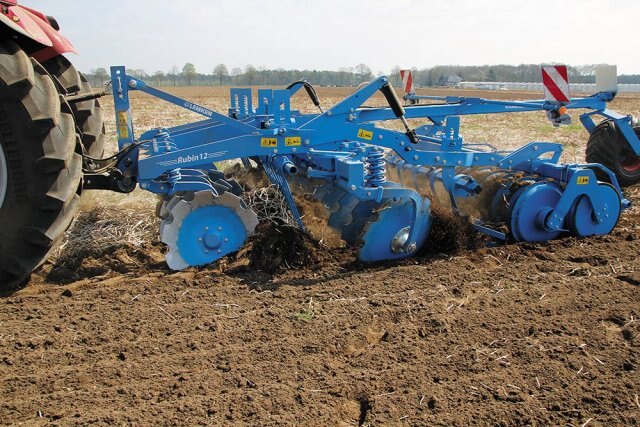

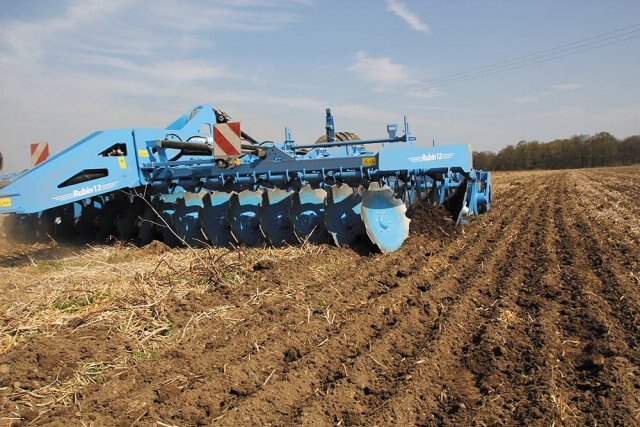

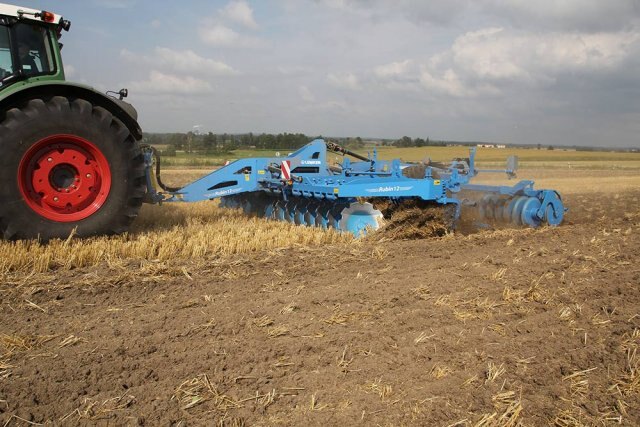

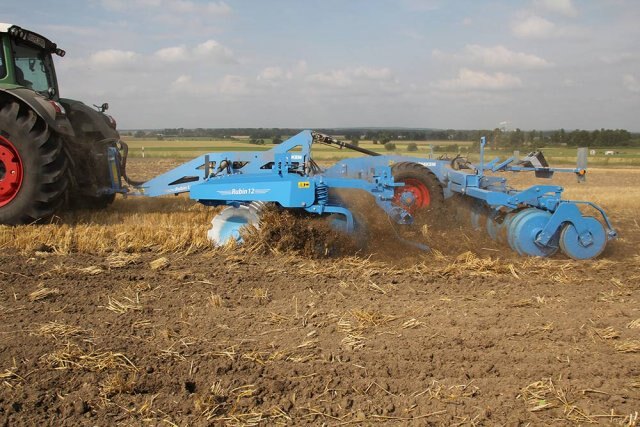

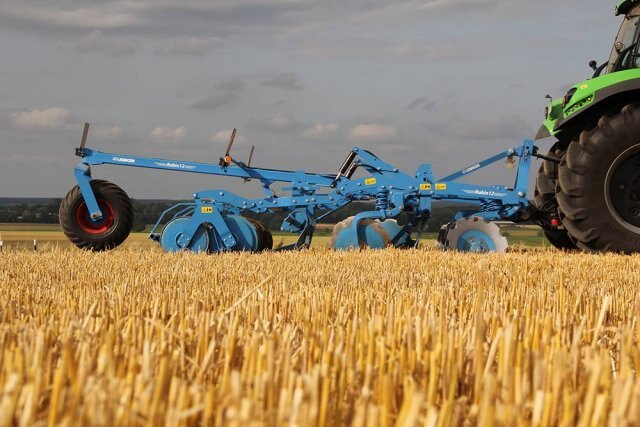

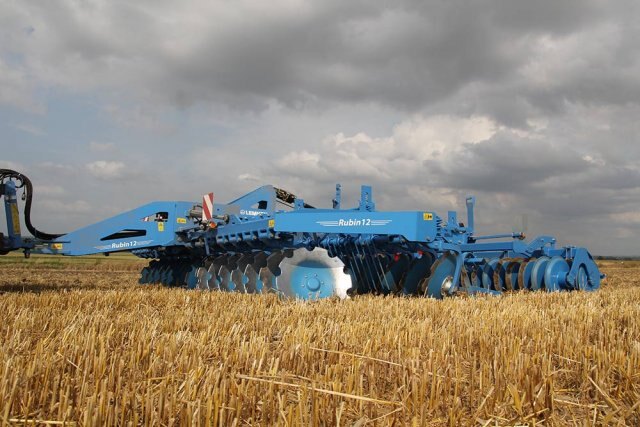

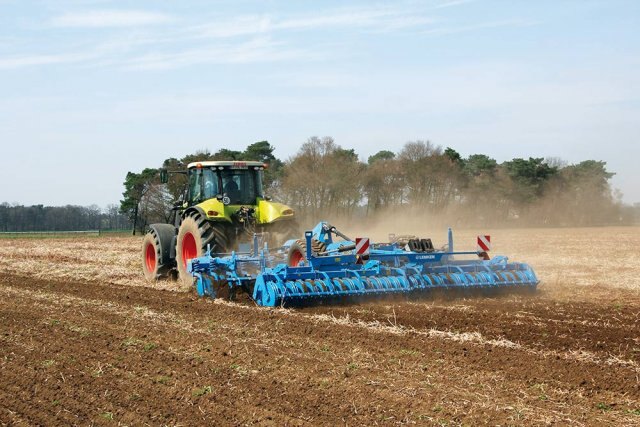

2014 Lemken stubble-cultivation Rubin 12 U

  • 2014 Lemken stubble cultivation Rubin 12 U
  • 2014 Lemken stubble cultivation Rubin 12 U
  • 2014 Lemken stubble cultivation Rubin 12 U
  • 2014 Lemken stubble cultivation Rubin 12 U
  • 2014 Lemken stubble cultivation Rubin 12 U
  • 2014 Lemken stubble cultivation Rubin 12 U
  • 2014 Lemken stubble cultivation Rubin 12 U
  • 2014 Lemken stubble cultivation Rubin 12 U
  • 2014 Lemken stubble cultivation Rubin 12 U
  • 2014 Lemken stubble cultivation Rubin 12 U
  • 2014 Lemken stubble cultivation Rubin 12 U
  • 2014 Lemken stubble cultivation Rubin 12 U
  • 2014 Lemken stubble cultivation Rubin 12 U
  • 2014 Lemken stubble cultivation Rubin 12 U
  • 2014 Lemken stubble cultivation Rubin 12 U
  • 2014 Lemken stubble cultivation Rubin 12 U
  • 2014 Lemken stubble cultivation Rubin 12 U
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Rubin 12
Deeper, faster and more intensive

Compact disc harrows provided previously intense and homogeneous mixing of soil and organic matter to a depth of approximately 12 cm.

With Rubin 12, LEMKEN supplements its range of compact disc harrows, consisting of Heliodor 8 and Rubin 9, with a new series, which can work in up to 20 cm depth. The new compact disc harrow can operate on all soils in areas, which were previously reserved for cultivators. With its specially arranged large concave discs, Rubin 12 is designed in particular for the incorporation of large amounts of crop resi- dues.

Various rollers from the wide range of LEMKEN rollers offer optimal crumbling, reconsolidation and leveling, as well as precise depth control for differ- ent soil and working conditions.
  Technical Data


Rubin 12 - Mounted, rigid, folding outer concave discs

Type  12/300 U 12/350 U 12/400 U
Working width (approx. cm) 300 350 400
Transport width (approx. m) 3 3,5² 4²
Number of discs 18 18 22
Weight without roller (approx. kg)¹ 2.046 2.141 2.616
kW 99 - 177 116 - 206 132 - 235
HP 135 - 240 158 - 280 180 - 320
¹ Weight without roller
² Exceeds the permitted transport width in several countries
  Standard equipment

Rubin 12 U

  • Lower link attachment Cat. 3 (or Cat. 3N=L2 Z3 or 4N=L3 Z4)
  • Underframe clearance 80 cm
  • Integrated rebound harrow behind the first disc row, levelling harrow behind the second disc row
  • Foldable outer discs
  • Concave discs with overload safety device 736 x 6 mm notched
  • Without roller



Specifications
Model
Rubin 12 U
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
LEMKEN
