• The open frame design with large clearances guarantees blockage-free operation even in high amounts of organic mass.

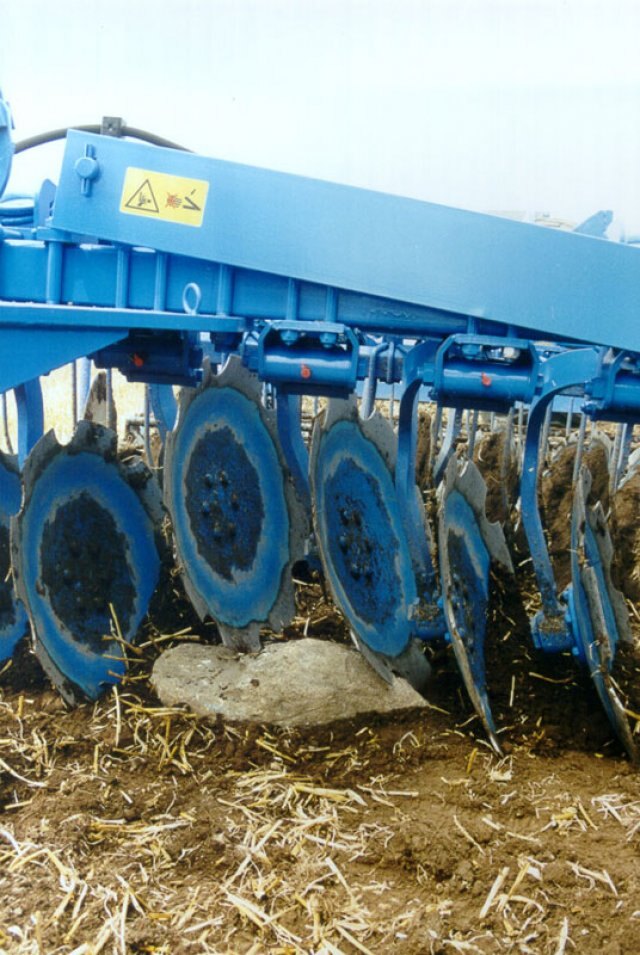

• The 620 mm diameter concave discs overlap between rows to ensure that all soil is moved even at shallow working depths.
• Legs are mounted on strong hinges, with overload protection via robust spiral springs, to ensure the discs stay on track even in difficult conditions.

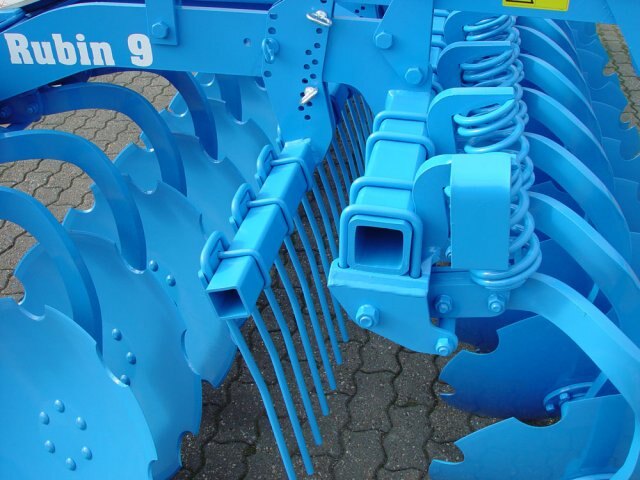

• Each row of the notched discs has height and angle adjustable rebound harrows, controlling the soil flow from the discs and, when working diagonally across the rows, helping to complete a thorough straw distribution.

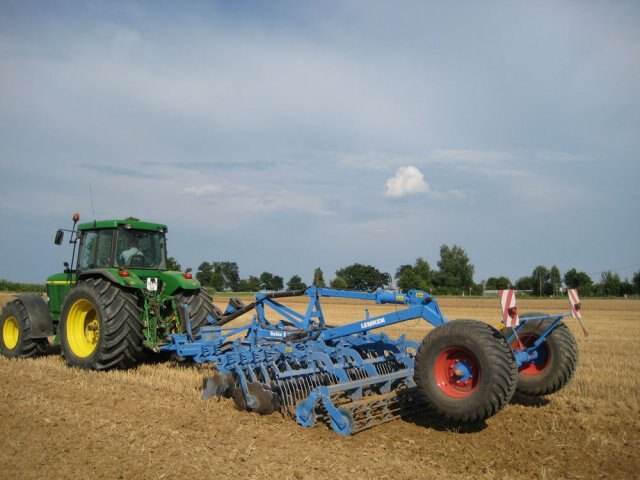

• In working widths of 4 to 6 metres, the semi-mounted Rubin 9 can be fitted with a light, transport axle, or with a combination axle for use together with the Solitair pneumatic seed drill.

  Rubin 9 U

• Lower link attachment Cat. 3N=L2 Z3
  2.5 m: (or Cat. 2)
  3 m - 4 m: (or Cat. 3 or 4N=L3 Z4)
• Underframe clearance 80 cm
• Two integrated harrows
• Foldable outer discs (from 3 m on)
• Concave discs with overload safety device 620 x 6 mm notched
• Without roller
