• With its robust leaf spring elements, the Heliodor operates continuously and without blockage.

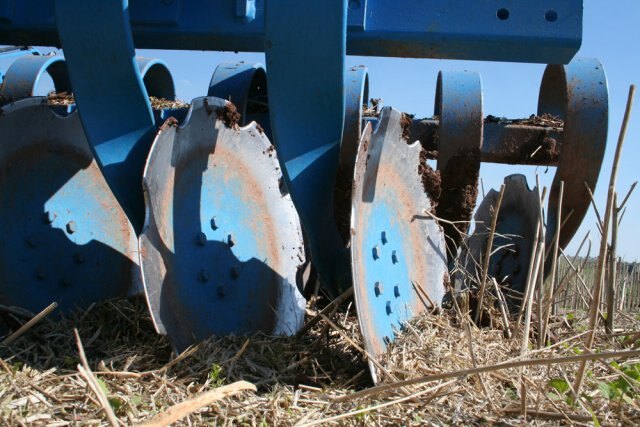

• The 465 mm diameter, concave discs are protected from dust, dirt and water penetration, in maintenance-free axial angular ball bearings with a special labyrinth sealing ring.
• The Heliodor is lightweight so that implements, from 3.5 to 6 metres working width, can be handled on the tractor three-point linkage.
• The 3 and 4 metre mounted and the 4 to 6 metre semi-mounted versions, of the Heliodor, can be combined with the Solitair pneumatic seed drill if required.

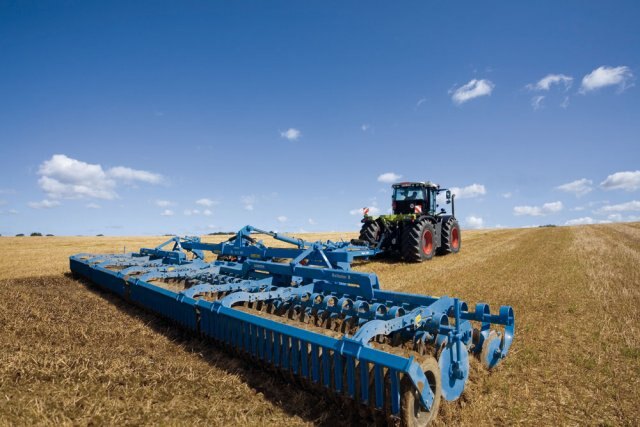

• For the large farm, the Gigant system carrier allows working widths of 8 to 12 metres to guarantee fast seedbed preparation.

Heliodor 8 KA

• Axle with wheels 16.0/70-20, 1,070 x 418 mm
• Lower link attachment Cat. 3 (or Cat. 3N=L2 Z3 or 4N=L3 Z4)
• Box section frame 180 x 200 mm
• Notched concave discs Ø 465 mm two rows
• Without roller
• Without lighting equipment
• Without brake system
