• Multiple combinations of tools and rollers provide optimum cultivation and reconsolidation of the seedbed.

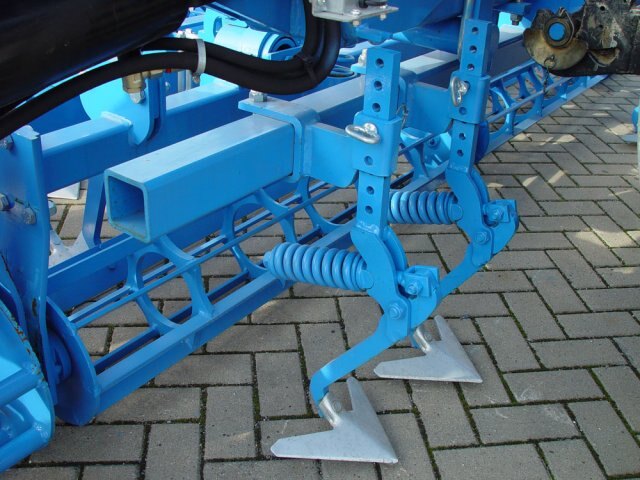

• There is a choice of duck foot or gamma tines, and hollow tube or flat bar rollers can be selected according to preference.

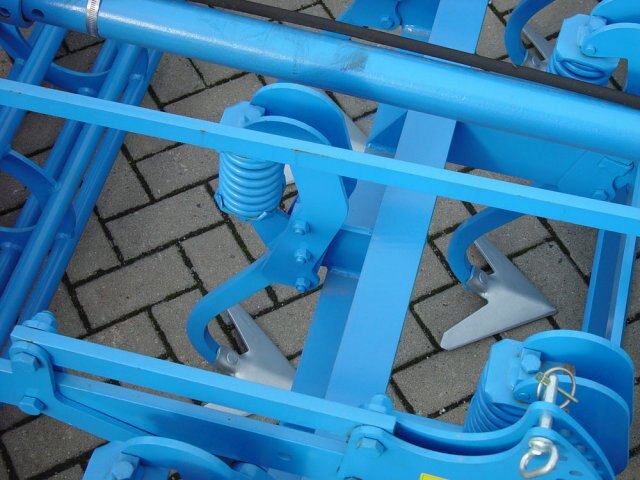

• The suspension of the tine sections in a parallelogram ensures precise guidance and thus even working depth.

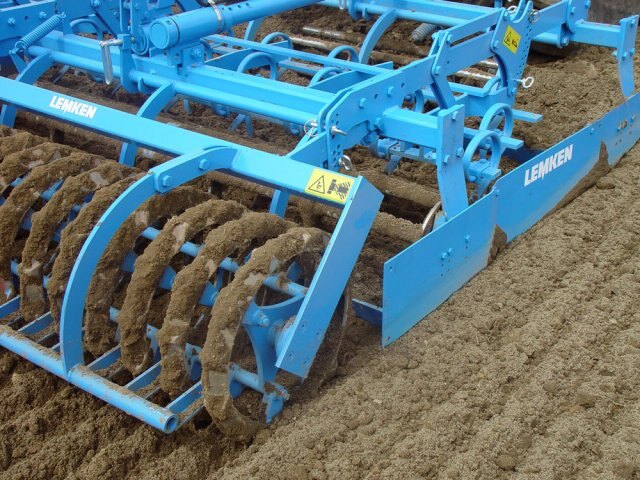

• The feeding of earth into the rollers is controlled via the hydraulically adjustable levelling bar for changing soil conditions. The leading levelling bar levels the surface.

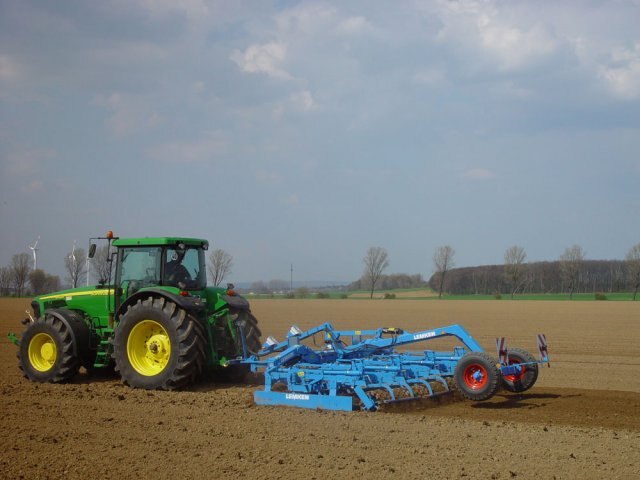

• Equipped with a combination axle (option) the semi-mounted System-Kompaktor can be combined with the pneumatic seed drill Solitair.

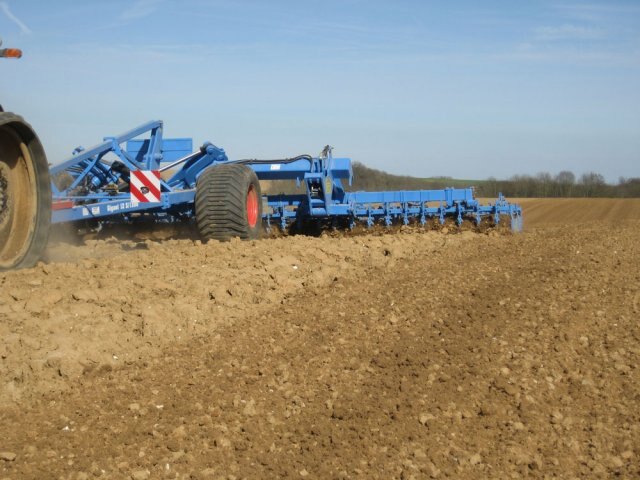

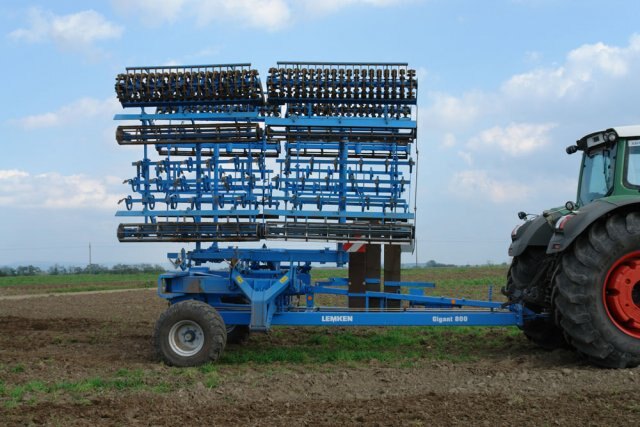

System-Kompaktor Gigant 10/800

• Drawbar eye Ø 58 mm, for connection to a double lashing drawbar (or Ø 48 mm)

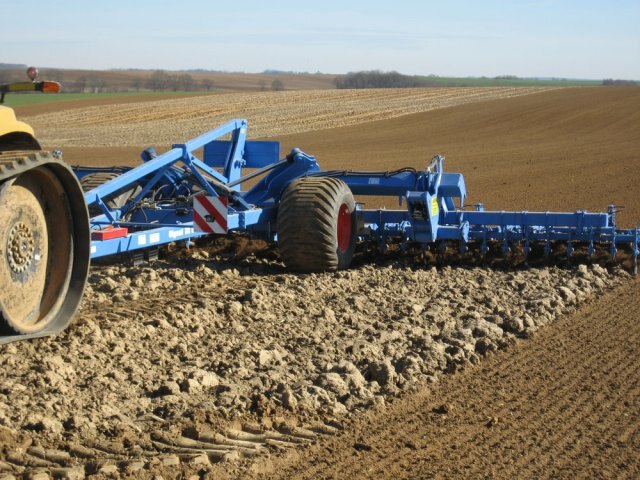

• Axle with wheels 500/50-17, 940 x 500 mm
• Box section frame with spring steel carrier arms

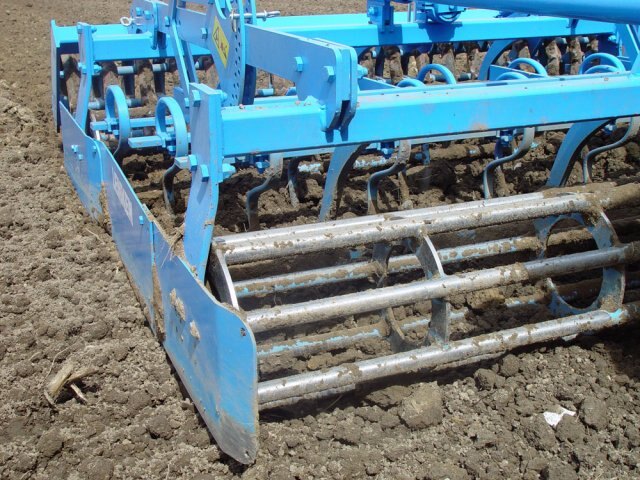

• Flat bar crumbler Ø 270 mm with cutting bars
• Height adjustable side plates

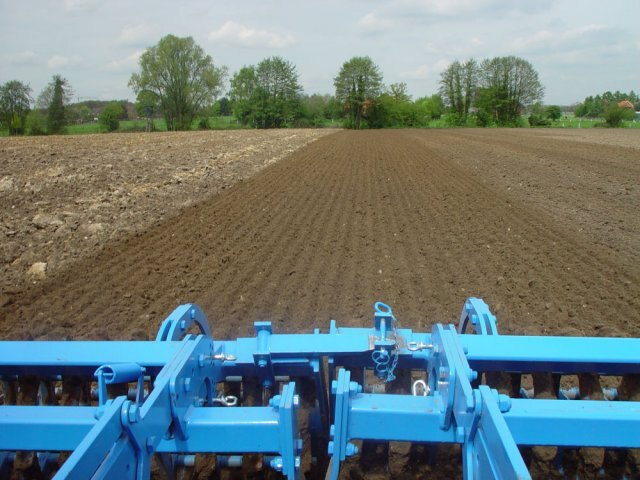

• Crosskill rollers Ø 400 mm at the rear with draw rods
• Harrow sections with duck-foot shares or Gamma tines
• Without lighting equipment

System-Kompaktor Gigant 10/1000

• Drawbar eye Ø 58 mm, for connection to a double lashing drawbar (or Ø 48 mm)
• Axle with wheels 550/45-22.5, 1,070 x 550 mm
• Box section frame with spring steel carrier arms
• Flat bar crumbler Ø 270 mm with cutting bars
• Height adjustable side plates
• Crosskill rollers Ø 400 mm at the rear with draw rods
• Harrow sections with duck-foot shares or Gamma tines
• Without lighting equipment

System-Kompaktor Gigant 10/1200

• Drawbar eye Ø 58 mm, for connection to a double lashing drawbar (or Ø 78 mm)
• Axle with wheels 580/65-22.5, 1,300 x 580 mm
• Box section frame with spring steel carrier arms
• Flat bar crumbler Ø 270 mm with cutting bars
• Height adjustable side plates
• Crosskill rollers Ø 400 mm at the rear with draw rods
• Harrow sections with duck-foot shares or Gamma tines
• Without lighting equipment
