ID # 13286147

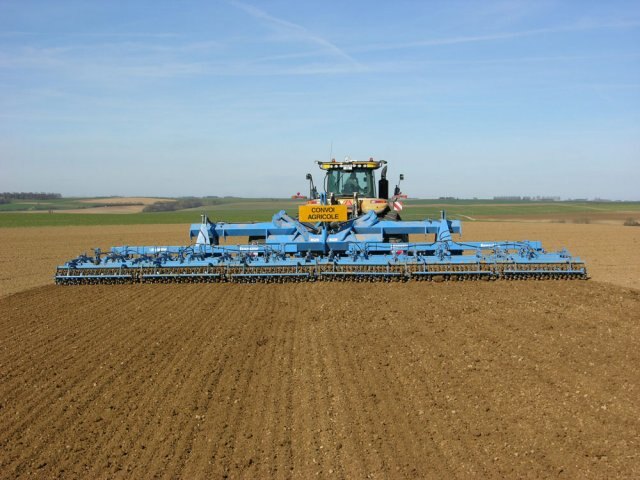

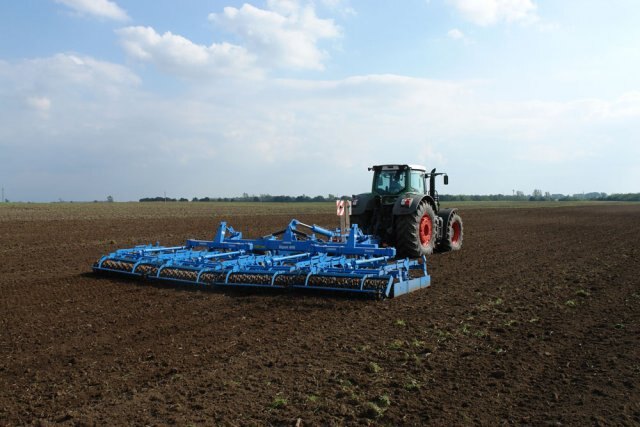

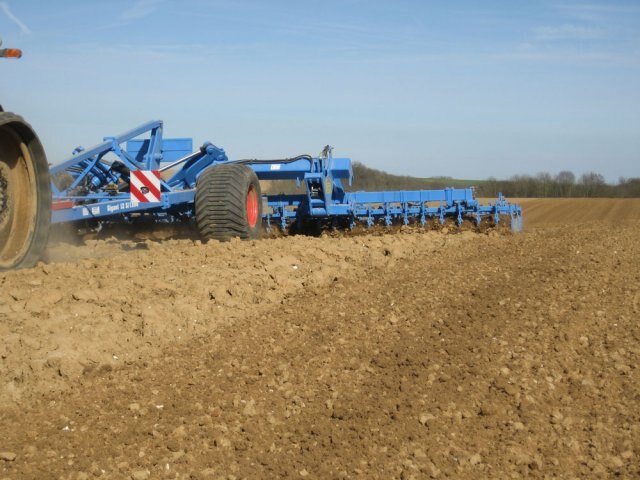

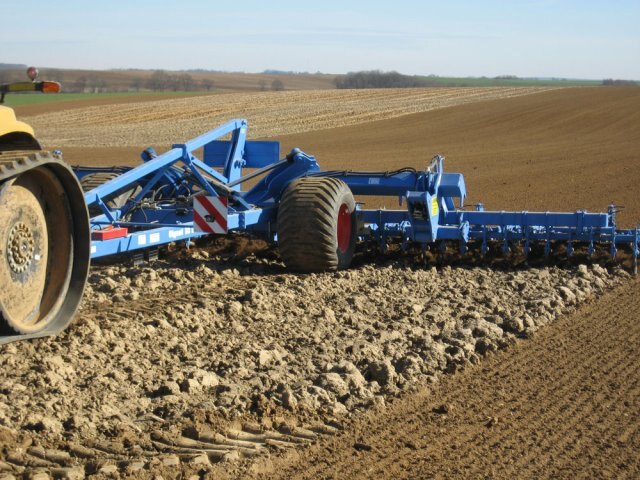

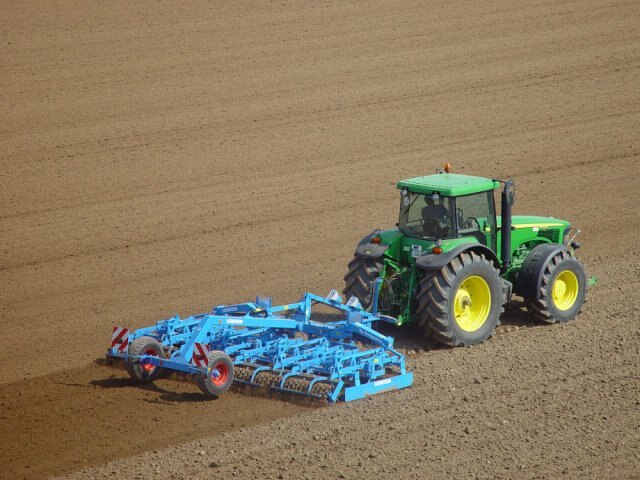

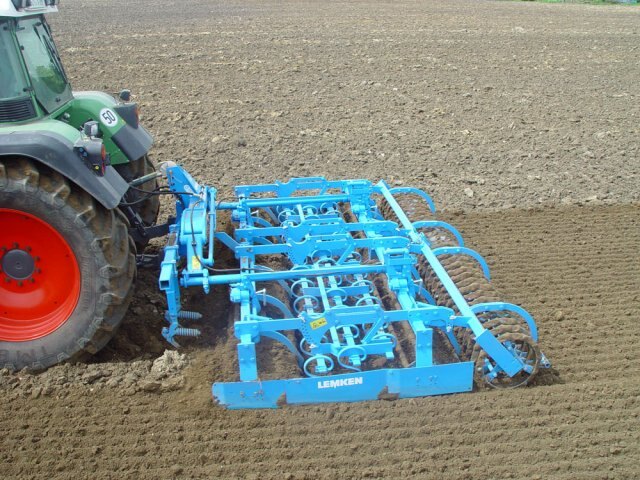

2014 Lemken seedbed-preparation System-Kompaktor S mounted

  • 2014 Lemken seedbed preparation System Kompaktor S mounted
  • 2014 Lemken seedbed preparation System Kompaktor S mounted
  • 2014 Lemken seedbed preparation System Kompaktor S mounted
  • 2014 Lemken seedbed preparation System Kompaktor S mounted
  • 2014 Lemken seedbed preparation System Kompaktor S mounted
  • 2014 Lemken seedbed preparation System Kompaktor S mounted
  • 2014 Lemken seedbed preparation System Kompaktor S mounted
  • 2014 Lemken seedbed preparation System Kompaktor S mounted
  • 2014 Lemken seedbed preparation System Kompaktor S mounted
  • 2014 Lemken seedbed preparation System Kompaktor S mounted
  • 2014 Lemken seedbed preparation System Kompaktor S mounted
  • 2014 Lemken seedbed preparation System Kompaktor S mounted
  • 2014 Lemken seedbed preparation System Kompaktor S mounted
  • 2014 Lemken seedbed preparation System Kompaktor S mounted
  • 2014 Lemken seedbed preparation System Kompaktor S mounted
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
System-Kompaktor
Seedbed combination for optimum work results after only one pass

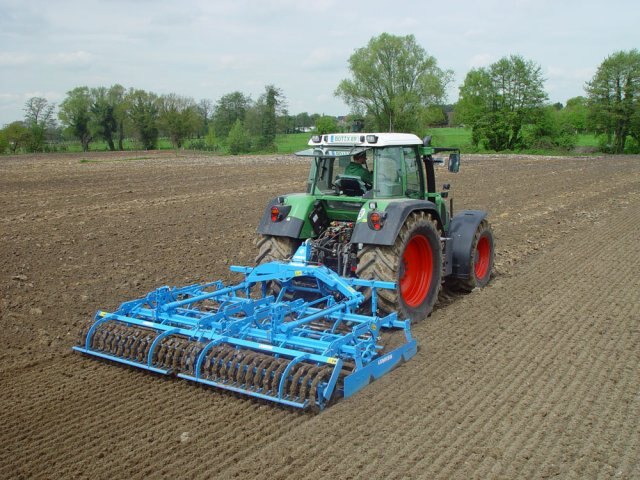

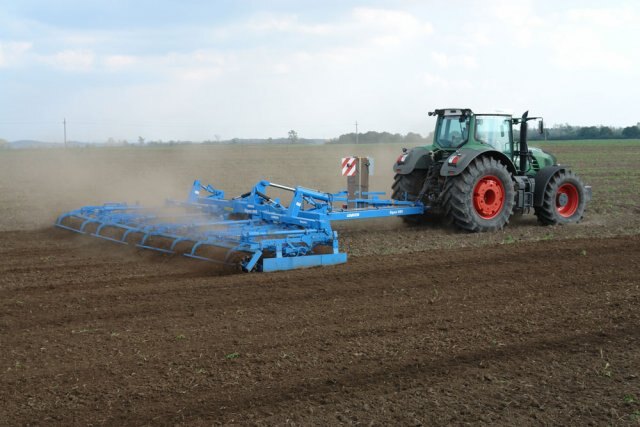

The System-Kompaktor is the ideal machine for preparing a finely cultivated, well reconsolidated seedbed with an even depth. This provides the basis for an even establishment, particularly of fine seeds like sugar beet and rape seed, and thus achieving high yields.
  • Multiple combinations of tools and rollers provide optimum cultivation and reconsolidation of the seedbed.
  • There is a choice of duck foot or gamma tines, and hollow tube or flat bar rollers can be selected according to preference.
  • The suspension of the tine sections in a parallelogram ensures precise guidance and thus even working depth.
  • The feeding of earth into the rollers is controlled via the hydraulically adjustable levelling bar for changing soil conditions. The leading levelling bar levels the surface.

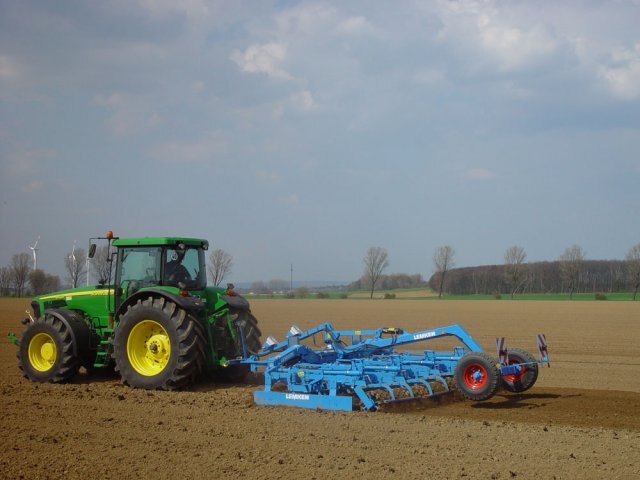

  • Equipped with a combination axle (option) the semi-mounted System-Kompaktor can be combined with the pneumatic seed drill Solitair.
  Technical Data


System-Kompaktor S mounted, rigid

Type 300 S 400 S
Largeur de travail (cm) 300 400
Weight with duck-foot shares (kg)¹ 1.430 1.650
Weight with duck-foot shares with auto. overload safety device (kg)¹ 1.505 1.750
Weight with gamma tines with point (kg)¹ 1.535 1.805
kW 55 - 85 70 - 114
HP 75 - 115 95 - 155
Number + width of harrow sections (cm) 2x150 2 x 200
  Standard equipment

System-Kompaktor S

  • Lower link attachment
    3 m: Cat. 2 (or Cat. 3N=L2 Z3 or Cat. 3)
    4 m: Cat. 3N=L2 Z3 (or Cat. 3)
  • Box section frame with spring steel carrier arms

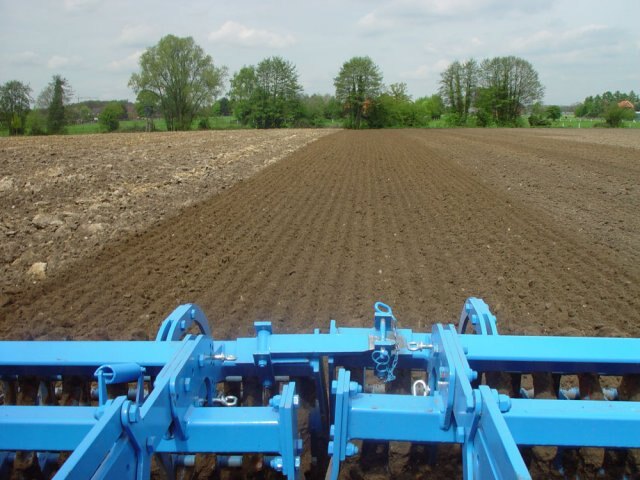

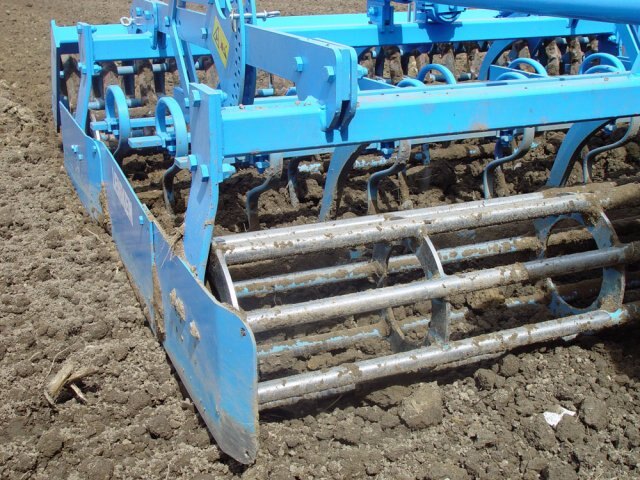

  • Flat bar crumbler Ø 270 mm with cutting bars
  • Height adjustable side plates

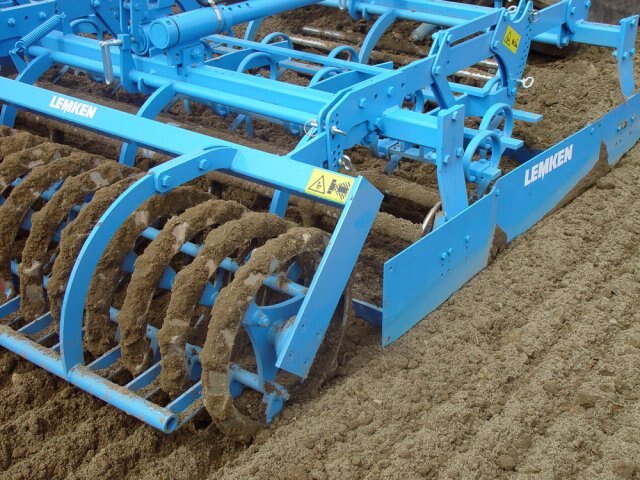

  • Crosskill rollers Ø 400 mm at the rear with draw rods

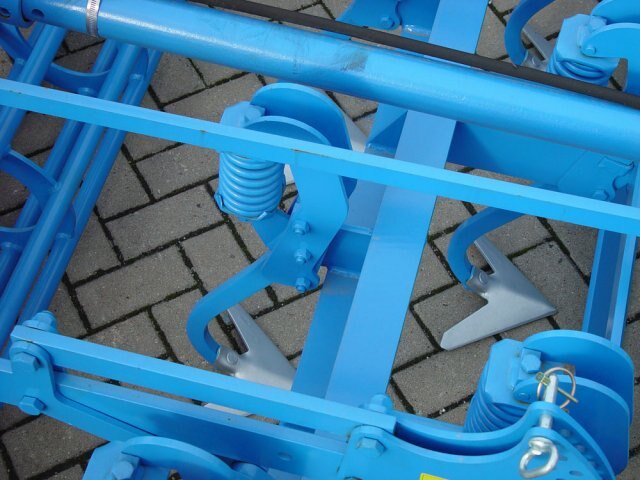

  • Harrow sections with duck-foot shares or Gamma tines



Specifications
Model
System-Kompaktor S mounted
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
LEMKEN
