2014 Lemken seedbed-preparation Korund 8

  • 2014 Lemken seedbed preparation Korund 8
  • 2014 Lemken seedbed preparation Korund 8
  • 2014 Lemken seedbed preparation Korund 8
  • 2014 Lemken seedbed preparation Korund 8
  • 2014 Lemken seedbed preparation Korund 8
  • 2014 Lemken seedbed preparation Korund 8
  • 2014 Lemken seedbed preparation Korund 8
  • 2014 Lemken seedbed preparation Korund 8
  • 2014 Lemken seedbed preparation Korund 8
  • 2014 Lemken seedbed preparation Korund 8
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Korund 8
Powerful alternative in seedbed preparation with various equipment options

The Korund seedbed combination is characterised by particularly good levelling, loosening and grubbing with a high degree of surface coverage. It capacity, due to its various tine options, is demonstrated in professional potato or maize cultivation.
  • Its short and compact design provides a favourable centre of gravity and thus enables the use of tractors with lower lifting power. Due to its light weight, the machine can be used in large working widths on the tractor three-point hitch.
  • The flexible support arms made from massive spring steel can absorb high impact loads and thus protect the tractor and implement.

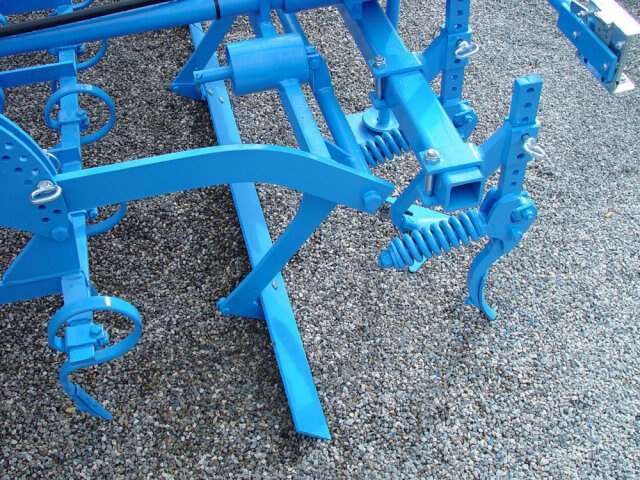

  • To achieve an even loosening effect, tine sections with marathon or gamma tines for deep seedbed preparation are available.
  Technical Data


Korund mounted, rigid

Type 300
Working width (cm) 300
Weight Marathon tines (kg) 872
Weight Gamma tines with point (kg) 872
Weight small spring tines, straight with point (kg) 848
kW 48 - 85
HP 65 - 115
Number + width of harrow sections (cm) 2x150

Korund mounted, hydraulic folding

Type 450 K 600 K 750 K 900 K
Working width (cm) 450 600 750 900
Weight Marathon tines with point (kg) 1,410 1,952 2,860 3,268
Weight Gamma tines with point (kg) 1,410 1,952 2,860 3,268
Weight small spring tines,straight with point 1,374 1,904 2,800 3,196
kW 70 - 107 77 - 129 92 - 158 107 - 180
HP 95 - 145 105 - 175 125 - 215 145 - 245
Number + width of harrow sections (cm) 3x150 4x150 5x150 6x150
  Standard equipment
  • Lower link attachment
    3 m: Cat. 2 (or Cat. 3N=L2 Z3 or Cat. 3)
    4.5 m - 6 m: Cat. 3N=L2 Z3 (or Cat. 3)
    7.5 m - 9 m: Cat. 3 (or Cat. 3N=L2 Z3 or 4N=L3 Z4)
  • Box section frame with spring steel carrier arms
  • Spring loaded multi-bar
  • Double toothed bar crumblers Ø 330 mm / Ø 270 mm
  • working sections four or five rows
  • Device for parking in folded-in position
  • Hydraulic transport locking device with working widths of 7.5 m and 9.0 m



Specifications
Model
Korund 8
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
LEMKEN
