ID # 13286144

2014 Lemken seedbed-preparation Quarz 7

  • 2014 Lemken seedbed preparation Quarz 7
  • 2014 Lemken seedbed preparation Quarz 7
  • 2014 Lemken seedbed preparation Quarz 7
  • 2014 Lemken seedbed preparation Quarz 7
  • 2014 Lemken seedbed preparation Quarz 7
  • 2014 Lemken seedbed preparation Quarz 7
  • 2014 Lemken seedbed preparation Quarz 7
  • 2014 Lemken seedbed preparation Quarz 7
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Quarz 7
The short and compact alternative to seedbed preparation

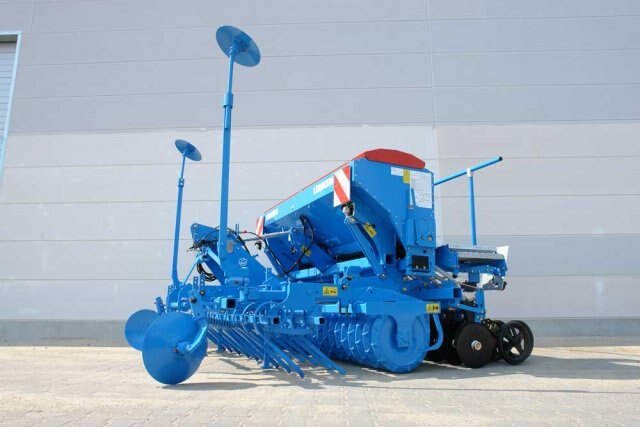

With the Quarz short combination, LEMKEN offers a suitable alternative to the rotary harrow or seedbed combination for light to medium soils. As a fixed version with a working width of 3 and 4 metres, the Quarz is the more cost-effective and economic alternative to powered machines. The Quarz can be combined with all LEMKEN seed drills as well as with machines from other manufacturers.

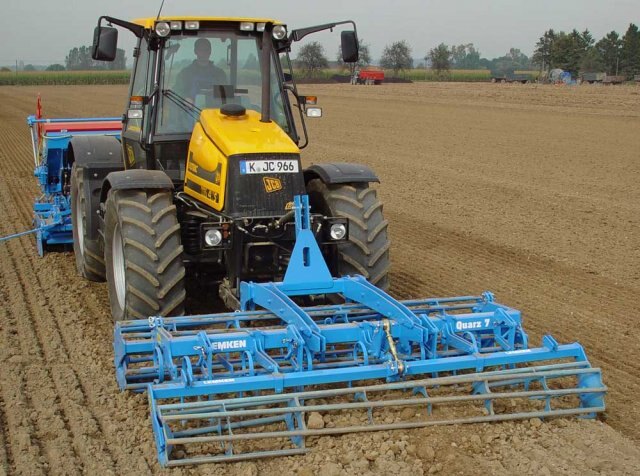

  • Its short design and variable specification provide many application options for the Quarz, either as a front-mounted, or rear-mounted, machine, e.g. as an interesting alternative to the front press.
  • The sprung levelling bar, secured against overload, provides optimum levelling of the soil in front of the tine section. It can be set to either “Grip” or “Drag”.

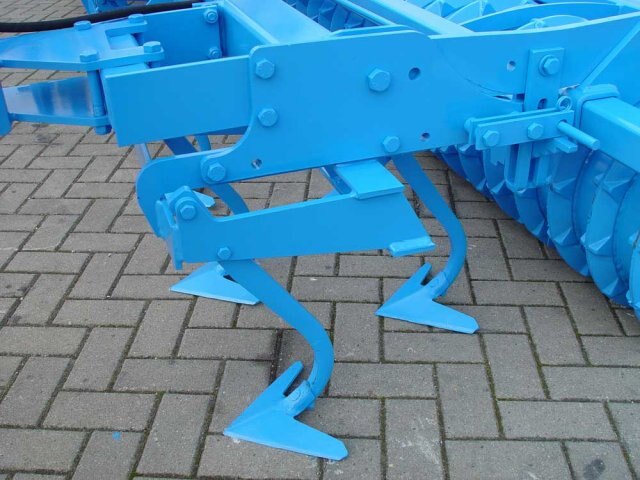

  • Choice of tines enables the machine to be tailored to suit the soil type and working conditions of the individual user. An adjustable headstock provides efficient connection to the tractor, and can be specified to allow front or rear-mounted operation.
  • The track markers can be equipped either with wing shares or narrow shares.
   Technical Data


Quarz 7

Type Quarz 7/300 Quarz 7/400
Working width (cm) 300 400
Weight with Marathon tines two rows (kg) 648 888
Weight with Duck-foot shares two rows (kg) 612 834
Weight Gamma tines with point three rows (kg) 631 865
Weight with hard-faced drag tines two rows with hydraulic angle adjustment (kg) 822 1.056
kW 49- 93 60 - 104
HP 67- 127 82 - 142
  Standard equipment
  • Lower link attachment Cat. 2 (or Cat. 3N=L2 Z3 or Cat. 3)
  • Box section frame 110 x 110 x 8 mm
  • Harrow sections two rows
  • Tube bar roller Ø 540 mm
  • Tool boxes without tools



Specifications
Model
Quarz 7
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
LEMKEN
