2014 Lemken seedbed-preparation Zirkon 8

  • 2014 Lemken seedbed preparation Zirkon 8
  • 2014 Lemken seedbed preparation Zirkon 8
  • 2014 Lemken seedbed preparation Zirkon 8
  • 2014 Lemken seedbed preparation Zirkon 8
  • 2014 Lemken seedbed preparation Zirkon 8
  • 2014 Lemken seedbed preparation Zirkon 8
  • 2014 Lemken seedbed preparation Zirkon 8
  • 2014 Lemken seedbed preparation Zirkon 8
  • 2014 Lemken seedbed preparation Zirkon 8
  • 2014 Lemken seedbed preparation Zirkon 8
  • 2014 Lemken seedbed preparation Zirkon 8
  • 2014 Lemken seedbed preparation Zirkon 8
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Zirkon 8

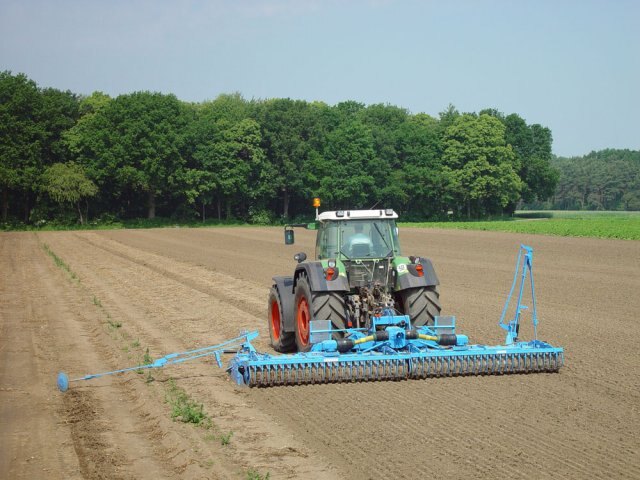

The versatile rotary harrow for optimum seedbed preparation

The Zirkon 8 is the power harrow model for tractors with 60 to 175 HP. Various additional equipment options enable to adapt the rotary harrow to suit your operational conditions.

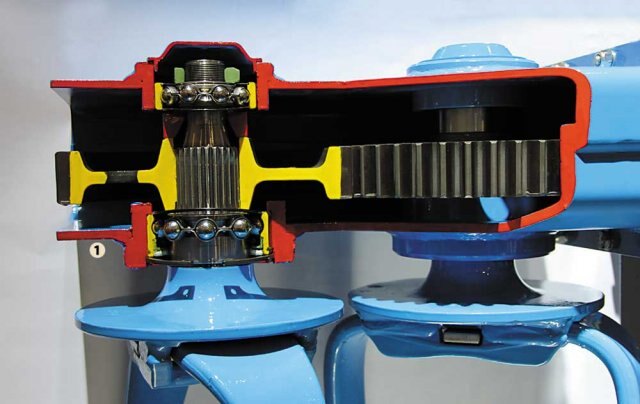

  • The new sloping pan profile increases overall strength, provides more space for rotor and bearings, and encourages dirt to fall away.
  • Base (8 mm) and cover (6 mm) are welded firmly together, and guarantee a long operational life.

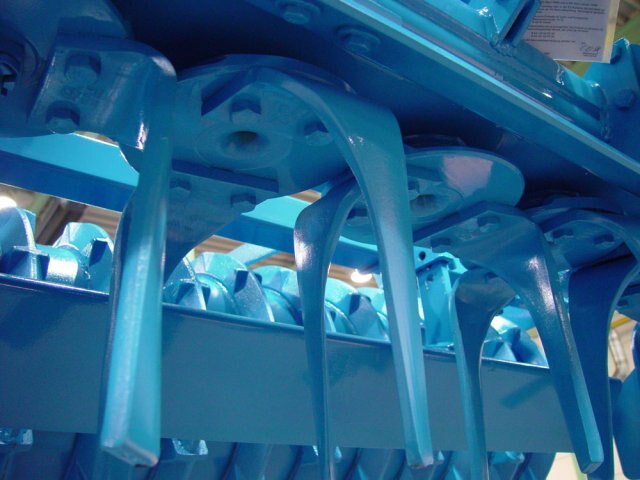

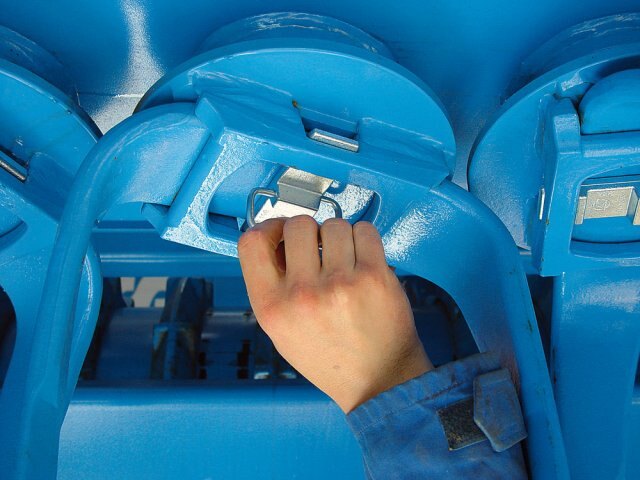

  • Bolt-on tines with a length of 300 mm as standard, quick-change tines with a length of 320 mm as an option.
  • The height of optional levelling bar can be easily and centrally adjusted from the side, using a spanner.
  • The Zirkon 8 can be combined with the Saphir or Solitair seed drills. A three-point linkage for attachment of further equipment combinations is available as an option.

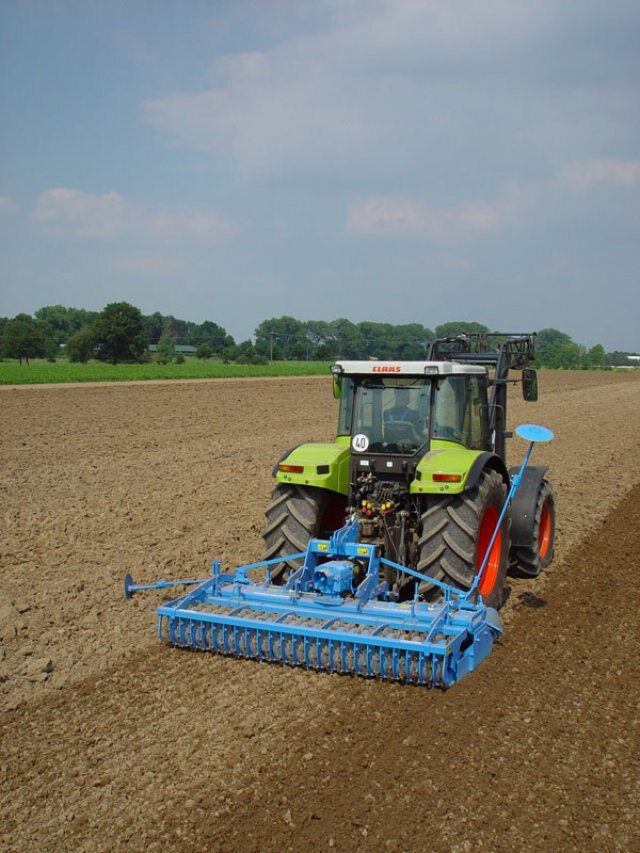

  • The Zirkon 8 can be specified for use at the front or rear of the tractor.

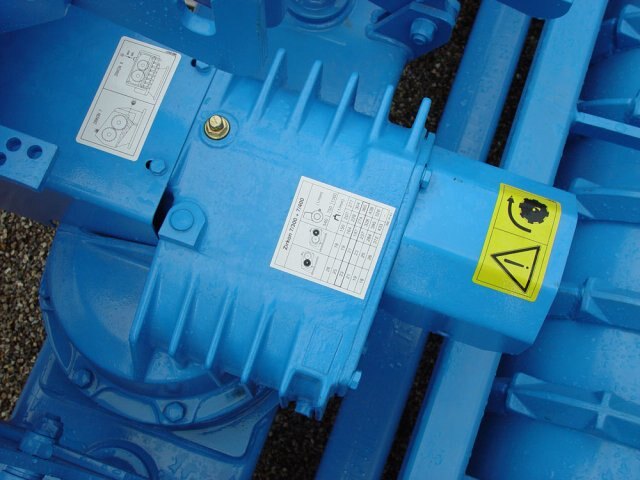

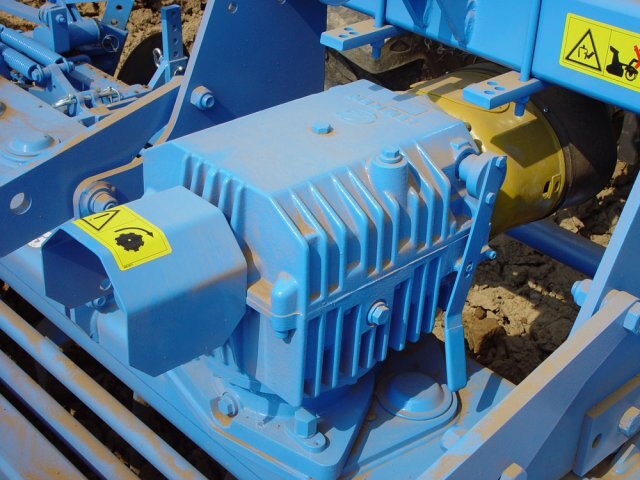

  • The DUAL-Shift transmission (option) allows a selection of rotor speeds from 300 to 400 revolutions per minute by means of a simple gear lever and changing their rotational direction by shifting the transmission from „Grip“ to „Drag“ according to requirements.
   Technical Data


Zirkon 8 mounted, rigid

Type 8/250 8/300 8/350 8/400
Working width (cm) 250 300 350 400
Weight (kg)¹ 701 785 946 1.015
kW 44 - 103 55 - 118 62 - 125 66 - 129
HP 60 - 140 75 - 160 85 - 170 90 - 175
  Standard equipment
  • Lower link attachment: Cat. 3N=L2 Z3
    2,5 m - 3 m: or Cat. 2
    3 m - 4 m: or Cat. 3
  • Toolboxes with tools
  • PTO shaft with torque limiting clutch for 540 and 1000 PTO
  • Gear box with change gears
  • Rear PTO 1 3/8“ - 6 splines
  • Specially hardened tines MZ 28 B
  • Spring-loaded side shields adjustable in height
  • Carriers for track markers and wheelmark eradicators
  • Heavy duty headstock
  • Without roller



Specifications
Model
Zirkon 8
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
LEMKEN
