2014 Lemken Reconsolidation VarioPack 110 WDP

  • 2014 Lemken Reconsolidation VarioPack 110 WDP
  • 2014 Lemken Reconsolidation VarioPack 110 WDP
  • 2014 Lemken Reconsolidation VarioPack 110 WDP
  • 2014 Lemken Reconsolidation VarioPack 110 WDP
  • 2014 Lemken Reconsolidation VarioPack 110 WDP
  • 2014 Lemken Reconsolidation VarioPack 110 WDP
  • 2014 Lemken Reconsolidation VarioPack 110 WDP
  • 2014 Lemken Reconsolidation VarioPack 110 WDP
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
VarioPack

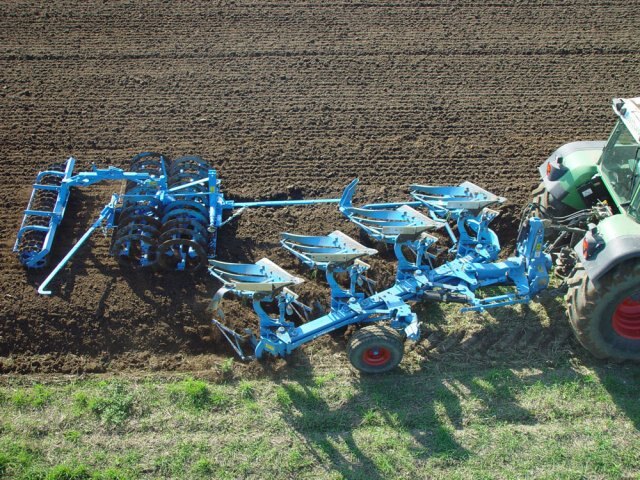

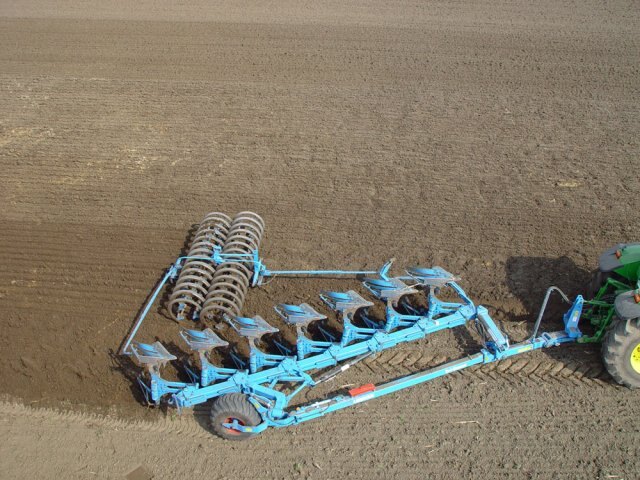

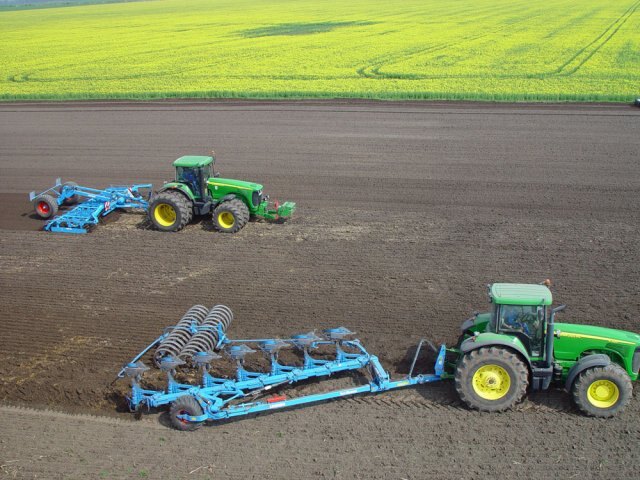

Plough press or as front furrow press, single- or double-row, with 700 mm or 900 mm ring diameter, with 30° or 45° ring profile, LEMKEN has the right solution for any condition.

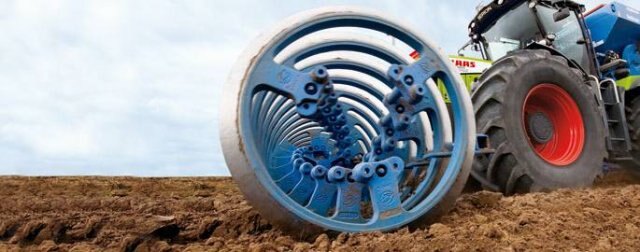

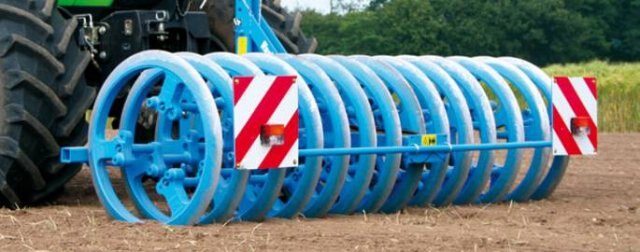

  • Thanks to the ring construction without individual hub, the working width of the VarioPack furrow press can be easily adjusted by adding or removing rings. The ring shape, ring profile and special attachment method guarantee highest reliability, durability and minimum wear.
  • The press arm made from highly elastic, tempered steel is resistant to accidental damage from the tractor.

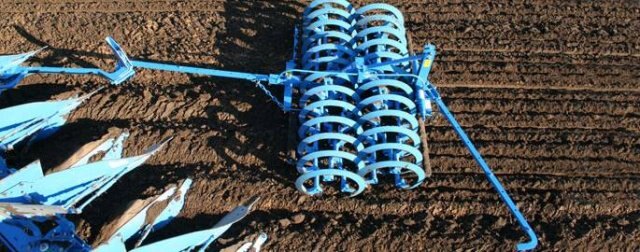

  • The use of a following roller ensures additional crumbling of cloddy soil and good levelling. On light to medium soils, your field can be made ready for sowing in one pass.

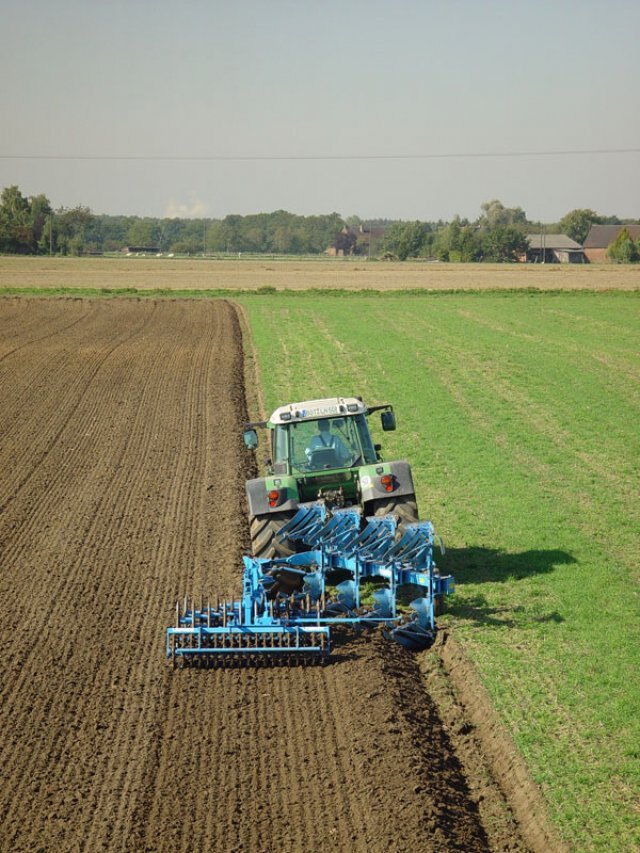

  • A pushing device allows the press to be used in a front-mounted situation. A simple steering mechanism allows for exact, continuous coverage and easy turns.
  • On folding front furrow presses, the separate sections are free to follow the ground contours providing uniform work quality.
   Technical Data




  110 WDP 70 (double row) S 110 WDP 70 (double row) 110 WDP 90 (double row) 110 WEP 90 (single row)
Ring diameter (mm) 700 700 900 900
Working width (cm) 100-300 250-440 162-400 100-400
Weight (kg) 590-1.452 1.242-2.040 1.390-3.005 572-1.847
Central frame (mm) 110x110x8 110x110x8 110x110x8      110x110x8
Number of rings 10-30 25-44 13-32      5-20
Line distance (cm) 10 10 12,5 20
  Standard equipment
  • 30° or 45° ring profile
  • Multi-adjustable hook linkage with check chains



Specifications
Model
VarioPack 110 WDP
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
LEMKEN
