Overview
Top class

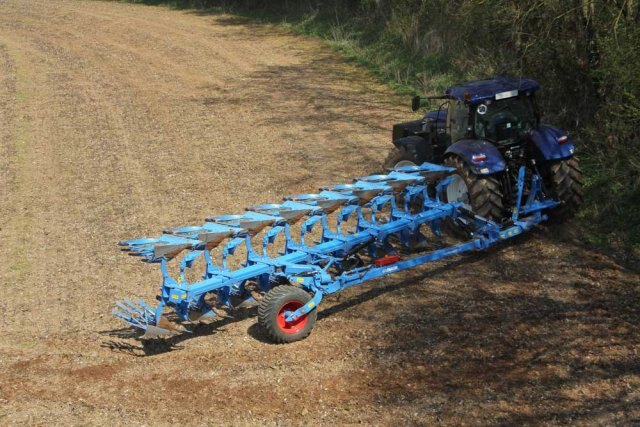

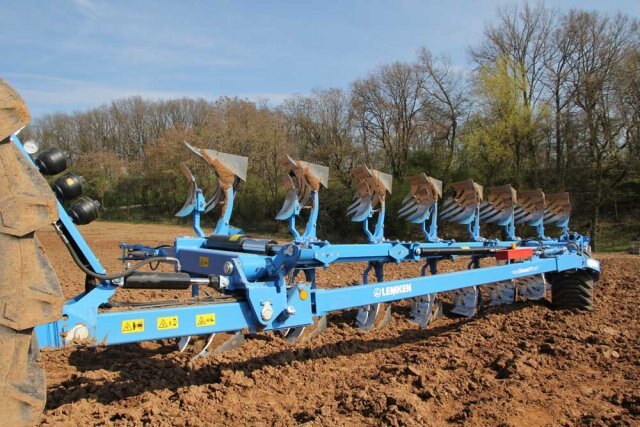

LEMKEN Diamant 11 and 12
LEMKEN’s proven range of semi-mounted ploughs, with 160 mm beam, has been further improved with the launch of the Diamant 11 and 12 series models.

The new machines include a number of new features such as the DuraMaxx bodies fitted to the Juwel mounted plough range. DuraMaxx slats and mouldboards are made from high-carbon steel, without drill or punch holes, allowing increased hardening, higher wear resistance, and a particularly long service life. Because they are not bolted on, but rather simply hooked in, without any need for tools, they can also be changed quickly. Individual slats are also available in plastic to ensure that ploughing is always ideal, even on sticky soil.
  • The Diamant 11 and the Diamant 12 are available with a maximum of 9 furrows. Both ploughs are also available with the Hydromatic auto-reset system. This ensures that the tripping body is always returned to the ideal working position even under difficult conditions. 38 cm upwards movement, and 20 cm to the side, are more than enough, even for deep ploughing, to ensure that work continues without an interruptions. This is aided by the high tripping forces which can be easily adjusted to changing ground conditions from the comfort of the tractor seat.
  • The Diamant 11 is equipped with a traction increase unit, similar to that used on the semi-mounted Karat cultivator range. The Diamant 12 is available with a new traction increase unit with headland management included in its basic version. The traction increase unit ensures that weight is shifted from the plough and tractor front axle to the tractor rear axle thereby reducing wheel-slip on the tractor. Reduced wheel-slip translates directly to increased output and reduced fuel consumption for the user. At the headland the traction increase unit, on the ­Diamant 12, automatically regulates the pressure in the hydraulic system to match the bucking angle between the plough and the tractor so that the tractor remains stable at all times. The pressure in the traction increase unit can also be reduced to achieve a stable transport ride.
  • The electro-hydraulic angle adjustment is also new to the Diamant 12. This means that the plough inclination can be adjusted and saved directly from the tractor. The turnover device holds the plough non-mechanically in the pre-set position, so that the body remains securely seated in the ground even when a packer is mounted.
   Technical Data


(Box section frame 160 x 160 x 10 mm)

Numbers of furrows 7 7+1 / 8 8+1
Working width (cm) 210-385 240-440 270-495
Weight (kg) 3.433 3.727 / 3.698 3.994
from kW/HP 147/200 147/200 147/200
  Standard equipment
  • Headstock with lower link attachment Cat. 3 (or Cat. 3N=L2 Z3 or 4N=L3 Z4)
  • Controlled hydraulic traction increase
  • Operation terminal for functions: turning and vertical adjustment, working width and front furrow width(accessory) and pressure setting for traction increase
  • Box section frame 160 x 160 x 10 mm
  • Toolbox, tools and shearbolts
  • Preparation lighting equipment rear: 7-pin socket at wheel bracket
  • Stand
  • Underframe clearance 85 cm
  • Complete hydraulic equipment
  • Wheel 500/45-22.5, 1,020 x 500 mm with suspension and schock absorber
  • Two-piece shares, hard-faced (option: hard-faced onepiece stone shares
  • Shape of DuraMaxx bodies W 40 or W 52



Specifications
Model
Diamant 12 V
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
LEMKEN
