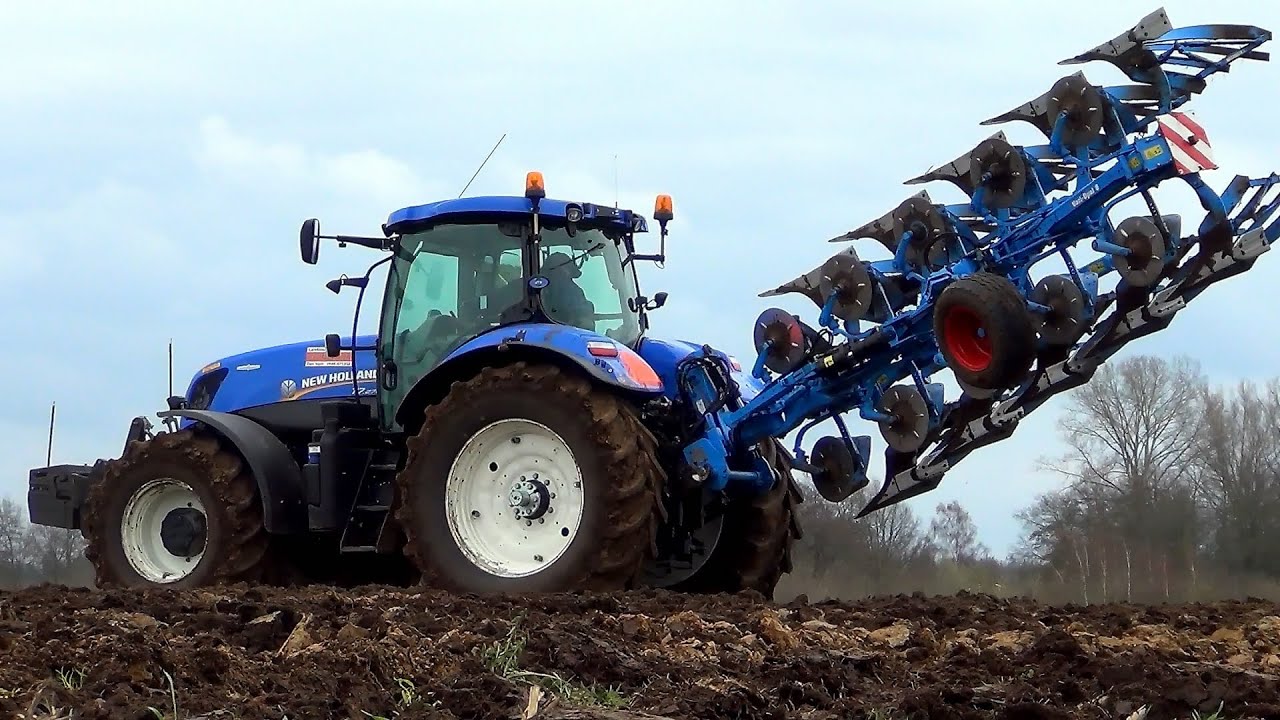

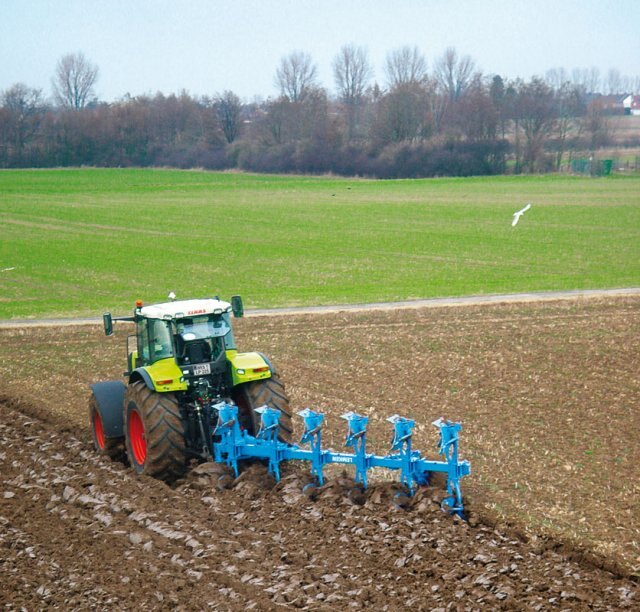

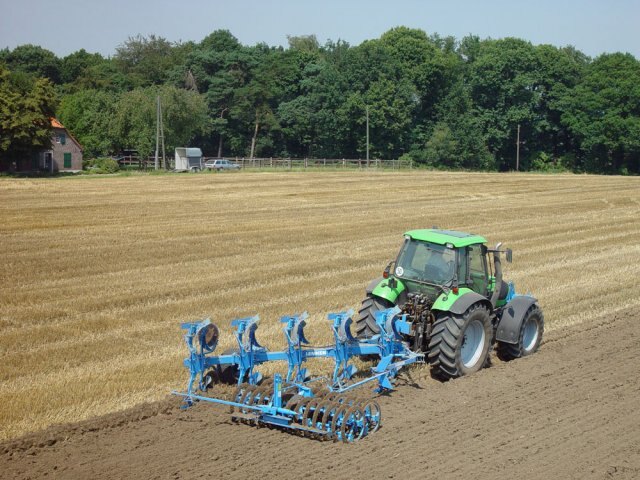

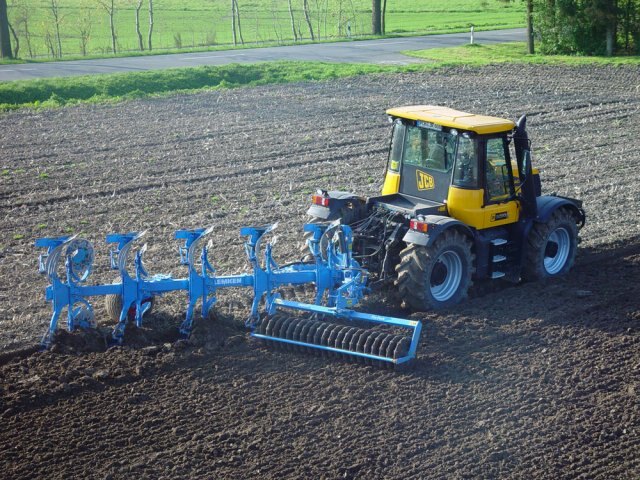

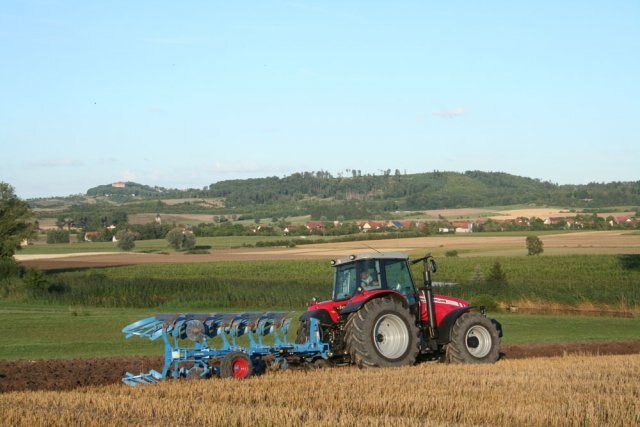

Mounted reversible plough VariOpal For wide and narrow ploughing, wide furrows for wide wheels
The VariOpal perfectly fulfils all requirements for ploughing. Good ploughing performance relies heavily on the working width and working depth of the different bodies.
Once basic parameters have been set via the Optiquick adjustment centre, front furrow width and pull point are automatically adjusted whenever the working width is changed. This ensures optimum ploughing performance at every working width without lateral forces.
All bearings have wear-resistant bushes. Hardened bolts are greasable thus guaranteeing highest stability and long durability.
The frame plates for the pivot bracket connection are screwed to the frame. Increased durability and high fitting accuracy guarantee a long lifespan.
The long body distance, the lateral attachment of plough bodies on the frame, and the shape of the legs, result in increased clearance thus avoiding blockages even at shallow working depths.
The position of the land wheel on the frame allows for direct ploughing right up to ditches, fences and boundaries, depending on the number of furrows and the working width used.
Technical Data
VariOpal 8 N 90 (Frame 140 x 140 x 10 mm)
Numbers of furrows
3
3+1
4
4+1
Working width per furrow (cm)
25 - 50
25 - 50
25 - 50
25 - 50
Interbody clearance (cm)
90
90
90
90
Weight (kg)
1.124
1.399
1.378
1.653
Weight with mech. overload safty device (kg)
1.316
1.659
1.634
1.977
Weight with hyd. overload safty device (kg)
1.322
1.667
1.642
1.978
kW
66 - 88
81 - 118
81 - 118
96 - 147
HP
90 - 120
110 - 160
110 - 160
130 - 200
VariOpal 8 N 90 (Frame 140 x 140 x 10 mm)
Numbers of furrows
5
5+1
6
6+1
Working width per furrow (cm)
25 - 50
25 - 50
25 - 50
25 - 50
Interbody clearance (cm)
90
90
90
90
Weight (kg)
1.628
1.903
1.878
2.157
Weight with mech. overload safty device (kg)
1.948
2.291
Weight with hyd. overload safty device (kg)
1.958
2.303
kW
96 - 147
103 - 176
103 - 176
118 - 221
HP
130 - 200
140 - 240
140 - 240
160 - 280
VariOpal 8 N 100 (Frame 120 x 120 x 10 mm)
Numbers of furrows
3
3+1
4
4+1
Working width per furrow (cm)
25 - 55
25 - 55
25 - 55
25 - 55
Interbody clearance (cm)
100
100
100
100
Weight (kg)
1.139
1.418
1.397
1.676
Weight with mech. overload safty device (kg)
1.331
1.678
1.653
2.000
Weight with hyd. overload safty device (kg)
1.337
1.686
1.661
2.010
kW
66 - 88
81 - 118
81 - 118
96 - 147
HP
90 - 120
110 - 160
110 - 160
130 - 200
VariOpal 8 N 100 (Frame 120 x 120 x 10 mm)
Numbers of furrows
5
5+1
6
Working width per furrow (cm)
25 - 55
25 - 55
25 - 55
Interbody clearance (cm)
100
100
100
Weight (kg)
1.651
1.930
1.905
Weight with mech. overload safty device (kg)
1.971
2.322
Weight with hyd. overload safty device (kg)
1.981
2.334
kW
96 - 147
103 - 176
103 - 176
HP
130 - 200
140 - 240
140 - 240
VariOpal 8 N 120 (Frame 140 x 140 x 10 mm)
Numbers of furrows
3
3+1
4
4+1
Working width per furrow (cm)
25 - 55
25 - 55
25 - 55
25 - 55
Interbody clearance (cm)
120
120
120
120
Weight (kg)
1.169
1.458
1.437
1.726
Weight with mech. overload safty device (kg)
1.361
1.718
1.693
2.050
Weight with hyd. overload safty device (kg)
1.367
1.726
1.701
2.060
kW
66 - 88
81 - 118
81 - 118
96 - 147
HP
90 - 120
110 - 160
110 - 160
130 - 200
Standard equipment
Hydraulic turnover device E 120
Double acting turnover device with return lock
Hydraulically adjustable working width
Box section frame 140 x 140 x 10 mm
Lower link attachment Cat. 3 (or Cat. 3N=L2 Z3 or 4N=L3 Z4)
Toolboxes, tools and shearbolts
Stand
Underframe clearance 80 cm
Two-piece shares (option: hard-faced one-piece stone shares)
