Overview

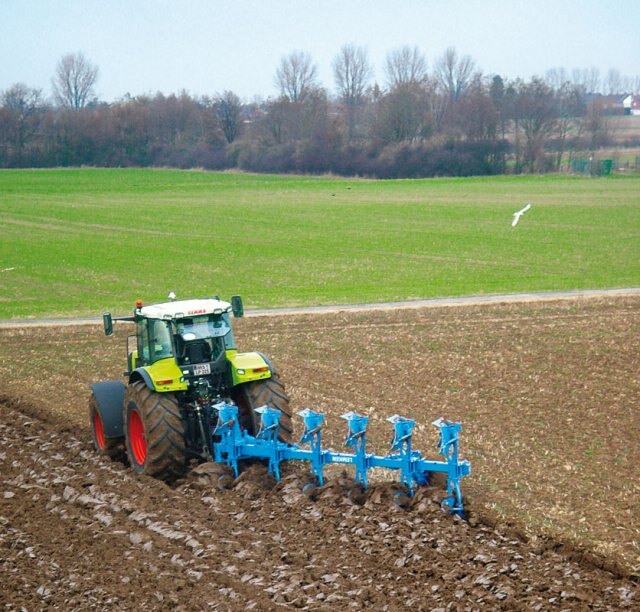

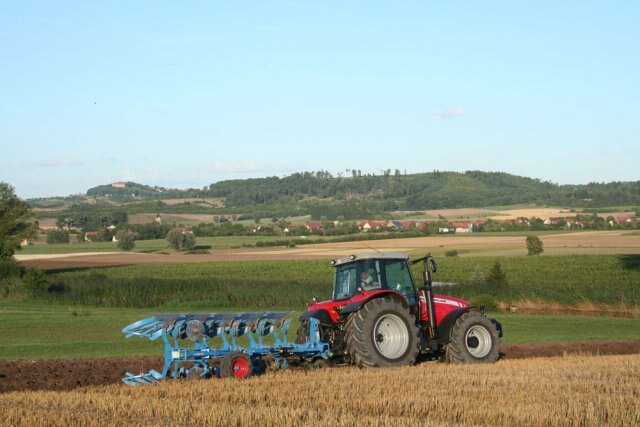

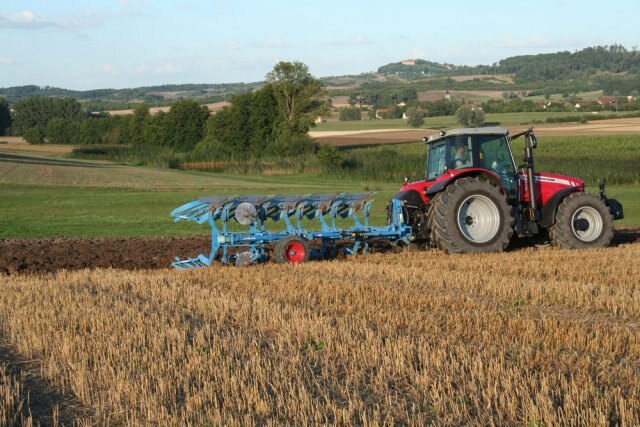

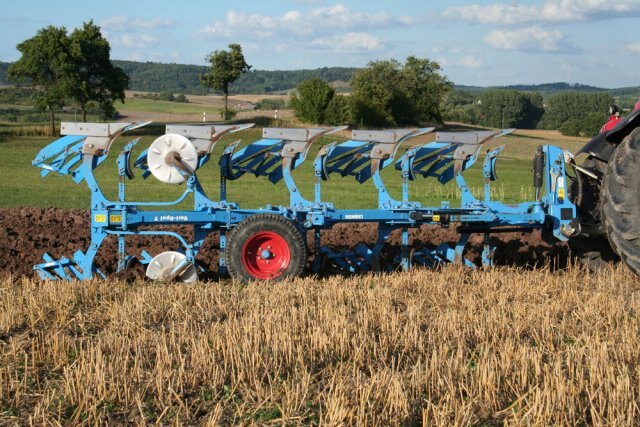

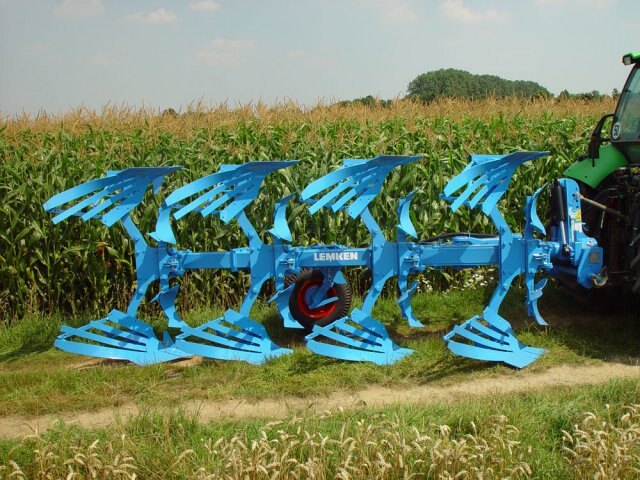

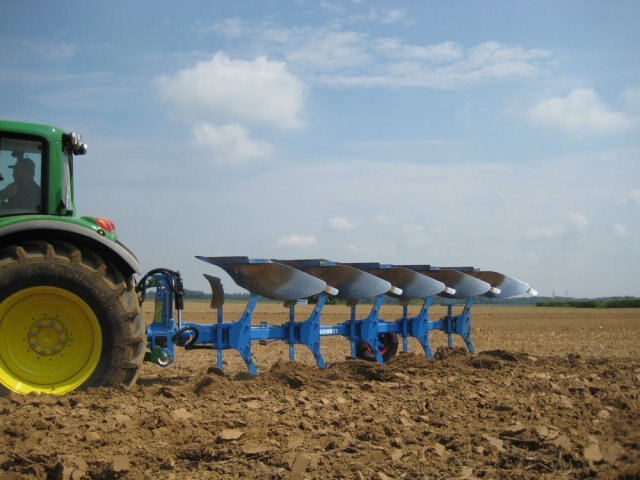

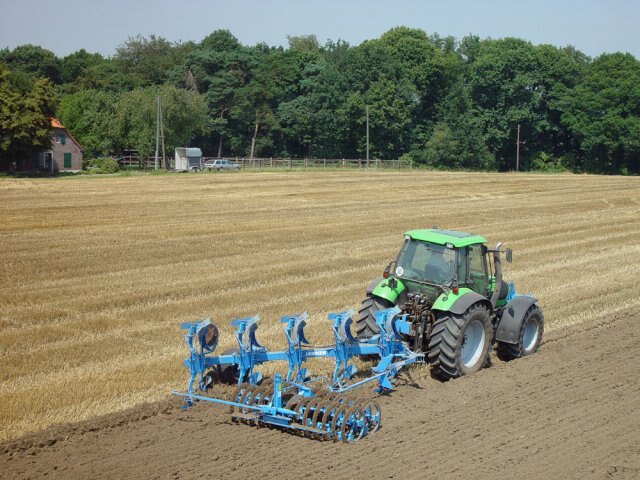

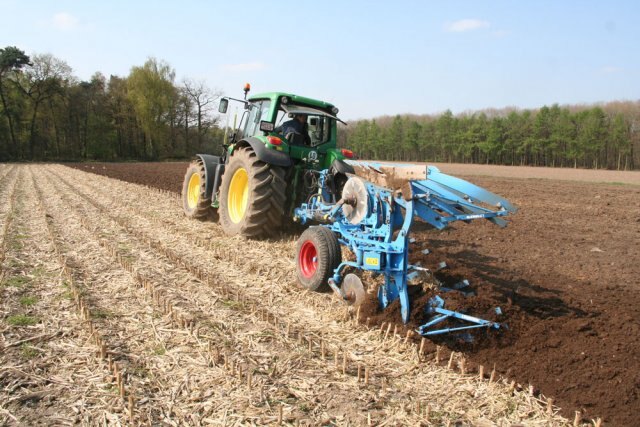

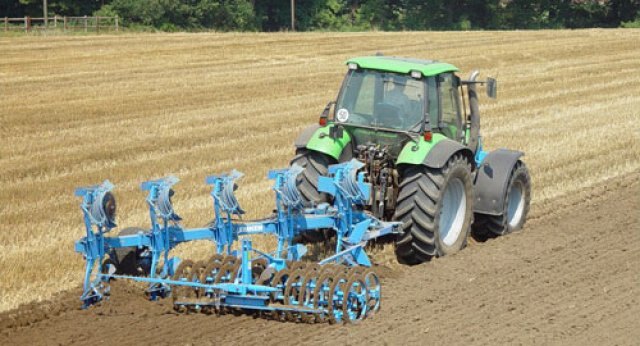

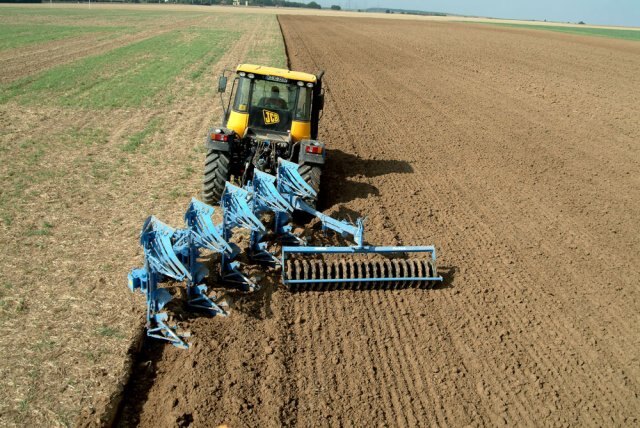

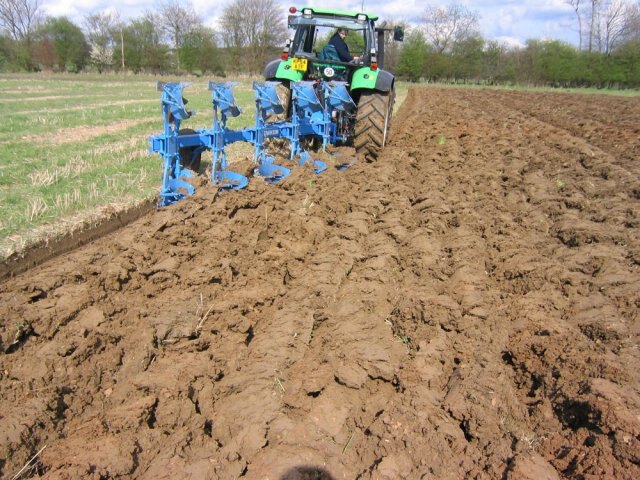

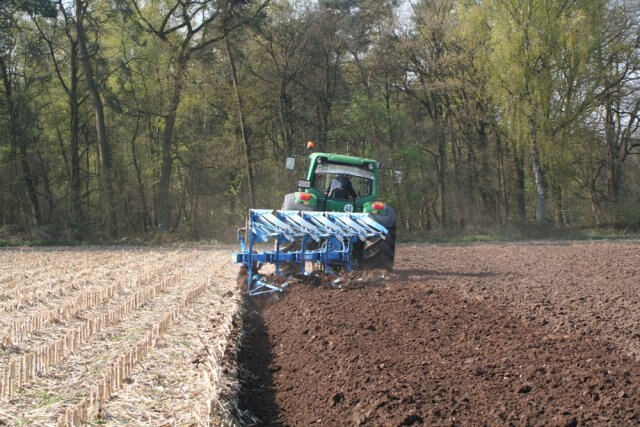

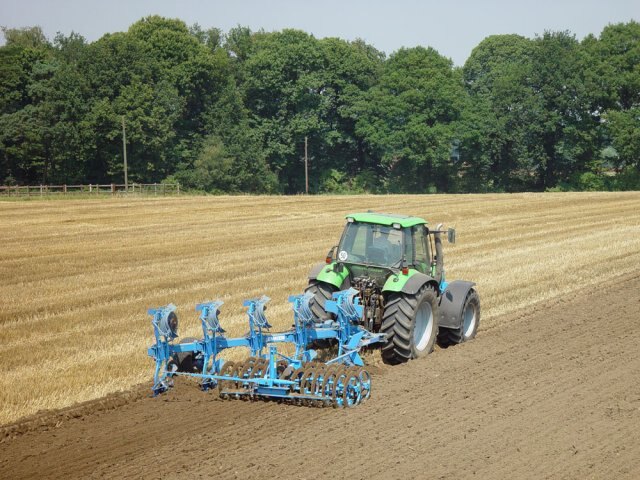

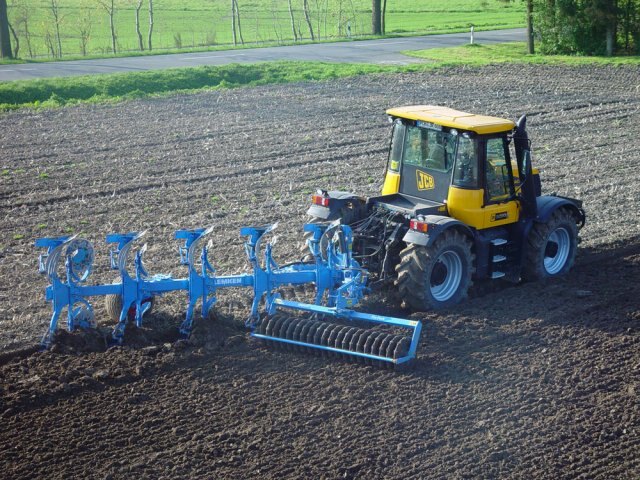

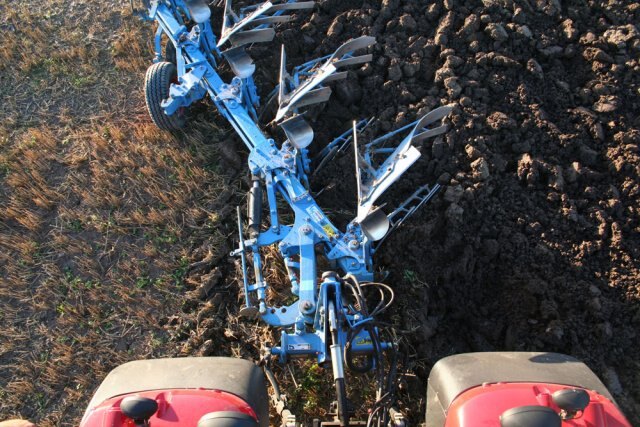

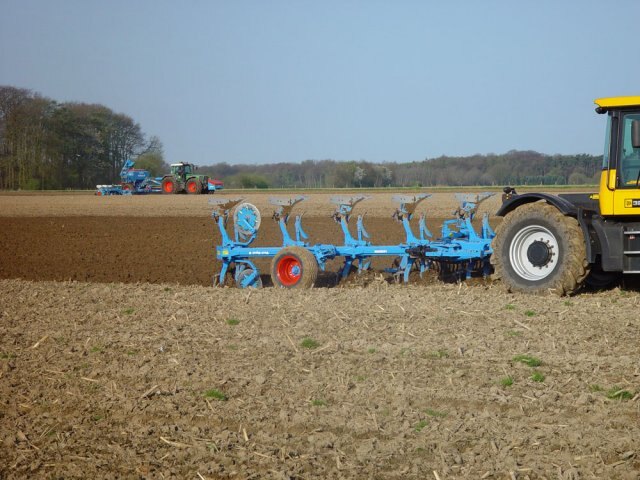

Mounted reversible plough VariOpal
For wide and narrow ploughing, wide furrows for wide wheels

The VariOpal perfectly fulfils all requirements for ploughing. Good ploughing performance relies heavily on the working width and working depth of the different bodies.

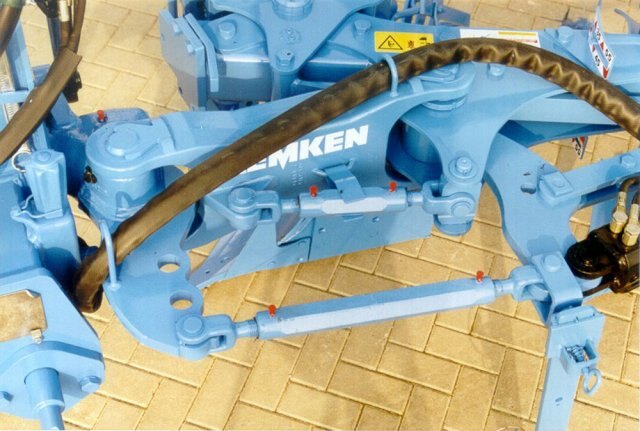

  • Once basic parameters have been set via the Optiquick adjustment centre, front furrow width and pull point are automatically adjusted whenever the working width is changed. This ensures optimum ploughing performance at every working width without lateral forces.
  • All bearings have wear-resistant bushes. Hardened bolts are greasable thus guaranteeing highest stability and long durability.
  • The frame plates for the pivot bracket connection are screwed to the frame. Increased durability and high fitting accuracy guarantee a long lifespan.
  • The long body distance, the lateral attachment of plough bodies on the frame, and the shape of the legs, result in increased clearance thus avoiding blockages even at shallow working depths.

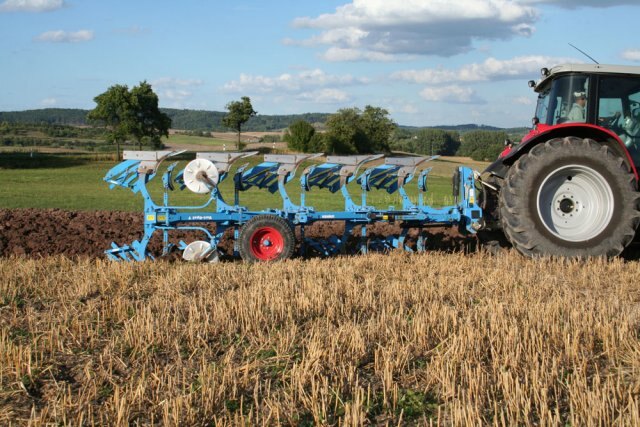

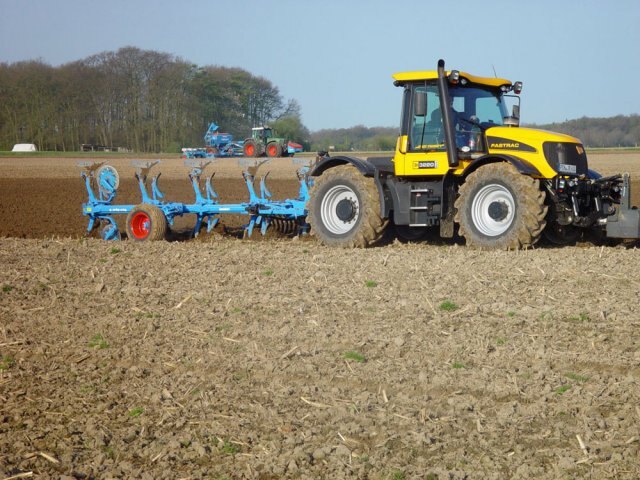

  • The position of the land wheel on the frame allows for direct ploughing right up to ditches, fences and boundaries, depending on the number of furrows and the working width used.
   Technical Data


VariOpal 6 N 90 (reinforced frame 110 x 110 x 8 mm)

Numbers of furrows 4 4+1
Working width per furrow (cm) 22 - 45 22 - 45
Interbody clearance (cm) 90 90
Weight (kg)
 1.067 1.290
Weight with mech. overload safty device (kg) 1.295 1.575
Weight with hyd. overload safty device (kg) 1.303 1.585
kW 51 - 81 59 - 96
HP 70 - 110 80 - 130

VariOpal 6 N 100 (reinforced frame 110x110x8 mm)

Numbers of furrows
 4
4+1
Working width per furrow (cm) 22 - 50 22 - 50
Interbody clearance (cm) 100 100
Weight (kg)
 1.078 1.305
Weight with mech. overload safty device (kg) 1.306 1.589
Weight with hyd. overload safty device (kg) 1.314 1.599
kW 51 - 81 59 - 96
HP 70 - 110 80 - 130
  Standard equipment
  • Hydraulic turnover device E 100
  • Double acting turnover device
  • Hydraulically adjustable working width
  • Strengthened box section frame 110 x 110 x 8 mm
  • Lower link attachment Cat. 3N=L2 Z3 (or Cat. 3 or 2)
  • Toolboxes, tools and shearbolts
  • Stand
  • Underframe clearance 80 cm
  • Two-piece shares (option: hard-faced one-piece stone shares)
  • Shape of Dural bodies B, C, D, P or W



Specifications
Model
VariOpal 6
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
LEMKEN
