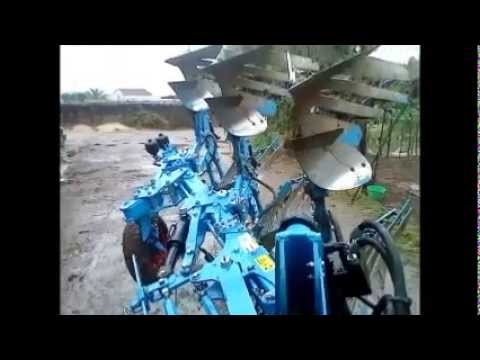

  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

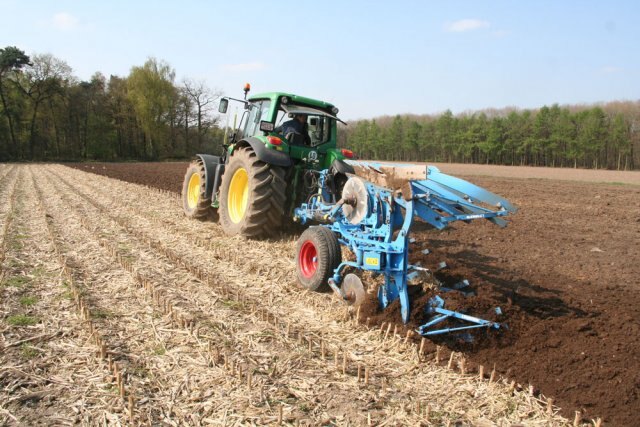

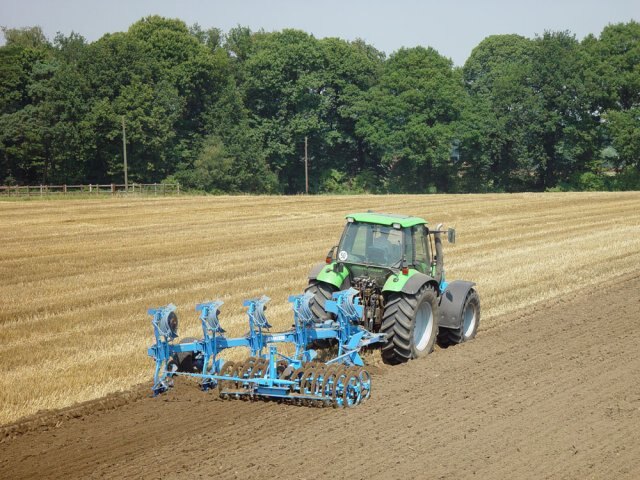

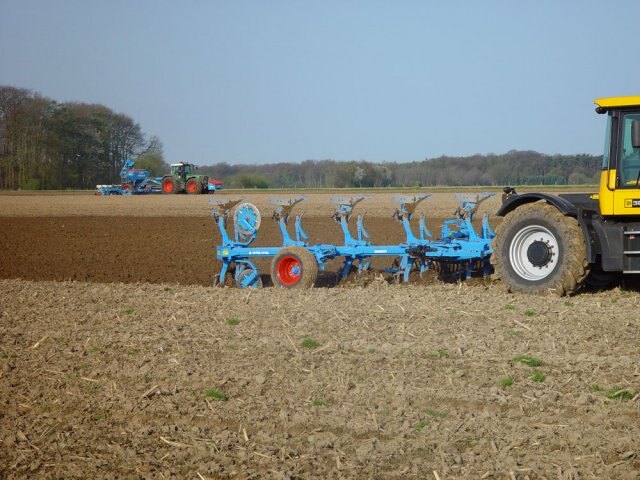

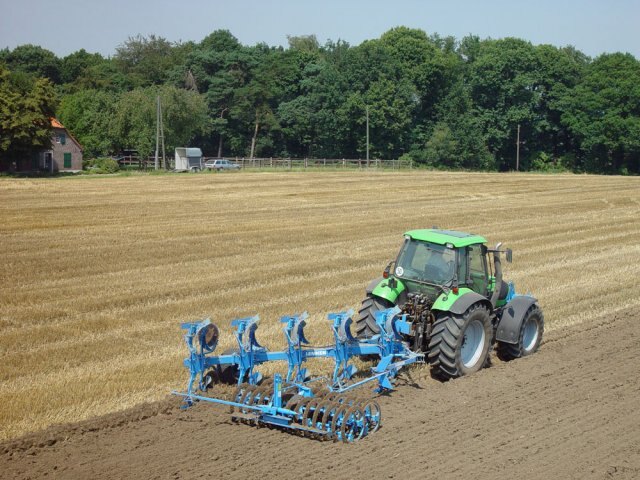

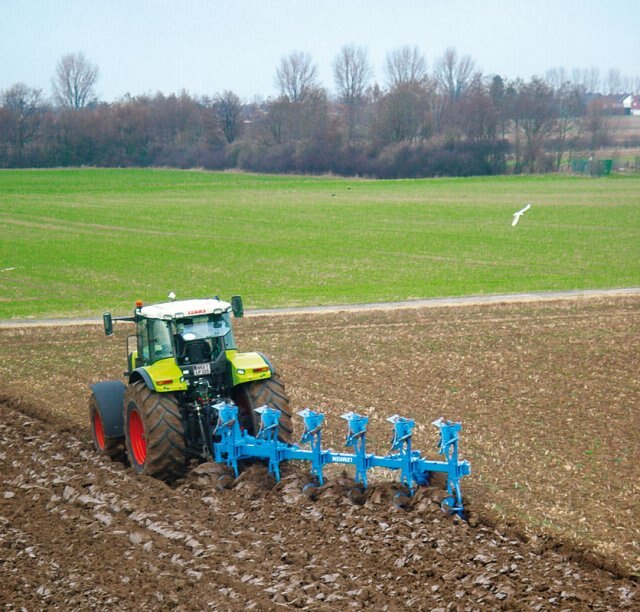

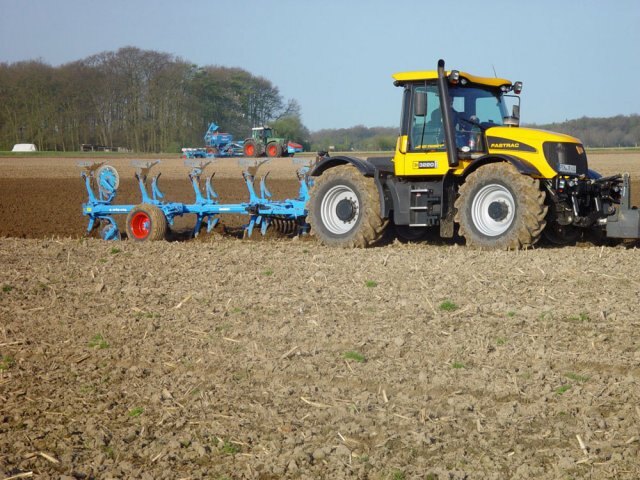

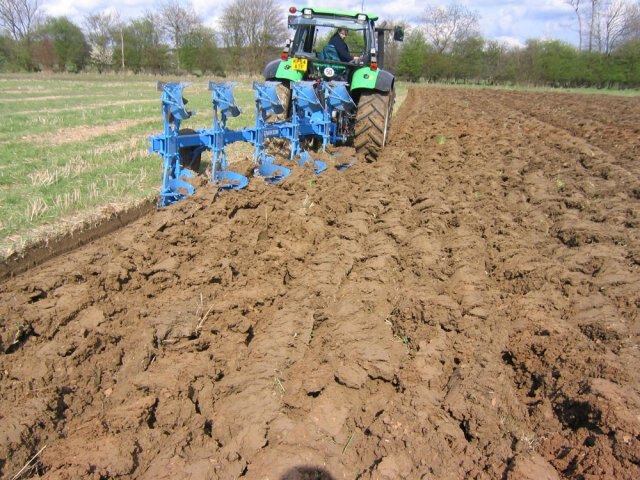

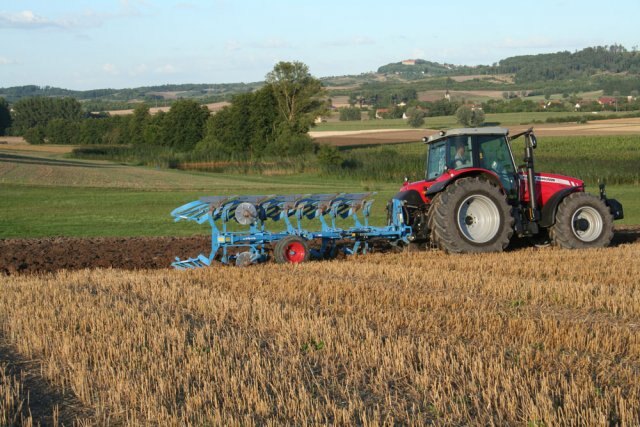

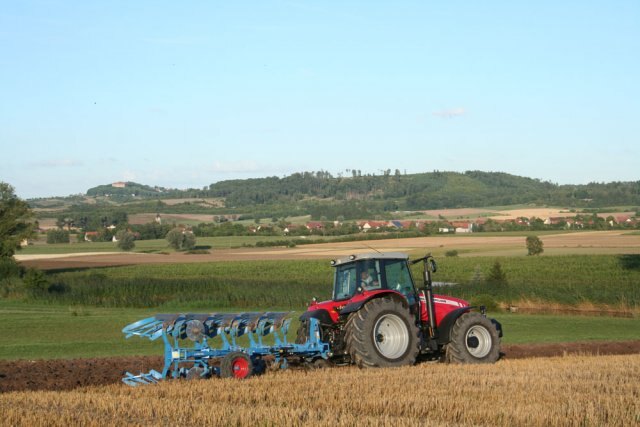

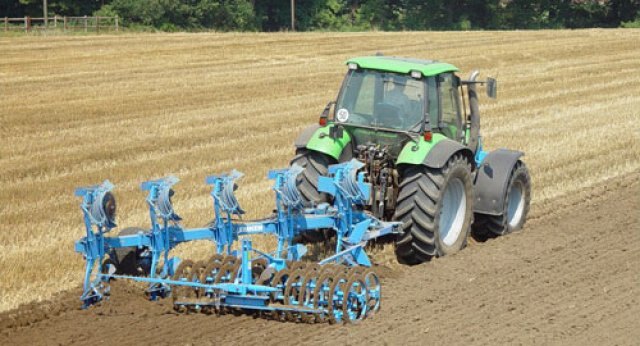

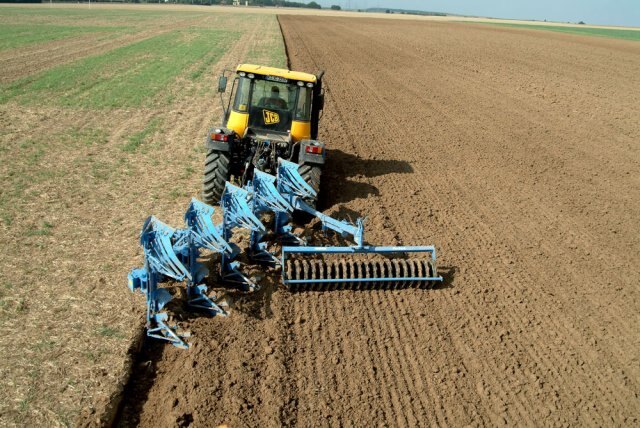

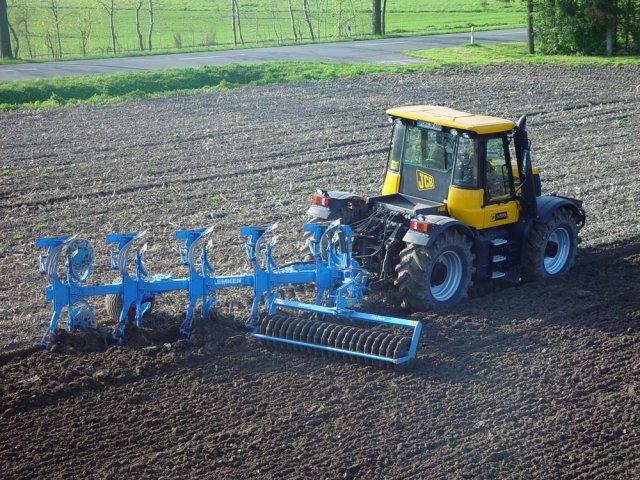

Mounted reversible plough VariOpal
For wide and narrow ploughing, wide furrows for wide wheels

The VariOpal perfectly fulfils all requirements for ploughing. Good ploughing performance relies heavily on the working width and working depth of the different bodies.

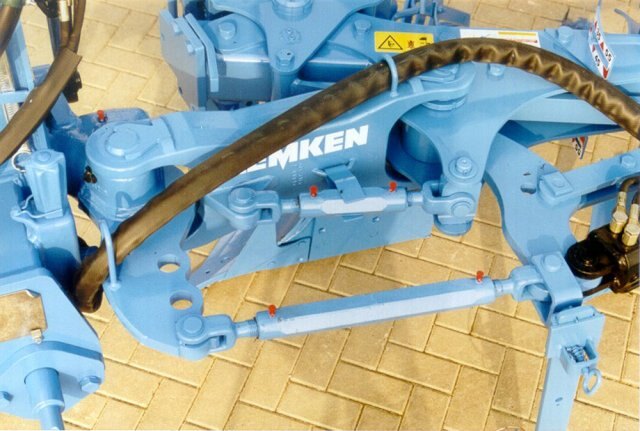

  • Once basic parameters have been set via the Optiquick adjustment centre, front furrow width and pull point are automatically adjusted whenever the working width is changed. This ensures optimum ploughing performance at every working width without lateral forces.
  • All bearings have wear-resistant bushes. Hardened bolts are greasable thus guaranteeing highest stability and long durability.
  • The frame plates for the pivot bracket connection are screwed to the frame. Increased durability and high fitting accuracy guarantee a long lifespan.
  • The long body distance, the lateral attachment of plough bodies on the frame, and the shape of the legs, result in increased clearance thus avoiding blockages even at shallow working depths.

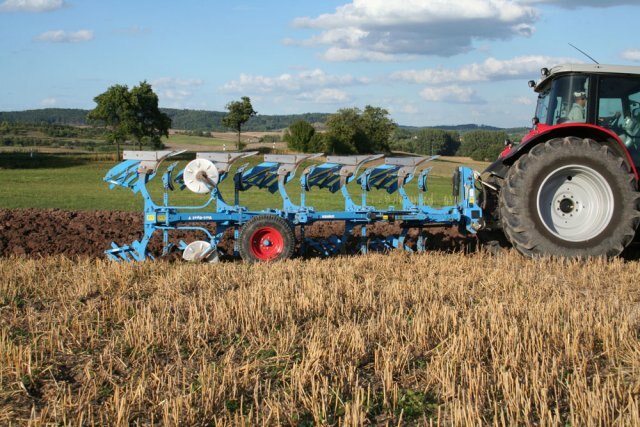

  • The position of the land wheel on the frame allows for direct ploughing right up to ditches, fences and boundaries, depending on the number of furrows and the working width used.
   Technical Data


VariOpal 5 N 90 (Frame 110 x 110 x 8 mm)

Numbers of furrows 3 3+1
Working width per furrow (cm) 22 - 45 22 - 45
Interbody clearance (cm) 90 90
Weight (kg)
 727 950
Weight with mech. overload safty device (kg) 878 1.158
Weight with hyd. overload safty device (kg) 884 1.166
kW 37 - 59 44 - 74
HP 50 - 80 60 - 100

VariOpal 5 N 100 (Frame 110 x 110 x 8 mm)

Numbers of furrows
 2 2+1 3
3+1
Working width per furrow (cm) 22 - 50 22 - 50 22 - 50 22 - 50
Interbody clearance (cm) 100 100 100 100
Weight (kg)
 567 794 739 966
Weight with mech. overload safty device (kg) 685 968 906 1.189
Weight with hyd. overload safty device (kg) 689 974 912 1.197
kW 29 - 44 37 - 59 37 - 59 44 - 74
HP 40 - 60 50 - 80 50 - 80 60 - 100
  Standard equipment
  • Hydraulic turnover device E 90
  • Double acting turnover device
  • Hydraulically adjustable working width
  • Box section frame 110 x 110 x 8 mm
  • Lower link attachment Cat. 2 (or Cat. 3 or 3N=L2 Z3)
  • Toolboxes, tools and shearbolts
  • Stand
  • Underframe clearance 80 cm
  • Two-piece shares (option: hard-faced one-piece stone shares)
  • Shape of Dural bodies B, C, D, P or W



Specifications
Model
VariOpal 5
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
LEMKEN
