Overview

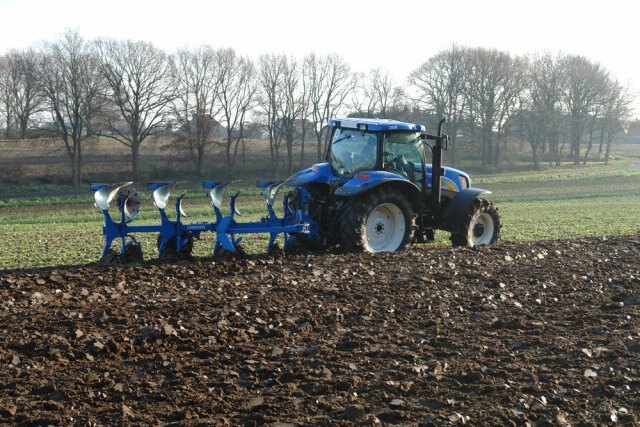

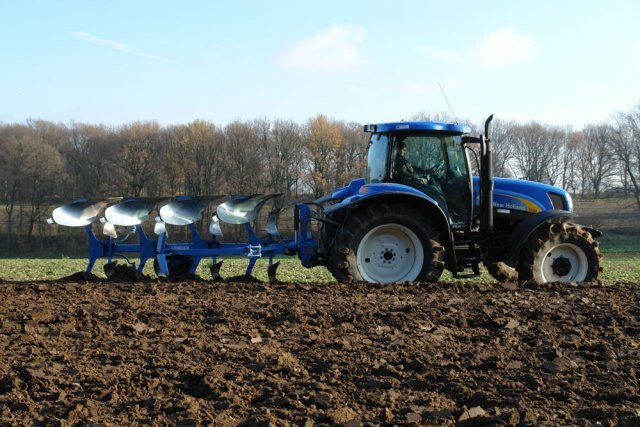

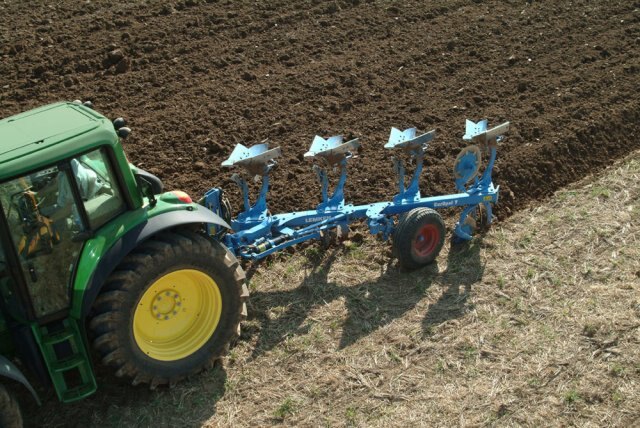

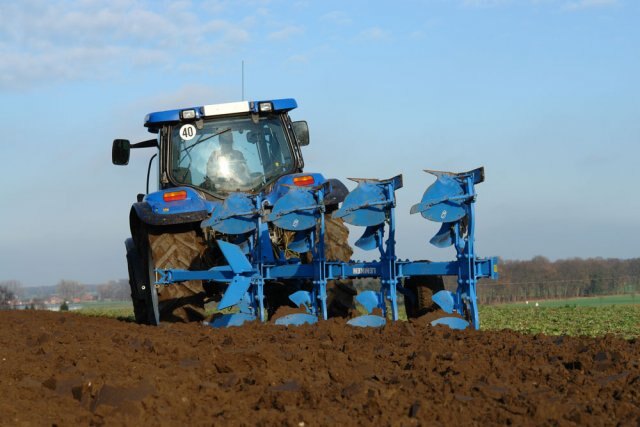

Mounted reversible plough EurOpal
Perfect technology for improved work quality

The two to seven furrow EurOpal mounted ploughs are characterised by high strength at low weight. They are easy to pull and consequently very efficient to use.

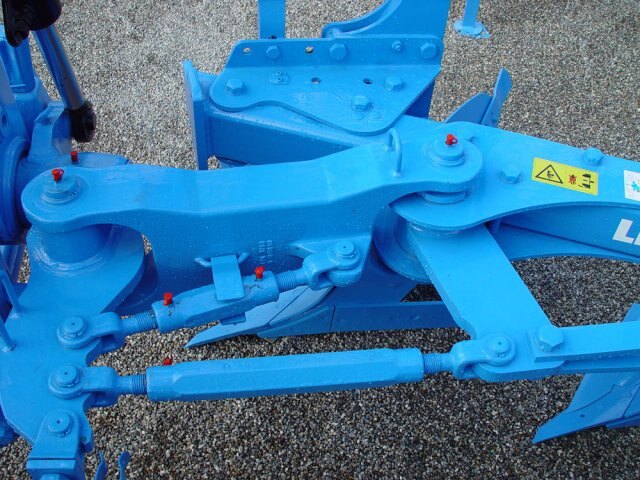

  • TheOptiquick adjustment centre allows the independent adjustment of front furrow width and pull point for precise ploughing without lateral forces.
  • The adjusting brackets are bolted to the thick box section made from alloy fine grain steel resulting in high stability, reliable endurance strength, and fitting accuracy.
  • The skimmers can be adjusted without tools and are therefore easy to use.

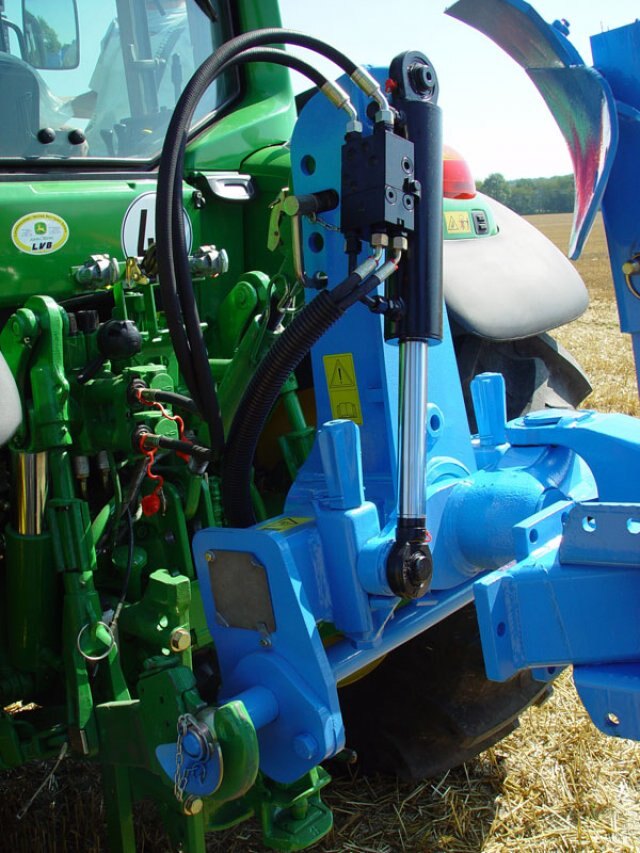

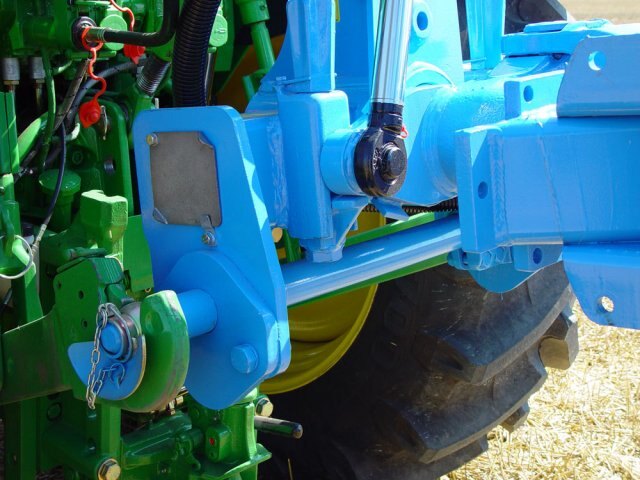

  • The height-adjustable cross shaft can be adjusted to any conditions and thus  guarantees the perfect position of the tractor lower links.

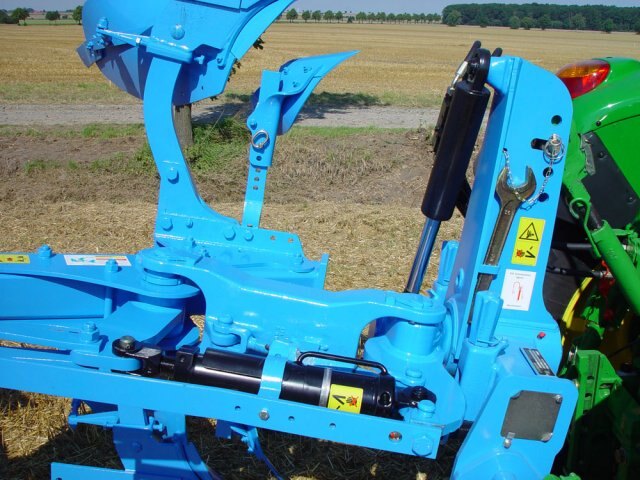

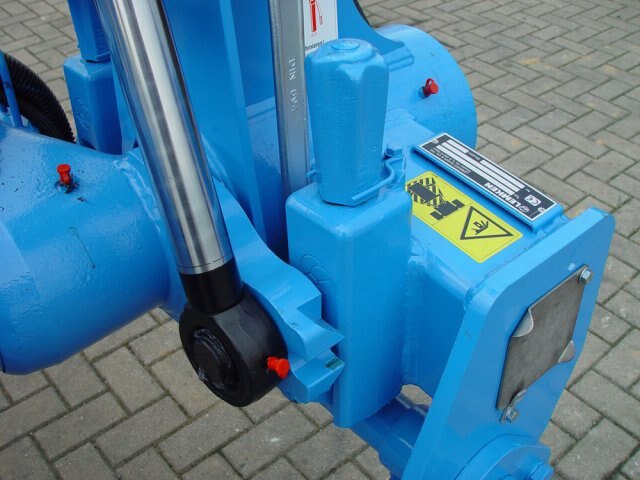

  • The short and strong turnover axle, in the headstock, is not compromised by welded joints and can therefore withstand the highest impact and permanent loads.
   Technical Data


EurOpal 9 N 90 (Frame 160 x 160 x 10mm)

Numbers of furrows 4 4+1 5
Working width per furrow (cm) 30,35,40,45 30,35,40,45 30,35,40,45
Interbody clearance (cm) 90 90 90
Weight (kg)
 1.280 1.510 1.495
Weight with mech. overload safty device (kg) 1.540 1.835 1.820
Weight with hyd. overload safty device (kg) 1.548 1.845 1.830
kW 88 - 132 103 - 162 103 - 162
HP 120 - 180 140 - 220 140 - 220

EurOpal 9 N 90 (Frame 160 x 160 x 10mm)

Numbers of furrows
 5+1 6
6+1
Working width per furrow (cm) 30,35,40,45 30,35,40,45 30,35,40,45
Interbody clearance (cm) 90 90 90
Weight (kg)
 1.725 1.710 1.940
Weight with mech. overload safty device (kg) 2.115
Weight with hyd. overload safty device (kg) 2.127
kW 118 - 199 118 - 199 132 - 228
HP 160 - 270 160 - 270 180 - 310

EurOpal 9 N 100 (Frame 160 x 160 x 10mm)

Numbers of furrows
4
4+1
 5 5+1 6
Working width per furrow (cm) 33,38,44,50 33,38,44,50 33,38,44,50 33,38,44,50 33,38,44,50
Interbody clearance (cm) 100 100 100 100 100
Weight (kg)
 1.292 1.526 1.511 1.745 1.730
Weight with mech. overload safty device (kg) 1.552 1.851 1.836 2.135
Weight with hyd. overload safty device (kg) 1.560 1.861 1.846 2.147
kW 88 - 132 103 - 162 103 - 162 118 - 199 118 - 199
HP 120 - 180 140 - 220 140 - 220 160 - 270 160 - 270

EurOpal 9 N 120 (Frame 160 x 160 x 10mm)

Numbers of furrows
3
3+1
 4 4+1
Working width per furrow (cm) 40,45,53,60 40,45,53,60 40,45,53,60 40,45,53,60
Interbody clearance (cm) 120 120 120 120
Weight (kg)
 1.058 1.355 1.340 1.586
Weight with mech. overload safty device (kg) 1.301 1.615 1.600 1.911
Weight with hyd. overload safty device (kg) 1.307 1.623 1.608 1.921
kW 74 - 110 88 - 132 88 - 132 103 - 162
HP 100 - 150 120 - 180 120 - 180 140 - 220
  Standard equipment
  • Hydraulic turnover device E 120
  • Double acting turnover device with return lock
  • Box section frame 160 x 160 x 10 mm
  • Lower link attachment Cat. 3 (or Cat. 3N=L2 Z3 or 4N=L3 Z4)
  • Toolboxes, tools and shearbolts
  • Stand
  • Underframe clearance 80 cm
  • Two-piece shares (option: hard-faced one-piece stone shares)
  • Hard-faced points
  • Shape of Dural bodies B, C, D, P or W



Specifications
Model
EurOpal 9
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
LEMKEN
