Overview

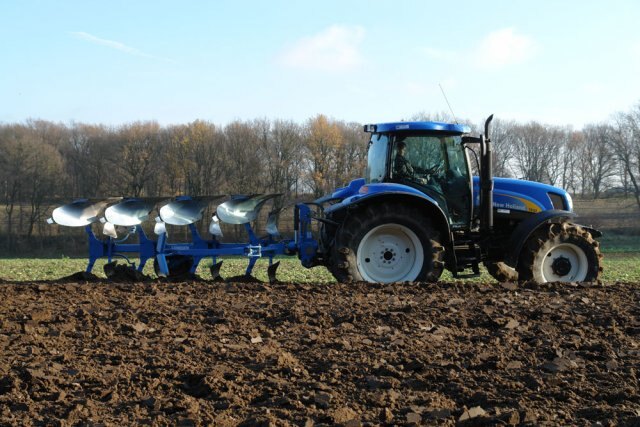

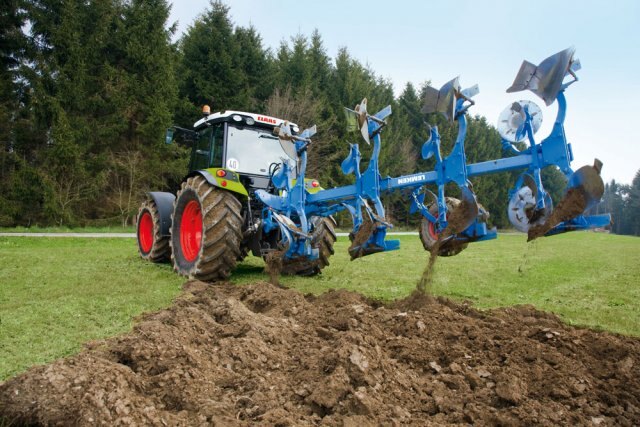

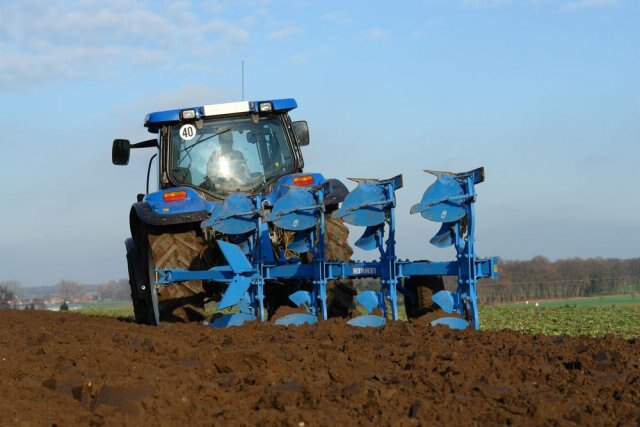

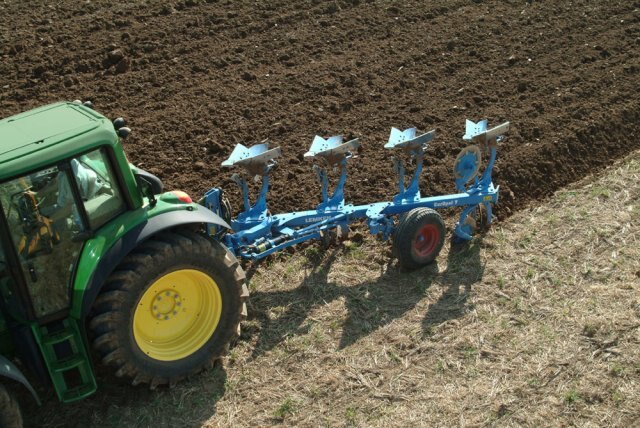

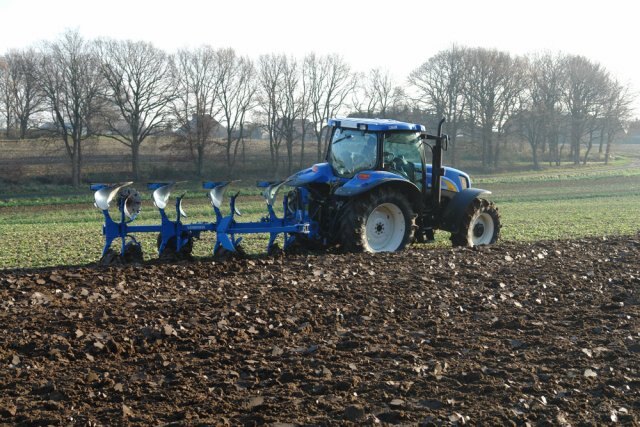

Mounted reversible plough EurOpal
Perfect technology for improved work quality

The two to seven furrow EurOpal mounted ploughs are characterised by high strength at low weight. They are easy to pull and consequently very efficient to use.

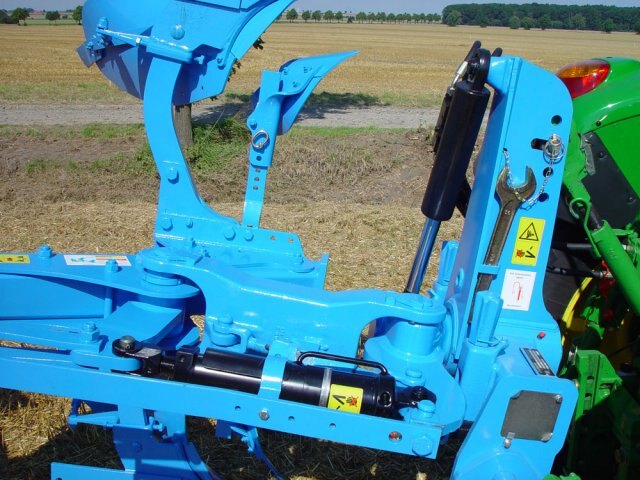

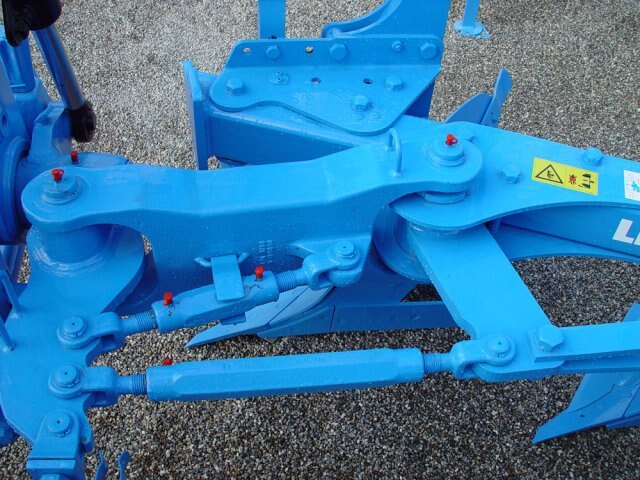

  • TheOptiquick adjustment centre allows the independent adjustment of front furrow width and pull point for precise ploughing without lateral forces.

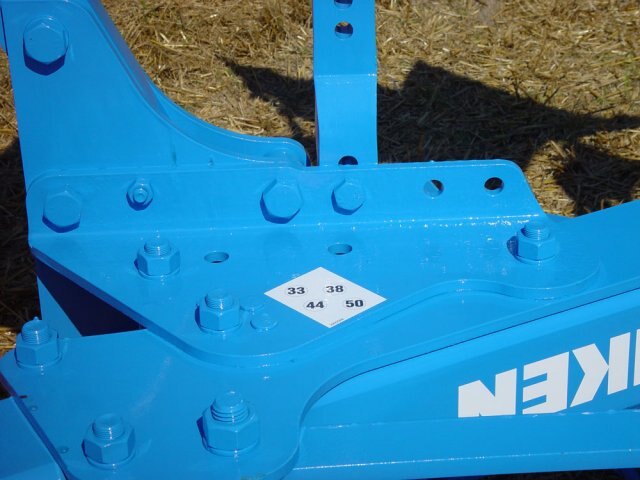

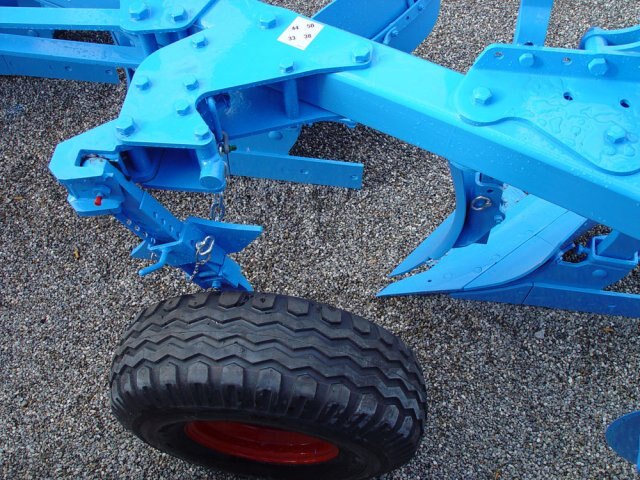

  • The adjusting brackets are bolted to the thick box section made from alloy fine grain steel resulting in high stability, reliable endurance strength, and fitting accuracy.
  • The skimmers can be adjusted without tools and are therefore easy to use.

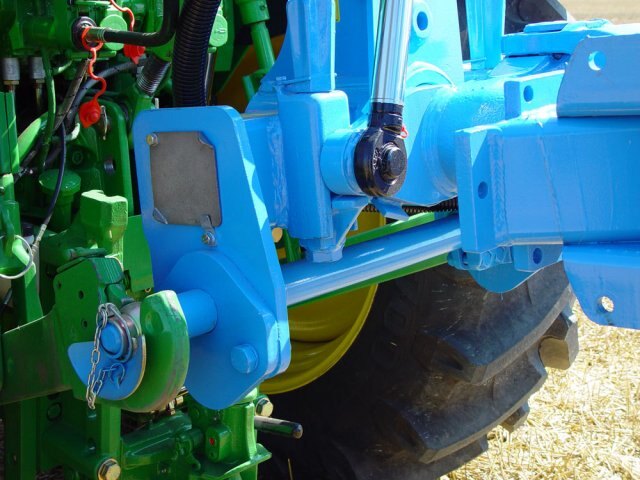

  • The height-adjustable cross shaft can be adjusted to any conditions and thus  guarantees the perfect position of the tractor lower links.

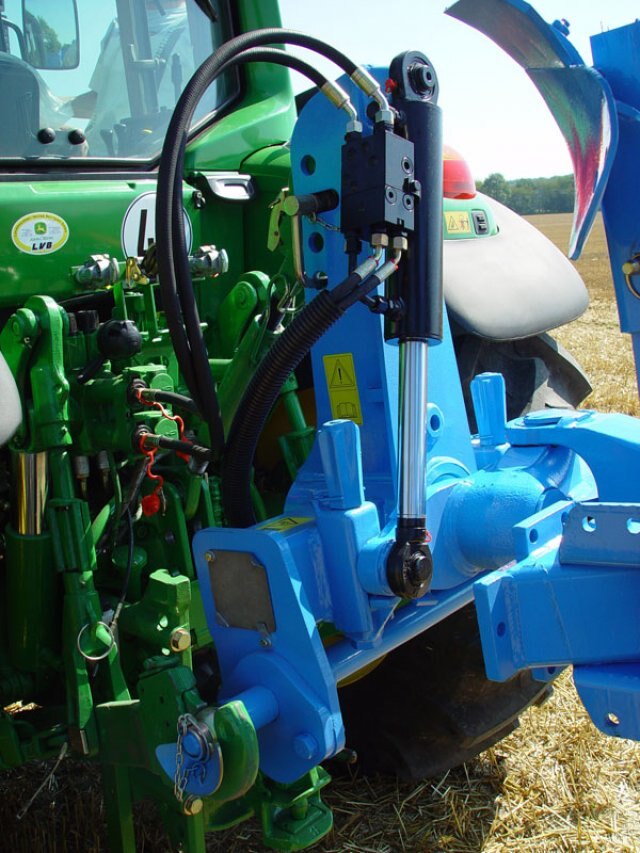

  • The short and strong turnover axle, in the headstock, is not compromised by welded joints and can therefore withstand the highest impact and permanent loads.
   Technical Data


EurOpal 8 N 90 (Frame 140 x 140 x 10mm)

Numbers of furrows 4 4+1 5
Working width per furrow (cm) 30,35,40,45 30,35,40,45 30,35,40,45
Interbody clearance (cm) 90 90 90
Weight (kg)
 1.210 1.425 1.410
Weight with mech. overload safty device (kg) 1.466 1.745 1.730
Weight with hyd. overload safty device (kg) 1.474 1.755 1.740
kW 81 - 118 96 - 147 96 - 147
HP 110 - 160 130 - 200 130 - 200

EurOpal 8 N 90 (Rahmen 140 x 140 x 10 mm)

Numbers of furrows
 5+1 6
6+1
Working width per furrow (cm) 30,35,40,45 30,35,40,45 30,35,40,45
Interbody clearance (cm) 90 90 90
Weight (kg)
 1.625 1.610 1.825
Weight with mech. overload safty device (kg) 2.009
Weight with hyd. overload safty device (kg) 2.021
kW 103 - 176 103 - 176 118 - 206
HP 140 - 240 140 - 240 160 - 280

EurOpal 8 N 100 (Rahmen 120 x 120 x 10 mm)

Numbers of furrows
4
4+1
 5 5+1 6
Working width per furrow (cm) 33,38,44,50 33,38,44,50 33,38,44,50 33,38,44,50 33,38,44,50
Interbody clearance (cm) 100 100 100 100 100
Weight (kg)
 1.229 1.448 1.433 1.652 1.638
Weight with mech. overload safty device (kg) 1.485 1.768 1.753 2.036
Weight with hyd. overload safty device (kg) 1.493 1.778 1.763 2.048
kW 81 - 118 96 - 147 96 - 147 103 - 176 103 - 176
HP 110 - 160 130 - 200 130 - 200 140 - 240 140 - 240

EurOpal 8 N 120 (Frame 140 x 140 x 10mm)

Numbers of furrows
3
3+1
 4 4+1
Working width per furrow (cm) 40,45,53,60 40,45,53,60 40,45,53,60 40,45,53,60
Interbody clearance (cm) 120 120 120 120
Weight (kg)
 956 1.185 1.269 1.498
Weight with mech. overload safty device (kg) 1.525 1.818
Weight with hyd. overload safty device (kg) 1.533 1.830
kW 66 - 88 81 - 118 81 - 118 96 - 147
HP 90 - 120 110 - 160 110 - 160 130 - 200
  Standard equipment
  • Hydraulic turnover device E 120
  • Double acting turnover device with return lock
  • Box section frame 140 x 140 x 10 mm
  • Lower link attachment Cat. 3 (or Cat. 3N=L2 Z3 or 4N=L3 Z4)
  • Toolboxes, tools and shearbolts
  • Stand
  • Underframe clearance 80 cm
  • Two-piece shares (option: hard-faced one-piece stone shares)
  • Hard-faced points
  • Shape of Dural bodies B, C, D, P or W



Specifications
Model
EurOpal 8
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
LEMKEN
