ID # 13285059

2014 Lemken Ploughing EurOpal 6

  • 2014 Lemken Ploughing EurOpal 6
  • 2014 Lemken Ploughing EurOpal 6
  • 2014 Lemken Ploughing EurOpal 6
  • 2014 Lemken Ploughing EurOpal 6
  • 2014 Lemken Ploughing EurOpal 6
  • 2014 Lemken Ploughing EurOpal 6
  • 2014 Lemken Ploughing EurOpal 6
  • 2014 Lemken Ploughing EurOpal 6
  • 2014 Lemken Ploughing EurOpal 6
  • 2014 Lemken Ploughing EurOpal 6
  • 2014 Lemken Ploughing EurOpal 6
  • 2014 Lemken Ploughing EurOpal 6
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

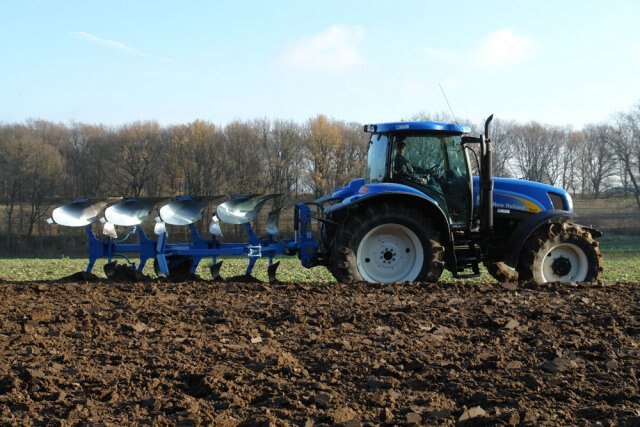

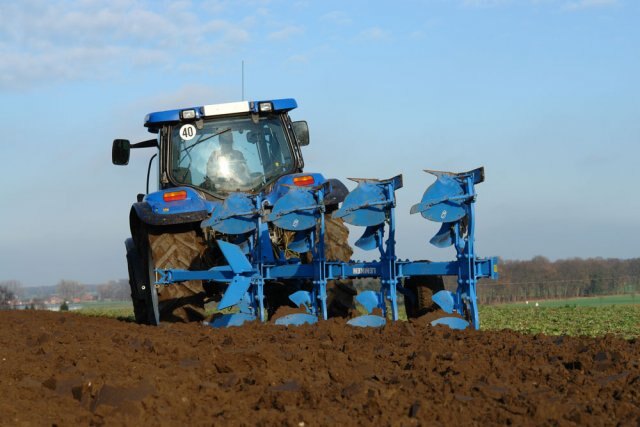

Mounted reversible plough EurOpal
Perfect technology for improved work quality

The two to seven furrow EurOpal mounted ploughs are characterised by high strength at low weight. They are easy to pull and consequently very efficient to use.
  • TheOptiquick adjustment centre allows the independent adjustment of front furrow width and pull point for precise ploughing without lateral forces.
  • The adjusting brackets are bolted to the thick box section made from alloy fine grain steel resulting in high stability, reliable endurance strength, and fitting accuracy.
  • The skimmers can be adjusted without tools and are therefore easy to use.

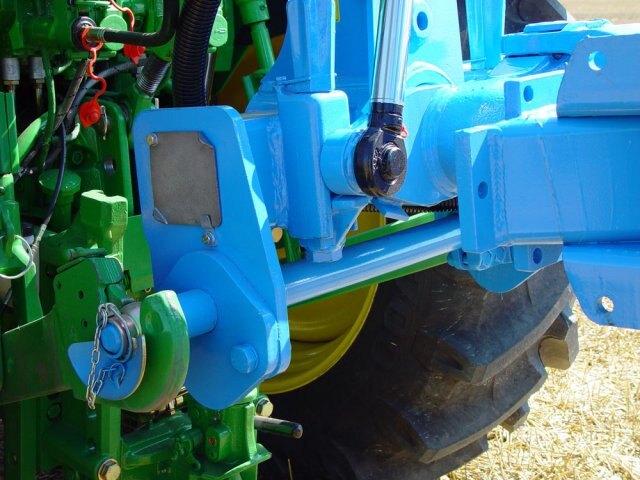

  • The height-adjustable cross shaft can be adjusted to any conditions and thus  guarantees the perfect position of the tractor lower links.

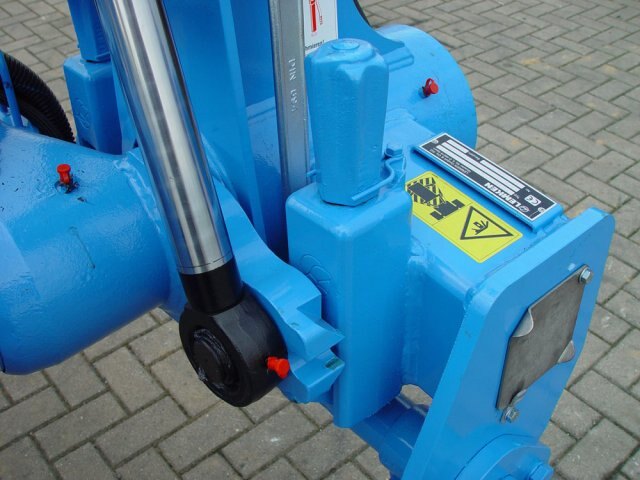

  • The short and strong turnover axle, in the headstock, is not compromised by welded joints and can therefore withstand the highest impact and permanent loads.
   Technical Data


EurOpal 6 N 90 (reinforced frame 110 x110 x 8 mm)

Numbers of furrows 4 4+1
Working width per furrow (cm) 30,35,40,45 30,35,40,45
Interbody clearance (cm) 90 90
Weight (kg)
 907 1.070
Weight with mech. overload safty device (kg) 1.135 1.355
Weight with hyd. overload safty device (kg) 1.143 1.365
kW 51 - 81 59 - 96
HP 70 - 110 80 - 130

EurOpal 6 N 100 (reinforced frame 110 x110 x 8 mm)

Numbers of furrows
4
4+1
Working width per furrow (cm) 33,38,44,50 33,38,44,50
Interbody clearance (cm) 100 100
Weight (kg)
 932 1.090
Weight with mech. overload safty device (kg) 1.146 1.369
Weight with hyd. overload safty device (kg) 1.154 1.379
kW 51 - 81 59 - 96
HP 70 - 110 80 - 130
  Standard equipment

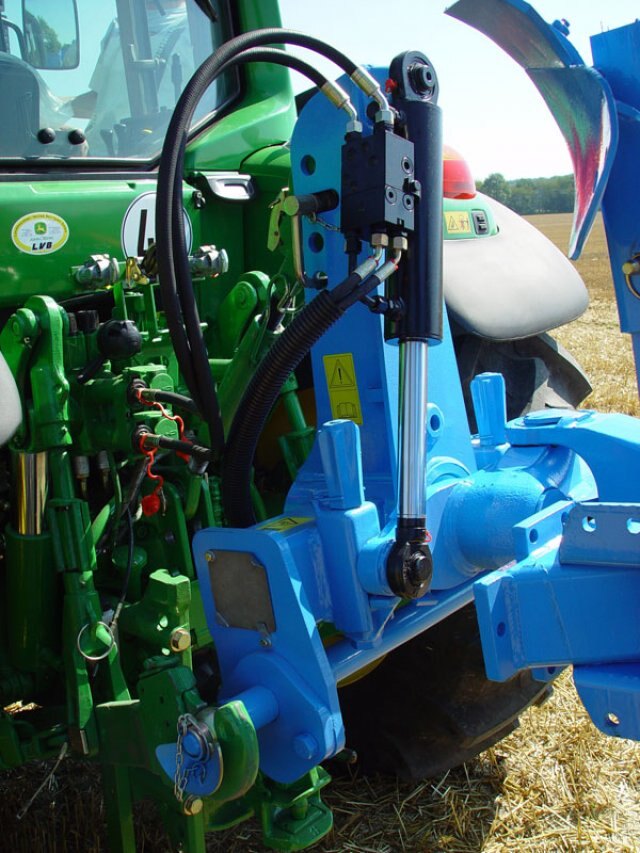

  • Hydraulic turnover device E 100
  • Double acting turnover device
  • Strengthened box section frame 110 x 110 x 8 mm
  • Lower link attachment Cat. 3N=L2 Z3 (or Cat. 3 or 2)
  • Toolboxes, tools and shearbolts
  • Stand
    Underframe clearance 75 cm (or 80 cm) with EurOpal 6, underframe clearance 80 cm with EurOpal 6 X / HydriX
  • Two-piece shares (option: hard-faced one-piece stone shares)
  • Shape of Dural bodies B, C, D, P or W



Specifications
Model
EurOpal 6
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
LEMKEN
Documents
