Overview

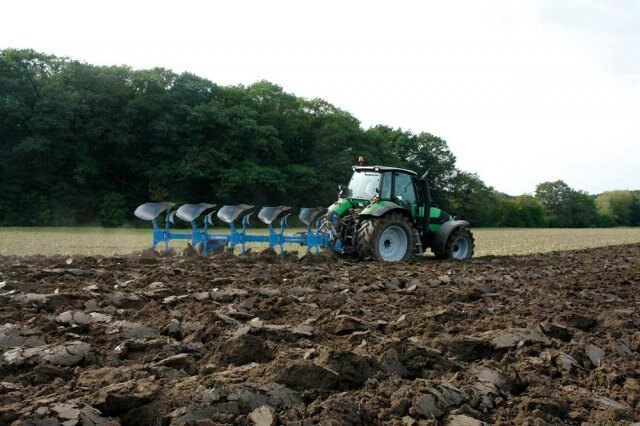

Mounted reversible plough Juwel
Trend Setting Plough Technology

The Juwel plough generation combines safe use, easy operation and work quality in an entirely new model. Initially available with three to seven furrows, and a 140 mm box section frame, the Juwel is suitable for medium to high HP tractors.

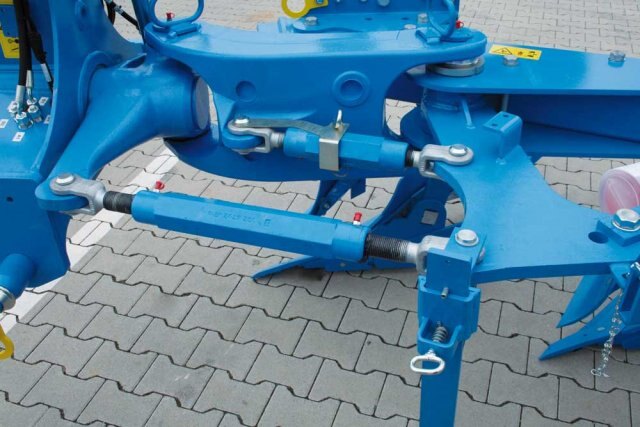

  • The new TurnControl system gives the operator increased control of plough rotation and pitch. Increased ground clearance of the land wheel is another important feature.

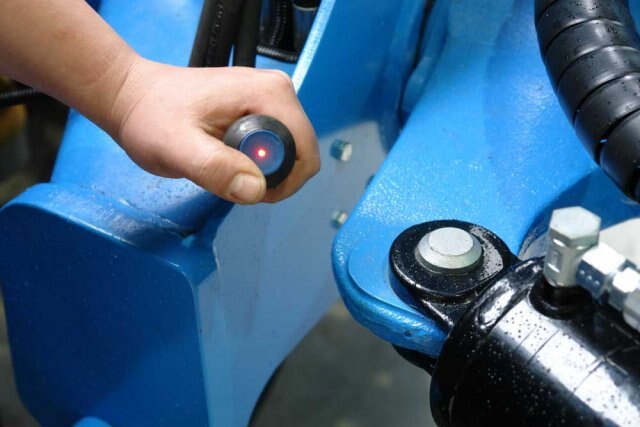

  • The electro-hydraulic control of the turnover device means plough pitch can be set from the tractor seat, It can also be “overridden” for the first or last pass of the field.

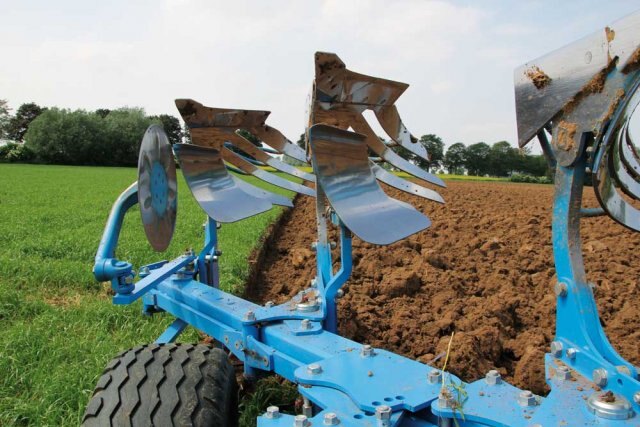

  • New skimmers with improved shape and new leg position guarantee blockage-free ploughing even under difficult conditions, Working depth and angle can be adjusted easily without tools.

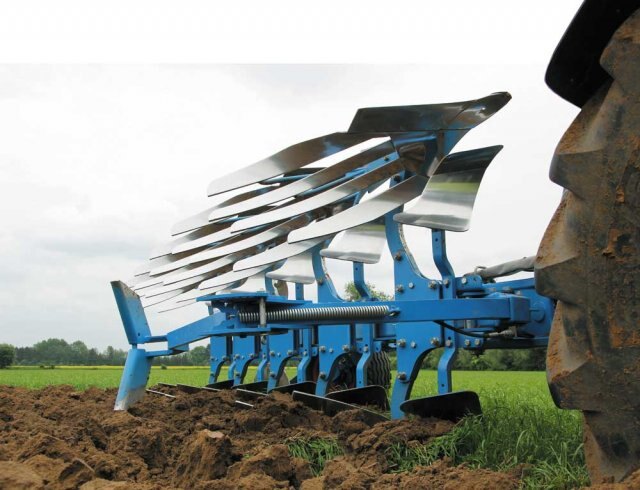

  • Equipped with DuraMaxx bodies, for which mouldboards and slats have been manufactured without any drill or punch holes. This allows the use of harder steels which provide added life time compared to normal steels.
   Technical Data


Juwel 8 V N 90 (Frame 140 x 140 x 10mm)

Numbers of furrows
3
3+1
 4 4+1
Working width per furrow (cm) 30 - 50 30 - 50 30 - 50 30 - 50
Interbody clearance (cm) 90 90 90 90
Weight (kg)
 1.172 1.463 1.023 1.039
Weight with Hydromatic (kg) 1.364 1.723 1.698 2.057
kW 66 - 99 81 - 132 81 - 132 96 - 165
HP 90 - 135 110 - 180 110 - 180 130 - 225

Juwel 8 V N 90 (Frame 140 x 140 x 10mm)

Numbers of furrows
5
5+1
 6 6+1
Working width per furrow (cm) 30 - 50 30 - 50 30 - 50 30 - 50
Interbody clearance (cm) 90 90 90 90
Weight (kg)
 1.708 1.999 1.974 2.269
Weight with Hydromatic (kg) 2.028 2.387 not available not available
kW 96 - 165 103 - 199 103 - 199 118 - 232
HP 130 - 225 140 - 270 140 - 270 160 - 315

Juwel 8 V N 100 (Frame 140 x 140 x 10mm)

Numbers of furrows
3
 3+1 4 4+1
Working width per furrow (cm) 30 - 55 30 - 55 30 - 55 30 - 55
Interbody clearance (cm) 100 100 100 100
Weight (kg)
 1.187 1.482 1.461 1.756
Weight with Hydromatic (kg) 1.379 1.742 1.717 2.080
kW 66 - 99 81 - 132 81 - 132 96 - 165
HP 90 - 135 110 - 180 110 - 180 130 - 225

Juwel 8 V N 100 (Frame 140 x 140 x 10mm)

Numbers of furrows
5
5+1
 6
Working width per furrow (cm) 30 - 55 30 - 55 30 - 55
Interbody clearance (cm) 100 100 100
Weight (kg)
 1.731 2.026 2.001
Weight with Hydromatic (kg) 2.051 2.418 not available
kW 96 - 165 103 - 199 103 - 199
HP 130 - 225 140 - 270 140 - 270
  Standard equipment

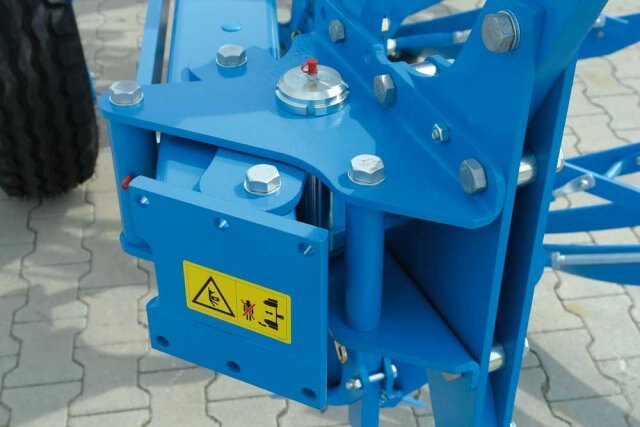

  • Electro-hydraulic turnover device TurnControl
  • Hydraulic angle adjustment
  • Hydraulically adjustable working width
  • Box section frame 140 x 140 x 10 mm
  • Lower link attachment Cat. 3 (or Cat. 4N=L3 Z4)
  • Tools and shearbolts
  • Stand
  • Underframe clearance 80 cm
  • Two-piece shares (option: hard-faced one-piece stone shares)
  • Hard-faced points
  • Shape of DuraMaxx bodies W 40 or W 52



Specifications
Model
Juwel 8 V
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
LEMKEN
