Overview

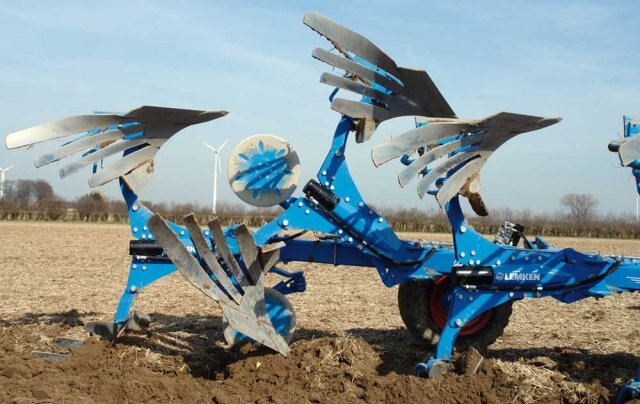

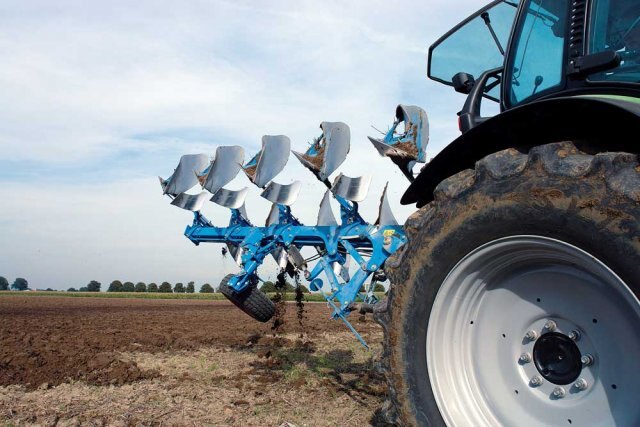

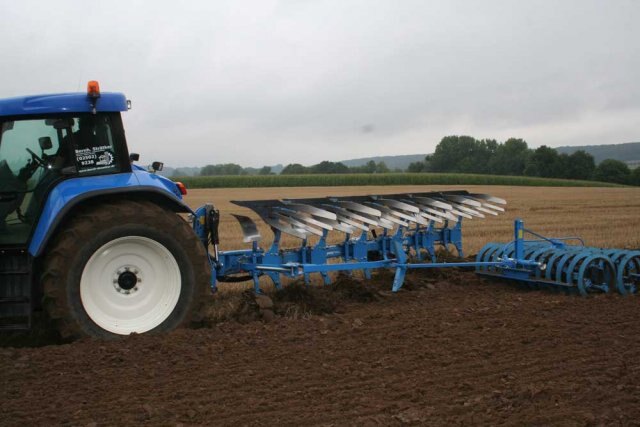

Mounted reversible plough Juwel
Trend Setting Plough Technology

The Juwel plough generation combines safe use, easy operation and work quality in an entirely new model. Initially available with three to seven furrows, and a 140 mm box section frame, the Juwel is suitable for medium to high HP tractors.

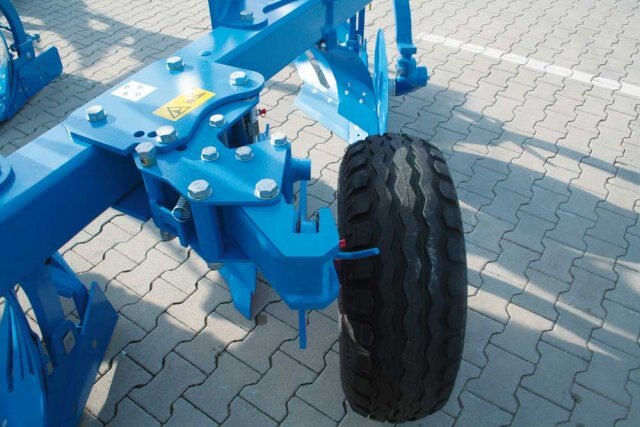

  • The new TurnControl system gives the operator increased control of plough rotation and pitch. Increased ground clearance of the land wheel is another important feature.

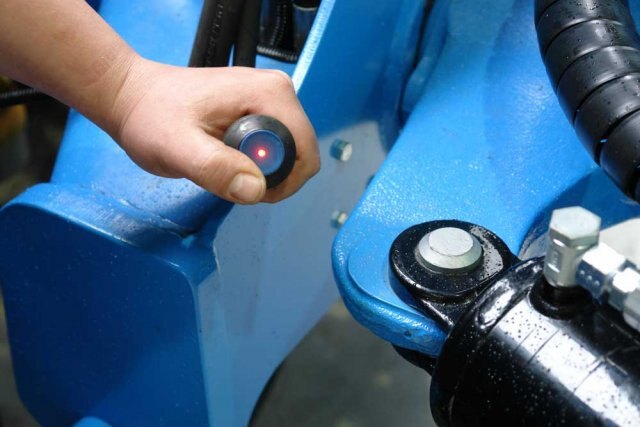

  • The electro-hydraulic control of the turnover device means plough pitch can be set from the tractor seat, It can also be “overridden” for the first or last pass of the field.

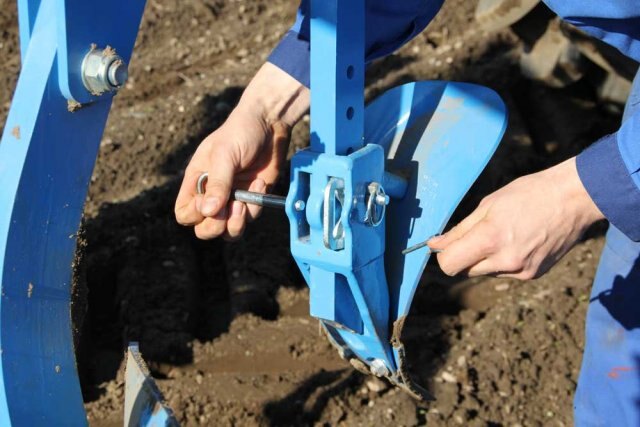

  • New skimmers with improved shape and new leg position guarantee blockage-free ploughing even under difficult conditions, Working depth and angle can be adjusted easily without tools.

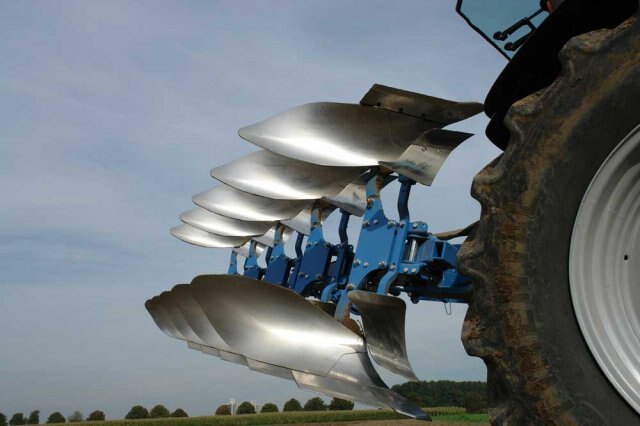

  • Equipped with DuraMaxx bodies, for which mouldboards and slats have been manufactured without any drill or punch holes. This allows the use of harder steels which provide added life time compared to normal steels.
   Technical Data




Body spacing (cm)
100
100
 90 100
90
 100
Number of furrows
3
3+1
 4 4+1
Working width (cm)²
90-165
120-220
 120-220 150-275
Weight (kg)
 912 1.198 1.171 1.187 1.453 1.473
Tractor output (PS) 70-100 80-130 80-130 90-160
Tractor output (kW) 51-74 59-96 59-96 66-118
T-version Weight (kg)¹ 1.053 1.386 1.359 1.375 1.688 1.708
¹ T-version = with additional hydraulic overload safety device Hydromatic
² Hydraulically adjustable working width
  Standard equipment
  • Electro-hydraulic turnover device TurnControl G 100
  • Hydraulic angle adjustment
  • Hydraulically adjustable working width
  • Box section frame 120 x 120 x 10 mm
  • Setting Center Optiquick©
  • Lower link attachment Cat. 3N=L2 Z3 (or Cat. 3 or 2)
  • Tools and shearbolts
  • Stand
  • Underframe clearance 80 cm
  • Two-piece shares (option: hard-faced one-piece stone shares)
  • Hard-faced points
  • Shape of DuraMaxx bodies W 40 or W 52



Specifications
Model
Juwel 7 V
Category Name
Agriculture
Year
2014
Sale Type
New
Manufacturer
LEMKEN
