Legend Boats

ID # 13519111

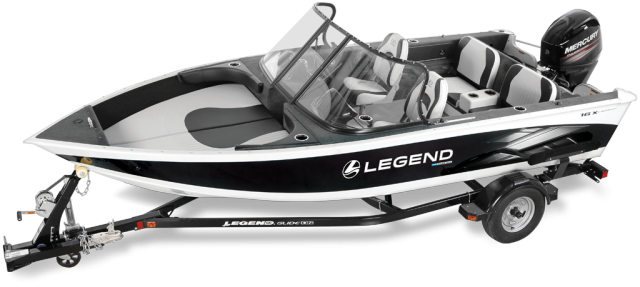

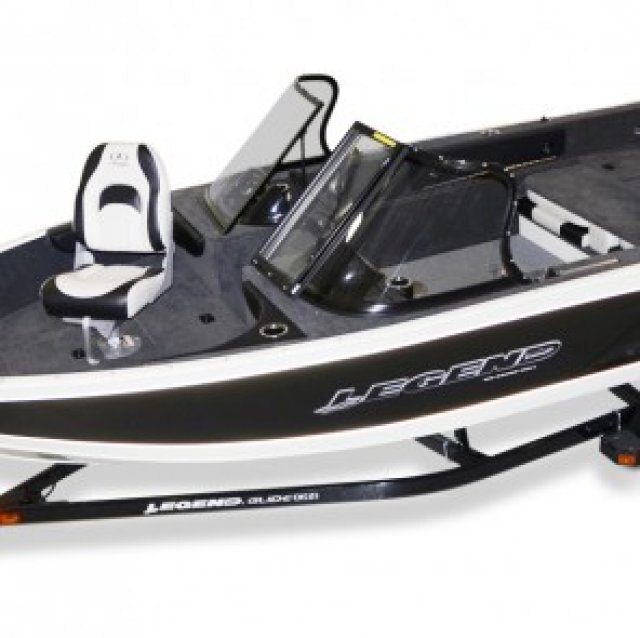

Legend Boats 16Xcalibur

Videos
Call for Price
Overview
 Innovative driver’s Command centre
http://legendboats.com/wp-content/uploads/2013/01/Features_ultralite_2011_benches.jpg
Although it’s hard to describe, something just feels right about a Legend console. It’s as if they adjust automatically when you sit down. The gauges are all easy to read even at night with their bright backlighting. Each switch is within reach and also backlit for clear night viewing. EZ-reset circuit breakers replace outdated glass fuses, just press to reset. The sleek custom-molded designs are mounted on strong aluminum sub-frames providing a solid foundation for excellent boat control. Some of our command centres even feature a built-in sink, tilt steering, a 12 volt outlet, integrated drink holders and a cell phone tray.

 Everyone should have protection, especially if it extends your season.

http://legendboats.com/wp-content/uploads/2013/01/Features_ultralite_2011_benches.jpg

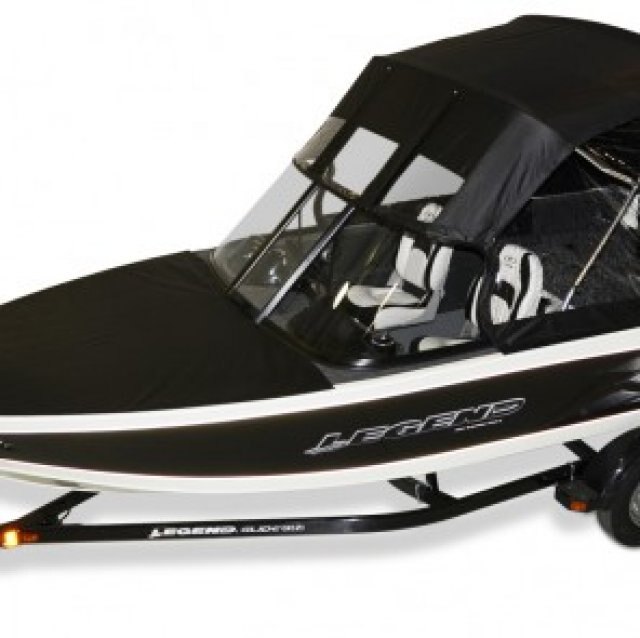

Being Canadian, we understand the harsh reality of the Canadian climate. That’s why every full windshield Legend model comes standard with the industry’s toughest, most practical stand-up top, constructed with Legend’s ProTech material. With a complete curtain set, custom fit and fastened down tightly with special Pull-A-Dot snaps, and our thicker three bar support system with all-metal fittings, you’ll be more comfortable, warmer, and dryer regardless of what Mother Nature throws at you.

 Family to fishing in 5.4 seconds

http://legendboats.com/wp-content/uploads/2013/01/Features_ultralite_2011_benches.jpg

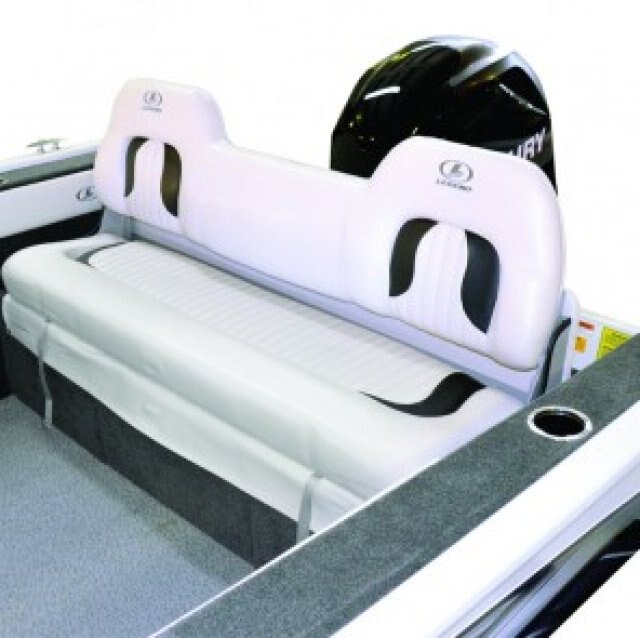

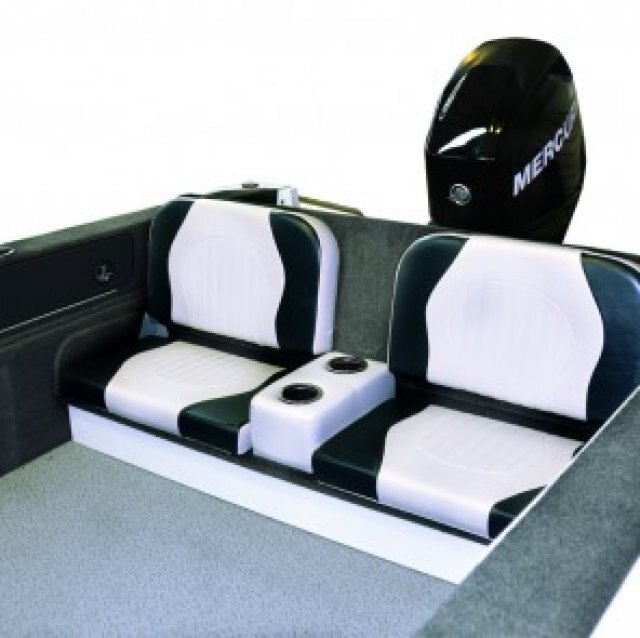

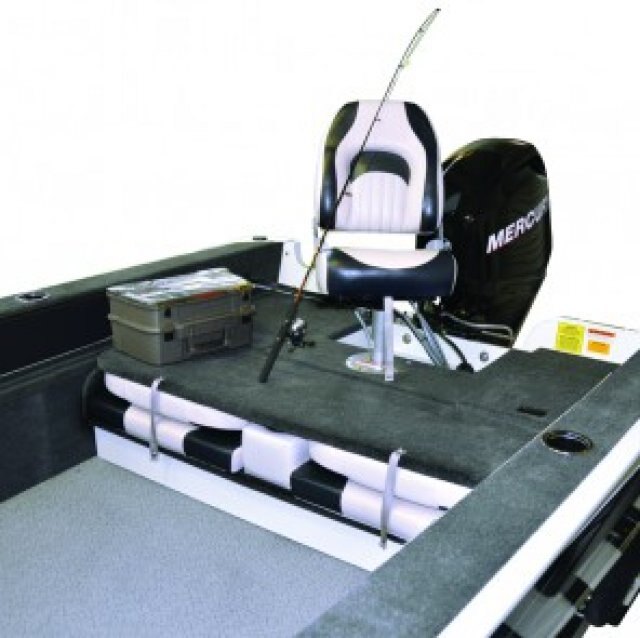

The EZ-Flip Extenda-Deck Converta-Bench provides ample seating and a huge rear deck.

  Construction
  • .100 gauge super-thick two-piece aluminum hull construction
  • 3M highly reflective safety striping
  • All welded hull construction
  • Cast aluminum corner caps
  • EZ-clean Dura-Deck vinyl floor in cockpit area
  • Injected and level foam floatation
  • Large and practical slip-resistant side decks for easy boarding
  • Multiple .100 gauge bow ribs for maximum strength
  • Rear safety splash pan
  • Snagless marine carpet
  • Stainless steel transom and bow eyes
  • Torsion beam energy transfer system
  • Treated 7-ply marine-grade plywood floor and decks
  • Wave-slicing Deep-V hull with reverse chines and extra-wide bottom - 10°
Livewells
  • Aerated bow livewell - US gallons / litres - 30 / 114
  • Integrated bait bucket
  • Threaded Sure-Lock stand pipe with overflow protection
 Console
  • Chrome-bezeled full instrumentation with speedometer, tachometer, voltmeter and fuel gauge
  • Deluxe Full-Vu console with woodgrain dash panels and integrated drink holder
  • Deluxe passenger console with extra-large glove box and drink holder
  • EZ-reset circuit breakers
  • High profile clear-curved walk-through windshield
  • Illuminated switches and gauges
  Seating
  • Legend EZ-Fold Extenda-Deck Converta-Bench
  • Removable high-back swivel chairs with rear storage netting - 2
  Decks and Storage
  • Drink holders - 9
  • Large front casting deck with oversized storage
  • Large rear casting deck with seat mount and storage
  • Perko T-handle flush locks
  • Port and starboard integral lockable rod boxes - 7'
  • Rear battery storage area
  More Features

  • 12V pre-wired for electric trolling motor
  • Automatic bilge pump
  • Built-in under-floor fuel tank - US gallons / litres - 11 / 42
  • Mooring cleats or handles - 3
  • Removable navigation and anchor lights
No-fee Setup and Orientation

All of the components of your boat, motor, and trailer package have been specially chosen for compatibility. The professionals at your authorized Legend Dealership will help you select the proper motor and options for your package. They will then prepare your package to ensure proper and worry-free operation.

Side console models, full windshield models and pontoons:
The setup includes the following items: control box, shift cables, starting battery, aluminum propeller, outboard installation and set-up. Your dealer will prepare your package and give you a full orientation to ensure trouble-free boating from day one.

Utility models in packages:
The setup includes the following items: outboard installation and setup, propeller, fuel tank, starting battery on packages with electric start motor or utility boat models with lights or livewells. Your dealer will prepare your package and give you a full orientation to ensure trouble-free boating from day one.



Specifications
Model
16Xcalibur
Category Name
Watercraft
Year
2017
Sale Type
New
Manufacturer
Legend
Centerline Length
16'6''
Beam
82''
Hull Depth
37''
Inside Depth
25''
Aluminum Thickness
0.1
Maximum Horsepower
90
Maximum Capacity
1393 lbs.
Hull Weight
1045 lbs.
Bottom Width
69''
Towing Weight
2094 lbs.
Gas Tank
42 L (11 US gal)
Livewells
30 gallons
