Legend Platinum Lounge

Videos
Call for Price
Overview
If you like to be spoiled then you’re looking in the right place.
After all, who needs cool stuff like a stainless grill, pop up speakers, fresh-water sink or a full-size bed in their pontoon? Nobody. But everybody wants them, and you deserve to have them. So indulge in modern luxury with our Platinum Series.

  Features
Three Row  Spike Drag Harrow

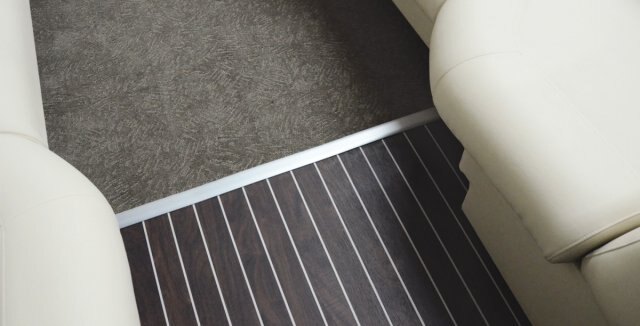

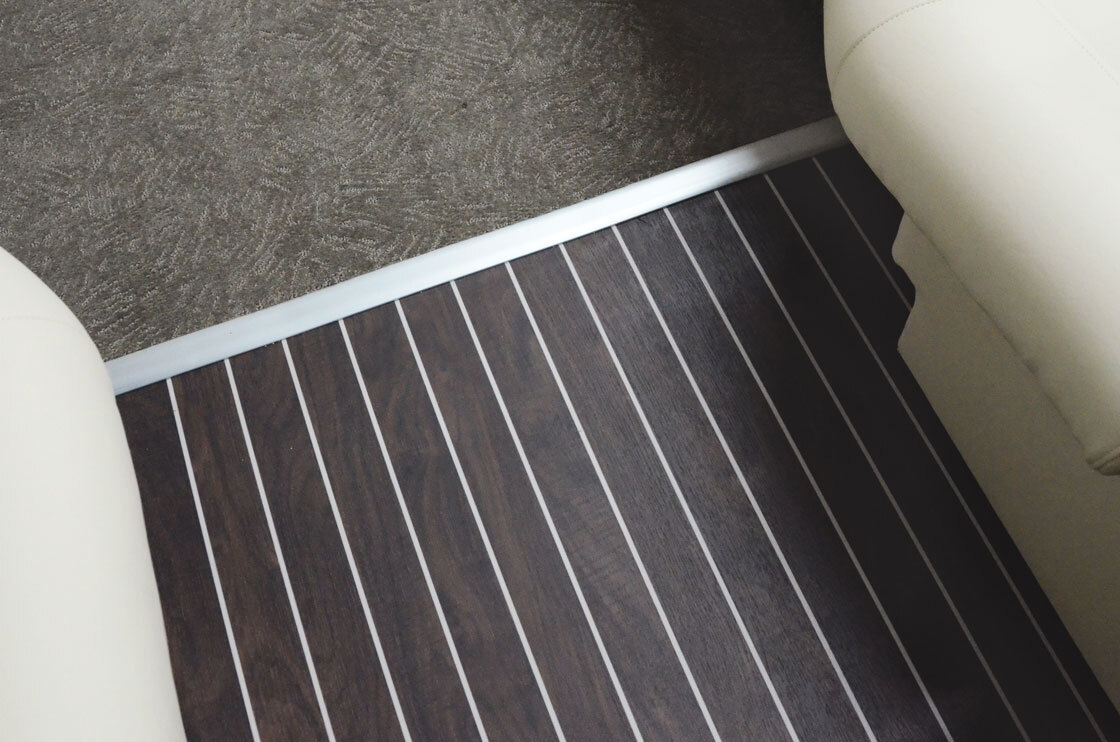

Front and Rear Mahogany and Ivory Vinyl Floor

Rich mahogany and ivory vinyl front and rear decks for easy cleanup.
Three Row  Spike Drag Harrow

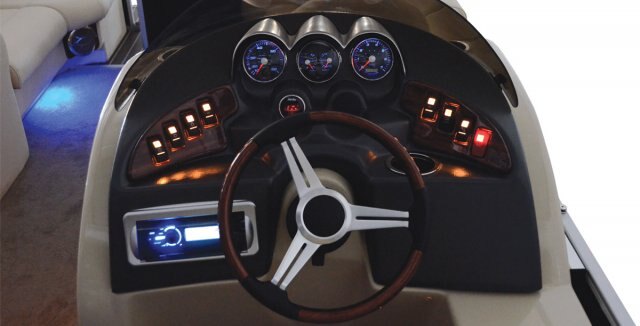

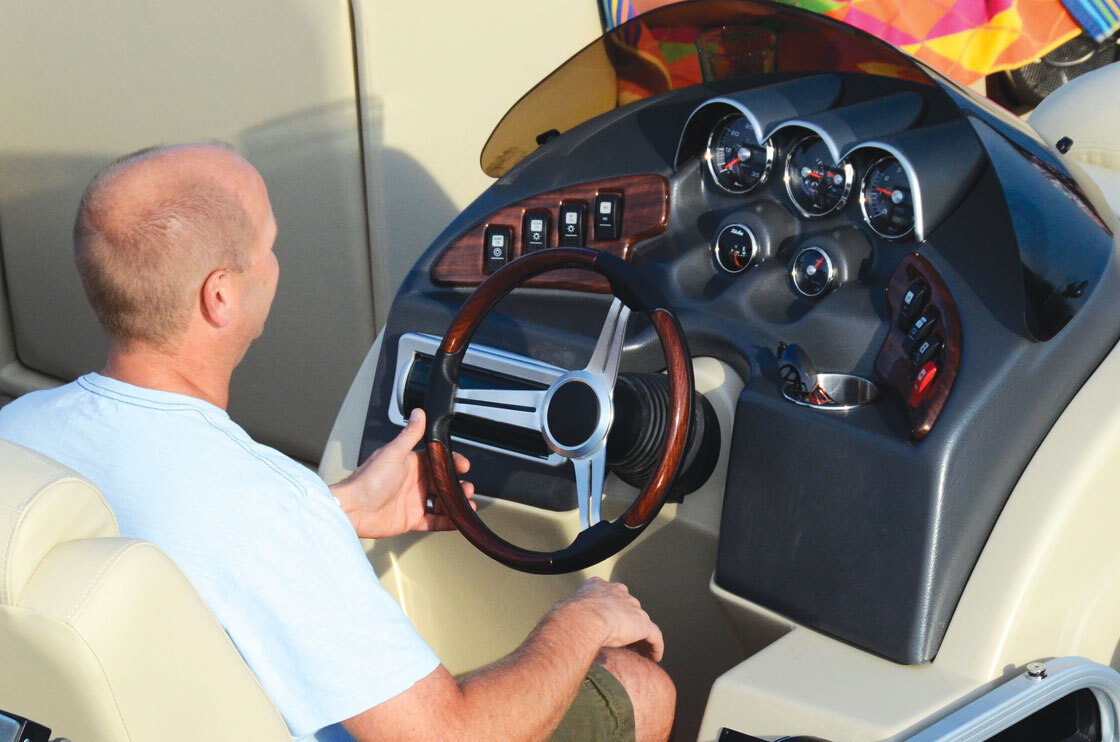

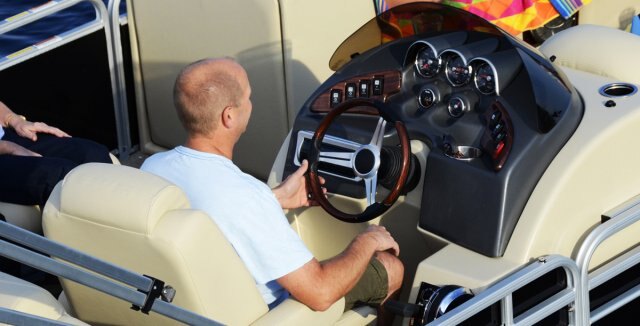

Premium Raised Helm

You will feel like the captain perched higher for clear visibility over passengers.
Three Row  Spike Drag Harrow

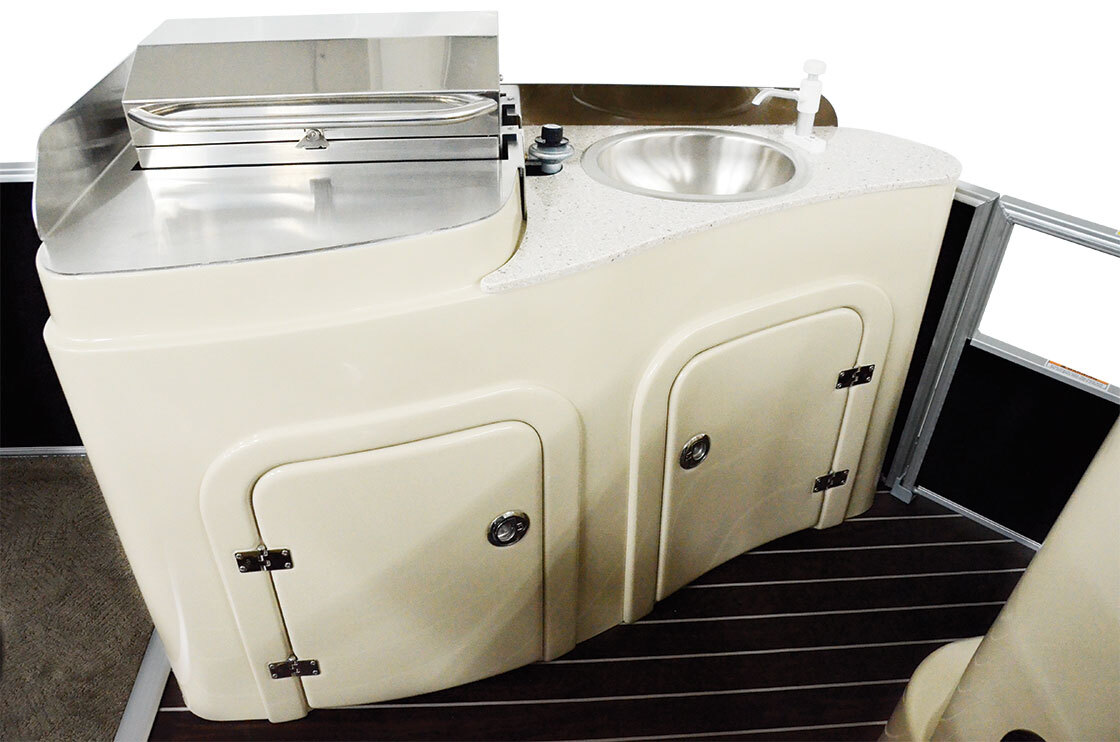

BBQ and Built-in Sink (Platinum Bar)

Cook up a great meal with the Platinum Bar BBQ and built in sink.
Three Row  Spike Drag Harrow

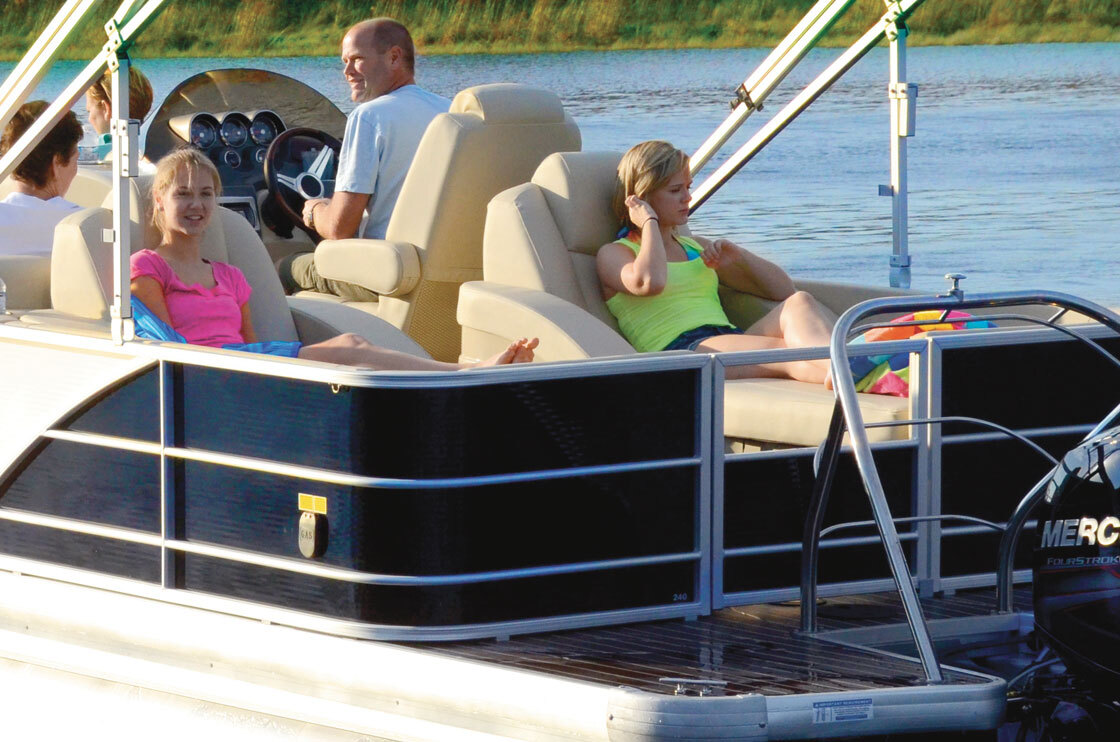

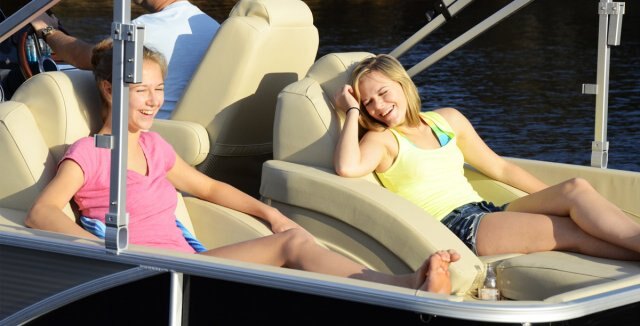

Convertible Rear-Facing Luxury Loungers
(Platinum Lounge)

The perfect seats for a relaxing cruise or insert the filler cushion to convert your loungers into a bed-sized sundeck.
Three Row  Spike Drag Harrow

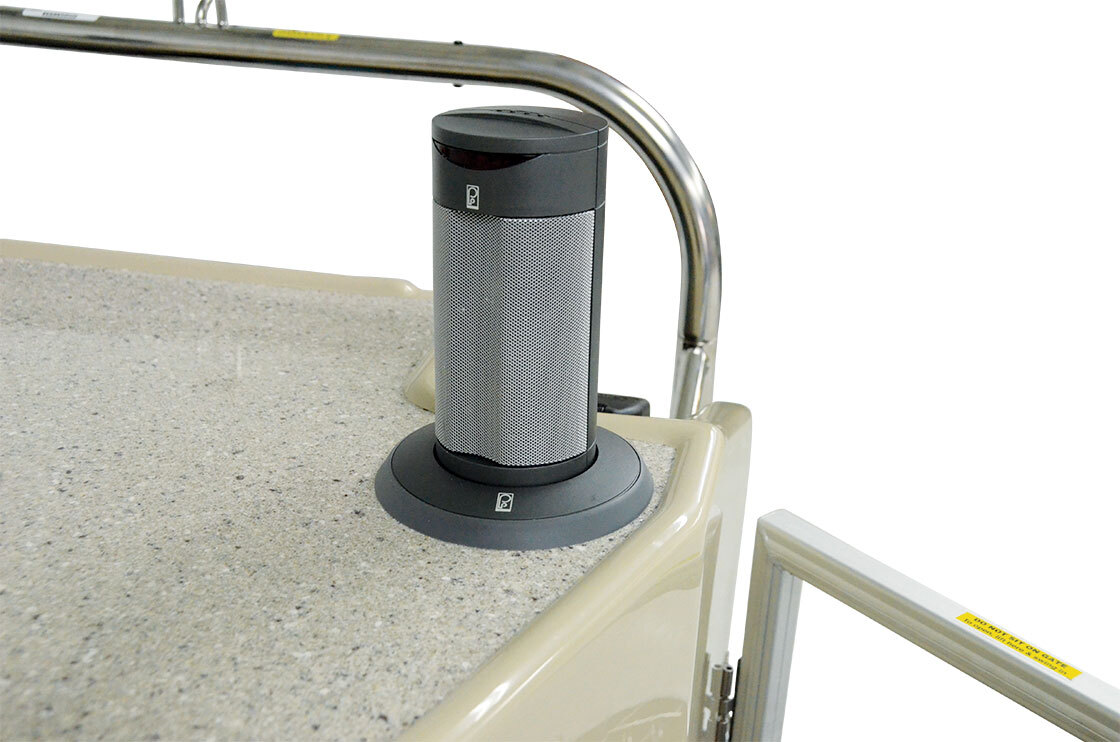

Pop, Point and Play Speakers (Platinum Bar)

Pop up these cool speakers and turn them towards the party. 2 stools, a built-in sink, and a dual-level surface makes for a great place to entertain friends.
Three Row  Spike Drag Harrow

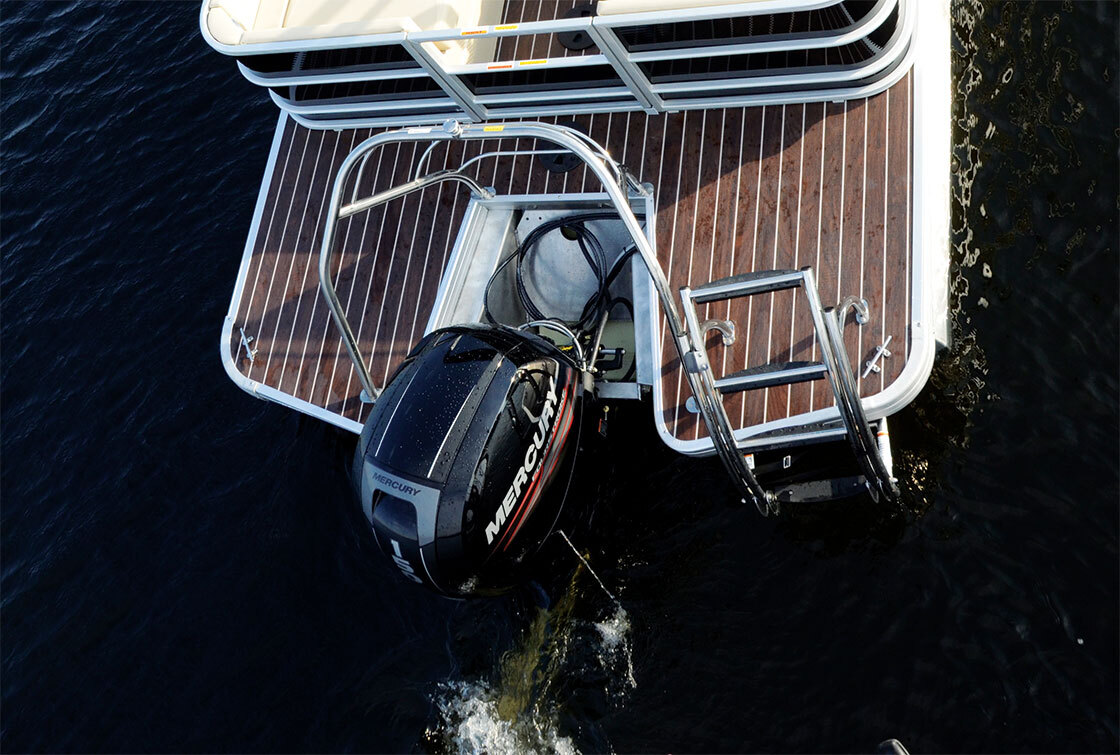

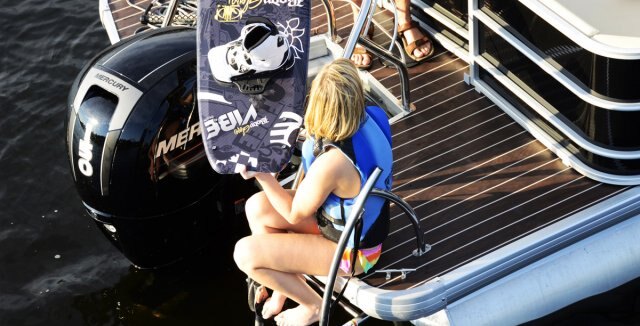

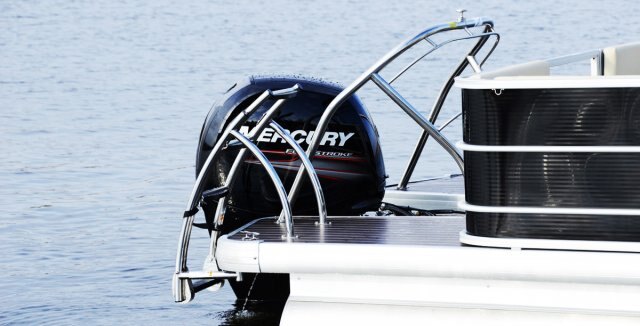

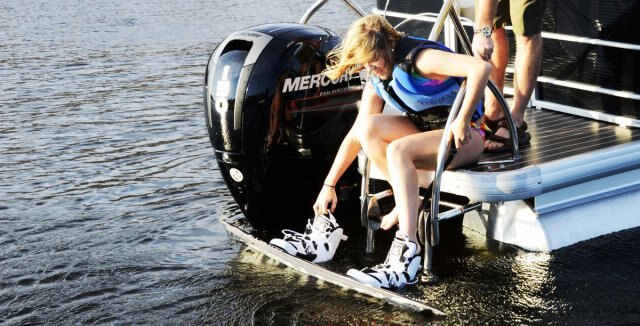

Walk-Around Rear Fun Deck
with Contoured EZ-Climb Ladder

Makes docking, loading or enjoying a fun day of wakeboarding or tubing with the kids a lot easier.
  Construction
  • 25″ diameter 0.080 gauge pontoon tubes with 3 separate and sealed pressurized chambers
  • Full-length protective extruded keels on tubes
  • 4 integrated tube-mounted lifting rings for secure mooring
  • Extra-wide 8 1/2’ beam
  • Treated 3/4” 7-ply marine-grade plywood floor with lifetime warranty
  • Through-bolted floor fastening and double-sealed deck seams
  • Snagless marine carpet
  • 1 1/4” raised aluminum fence rails with 3/8” risers for water run-off
  • EZ-Lift and Lock gates – 3
  • EZ-access rear gate for easy docking, loading and water sports
  • Anti-vibration foam-backed quiet fencing
  • Performance-enhancing all-aluminum V-transom
  • Stainless steel bow eye
  • Rounded Front Deck with Heavy Duty Deck rail corner castings
  • Rich Mahogany and Ivory vinyl front and rear decks for easy cleanup
  • Flex 50 Soft touch expanded vinyl seating
  • Strong tubes with chambers separated by interior bulkheads, pressure tested and sealed
  • Thick extruded 3” tall beams placed at 16” centers for superior deck strength
  • Decks fastened with large stainless steel elevator bolts and nylon lock nuts
  • NextWave electrical system using water-resistant plug-and-play Deutsch connectors
  • Large F-style rub rail support reinforces the entire deck
  • 1 1/4” anodized rails mounted on the outside for unique styling
  • Port and starboard extended stern platforms





Specifications
Model
Platinum Lounge
Category Name
Watercraft
Year
2014
Sale Type
New
Manufacturer
Legend
Fuel Capacity (gallons)
110 L
Overall Length
21’3″
Deck Length
19′
Beam
102″
Maximum Persons
14
Maximum Capacity(LBS)
2595 lbs.
Maximum Hp
150
Pontoon Length
20′
Pontoon Diameter
25″
Aluminum Thickness
0.08
Hull Weight
2415 lbs.
Livewell/Cooler
1
