Legend Boats

ID # 13225668

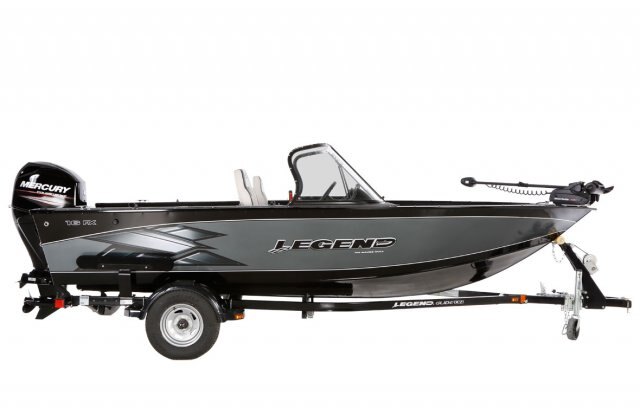

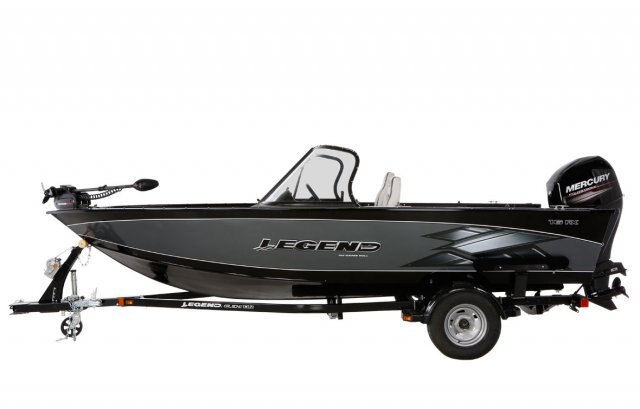

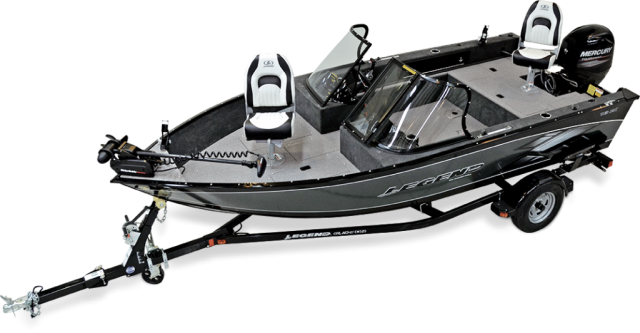

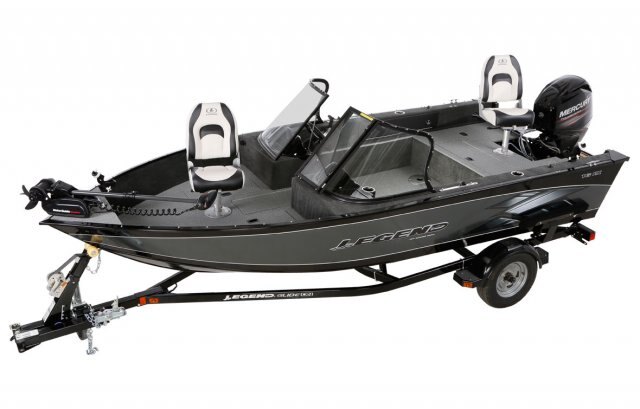

Legend 16 FX

Videos
Call for Price
Overview

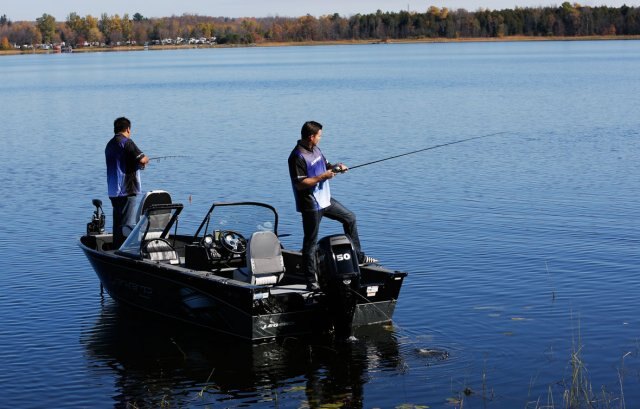

Fishing is my passion.
“My FX came with every fishing feature we wanted, like huge front and rear decks, lots of floor space, a big livewell with a spot for my bait and rod storage too.”
  Features
Three Row  Spike Drag Harrow

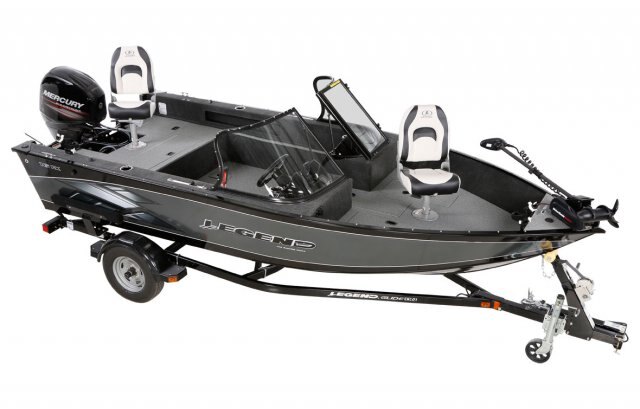

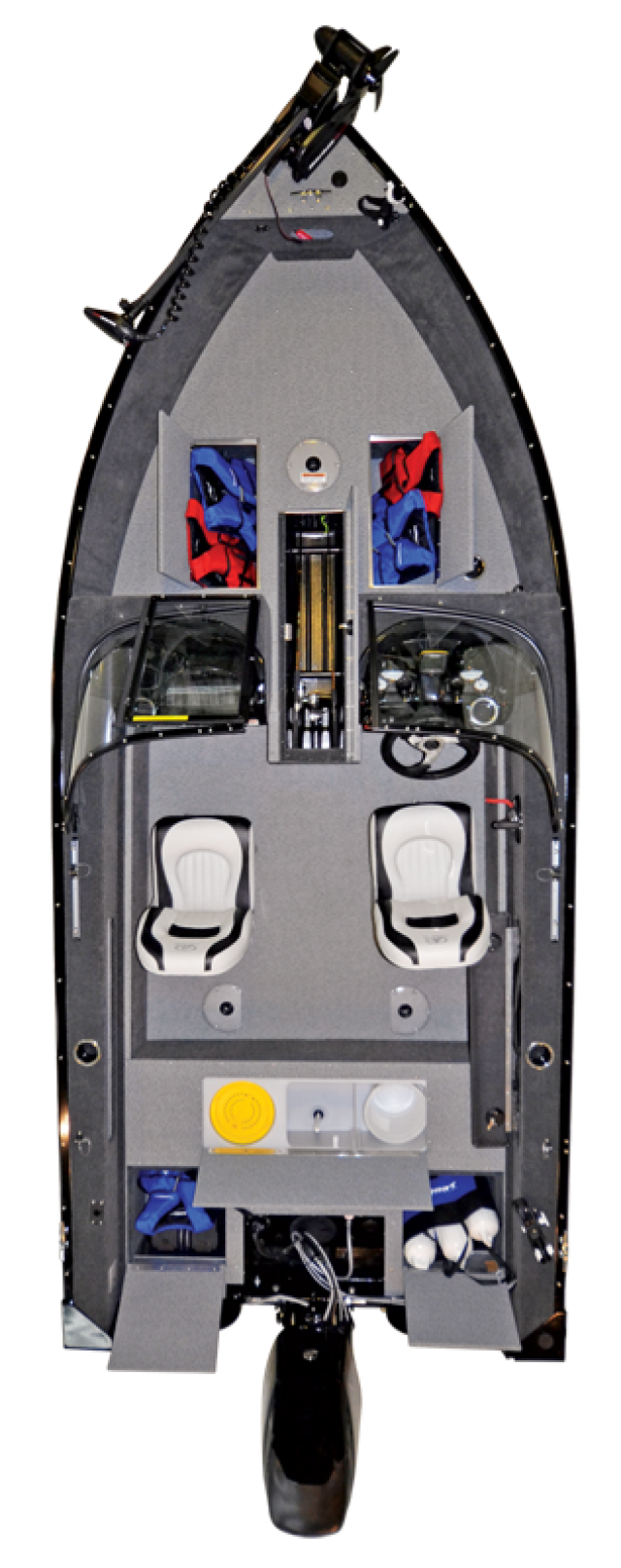

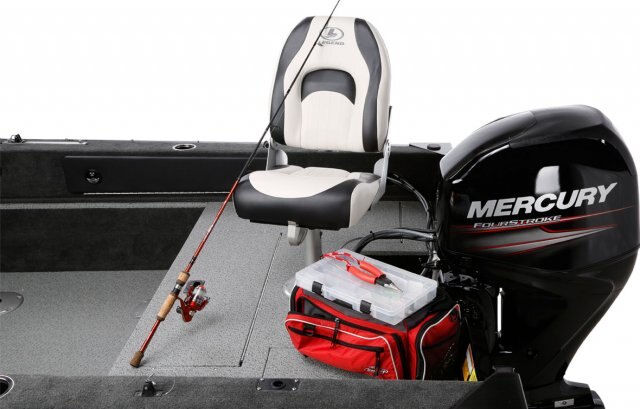

16 FX’s Dream Deck

A crazy amount of fishing real estate, tons of storage, and an awesome lockable 6-rod storage box.
Three Row  Spike Drag Harrow

Innovative driver’s Command centre

Although it’s hard to describe, something just feels right about a Legend console. It’s as if they adjust automatically when you sit down. The gauges are all easy to read even at night with their bright backlighting. Each switch is within reach and also backlit for clear night viewing. EZ-reset circuit breakers replace outdated glass fuses, just press to reset. The sleek custom-molded designs are mounted on strong aluminum sub-frames providing a solid foundation for excellent boat control. Some of our command centres even feature a built-in sink, tilt steering, a 12 volt outlet, integrated drink holders and a cell phone tray.
Three Row  Spike Drag Harrow

Complete Protection

Two consoles and a high, clear-curved full windshield ensure that nobody has bugs for lunch.
Three Row  Spike Drag Harrow

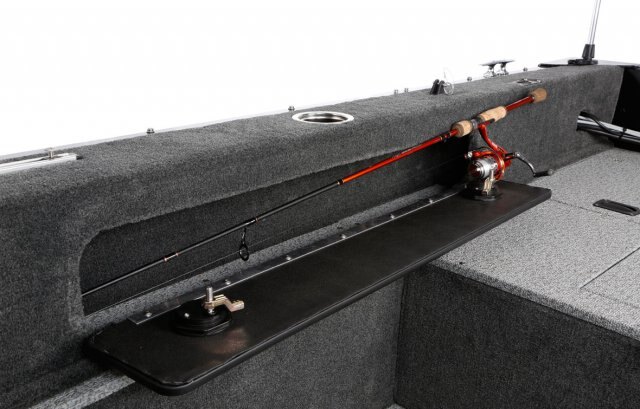

Safe Lockable Storage

Keep your rods and valuables safe in the lockable side storage compartment.
Three Row  Spike Drag Harrow

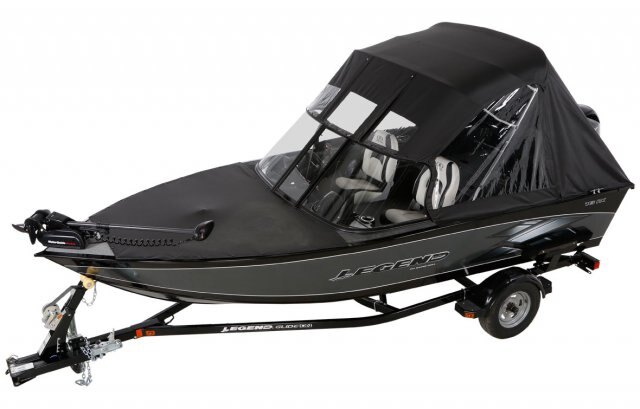

Everyone should have protection,
especially if it extends your season.
Being Canadian, we understand the harsh reality of the Canadian climate. That’s why every full windshield Legend model comes standard with the industry’s toughest, most practical stand-up top, constructed with Legend’s ProTech material. With a complete curtain set, custom fit and fastened down tightly with special Pull-A-Dot snaps, and our thicker three bar support system with all-metal fittings, you’ll be more comfortable, warmer, and dryer regardless of what Mother Nature throws at you.
  Construction
  • All welded hull construction
  • .100 gauge super-thick two-piece aluminum hull construction

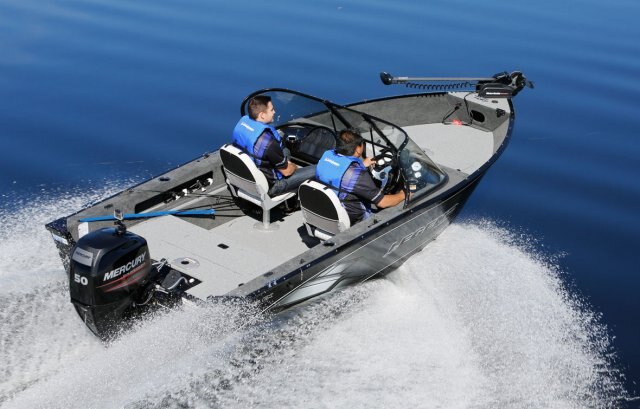

  • Wave-slicing Deep-V hull with reverse chines and extra-wide bottom – 10 degree
  • Multiple .100 gauge bow ribs and .100 gauge full-length bottom ribs for maximum strength
  • Injected and level foam floatation
  • Treated 7-ply marine-grade plywood floor and decks
  • 3M highly reflective safety striping
  • Torsion beam energy transfer system
  • EZ-clean Dura-Deck vinyl floor in cockpit area
  • EZ-clean Dura-Deck vinyl decks and gunnels





Specifications
Model
16 FX
Category Name
Watercraft
Year
2014
Sale Type
New
Manufacturer
Legend
Beam
82″
Transom Height
20″
Centerline Length
16’6″
Hull Depth
37″
Inside Depth
25″
Aluminum Thickness
0.1
Maximum Horsepower
90
Maximum Capacity
1393 lbs.
Hull Weight
995 lbs.
Full-width Benches
– 2
Package Length
18’4″
Package Width
70″
Towing Weight
2031 lbs.
Bottom Width
69″
Livewell
30 gal. bow
