Overview

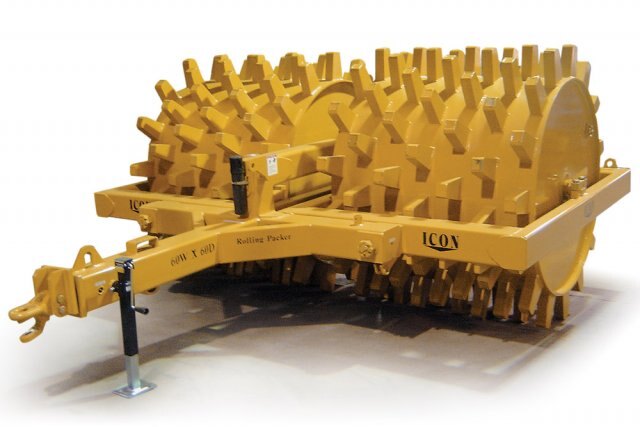

1205CarryAll_270x219px.jpgHeavy-Duty Rolling Machine

The ICON Rolling Packer line includes 4 models. Designed to assist in the compacting of job-sites, these machines will speed up final preparation and keep the job on schedule.

Versatility by Model

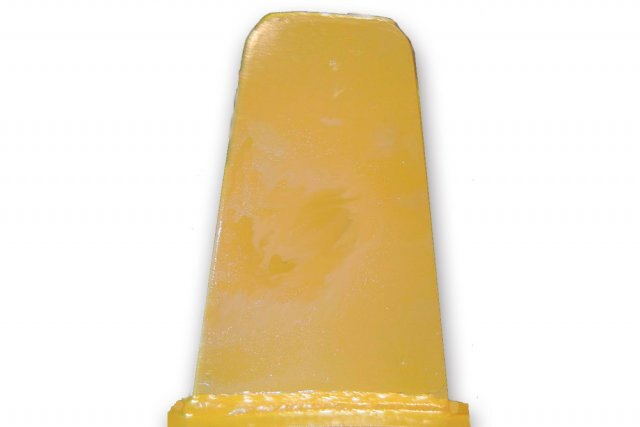

The performance of each of the models can be altered by adding or removing ballast from the rollers. Pressure per square inch ranges from 201 to 418 depending on the model and type of ballast used. The size of the packer teeth on the small model 48x48 is 7” tall by 2 ½” wide. The larger models all use packer teeth that are 9” tall by 3” wide. Tooth design is elliptical for increased speed and higher percentage of pack with less chipping. The frames are independently flexible for each drum. The drums are equipped with standard cleaners, which operate in forward and reverse, to keep moist wet soil from building up.

Construction Grade

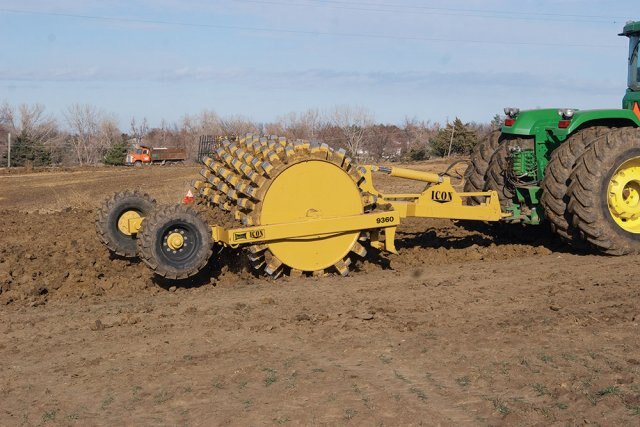

All drum shells are ½” thick. Fill plugs are standard on all drums. The heavy-duty design allows for tandem operation. Rear hitches are standard equipment. The hitches are equipped with both a single or double lip swivel. The 93x60 model is available with a hydraulic transport that uses 15L x 19.5 tires.
  Features

Big Roller for Big Jobs

  • Overall Packing Widths Range from 93” to 102”
  • Side by Side 2 Drum Design
  • Independent Flexible Frame for Each Drum
  • Drum/Tooth Cleaners
  • ½” Thick Drum Shell
  • Rear Hitch for Tandem Operation
  • Single or Double Swivel Hitch
  • Hydraulic Transport Available on Model 93x60
  • Model 93x60 can be Equipped with Optional Smooth Drum
 Specs




 48x48

 48x60

 60x60

 93x60

Approximate Weight (Empty) 10,880 lbs. (4,935 kg) 12,800 lbs. (2,805 kg) 14,220 lbs. (6,450 kg) 13,680 lbs. (6,205 kg)
Working Width 8 ft. 6 in. (2.6 m) 8 ft. 6 in. (2.6 m) 10 ft. 6 in. (3.2 m) 7 ft. 9 in. (2.4 m)
Transport Width 10 ft. 0 in. (3.0 m) 10 ft. 0 in. (3.0 m) 11 ft. 11 in. (3.6 m) 8 ft. 5 in. (2.6 m)
Transport Clearance N/A N/A N/A 12 in. (305 mm)
Overall Length 13 ft. 10 in. (4.2 m) 14 ft. 10 in. (4.5 m) 14 ft. 10 in. (4.5 m) 18 ft. 8 in. (5.7 m)
Number of Drums 2 2 2 1
Length of Each Drum 48 in. (1.2 m) 48 in. (1.2 m) 60 in. (1.5 m) 93 in. (2.4 m)
Drum Diameter - Without Teeth 48 in. (1.2 m) 60 in. (1.5 m) 60 in. (1.5 m) 60 in. (1.5 m)
Drum Diameter - With Teeth 62 in. (1.6 m) 78 in. (2.0 m) 78 in. (2.0 m) 78 in. (2.0 m)
Tooth Size 7 in. x 2.5 in. (178 x 64 mm) 9 in. x 3 in. (229 x 76 mm) 9 in. x 3 in. (229 x 76 mm) 9 in. x 3 in. (229 x 76 mm)
Number of Teeth on Ground 6 6 7 6
Number of Teeth per Drum 72 90 105 165
Total Number of Teeth 144 180 210 165
Total Drum Capacity 752 gal. (2,846 l) 1,175 gal. (4,448 l) 1,468 gal. (5,557 l) 1,090 gal. (4,126 l)
Weight, Filled with Water 17,046 lbs. (7,732 kg) 22,435 lbs. (10,176 kg) 26,257 lbs. (11,910 kg) 22,618 lbs. (10,259 kg)
Weight, Filled with Wet Sand 22,987 lbs. (10,427 kg) 31,280 lbs. (14,188 kg) 36,440 lbs. (16,529 kg) 30,820 lbs. (13,980 kg)
Pressure per Square Inch, Empty 201 237 225 259
Pressure per Square Inch, Water Filled 315 415 416 418
Bearing Surface 9 in. (229 mm) 9 in. (229 mm) 9 in. (229 mm) 9 in. (229 mm)
Hitch Single or Double with Swivel Clevis Single or Double with Swivel Clevis Single or Double with Swivel Clevis Single or Double with Swivel Clevis
Transport Tires N/A N/A N/A (2) 15L x 19.5
Smooth Drum N/A N/A N/A Optional
Safety Chain Kit Standard Standard Standard Standard
Horsepower Requirements Not Published Not Published Not Published Not Published
