ID # 13240104

Landoll Utility Tag Model LT1016+4

  • Landoll Utility Tag Model LT1016+4
  • Landoll Utility Tag Model LT1016+4
  • Landoll Utility Tag Model LT1016+4
  • Landoll Utility Tag Model LT1016+4
  • Landoll Utility Tag Model LT1016+4
  • Landoll Utility Tag Model LT1016+4
  • Landoll Utility Tag Model LT1016+4
  • Landoll Utility Tag Model LT1016+4
  • Landoll Utility Tag Model LT1016+4
  • Landoll Utility Tag Model LT1016+4
  • Landoll Utility Tag Model LT1016+4
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Landoll_Trailer_UtilityTag_1016-4_CloseUpTailTilt_270x160.jpg Tilt Deck Tag Full 10,000 lb. Capacity Plus Stationary Deck

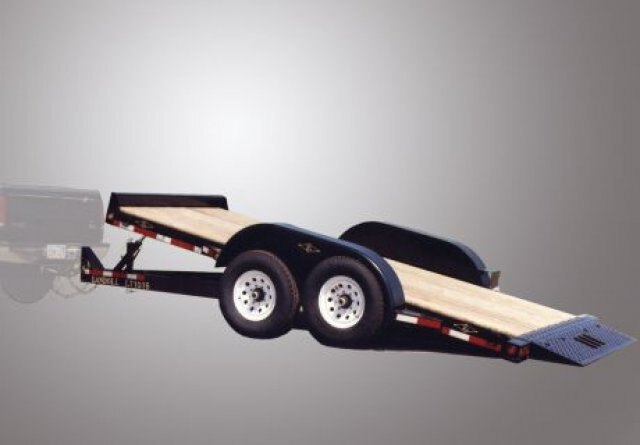

The LT1016+4 is a 10,000 lb. capacity, 20'  tilt trailer featuring a 16' tilt deck plus a 4' stationary deck for attachments, pallets, or supplies. A cushion cylinder tilts the deck for easy loading and unloading.  A heavy duty bed lockdown secures the bed in transport position. The LT1016+4 is designed to haul light construction and landscaping equipment. Numerous options such as a tilt control system and LED lights are available to fit the trailer to your particular needs.
  Features
  • *Load Capacity:  10,000 Lbs.
  • G.V.W.R.  13,500 Lbs.
  • Estimated Base Weight:  3,500 Lbs.
  • Main Frame:  6" Channel
  • Crossmembers:  4" Jr. I-Beam 80,000 PSI Yield on 24" Centers
  • Jack:  7,000 Lb. Top Crank Bull Dog
  • Tires:  235/80R 16LRE
  • Wheels:  Steel Wheels - 8 Bolt Pattern
  • Axles:  2-6,000 Lbs. Ez Lubes

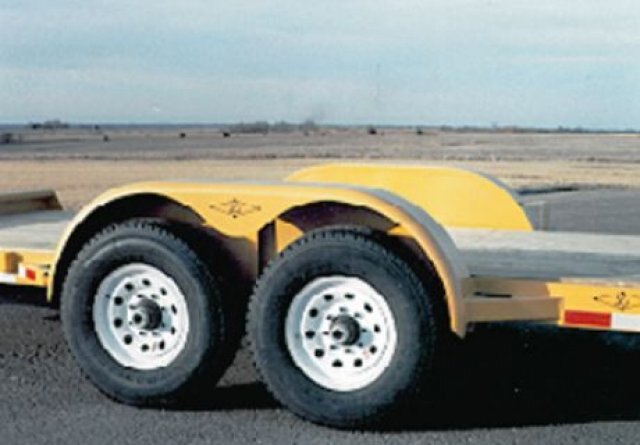

  • Suspension:  Torflex Axles
  • Brakes:  12" x 2" Electric Brakes (Both Axles)

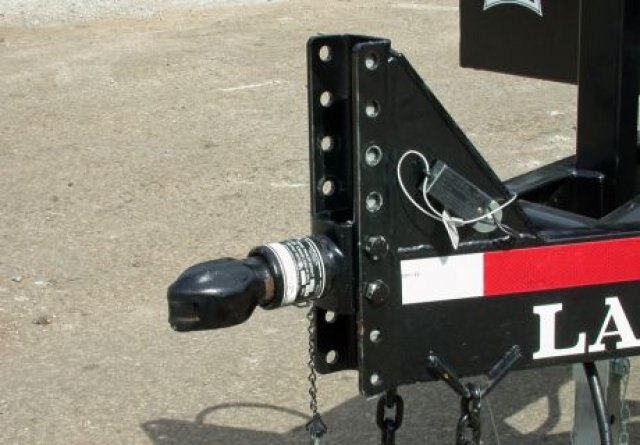

  • Hitch:  Your Choice: 2 5/16" Ball or 3" Pintle Hook, 12" Vertical Height Adjustment--12,000 Capacity
  • Toolbox:  Under Deck
  • Decking:  2" CA-B Copper Azole Treated Pine
  • Deck Height (Loaded)  22" Loaded
  • Width:  80" Inside Fenders - 102" O.A.
  • Length:  16' Tilt Deck + 4' Stationary
  • Load Angle:  11.4 Degrees

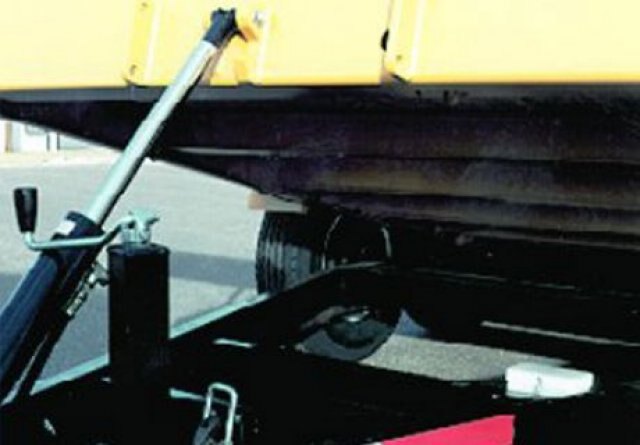

  • Tilt Cylinder:  2-1/2 x 16 Cushion Cylinder

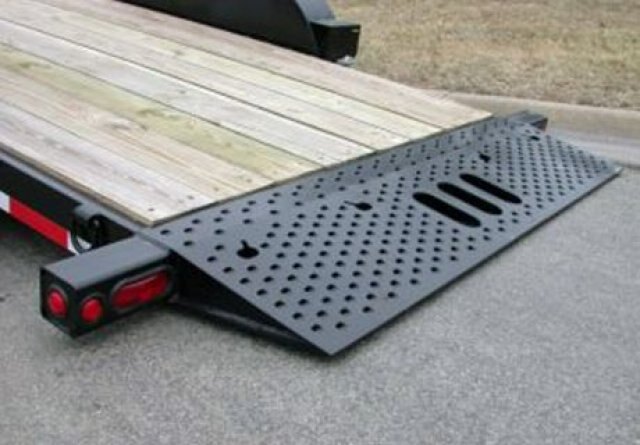

  • Approach:  Full Width Landoll Traction Plate

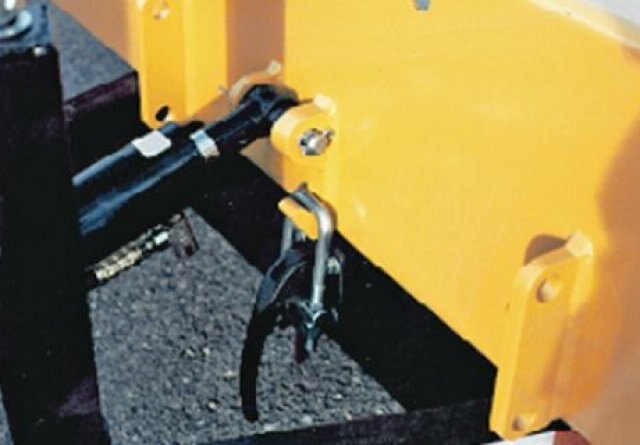

  • Lock Down:  Positive Over Center
  • Electrical:  6 Pole Electric Plug - Wiring in Conduit
  • Lights:  Sealed Beam - Per I.C.C & Federal Regulations
  • Fenders:  14 Gauge - Cold Rolled Formed with Back
  • Running Boards:  16 Gauge - Cold Roll Formed with Anti-Skid Tape
  • Tie Rings:  5/8" D-Rings (6)
  • Stake Pockets:  4 Per Side

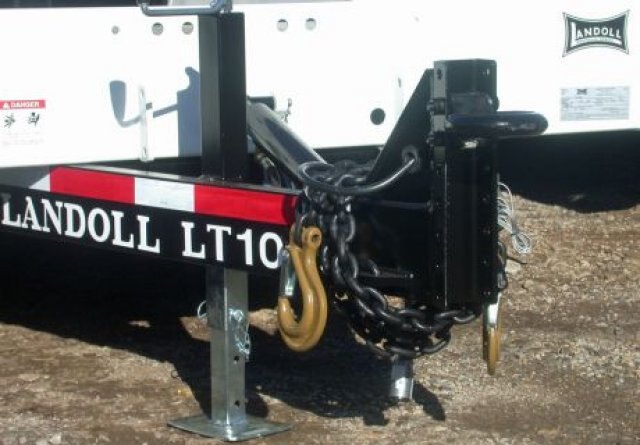

  • Safety Chains:  3/8" x 35" G70 Chain
  • Beak-Away Kit:  with GelCel Chargeable Battery and Box
  • Finish:  Your Choice: White, Black or Yellow, Non-Fading Scratch & Chip Resistant "Powder Coat" Paint
  • Decals:  Hi-Visibility Reflective Package



   Technical Specifications:



MODEL
CAPACITY
 BASE WEIGHT  DECK AXLES TIRES & PLY RATING
LT1016+4 10,000 lbs. xxxx 102" 2 235/80R 16LR E



Specifications
Model
Utility Tag Model LT1016+4
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
