ID # 13240059

Landoll Bottom Dump Model 314D-B

  • Landoll Bottom Dump Model 314D B
  • Landoll Bottom Dump Model 314D B
  • Landoll Bottom Dump Model 314D B
  • Landoll Bottom Dump Model 314D B
  • Landoll Bottom Dump Model 314D B
  • Landoll Bottom Dump Model 314D B
  • Landoll Bottom Dump Model 314D B
  • Landoll Bottom Dump Model 314D B
  • Landoll Bottom Dump Model 314D B
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Description



With the addition of a Model 314D tandem axle trailer to an existing 302D or 305D trailer, an additional 15 cubic yards of payload will be added to the load.  Some states, mostly in the Western United States allow this additional trailer to be pulled behind the bottom dump.
  Features

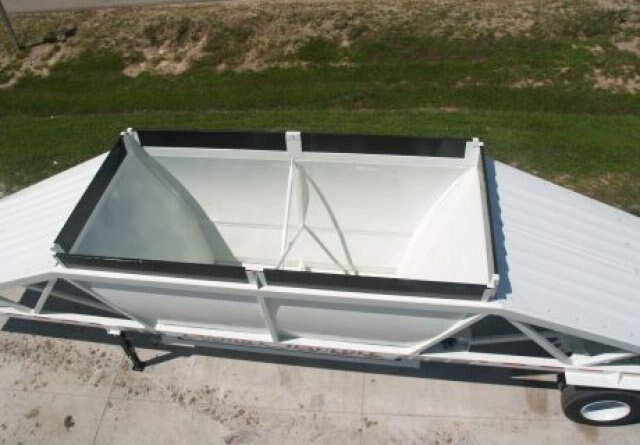

  • *Capacity: 15 Cubic Yards
  • Estimated Base Weight; 13,115 Lbs.
  • Main Frame: Tubular Trust Design
  • Target Area: 12'4" L x 88" W
  • Height: 8'11"
  • Tires: 11R 22.5 Radial LRG Double Coin
  • Wheels: Hub Pilot 10 Hole Disc Steel
  • Hubs; Steel Hubs/ Outboard Brake Drums
  • Axles: 4 25,000 Lb. Dual Tandem Tire, Oil Bath Bearings
  • Suspension: 4-Spring 3 Leaf Front and Rear

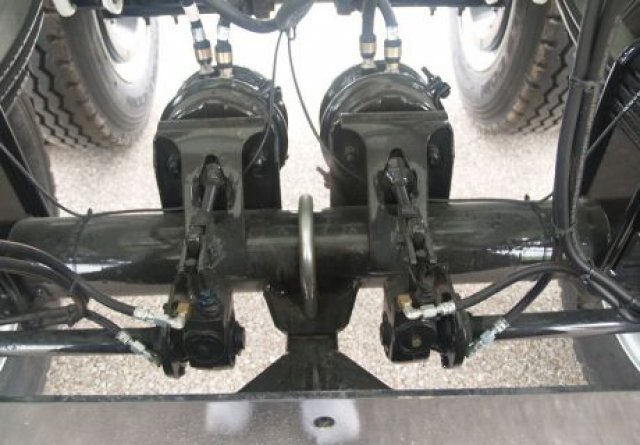

  • Brakes: 16.5x7 Full Air/Spring Brakes ABS,
  • Oil Seal Hubs: Internal Mated Assembly
  • Width: 96 Inches
  • Air/Electrical: Glad Hands/7 Way Receptacle
  • Lights: Sealed, Potted, "LED",Grommet Mounted with Sealed Wiring Harness
  • Finish: Steel Grit Shot Blast to Bright Metal
  • Powder Coat Color: White/Black/Yellow/Blue/Red/Green
  • Air Cylinders: 2 - 7" Bore x 30" Stroke
  • Decals: Hi-Visibility Reflective Package
  • Gate Air Reservoir Capacity: 40 Gallon

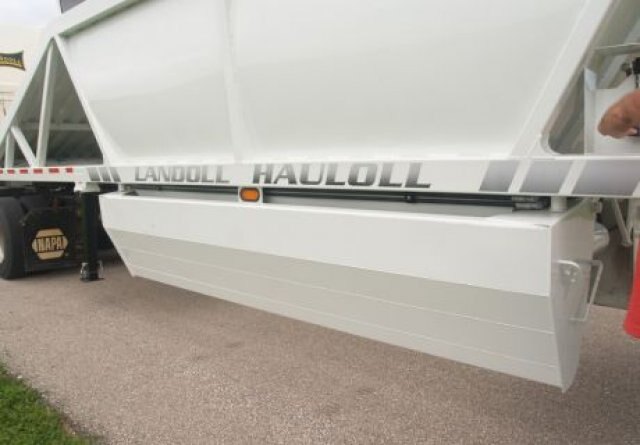

  • Gates: Single Air Operated Windrow Type 59"x58" Opening
  • Hitch: No Draw Bar Standard

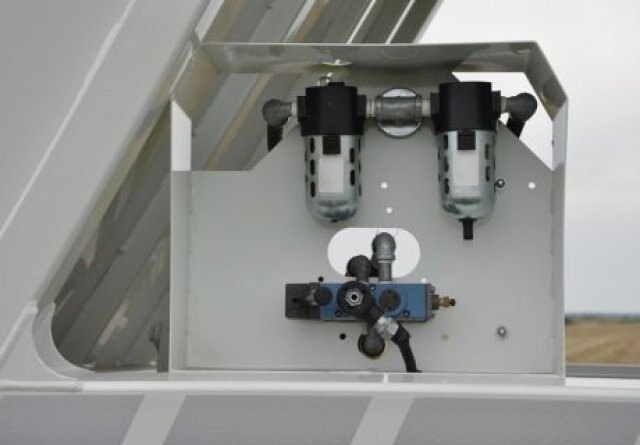

  • Accessories: Bolt on Full Front/Full Rear Fenders with Mud Flaps, Air Line Lubricator, Water Separator, Manual Gate Control Valve, Auto Slack Adjusters



   Technical Specifications:



MODEL
CAPACITY
GATES
  DECK AXLES
TIRES & PLY RATING
314D-B 15 Cu. Yd. Single Gate  26'2" 4 (16) 11R 22.5 Radial LRG



Specifications
Model
Bottom Dump Model 314D-B
Category Name
Trailers - Highway/Semi
Year
2014
Sale Type
New
Manufacturer
Landoll
