930 - Maximize Payload and Profitability

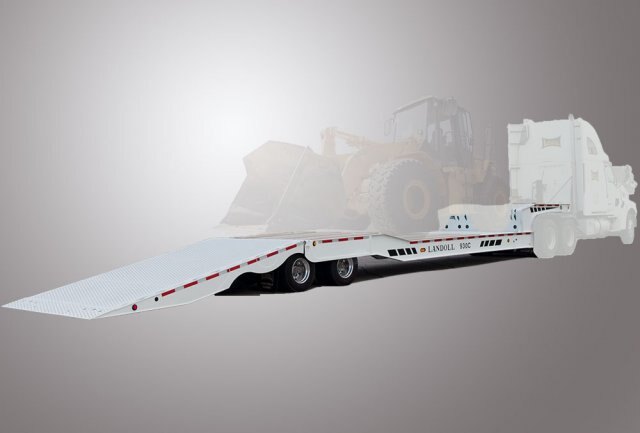

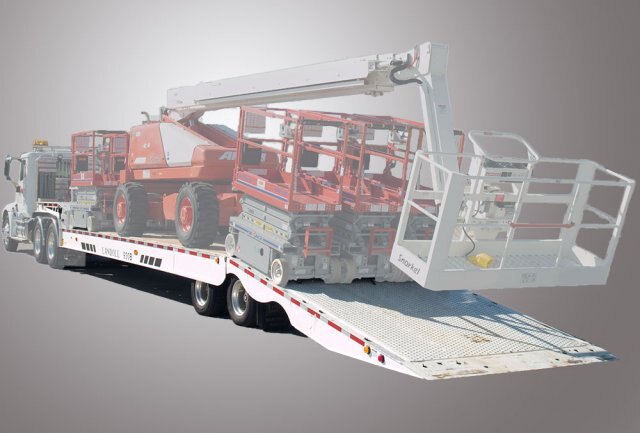

The Landoll 930 Traveling Tail is part of the 900 Series trailers.  The tail is capable of lifting 24,000# up to 53" dock height.  Maximize your loads by utilizing the entire deck and maximize your payload by having the undercarriage five feet behind the main hinge. The longer wheelbase gives you proper weight distribution between tractor and trailer and fully supports the tail.

The traveling tail concept allows for stable dock loading and increases your payload by having a longer wheel base.

Standard Equipment

• *Capacity:  70,000 lbs.
• Deck Rating: 50,000 lbs. in 10'
• Estimated Base Weight: 16,300 lbs. (48')
• Main Frame: Fabricated 80,000 PSI Yield 4-Beam Design
• Crossmembers: 4" Junior I-Beam on 8" Centers
• Slope Drop: 90°
• Parking Stands: Jost Two-Speed
• Tires: 235/75R 17.5 LRH Double Coin
• Rims: 17.5x6.75 Tubeless
• Wheels: Hub Pilot / Steel Outboard Brake Drums
• Axles: 2 - 25,000 lb. Tandem Dual Tire, Oil Bath Bearings
• Suspension: Neway RLU228 Air Ride 22,500 lb. Capacity with Manual Dump Valve
• Brakes: 12.25x7.5 Full Air / Spring Brakes ABS, 4S2M
• Oil Seal Hubs: Internal Mated Assembly
• Hitch: Fifth-Wheel Kingpin
• Pin Setting: 18"
• Swing Clearance: 86"
• Loaded Ground Clearance; 20"
• Loaded Deck Height: 38"
• Width: 102"
• Decking: 1-3/8" Apitong Hardwood
• Air / Electrical: 7-Way Receptacle
• Tool Box: Twin Upper Deck Mounted with Lockable Door (7"H x 34"W x 29"D)
• Hydraulic Hook Up: Quick Couplers 2500 PSI / 14 GPM
• Lights: Grote "MicroNova" LED - 10-Year Warranty
• Wiring Harness: Grote "Ultra-Blue Seal" - 7-Year Warranty
• Finish: Steel Grit Shot Blast to Bright Metal
• Powder Coat Color: White / Black / Yellow / Blue / Red / Green / Dark Gray / Sapphire Blue
• Decals: Hi-Visibility Reflective Package

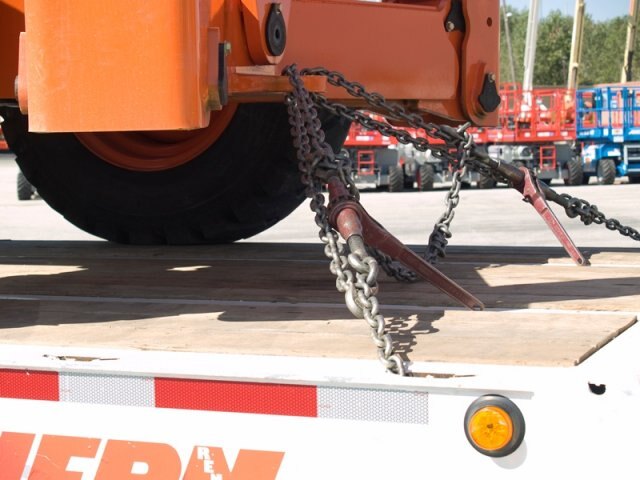

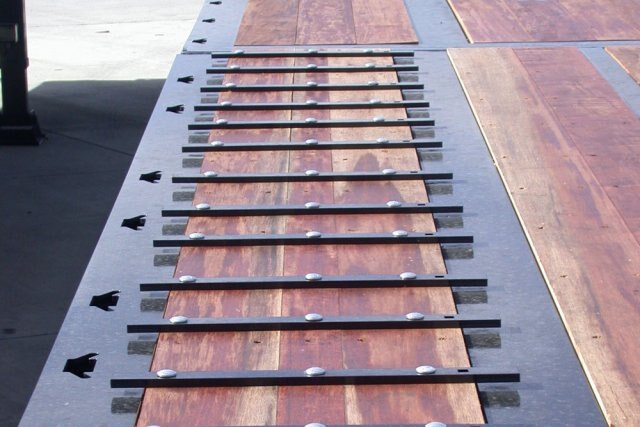

• Tie Downs: Double Key Hole Chain Slot Gotchas w/Square Stake Pockets on 16" Centers/6 Double Keyhole Chain Slots on Tail/2 D-Rings Lower Slope at Deck
• Tail Lifting Capacity: 24,000 lb.
• Hydraulic Winch: Upper Deck 12,000 lb. Worm Gear with 85' of 1/2" Cable with Wear Plate
• Undercarriage: Centralized Grease System
• Load Angle: 11° with 15' Tail

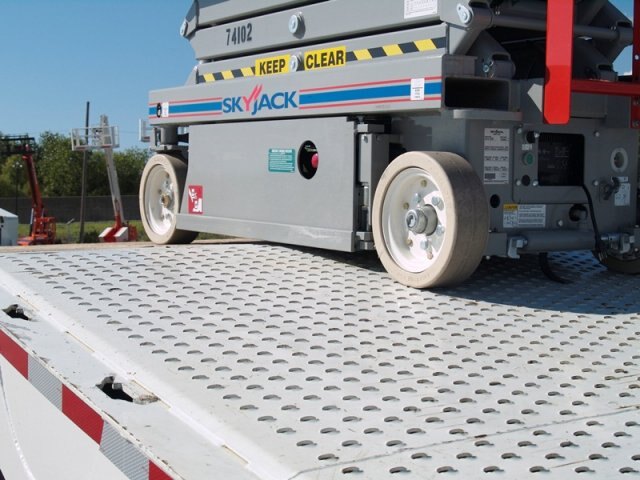

• Features: Automatic Slack Adjusters, Flat Approach Plate, Apitong Wood Covered Tail
• Hydraulic Valve Body: Rexroth 20GPM @ Control, 50GPM Max
