versatility plus many standard features

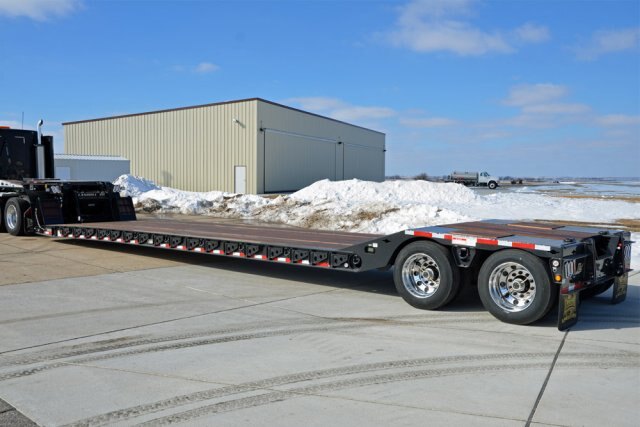

The Landoll 800 Paver Series’ versatility originates in its primary standard features. The new innovative 4-beam frame features a flat deck with a loaded height of 18". The 835-PS is a 2-axle, 70,000 lb. capacity with a 12’ concentrated deck rating. The 835 two axle frame is third flip axle ready.

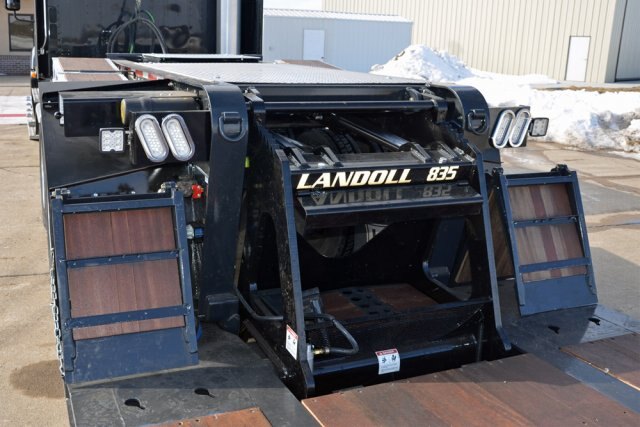

Patented gooseneck design - flexibility

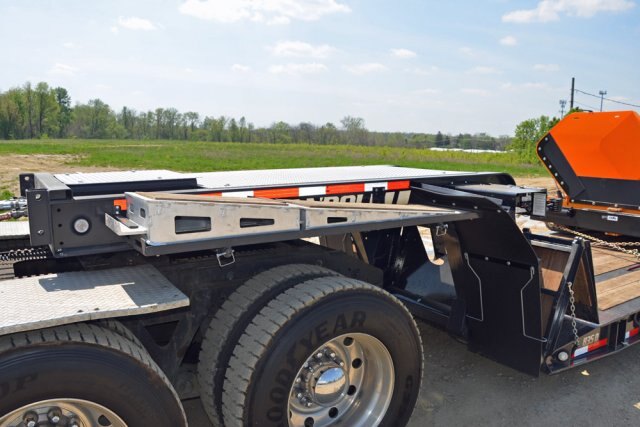

The gooseneck is a Landoll patent that gives the operator the control at his fingertips. Swing clearance is 84", with a pin setting of 15".   The 7-position ride height on the 11'9" gooseneck gives needed ground clearance and lowers the deck height to carry extremely high loads. No other gooseneck offers such flexibility as the Landoll 800-PS Series.

complete package

The 800 Paver Series is the complete package. Maximum lower deck length allows you to position your loads and scale legally. For heavy loads, the base trailer comes standard with flip axle brackets and air/electrical couplers. To move a permit load with ease, an optional flip axle can be added. The 800-PS Series is work ready with a flattened front approach, apitong wood in track area, a recessed storage compartment and swing-out overwidth extensions. The front, double outrigger is for added strength at the break over. There are traction bars on the approach and on the front half bolster for added traction.

standard equipment

    Capacity:         35 Ton
    Deck Rating:    60,000 Lbs. in 12 Foot  70,000 Lbs. in 16 Foot
    Estimated Base Weight:        19,120 Lbs. (53')
    Main Frame:   Fabricated 11-3/8" Beam, 100,000 PSI Flange
    Crossmembers:          6" High Tensile I-Beams on 21-3/8" Centers
    Tires:   255/70R 22.5 Double Coin LRH
    Rims:   22.5 x 8.25
    Wheels:           Hub Pilot/Steel Outboard Brake Drums
    Axles:  2 - 25,000 Lb. Tandem Dual Tire, Oil Bath Bearings 50" Spacing
    Suspension:    Neway Air Ride 25,000 Lb. Capacity
    Brakes:            16.5 x 7 Full Air/Spring Brakes ABS, 4S2M
    Oil Seal Hubs: Internal Mated Assembly
    Pin Setting:     15 Inches
    Swing Clearance:        84 Inches
    Loaded Ground Clearance:    6” Front 12” Rear
    Loaded Deck Height:  17.5” Front 24” Rear
    Width: 102 Inches
    Decking:          2" Nominal, Apitong Full Covered Lower Deck, Rear Trunnion Wheel Areas Covered
                Gooseneck:     12’ with 7-Position Fifth Wheel Ride Height
    Air/Electrical:  7 Way Receptacle
    Hydraulic Hook Up:    Quick Couplers 2500 PSI/17 GPM
    Lights: Grote "SuperNova" LED-10 year Warranty, Grote "Ultra Blue Seal" Harness 7-year Warranty
    Finish: 400 Degree Bake/Steel Grit Shot Blast to Bright Metal
    Color:  Zinc Rich Powder Primer Base, Powder Paint Color Choices: White/Black/Yellow,Blue,Red,Green

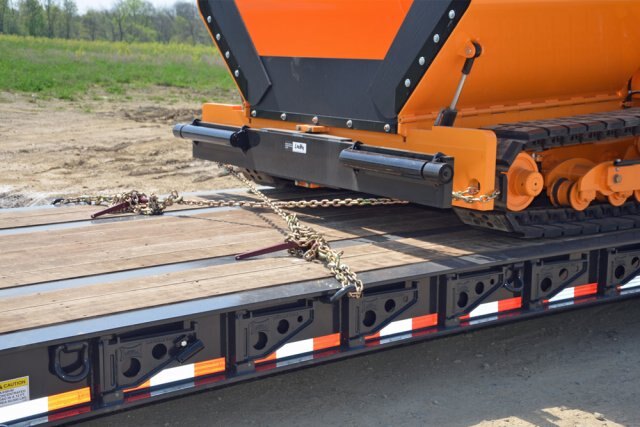

    Tie Downs:      18/22 Total, Angled "D" Rings, 7/9 each side lower deck, one on each bolster end, two (std. D) at rear of Trunnion
    Storage Area:  1-Right side opening at transition from lower deck to rear deck
    Cylinders:        Main Gooseneck Cylinders Horizontally Mounted

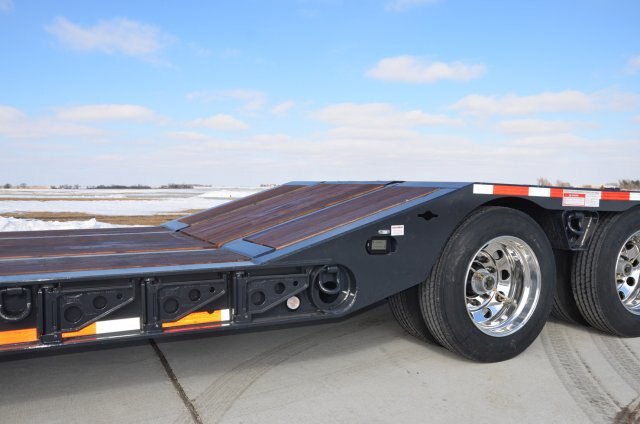

    Accessories:    Flip 3rd Axle Ready, 12" Swing-Out Outriggers, HD Sloped Front Approach w 4 Keyhole Chain Tiedown Slots each side, Open Boom Trough w "V" Type Bumper

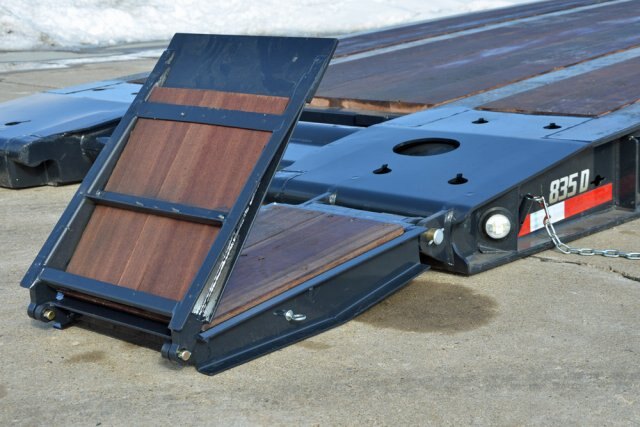

    Accessories:    Three Pair Flag Holders, Central Grease System all Axles, Front Ramps Track Area (64” Bi-Fold, 25 lb. Lift Spring Assist, 6 degree load angle), 4 Prong Electrical Outlet at Rear for Emergency Lights
